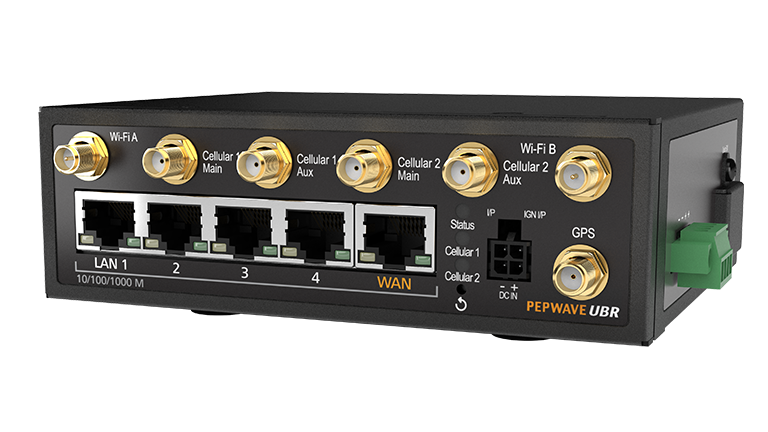

UBR – LTE

Unbreakable Connectivity Right Out of the Box

Dual-cellular router built to provide unbreakable connectivity at an affordable price. Comes with PrimeCare, making it easy to set up SpeedFusion-powered networks.

Dual-cellular Router UBR LTE (GE WAN, 4X GE LAN, 2X LTE) #2
Dual-cellular Router UBR LTE (GE WAN, 4X GE LAN, 2X LTE) #2

Affordable Unbreakable Connectivity

The UBR LTE provides an all-in-one WAN solution for industrial deployments with GE WAN, 4X GE LAN, and 2X LTE connectivity as well as Peplink’s SpeedFusion SD-WAN bonding technology.

Dual-cellular Router UBR LTE (GE WAN, 4X GE LAN, 2X LTE) #3
  • 1 x GE WAN Ports
  • 4 x GE LAN Ports
  • 2 x LTE Modems
  • SpeedFusion Bandwidth Bonding

Get it all with PrimeCare

Hardware Warranty
Software Upgrades
InControl2 Access
SpeedFusion

Straight out of the box, the UBR LTE provides unbreakable connectivity with PrimeCare, which includes SpeedFusion functionality, FusionHub licenses, and browser-based SD-WAN manage-ment with InControl.

Dual-cellular Router UBR LTE (GE WAN, 4X GE LAN, 2X LTE) #4

Built to Last

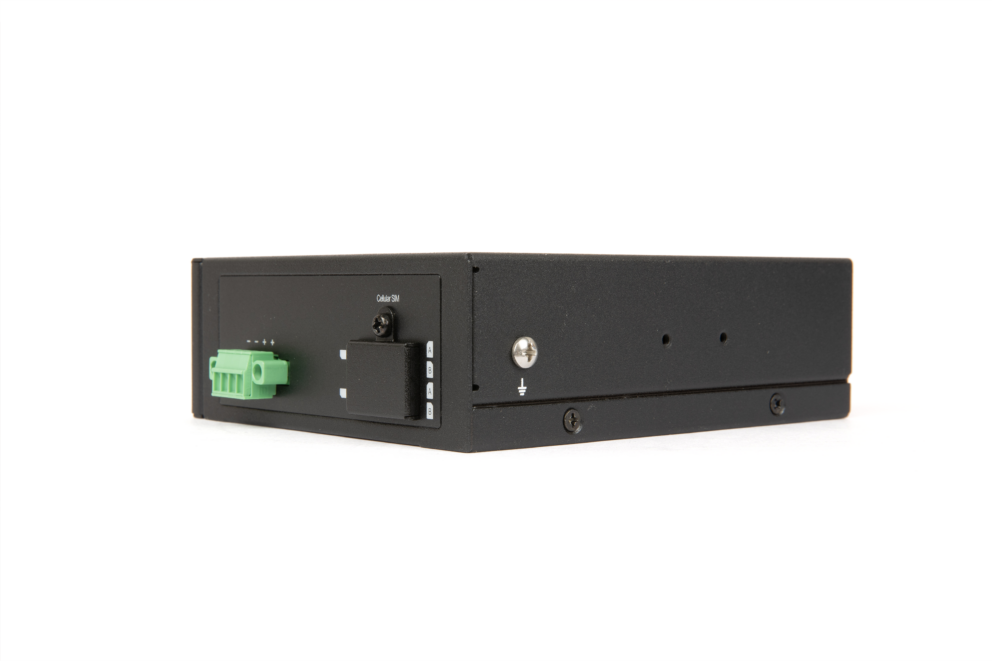

DIN mounts and Molex power connectors let the UBR LTE integrates seamlessly with your existing equipment racks. In addition, the fanless, ruggedized chassis supports an extended operating temperature range.

Dual-cellular Router UBR LTE (GE WAN, 4X GE LAN, 2X LTE) #5

Traffic Steering

Instantly recognize the application for each packet. Then apply different outbound policy, firewall rules, or even SpeedFusion technologies to the traffic depending on its application.

  • WAN Interface1x GE
    2x LTE Modems
    SIM Card SizeMini-SIM (2FF)
    Redundant SIM SlotsYes
    LAN Interface4x GE
    Wi-Fi Standards2.4GHz: 802.11b/g/n OR 5GHz: 802.11a/n
    Antenna Connectors4x SMA Cellular, 2x Wi-Fi, 1x SMA GPS
    Recommended Users1-60
    Router Throughput120Mbps
    SpeedFusion Hot FailoverYes*
    SpeedFusion WAN SmoothingYes*
    SpeedFusion Bandwidth BondingYes*
    Number of PepVPN SpeedFusion Peers2/5 *
    Power Input Device: 12V – 28V DC AC Adapter: AC Input 100V – 240V / DC Output 12V Terminal Block: 12V – 28V DC
    Power Consumption24W (max.)
    Dimensions5.1 x 4.3 x 1.6 inches | 130 x 110 x 41 mm
    Weight1.2 pounds / 515 grams
    Operating Temperature -40° – 149°F / -40° – 65°C
    CertificationsFCC, CE, RoHS, IC, E-mark
    EN 61000: Electromagnetic Compatibility
    Warranty1-Year Limited Warranty



     *Requires PrimeCare Subscription, complementary for the first year.

  • WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    WAN Port Convertible into LAN Port

    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionPepVPN/SpeedFusion Hot Failover^
    -Site-to-Site VPN
    -Hot Failover
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    IPsec VPN (Network-to-Network)
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    Advanced QoS Individual Bandwidth Limit
    Application Prioritization
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS

    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    Captive PortalSupport for Wired and Wireless LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3

    ^ Requires PrimeCare Subscription, complementary for the first year.

    All specifications are subject to change without notice.

    • UBR device
    • 12V2A Power Supply
    • 2x Wi-Fi Antennas
    • 4x 4G LTE Antennas
    • 1x GPS Antenna
  • Product CodeRegion | CarrierEmbedded Modem 4G Bands3G Bands
    UBR-LTE-E-T-PRMEurope/
    International/
    CAT-4
    2B1, B3, B5, B7, B8, B20, B38, B40, B41WCDMA/HSPA+/DC-HSPA+: B1, B5, B8

    UBR-LTE-MX-T-PRMLatin America/
    Australia/ CAT-4
    2B1, B2, B3, B4, B5, B7, B8, B28, B40WCDMA/HSPA+/DC-HSPA+:
    B1, B2, B5, B8
    UBR-LTE-US-T-PRMAmerica/
    CAT-4
    2Cellular 1: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41 Cellular 2: B12, B14, B4, B2, B5, B13, B66, B71Cellular 1: WCDMA/HSPA+/DC-HSPA+: B1, B2, B3, B4, B5, B8 Cellular 2: B2, B4, B5
