Balance 580

Protecting your Business Continuity

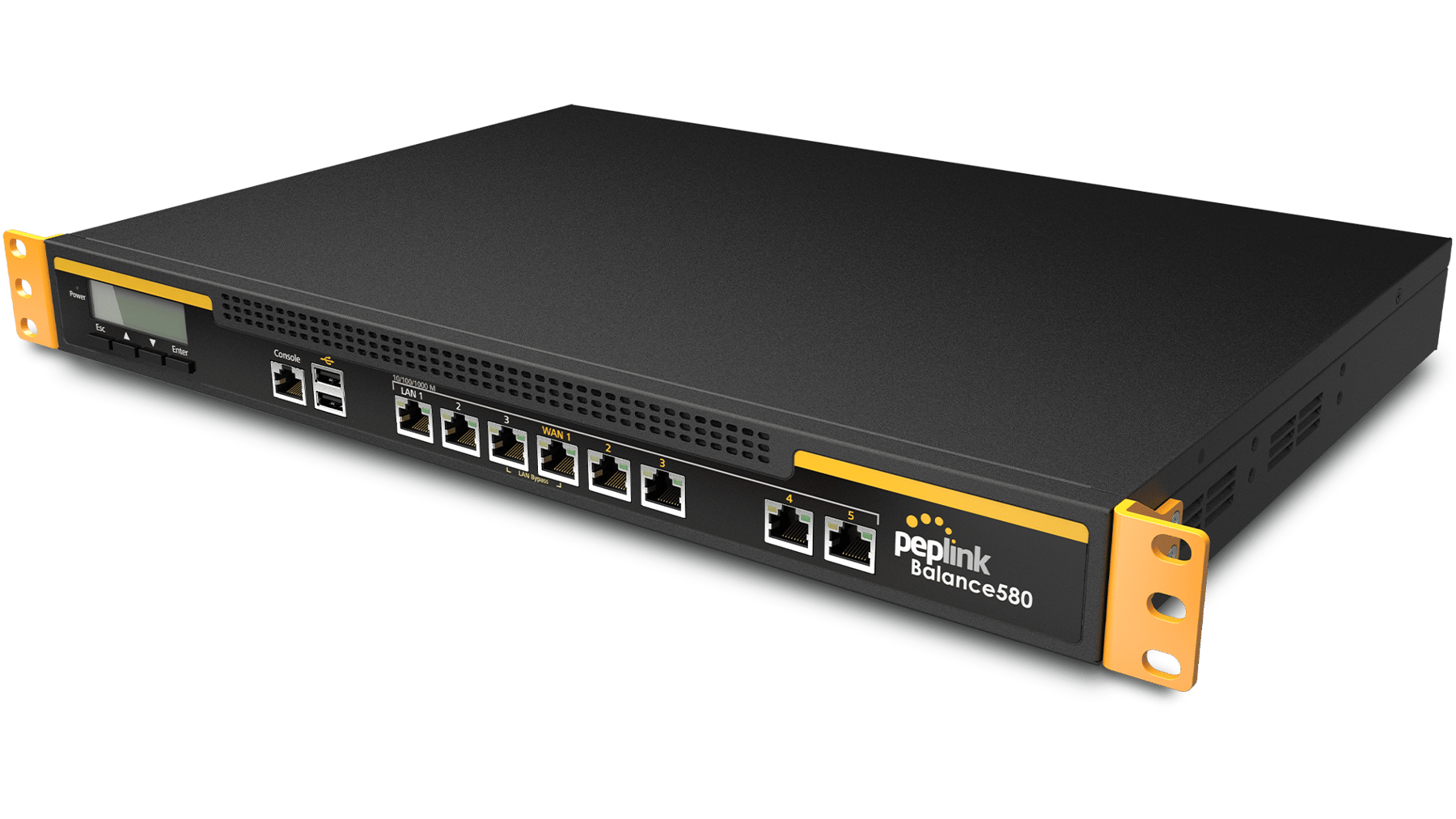

1.5Gbps Multi-WAN (5 Ports) Router Balance 580 #3

There’s a Perfect Balance for Every Situation

Peplink ‘s line of products includes features that make your enterprise deployment easier and increase your network reliability and security in several ways. Boost network data rates, reliability, and flexibility while slashing connectivity costs with Peplink SD-WAN technology designed for multi-WAN link load balancing. Use Load Balancing and SpeedFusion bandwidth bonding to deliver superfast VoIP, video streaming, and data using an SD-WAN enabled network.

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.

Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data streem.

1.5Gbps Multi-WAN (5 Ports) Router Balance 580 #4

Built to Last

Capable of years of uptime, the Balance  series easily handles monthly bandwidth that would crush lesser equipment. Every Peplink design is rigorously tested to exceed your expectations for speed, reliability, durability, and ease-of-use. We invest heavily in quality assurance and user experience testing to give you affordable, enterprise-class gear that just works, from the moment you take it out of the box.

InControl 2. Powerful Cloud Management Platform

Balance 580 is supported by InControl, Peplinks Cloud-Based SD-WAN Network Management Platform, which lets you provision, monitor, and manage your routers. All from a single screen.

Web Admin Demo

Experience powerful features of Balance Series web admin online demo.

Note: This is for demonstration purposes only and may differ from our latest UI. Functionality also varies amongst models.

Administrator Username and Password: admin / admin
Read-only Username and Password: user / user

1.5Gbps Multi-WAN (5 Ports) Router Balance 580 #5

#PowerofPeplink

  • SoftwarePeplink Balance Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    PING
    DNS Lookup
    HTTP
    Bandwidth Allowance Monitor
    IPv6 Support
    USB 4G/3G Modem Support
    Support for Dynamic DNS services
    changeip.com
    dyndns.org
    no-ip.org
    tzo.com
    DNS-O-Matic
    WAN Port Convertible into LAN Port
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    -Weighted
    -Enforced
    -Persistence
    -Priority
    -Overflow
    -Least Used
    -Lowest Latency
    SecurityDoS Prevention
    Stateful Firewall
    Web Blocking
    Complete VPN SolutionSpeedFusion VPN/SpeedFusion Bandwidth Bonding
    -Site-to-Site VPN
    -Bandwidth Aggregation
    -Hot Failover
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    -Dynamic Routing
    -X.509 Certificate Support
    PPTP/L2TP/OpenVPN Server
    -Local User, LDAP, RADIUS, Active Directory Authentication
    IPsec VPN (Network-to-Network)
    -X.509 Certificate Support
    GRE Tunnel (Network-to-Network)
    Advanced QoS User Groups
    -Bandwidth Reservation
    -Individual Bandwidth Limit
    Application Prioritization
    -By User Groups
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    BGP, OSPFv2 and RIPv2 Support
    Bonjour Forwarding
    AP Controller Support for Pepwave AP Series
    Auto AP Discovery
    Auto AP Firmware Management
    AP Profile Configuration
    Wi-Fi Usage Statistics
    Captive PortalSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Support LDAP Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    DNSBuilt-in Authoritative DNS

    -Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT Records
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
    Power RequirementsUniversal Input 100V – 240V AC
  • Product CodeDescription
    SFN-LC-100Enables up to 100 SpeedFusion Bonding peers for Balance 380 / 580
    FIPS-LC-B580FIPS License for Balance 580
    ECP-BPL-580-1YEssentialCare+ (1-Year) for Balance 580
    ECP-BPL-580-2YEssentialCare+ (2-Year) for Balance 580
    ECP-BPL-580-4YEssentialCare+ (4-Year) for Balance 580
    SVL-7111-Year EssentialCare for Balance 580
    SVL-6092-Year EssentialCare for Balance 580
    LIC-VWANActivate 1x Virtual WAN
    LIC-2VWANActivate 2x Virtual WAN
    LIC-3VWANActivate 3x Virtual WAN
  • Product CodeProduct NameProduct Description
    BPL-580Balance 5805x GE WAN ports and 3x GE LAN ports. SpeedFusion capable

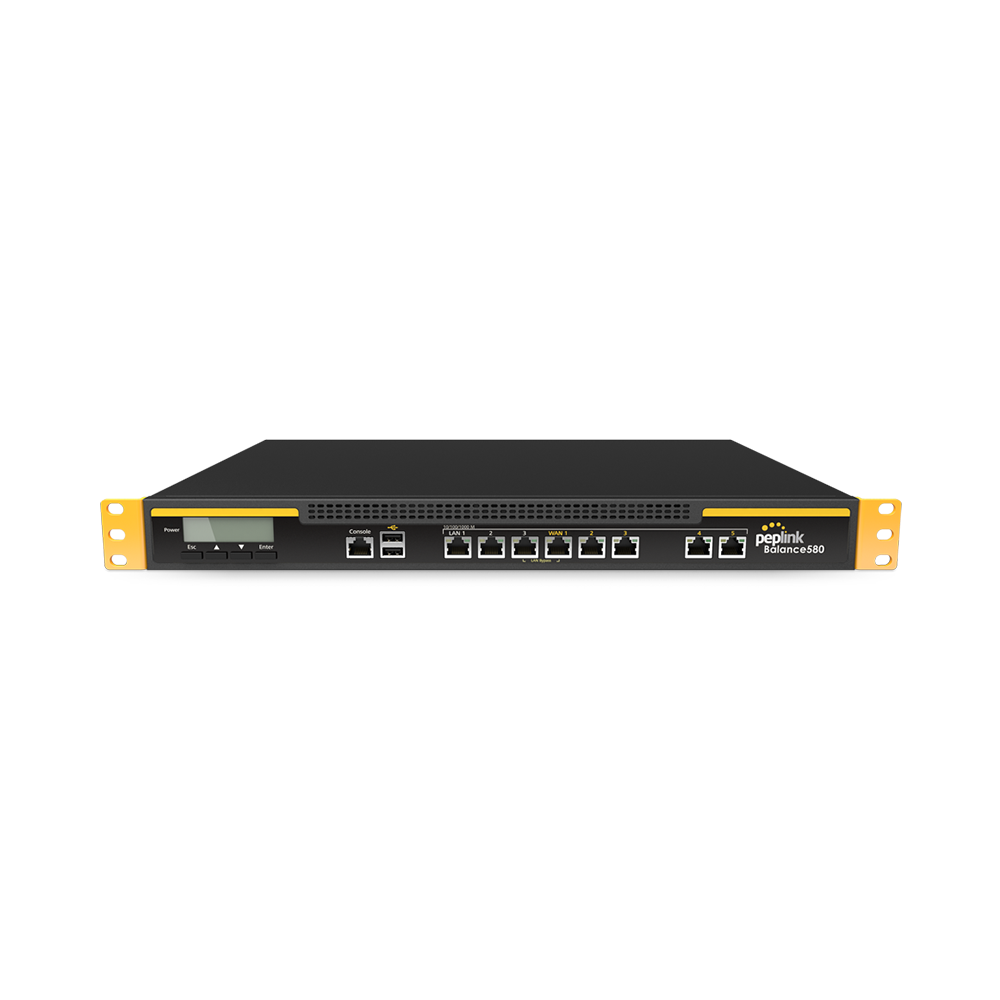

    • Balance 580
    • Power Cord (ACW-614)
    • 1 Pair of Mounting Brackets (ACW-382)
