Transportation

Comprehensive Transportation Connectivity Solution

Transportation deployments face a number of challenges. Spotty network coverage produces cellular dead spots throughout the trip. Even when connectivity is available, there may not be enough throughput for bandwidth-inten sive tasks such as streaming or video conferencing. SpeedFusion SD-WAN solves this problem by combining the bandwidth of multiple connections.

In addition, Routers, access points, and cameras all need a reliable supply of power to operate. The SD Power Management Unit (SD-PMU) and the upcoming BR1 Power regulates and manages power directly from the vehicle, while the rugged SD-Switches deliver 802.3at PoE to cameras, access points, and Ip Phones. To pull our ecosystem together, we have InControl cloud management. From any web browser, users could manage all the aforemen tioned devices as well as track the location of any vehicle equipped with a GPS-enabled Peplink router.

Provide unbreakable connectivity
and video surveillance for each train cabin

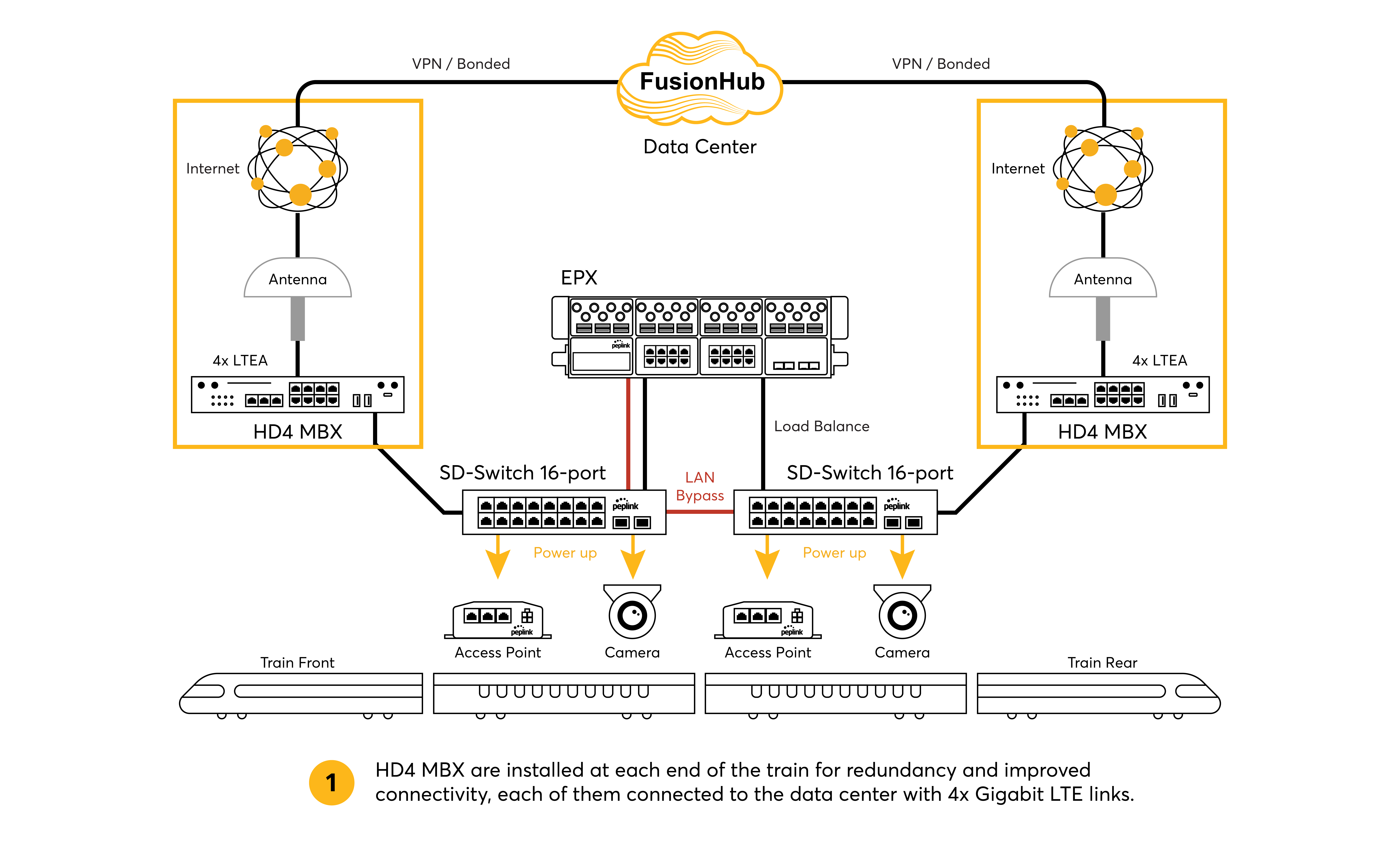

Cellular reception variedthroughout
the length of the train.

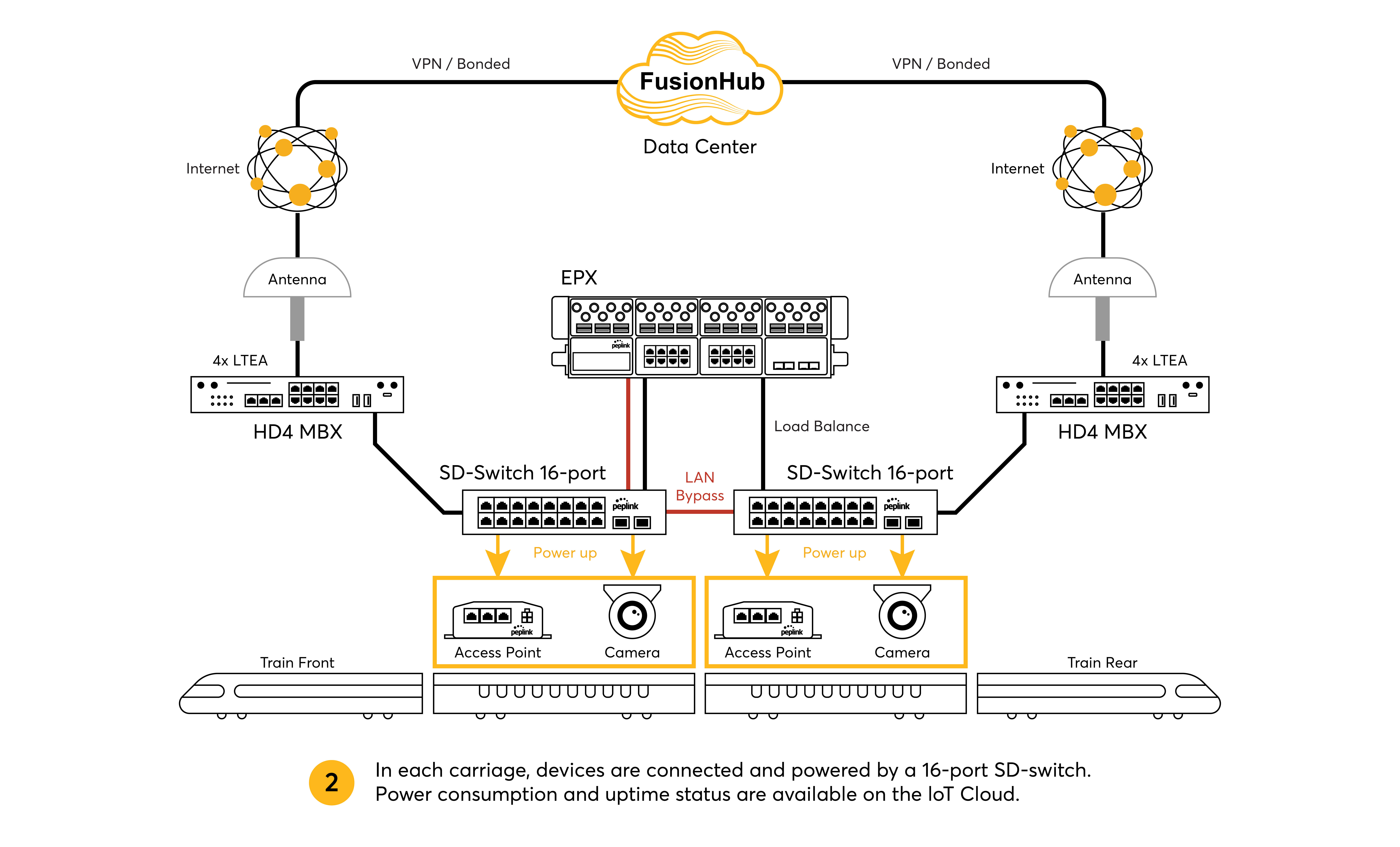

Access Points and Cameras needed to be connected and powered from batteries located at the first and last carriage.

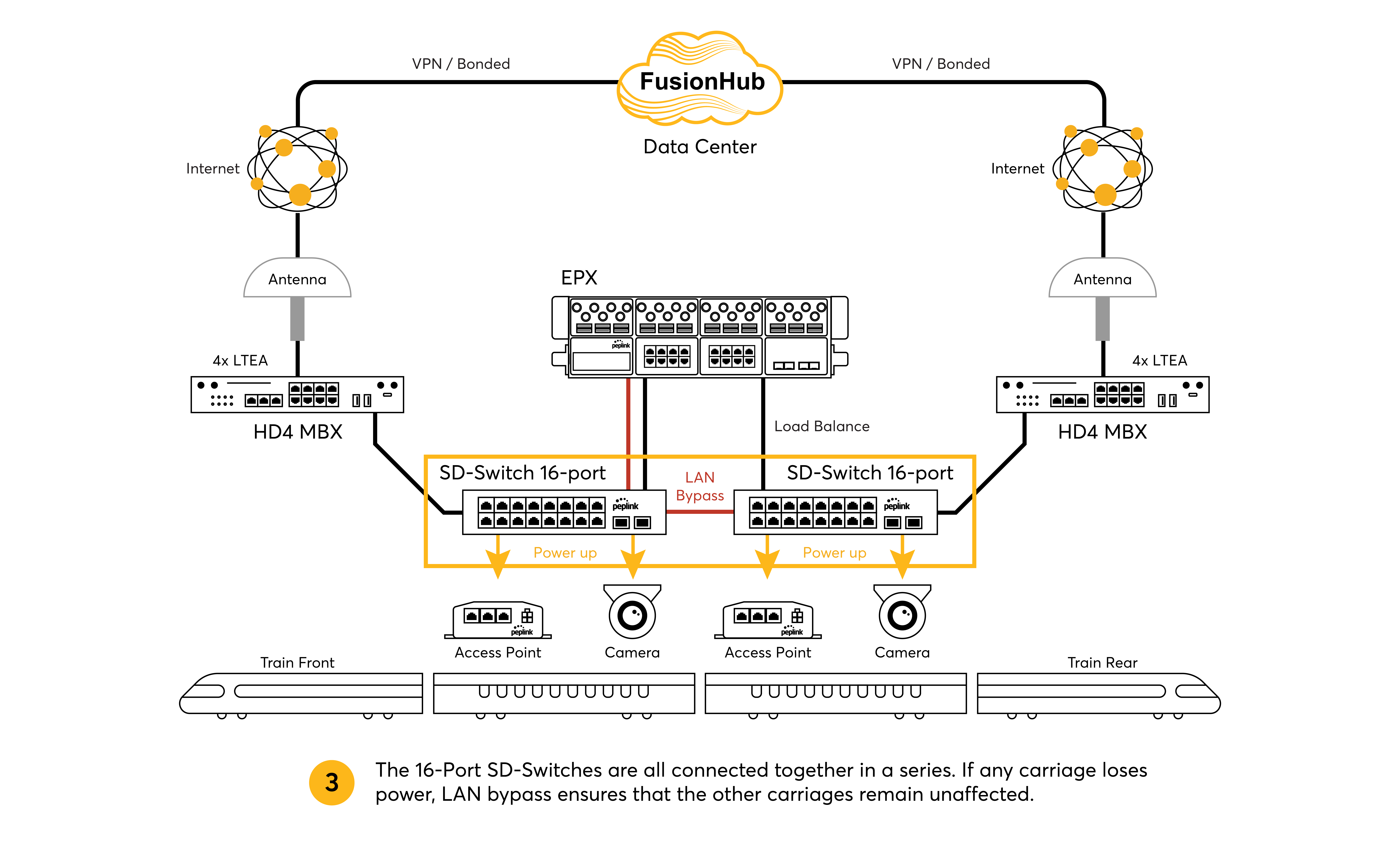

Only 1 Ethernet cable can travel
between each train carriage.

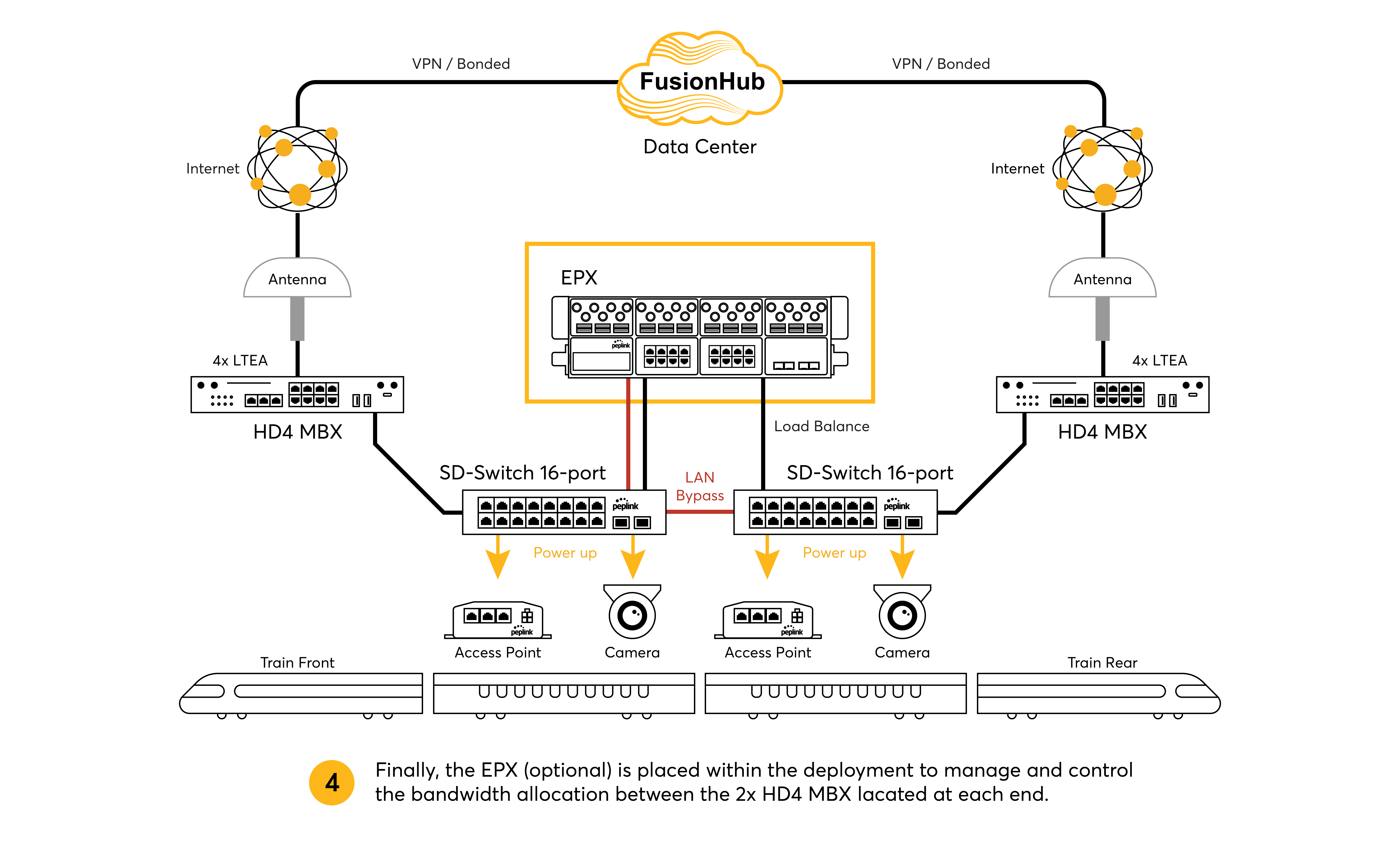

The Big Picture


Featured Products

SD-WAN Connectivity Solutions for Transportation #8

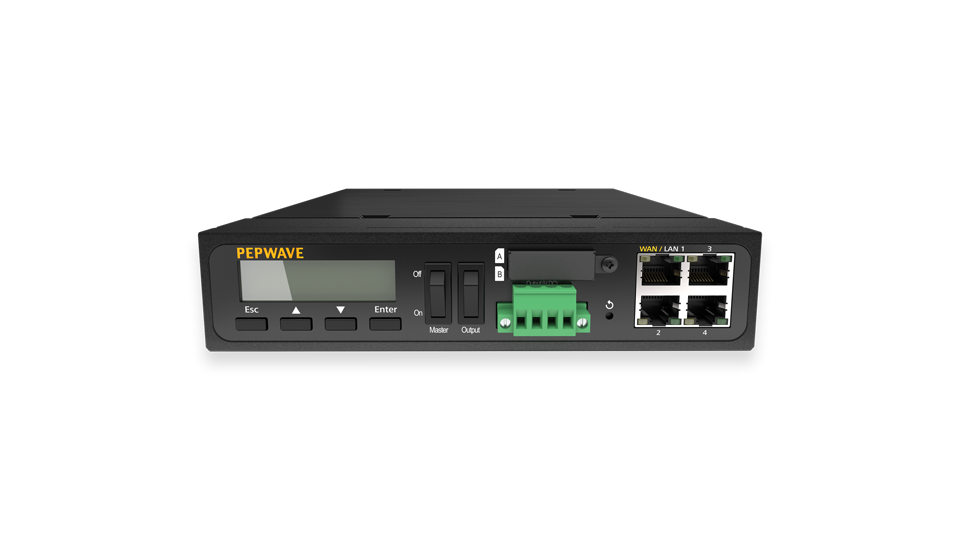

MAX BR1 Power (Coming Soon)
  • Converts fluctuating voltage from vehicles into reliable 52V for powering devices.
  • Integrated cellular enables Internet connectivity, and out-of-band management.
SD-WAN Connectivity Solutions for Transportation #9
MAX HD4 MBX
  • Cellular router, combines bandwidth of up to 4 cellular providers.
  • Removable cellular module, upgrade to 5G and other future technologies when needed.

SD-WAN Connectivity Solutions for Transportation #10

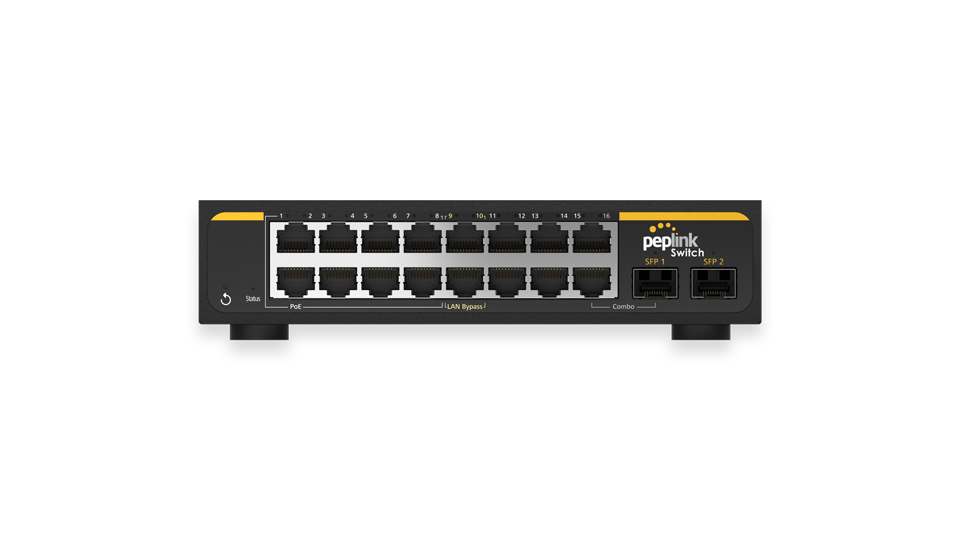

SD Switch 16-Port Rugged
  • Delivers 16x 802.3 PoE Outputs to power cameras, access points, and IP Phones.
  • Supports LAN Bypass , allowing network traffic through even if it loses power.
  • Fanless design, industrial temperature range.
SD-WAN Connectivity Solutions for Transportation #11
Balance 1350
  • Bandwidth Bonding router for wired deployments of all scales.
  • Manages each connection, redistributing traffic to “healthy” WAN connections.
  • Equipped with load balancing algorithms.
SD-WAN Connectivity Solutions for Transportation #12

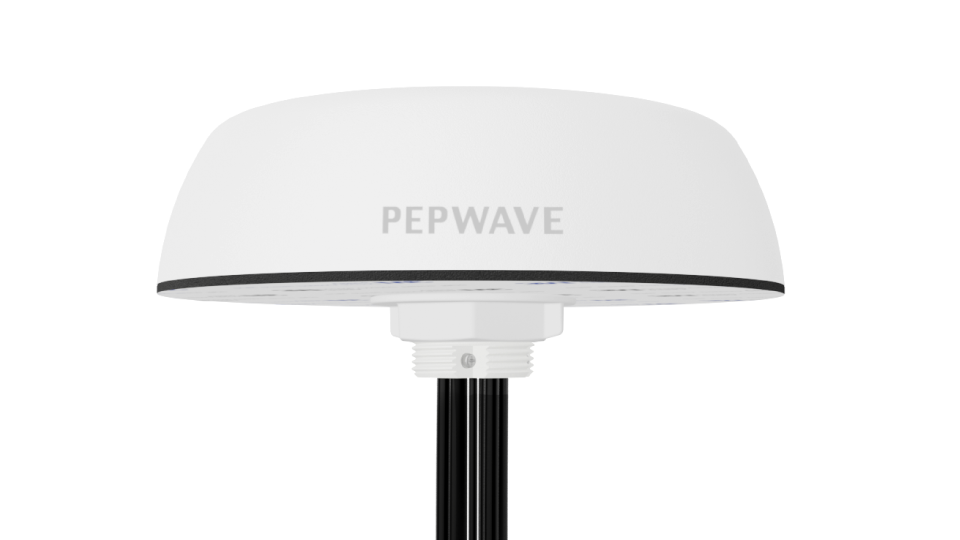

Dome Antenna
  • Precision assembled by machine
  • Built with high-quality cabling
  • Wide range to address different needs
SD-WAN Connectivity Solutions for Transportation #13
Industrial Grade Access Point
  • Provides Wi-Fi Connectivity
  • Can be centrally managed via InControl 2
  • Indoor and Outdoor form factors available
SD-WAN Connectivity Solutions for Transportation #14
M12 Series
  • M12 Connections for Ethernet Ports and Power
  • Twist-on connectors, stays on even when subject to shock and vibration
  • Two available Peplink models in the M12 series: MAX Transit | AP One Rugged
  • Fanless design, industrial temperature range.
SD-WAN Connectivity Solutions for Transportation #15

InControl 2

Cloud-Based Network Management Platform

InControl2 cloud-based endpoint management system enabling remote access to any Peplink device on your network. From a single screen, configurations can be pushed to any and all of your Peplink devices. InControl2 also generates useful reports on all aspects of your network, and can be integrated to your existing systems through API.
