EPX

Extreme Performance SD-WAN Platform

Introducing the industry’s highest performing SD-WAN platform. The EPX is a rapidly deployable, powerful, and versatile SD-WAN router that connects a wide range of WAN options from LTE-A, 5G, satellite modems, to fixed line networks. At a 19″ 2U rack mountable form factor, it can combine up to 24x cellular connections for absolute connection reliability.

Extreme Performance Modular SD-WAN Router Platform EPX
Extreme Performance Modular SD-WAN Router Platform EPX
Locate a Reseller

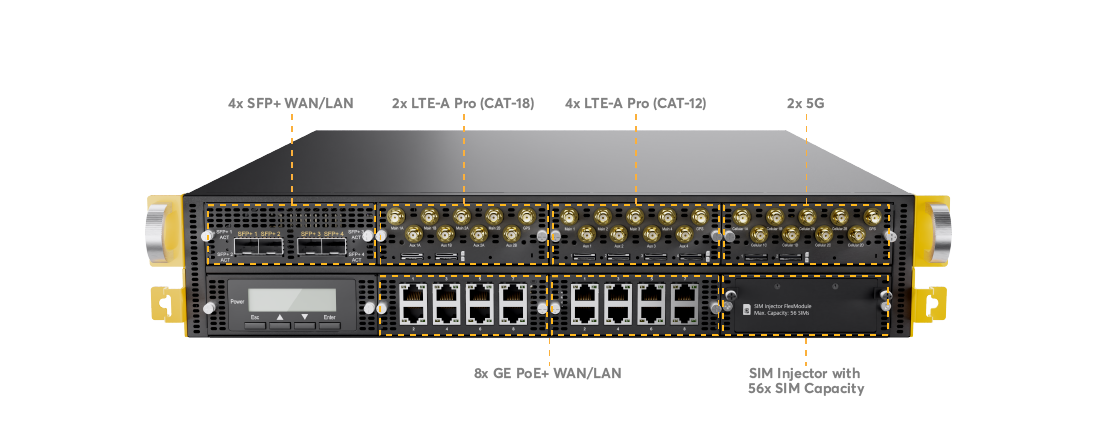

Future Proof Design

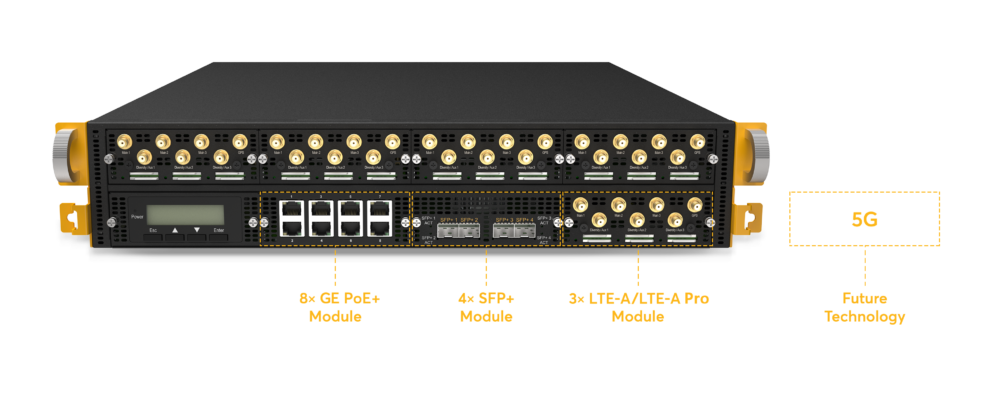

The EPX supports FlexModules, enabling you to customize the platform with your choice of ports, as well as instantly apply new technology as it will be released and available.

Peplink team will build additional FlexModules as new technologies such as 5G emerge. Simply insert the new FlexModule and the EPX will become 5G ready; no need to purchase a new device.

Modular Platform. Game Changer

4000 VPN Peers

30 Gbps Throughput

20 000 Users

Gigabit Bandwidth On-The-Go

In its cellular configuration, the EPX is the most powerful wireless SD-WAN router in the industry. It can combine the bandwidth of up to 24 connections*, supporting 48 SIM cards* and providing gigabits of bandwidth on-the-go.

*Require 6x EXM-4LTEA modules and 1x EXM-8C module.

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.

Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data stream.

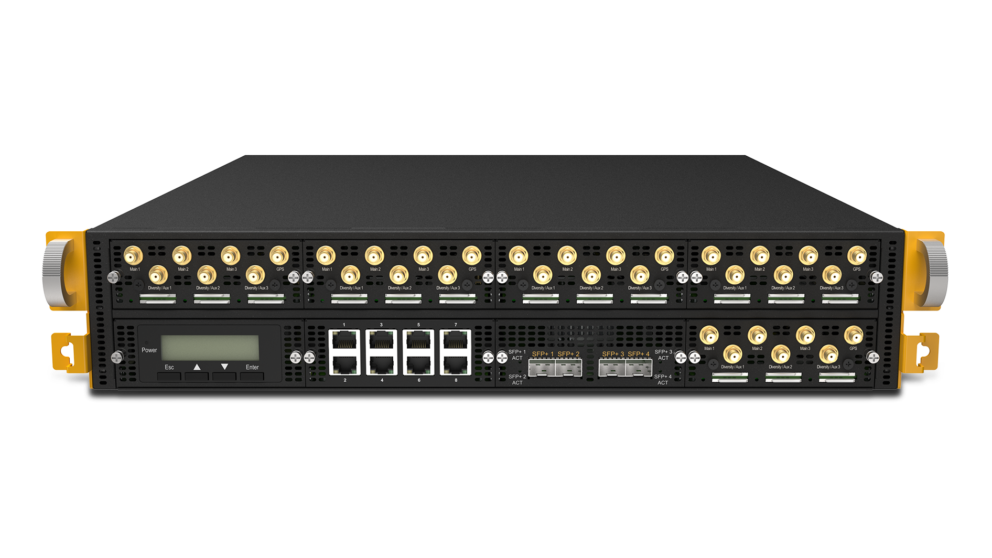

Different Cellular Configurations with Expansion Modules

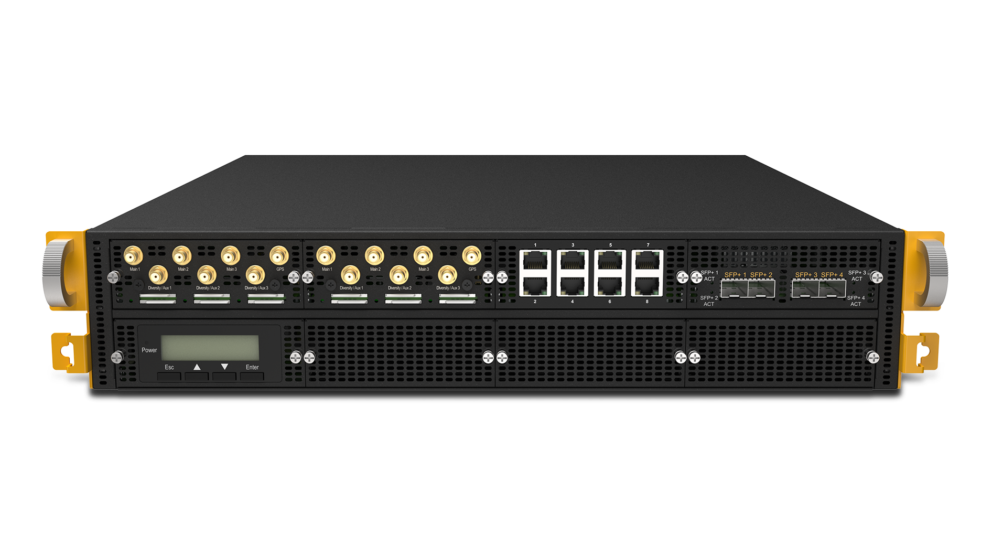

Extreme Performance Modular SD-WAN Router Platform EPX #10
Extreme Performance Modular SD-WAN Router Platform EPX #11
Extreme Performance Modular SD-WAN Router Platform EPX #12

Use Cases

Commercial LTE & Public Safety LTE
SD – WAN Backhaul
Cellular Backup for Branches
Work Sites

Combined Public & Commercial Safety LTE



Equipped with an EPX, mobile headquarters can combine private LTE, commercial LTE & satellite links to form fast and unbreakable VPN connection both to mobile HQ and to patrol vehicles. With this configuration, patrol vehicles benefit from increased cellular coverage. Even if they are outside the range of one cellular provider, they will still be within the range of others.

SD-WAN Backhaul for ISP



Whether providing Internet service with a SLA, or building a video surveillance streaming network, ensuring service continuity is crucial. The EPX enables service providers to build a flexible SD-WAN backhaul to the main network, incorporating as many Ethernet, Fiber, and cellular links as needed to provide fast and solid connectivity.

Cellular Backup for Regional Offices



With its modular architecture, the EPX enables regional offices to add WAN connections of any type as they grow in size. With the ability to add cellular modules, the EPX also provides as much cellular connectivity as needed for the company network to operate at full speed even if land lines lose connectivity.

Work Sites and Events



With the EPX, temporary sites could get connected in minutes. The EPX can combine up to 18 cellular connections for high-definition video streaming and high-volume data transfers. The EPX can also host docker containers, giving you the ability to host your own custom apps onsite to simplify management.

#PowerOfPeplink

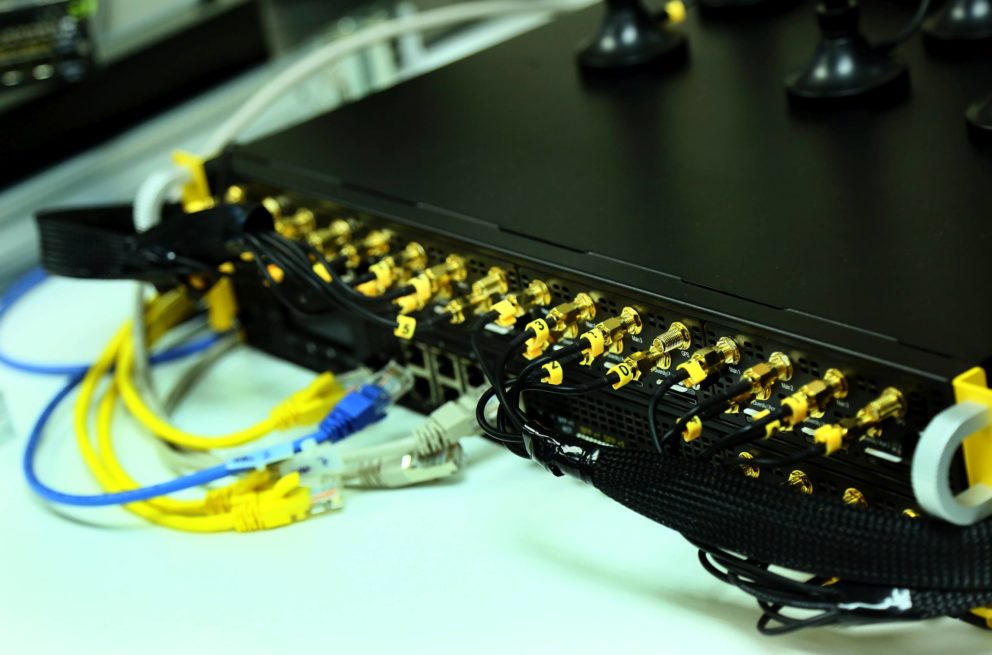

Extreme Performance Modular SD-WAN Router Platform EPX #13
Extreme Performance Modular SD-WAN Router Platform EPX #14

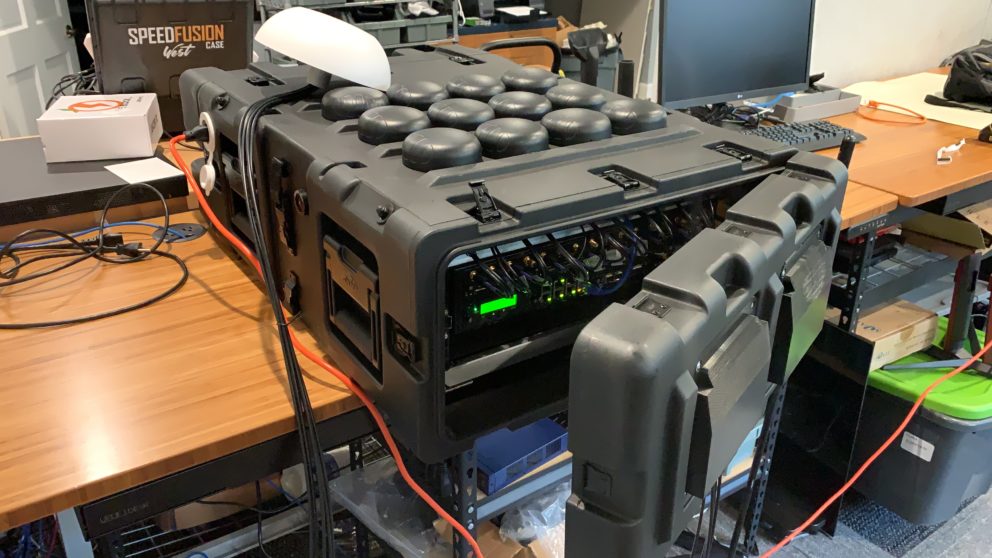

Extreme Performance Modular SD-WAN Router Platform EPX #15

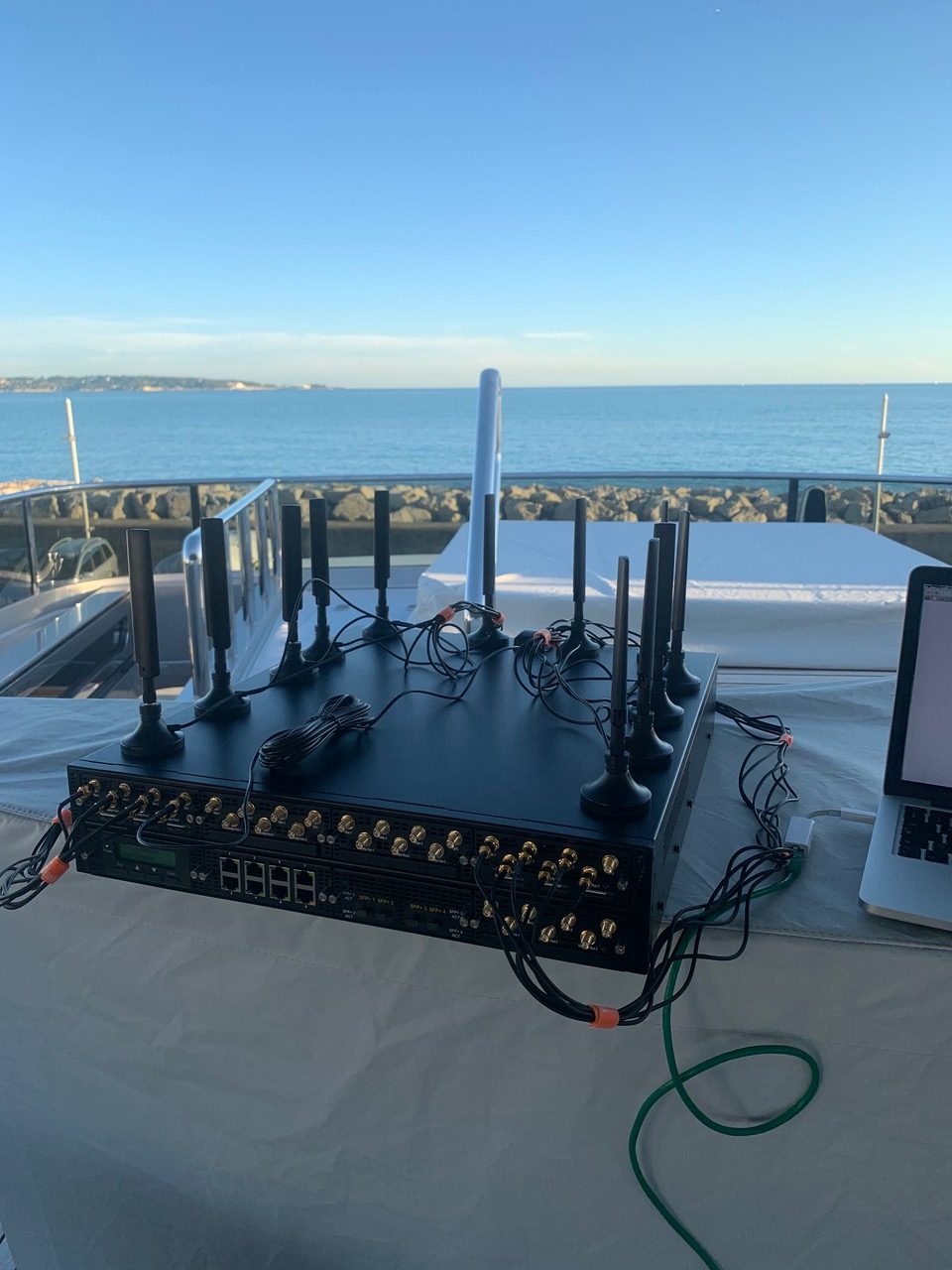

Extreme Performance Modular SD-WAN Router Platform EPX #16

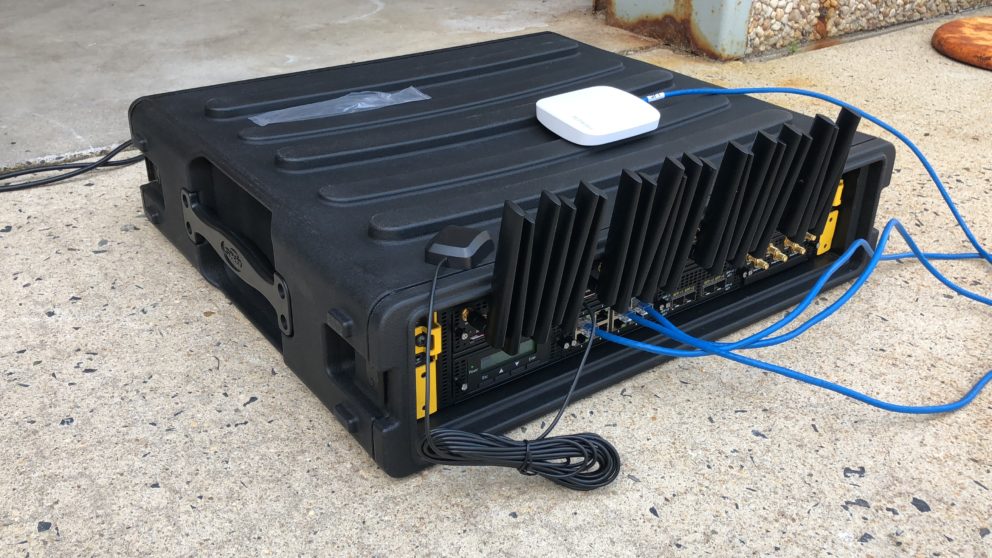

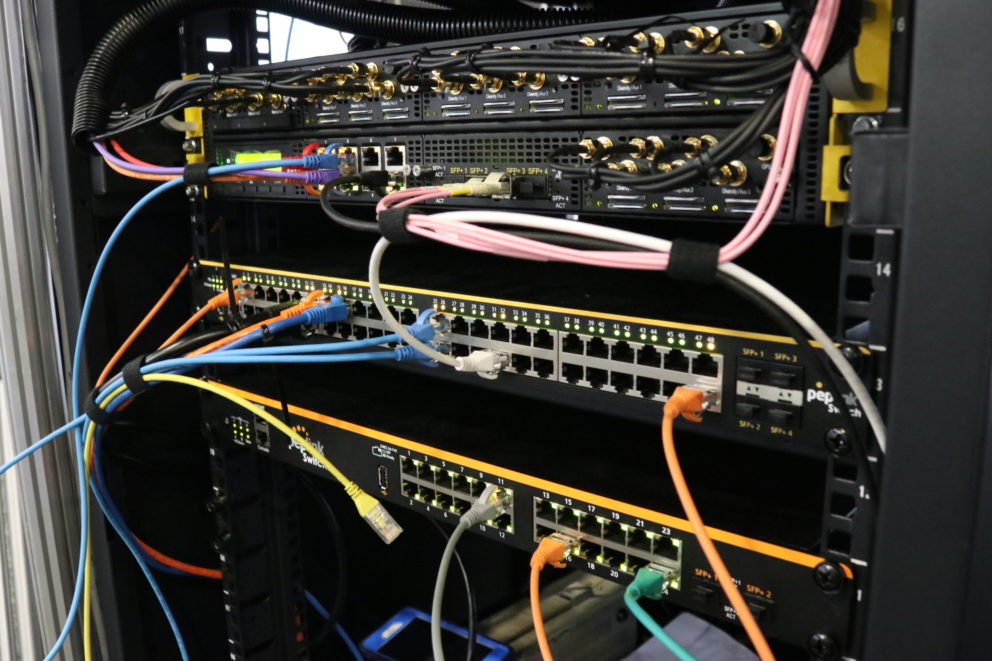

Extreme Performance Modular SD-WAN Router Platform EPX #17

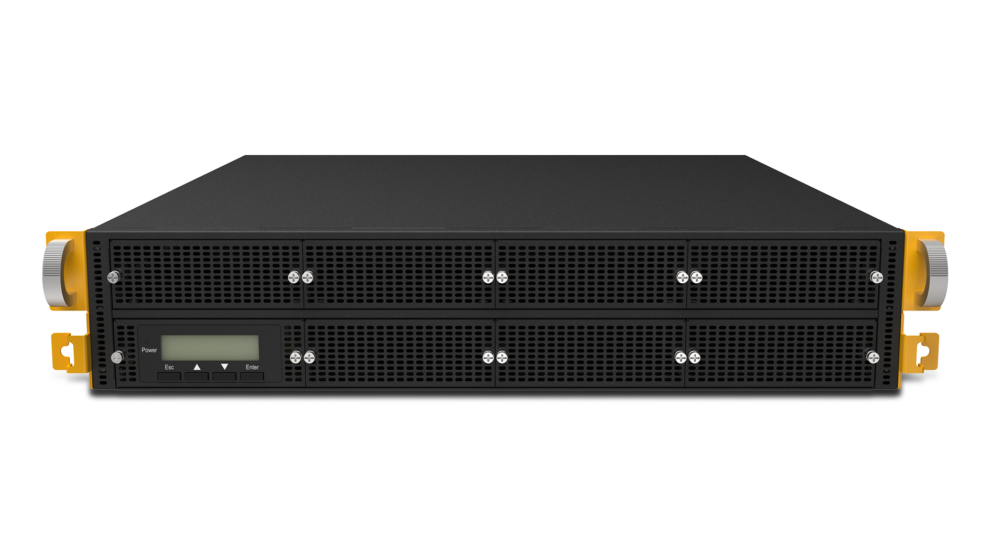

  • Product Overview. Main Chassis

  • 8x GE PoE Module (EXM-8C) #
    Interface8x 10/100/1000M Ethernet Ports *
    Capable of PoE+
    Power Consumption15W (255W max. with 802.3at/af PoE+ Output)
    Dimensions4.1 x 7.4 x 1.5 inches
    103 x 188 x 38 mm
    Weight1.1 pounds | 475 grams

    * Module can be configured with LAN or WAN ports as needed.
    # Antenna is not included.



    4x SFP+ Module (EXM-4F) #
    Interface4x SFP+ Ports *
    Power Consumption11W
    Dimensions4.1 x 7.4 x 1.5 inches
    103 x 188 x 38 mm
    Weight0.83 pounds | 375 grams

    * Module can be configured with LAN or WAN ports as needed.
    # Antenna is not included.



    SIM Injector FlexModule (EXM-SIM-BK56) #
    SIM Slot Capacity56 4FF Nano SIM Cards
    Power Consumption15W
    Dimensions4.1 x 7.4 x 1.5 inches
    103 x 188 x 38 mm
    Weight1.30 pounds | 600 grams
    Compatible with EPX, SDX Pro

    # Antenna is not included.



    3x LTE-A Module (EXM-3LTEA) #
    Interface3x Embedded LTE-A Cellular Modems
    with Redundant SIM Slots
    Antenna Connectors6x SMA Cellular Antenna Connectors
    1x SMA GPS Antenna Connector
    Downlink/Uplink Datarate300Mbps/50Mbps (CAT-6)
    600Mbps/150Mbps (CAT-12)
    Power Consumption20W
    Dimensions4.1 x 7.4 x 1.5 inches
    103 x 188 x 38 mm
    Weight0.83 pounds | 375 grams

    # Antenna is not included.



    CAT-12. 4x LTE-A Module (EXM-4LTEA) #
    Interface4x Embedded LTE-A Cellular Modems
    with Redundant 4FF Mini SIM Slots
    Antenna Connectors8x SMA Cellular Antenna Connectors
    1x SMA GPS Antenna Connector
    Downlink/Uplink Datarate600Mbps/150Mbps
    Power Consumption20W
    Dimensions4.1 x 7.4 x 1.5 inches
    103 x 188 x 38 mm
    Weight0.83 pounds | 375 grams

    # Antenna is not included.



    CAT-18. 2x LTE-A Module (EXM-2GLTE-G) #
    Interface2x Embedded LTE-A Cellular Modems
    with Redundant 4FF Nano SIM Slots
    Antenna Connectors8x SMA Cellular Antenna Connectors
    1x SMA GPS Antenna Connector
    Downlink/Uplink Datarate1.2Gbps/150Mbps
    Power Consumption20W
    Dimensions4.1 x 7.4 x 1.5 inches
    103 x 188 x 38 mm
    Weight0.83 pounds | 375 grams

    # Antenna is not included.



    2x 5G Module (EXM-2X5GD/EXM-2X5GH) #
    Interface2x Embedded Cellular Modems
    with Redundant 4FF Mini SIM Slots
    Antenna Connectors8x SMA Cellular Antenna Connectors
    1x SMA GPS Antenna Connector
    Downlink/Uplink Datarate5G: 4 Gbps / 700 Mbps
    LTE CAT-20: 2 Gbps / 150 Mbps
    Power Consumption20W
    Dimensions4.1 x 7.4 x 1.5 inches
    103 x 188 x 38 mm
    Weight0.83 pounds | 375 grams

    # Antenna is not included.



    1x LTE-A Pro Module, 1x 5G Module (EXM-1X5G-1GLTE-G)
    Interface1x Embedded 5G/4G/3G Multi-mode Modems
    with Redundant 4FF Nano SIM Slots
    Antenna Connectors8x SMA Cellular Antenna Connectors
    1x SMA GPS Antenna Connector
    Downlink/Uplink Datarate5G Module –
    5G: 3.4Gbps/200Mbps
    LTE: 2Gbps/150Mbps

    4G Module: 1.2 Gbps/150 Mbps
    Power Consumption20W
    Dimensions4.1 x 7.4 x 1.5 inches
    103 x 188 x 38 mm
    Weight0.83 pounds | 375 grams

    # Antenna is not included.

  • Product Code Description
    LIC-VWAN  Activate 1x Virtual WAN on EPX*
    LIC-2VWAN  Activate 2x Virtual WAN on EPX*
    LIC-3VWAN  Activate 3x Virtual WAN on EPX*
    EPX-LC-EC License Key to enable MediaFast, Docker, Python and KVM for edge computing. (Requires own disk drive to mount to the LCD Module).
    LIC-OPN-WAN OpenVPN WAN License
    ECP-EPX-M8-1Y EssentialCare+ (1-Year) for EPX (Main Chassis)
    ECP-EPX-M8-2Y EssentialCare+ (2-Year) for EPX (Main Chassis)
    ECP-EPX-M8-4Y EssentialCare+ (4-Year) for EPX (Main Chassis)
    SVL-506 1-Year EssentialCare for EPX (Main Chassis)
    SVL-508 2-Year EssentialCare for EPX (Main Chassis)



    * Learn more about Virtual WAN Activation License here.

  • Product CodeCarrierModem 4G Bands3G Bands
    EXM-3LTEA-WAmerica/Europe/
    CAT-6
    		3B1, B2, B3, B4, B5, B7, B8 , B12,
    B13, B20, B25, B26, B29, B30, B41
    		B1, B2, B3, B4, B5, B8
    EXM-3LTEA-PAsia Pacific/
    CAT-6
    		3B1, B3, B5, B7, B8, B18, B19,
    B21, B28, B38, B39, B40, B41
    		B1, B5, B6, B8, B9, B19, B39
    EXM-3LTEA-RAmerica /
    FirstNet /
    CAT-12
    		3B1, B2, B3, B4, B5, B7, B8, B9,
    B12, B13, B14, B18, B19, B20,
    B26, B29, B30, B32, B41, B42,
    B43, B46, B48, B66
    		B1, B2, B4, B5, B6, B8, B9, B19
    EXM-4LTEA-DAPAC & EMEA /
    CAT-12    		4B1, B2, B3, B4, B5, B7, B8, B9,
    B12,B13, B14, B17, B18, B19,
    B20, B21,B25, B26, B28, B29,
    B30, B32, B38, B39, B40, B41,
    B66    		HSPA+: B1, B2, B3, B4,
    B5, B8, B9, B19
    EXM-4LTEA-RAmerica /
    FirstNet /
    CAT-12
    		4B1, B2, B3, B4, B5, B7, B8, B9,
    B12, B13, B14, B18, B19, B20,
    B26, B29, B30, B32, B41, B42,
    B43, B46, B48, B66
    		HSPA+: B1, B2, B4, B5, B6, B8, B9, B19
    EXM-2GLTE-GGlobal /
    CAT-18
    		2B1, B3, B25(B2), B66(B4),
    B26(B5/B18/B19), B7, B8,
    B12(17), B13, B14 , B20, B28,
    B29, B30, B32, B71, B38, B39,
    B40, B41, B42, B43, B46, B48
    		B1, B2, B4, B5(B19), B8



    Product CodeCarrierModems5G BandsLTE Bands
    EXM-2X5GDPrimary: APAC & EMEA
    Compatible: Global    		25G (NSA) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n20, n28,
    n38, n41, n66, n71, n77, n78, n79    		B1, B2, B3, B4, B5, B7, B8, B12, B13,
    B14, B17, B18, B19, B20, B25, B26,
    B28, B29, B30, B32, B34, B38, B39,
    B40, B41, B42, B46, B66, B71
    EXM-2X5GHPrimary: North America
    Compatible: Global    		25G (NSA) Sub 6Ghz:
    n1, n2, n3, n5, n28, n41, n66, n71,
    n77, n78, n79    		B1, B2, B3, B4, B5, B7, B8, B12, B13,
    B14, B17, B18, B19, B20, B25, B26,
    B28, B29, B30, B32, B34, B38, B39,
    B40, B41, B42, B46, B48, B66, B71
  • Product CodeDescription
    EPX-M8EPX Main chassis, supports 8 expansion modules
    EPX-LC-ECEPX License Key to enable MediaFast, Docker, Python and KVM for edge computing. (Requires own disk drive to mount to the LCD Module).
    EXM-LCDTExpansion Module with 1TB SSD and LCD Controls. Support Docker, Python and KVM for edge computing. (Replaces the existing LCD module)
    EXM-4LTEA-DExpansion Module with 4x LTE-A Pro modems (CAT-12)
    EXM-4LTEA-RExpansion Module with 4x LTE-A Pro modems (CAT-12)
    EXM-8CExpansion Module with 8x GE PoE ports
    EXM-4FExpansion Module with 4x SFP+ ports
    EXM-2GLTE-GExpansion Module with 2x LTEA (CAT-18) modems, compatible with EPX, SDX
    EXM-2X5GDExpansion Module with 2x 5G modems
    EXM-2X5GHExpansion Module with 2x 5G modems

  • Q. If I purchase EXM-LCDT, do I still need to add EPX-LC-MFA to enable MediaFast, Docker, Python and KVM for edge computing.?



    No. The expansion LCD module with 1TB SSD [EXM-LCDT] already comes with a license key to enable MediaFast, Docker, Python and KVM for edge computing. Enter the activation key in our web admin [System] – [Feature Add-ons] – [Feature Activation]. The license will be tied to the EPX.



    Q. What are the options for the EPX to have Content Hub or Docker supported?



    (1) Purchase the expansion LCD module with 1TB SSD [EXM-LCDT] and replace the existing one.

    (2) Purchase the License Key [EPX-LC-MFA] and install your own SSD. This video will show you how to install the SSD in easy-to-follow steps.



    Q. Do you have any suggestions for a 10G SFP transceiver?



    Learn more about the recommended SFP transceiver at this post
