Common Features
5G Ready
5G can reach speeds 10x faster than 4G LTE. Download movies in just seconds.
IP68 Rated and UV proof
Certified quality protection from dust, water, and UV allows you to use it even in poor weather conditions.
B71 Support
Supports extended bandwidth range, including B71.
7dBi High Gain
Increased signal strength for a stronger connection and less interference.
Which antenna is right for you?
Mobility 82G
8x Cellular | 2x Wi-Fi | 1x GPS
With 8 cellular channels, 2 Wi-Fi and a GPS, the Mobility 82G has an ultra-high gain and supports dual 5G modems in a single chassis. It keeps critical missions connected over longer distances.
The Mobility 82G is an all-in-one antenna ideal for long-range transmissions, enabling first responders and mobile healthcare providers to extend their services to more remote locations.
Mobility 42G
4x Cellular | 2x Wi-Fi | 1x GPS
With 4 cellular channels, 2 Wi-Fi and a GPS, the Mobility 42G provides ultrawide bandwidth within a single antenna housing. The Mobility 42G is designed for heavy network usage and solid reliability.
The Mobility 42G is an all-in-one antenna ideal for large scale deployments in transportation, public safety and maritime operations.
Mobility 40G
4x Cellular | 1x GPS
With 4 cellular channels, the Mobility 40G is a powerhouse capable of delivering high bandwidth and solid reliability under heavy use. Equipped with high gain LNA, the GPS receiver has improved location tracking.
The Mobility 40G is ideal for large-scale public safety, mobile healthcare, mobile command, and other operations using a large volume of data.
Mobility 22G
2x Cellular | 2x Wi-Fi | 1x GPS
With 2 cellular channels, 2 Wi-Fi, and a high gain LNA GPS, the Mobility 22G is a versatile all-in-one cellular antenna solution. It has 2×2 MIMO and dual-band Wi-Fi for high bandwidth and solid reliability.
The Mobility 22G is ideal for small-scale public safety and transportation connectivity.

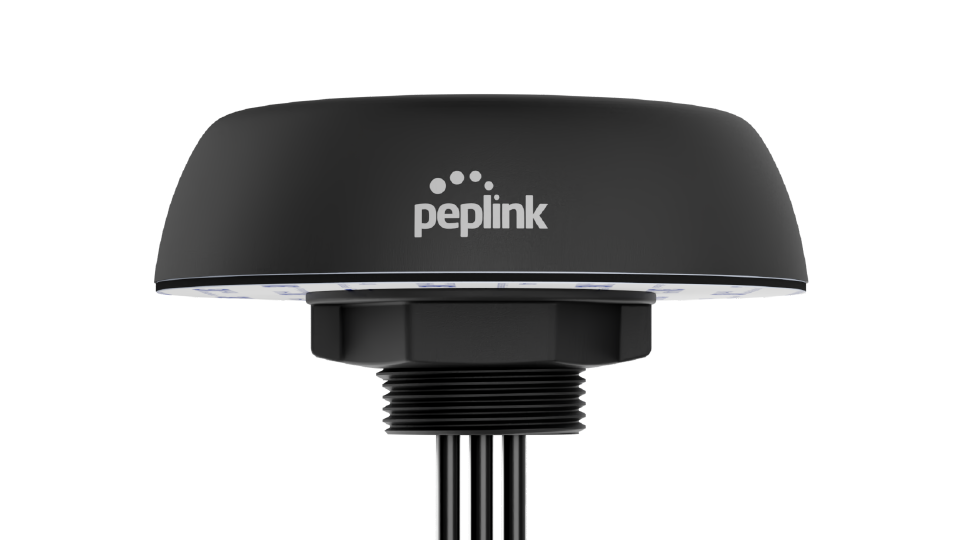

Mobility 20G
2x Cellular | 1x GPS
The Mobility 20G comes with 2 cellular channels and 1 high gain LNA GPS built for reliable LTE or 5G connectivity. Housed in a robust exterior, this antenna can provide high bandwidth for mobile applications.
The Mobility 20G is ideal for small-scale public safety, mobile healthcare, and transportation connectivity.

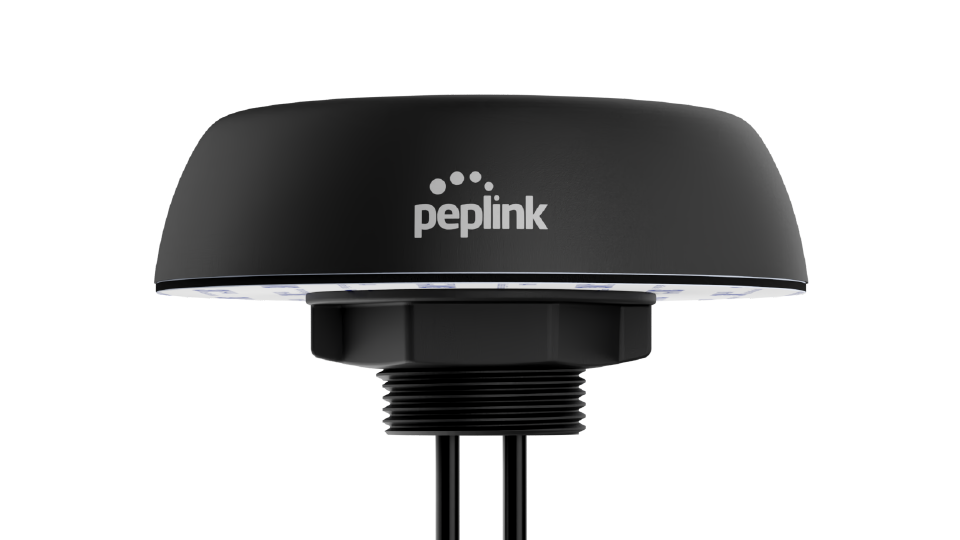

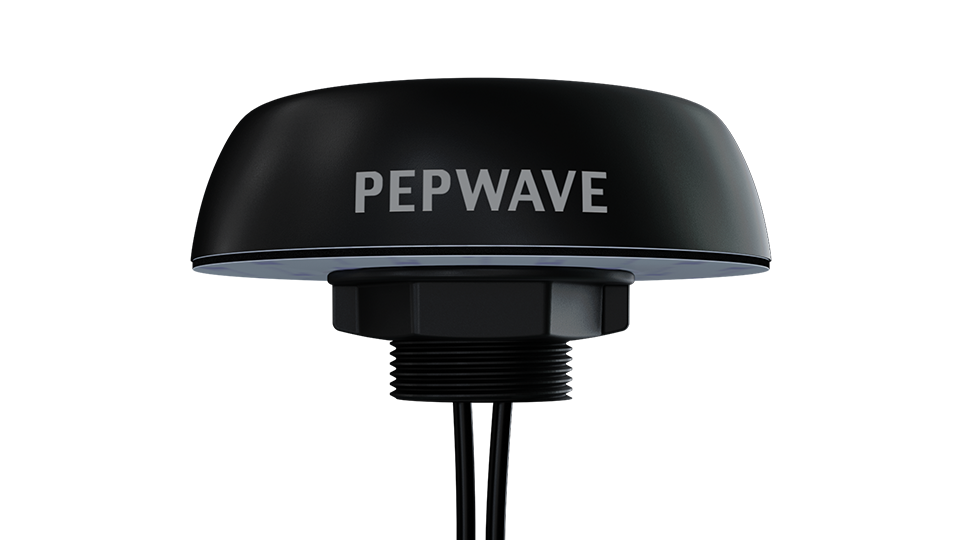

Mobility 02
2x Wi-Fi
The Mobility 02 is a low-cost, dual-band Wi-Fi antenna built for mobile applications. It comes with 2×2 MIMO that provides you with a high bandwidth and solid reliability despite its price.
The Mobility 02 is ideal for maintaining a strong signal strength when various obstructions may weaken or block Wi-Fi signals.

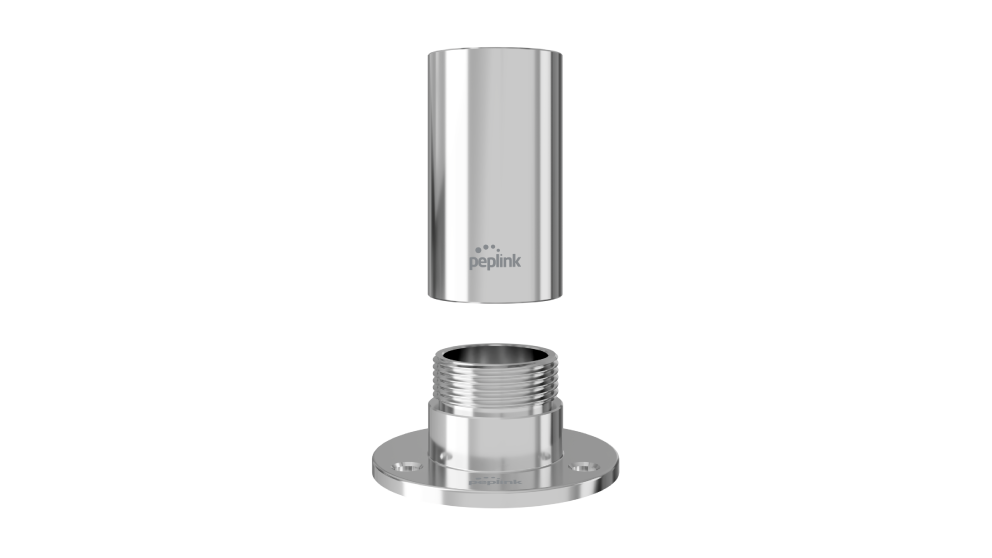

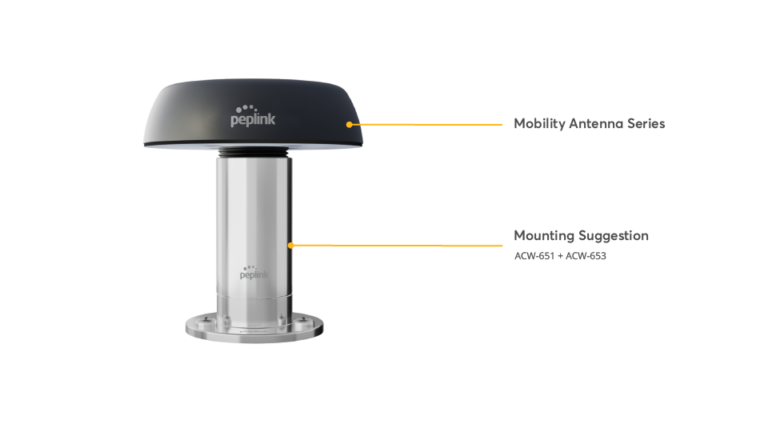

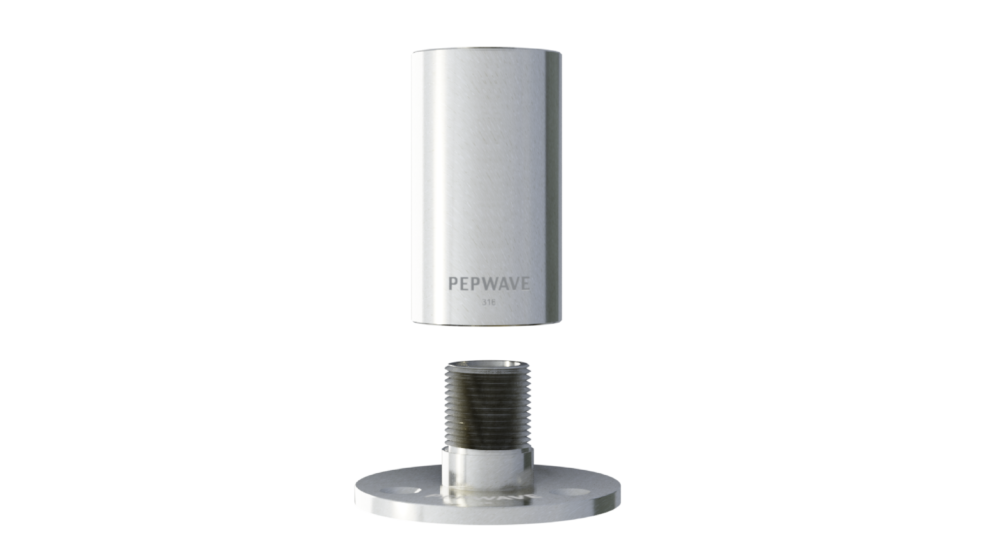

Premium Deck Mount
Rugged and heavy duty mounts are intended for deck and mast installations. The cable is protected inside the mount with direct feed through the deck or mast.
This mount is made from the highest quality Marine Grade Stainless Steel to withstand harsh weather conditions and prevent corrosion at sea.

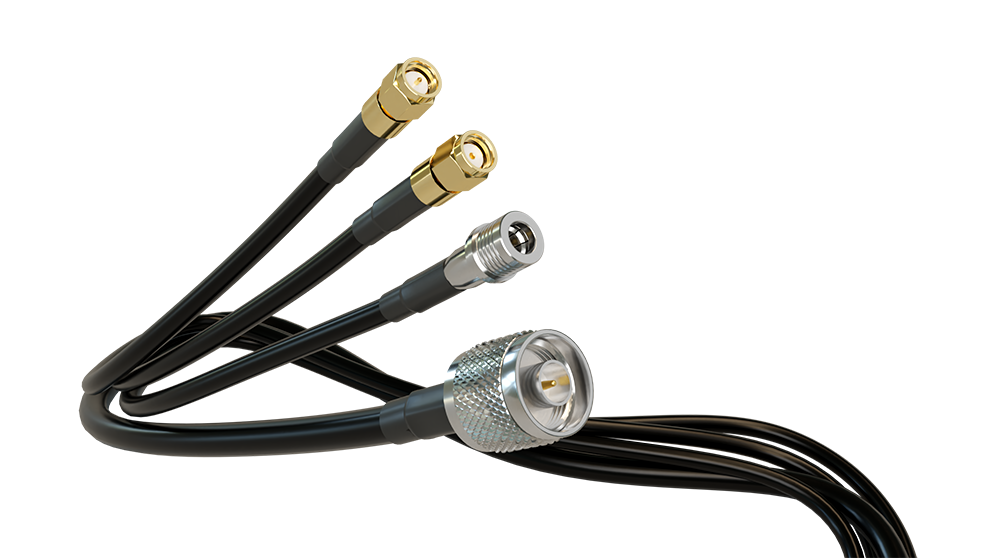

Extension Cables
A full array of UV stabilized and low-loss extension cable options with different connectors and lengths to meet any of your antenna needs.
Peplink Antenna Application Brochure
More Possibilities Than You Can Imagine
Discover different scenarios where you can benefit from our antennas,
not just what’s implied by their names.
-
Frequently Asked Questions
Q. Which Product category do Peplink Mobility Antenna belong under?
All Peplink Mobility antennas are classified as Velocity Series.
Q. What’s the difference between Mobility 22G AND 40G?
The numerical figures 22G and 40G represents the number of LTE | Wi-Fi | GPS elements. Given this, the Mobility 22G is therefore an antenna with 2x LTE, 2xWI-FI and 1x GPS element whilst the Mobility 40G antenna includes only 4x LTE and 1x GPS elements.

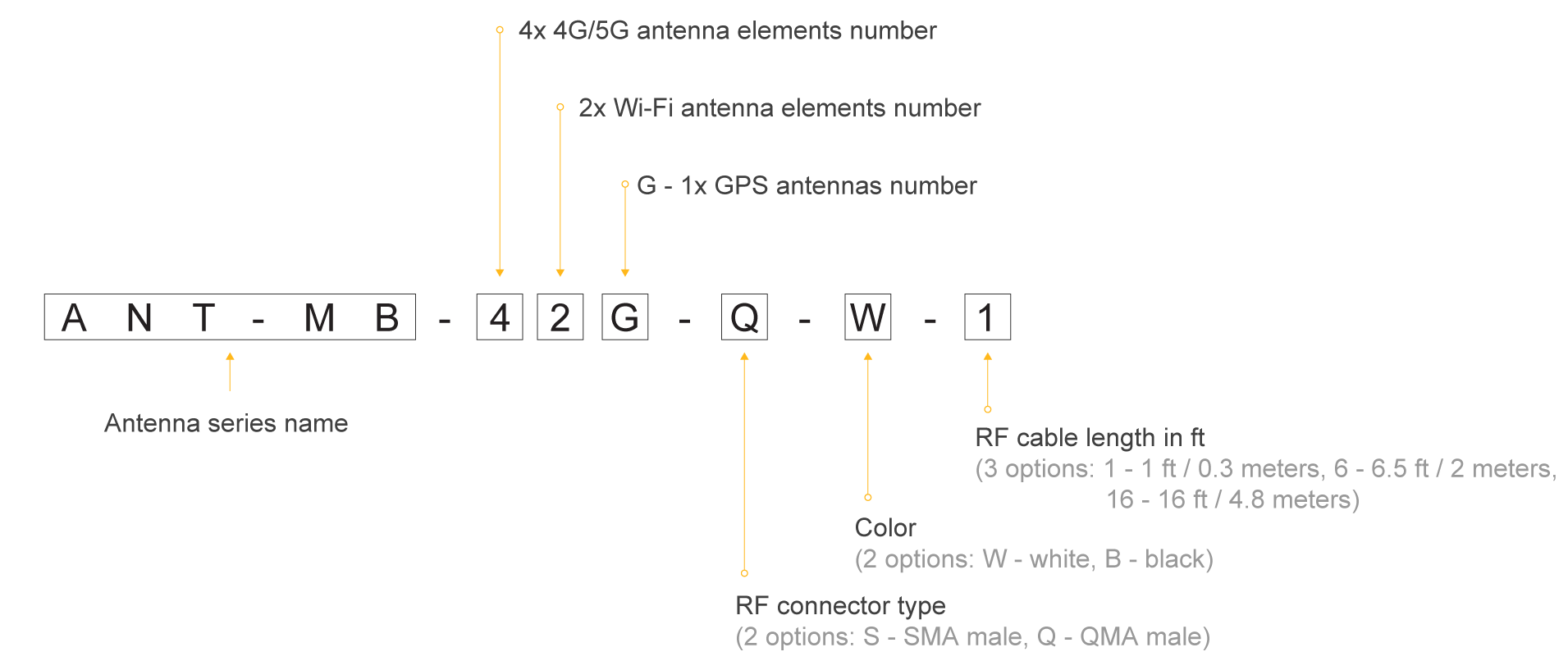

Q. What does each letter/ number on Peplink Mobility series on the SKU numbering stand for?
Each number and letter after the series name, has its own meaning and purpose. Here’s what it stands for:
⚬ The first number represents the number of LTE element
⚬ The second represents the number of Wi-Fi element
⚬ The third represents the number of GPS element
The next letter in the SKU numbering represents the RF connector type, there are 2 options for this: S-SMA male; Q- QMA male.
The letter following this will simply represent the colour of the model: B- Black; W- White.
The final number will represent RF cable length ft: 1-1ft/0.3 meters; 6-6.5ft/2 meters; 16-16ft/4.8 meters.
Q. What cable length options are there for the Mobility Antenna?
What cable length options are there for the Mobility Antenna?
⚬ Option 1 – 1ft/0.3m for any short-range deployments between the router and the antenna.
⚬ Option 2 – 6.5ft/2m for middle-range deployments.
⚬ Option 3 – 16ft/4.8m for long-range deployments. Please note that only Mobility 42G comes with 16ft/4.8m cables. Other models will require a short pigtail (ANT-MB-xxx-Q-x-1) plus an extension cable (EXC-xQ-15).
Q. Why QMA is better than SMA/N-type to an extension cable?
QMA connectors are designed as snap-on locking replacement for the standard SMA connectors. In the case of an extension, using a QMA connector is quick to install and prevents any dispatch in the future in comparison to SMA or N-types.
Q. Would mounting the Mobility antennas on a wall or on a ceiling deteriorate the antennas’ performance?
The antenna performance won’t be affected by the mounting options but the mounting location.
The Mobility series are omni-directional antennas, which can receive signals equally from all directions (360-degree horizontal beam width). However, to minimize the signal interference, it’s always suggested to mount the antenna as high as possible and pointed directly up into the sky.Q. Why has the PUMA Antenna become the Mobility Antenna?
The PUMA Antenna has been engineered specifically towards mobile applications, although it can cater to various verticals. In order to align our product names for future antennas, we have decided to revise them all to reflect the relevant verticals. Learn more.
Painting Peplink Antennas
Q. Can Peplink antennas be painted?
Yes, all of our antennas can be painted with any color. The IMPORTANT thing to note is to use non-metallic, non-conductive and non-absorptive paint. Metallic particles (e.g. titanium dioxide, iron oxide or any others) will act like a shield and significantly degrade the antenna’s performance. In some cases, polymers still can be conductive even if they are non-metallic. Conductive polymers are widely used for anti-corrosive coating.
Click here to know more about what should be noted while painting your antennas.
-
Product Code Description ANT-MB-02-R-W-6 2×2 MIMO Wi-Fi Dual Band Antenna (White) ANT-MB-02-R-B-6 2×2 MIMO Wi-Fi Dual Band Antenna (Black) ANT-MB-22G-S-W-6 5-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White) ANT-MB-22G-S-B-6 5-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (Black) ANT-MB-40G-N-W-6 5-in-1 Cellular Antenna System with GPS Receiver, N-Type Male (White)
ANT-MB-40G-N-B-6 5-in-1 Cellular Antenna System with GPS Receiver, N-Type Male (Black) ANT-MB-40G-S-W-6 5-in-1 Cellular Antenna System with GPS Receiver (White) ANT-MB-40G-S-B-6 5-in-1 Cellular Antenna System with GPS Receiver (Black) ANT-MB-42G-S-W-6 7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White) ANT-MB-42G-S-B-6 7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (Black) ANT-MB-42G-S-W-16 7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White) ANT-MB-82G-S-W-6 11-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver, SMA Male (White) ANT-MB-82G-Q-W-6 11-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver, QMA Male (White) * For other available models, please see their respective datasheets for the ordering information.
-
