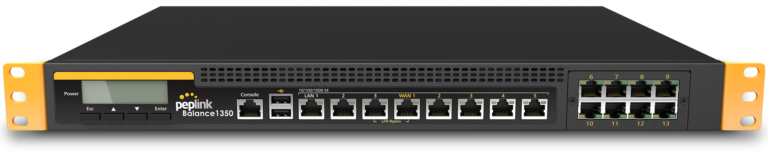

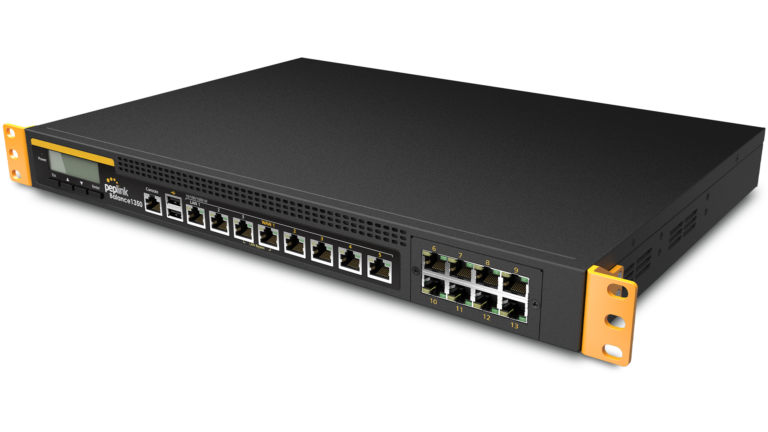

Balance 1350

SD-WAN router combining 13 WAN links designed for large enterprises.

The Peplink Balance 1350 is one of the most powerful routers of our Balance portfolio. Delivering unbreakable connectivity to high-end enterprise users by combining the speed of 13 WAN connections with a maximum throughput of 5Gbps.

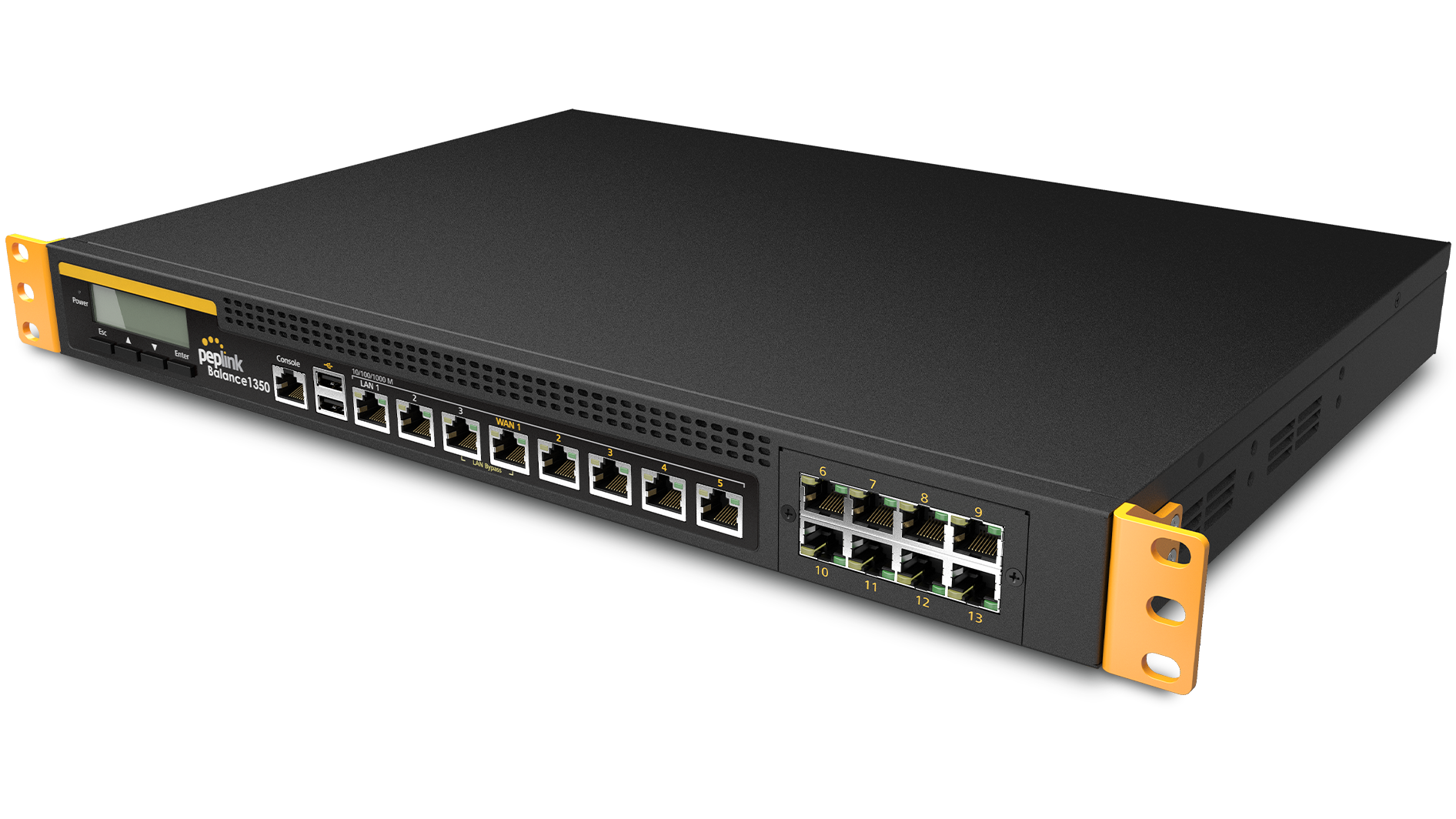

5Gbps Multi-WAN (13 Ports) Router Balance 1350 #2
5Gbps Multi-WAN (13 Ports) Router Balance 1350 #2

Balance 1350

Protecting your Business Continuity

5Gbps Multi-WAN (13 Ports) Router Balance 1350 #3
  • 13 WAN Ports
  • 5000 Users Supported
  • 5Gbps Throughput
  • 800 VPN Peers

There’s a Perfect Balance for Every Situation

Peplink ‘s line of products includes features that make your enterprise deployment easier and increase your network reliability and security in several ways. Boost network data rates, reliability, and flexibility while slashing connectivity costs with Peplink SD-WAN technology designed for multi-WAN link load balancing. Use Load Balancing and SpeedFusion bandwidth bonding to deliver superfast VoIP, video streaming, and data using an SD-WAN enabled network.

  • Branch/Small Office
  • Small Business
  • Mid-Size Business
  • Large Enterprise/Campus
  • Cloud/VM

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.

Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data stream.

5Gbps Multi-WAN (13 Ports) Router Balance 1350 #4

Built to Last

Capable of years of uptime, the Balance  series easily handles monthly bandwidth that would crush lesser equipment. Every Peplink design is rigorously tested to exceed your expectations for speed, reliability, durability, and ease-of-use. We invest heavily in quality assurance and user experience testing to give you affordable, enterprise-class gear that just works, from the moment you take it out of the box.

InControl 2. Powerful Cloud Management Platform

Balance 1350 is supported by InControl, Peplinks Cloud-Based SD-WAN Network Management Platform, which lets you provision, monitor, and manage your routers. All from a single screen.

5Gbps Multi-WAN (13 Ports) Router Balance 1350 #5

Web Admin Demo

Experience powerful features of Balance Series web admin online demo.

Note: This is for demonstration purposes only and may differ from our latest UI. Functionality also varies amongst models.

Administrator Username and Password: admin / admin
Read-only Username and Password: user / user


  • Product CodeBPL-135
    Ethernet WAN Ports13 (GE)
    LAN Ports3 (GE)
    USB WAN Modem Port [1]1
    Recommended Users [2]1000-5000
    Stateful Firewall Throughput [3]5Gbps
    802.1q VLANs Supported1024
    Port-Based VLANYes
    Load Balancing & FailoverYes
    Load Balancing Algorithms8
    Drop-In ModeYes
    Inbound Load BalancingYes
    InControl Cloud ManagementYes
    SpeedFusion Hot FailoverYes
    SpeedFusion WAN SmoothingYes
    SpeedFusion Bandwidth BondingYes
    Number of PepVPN/SpeedFusion Peers4800
    PepVPN Throughput (256-bit AES)/(No Encryption) [3]800Mbps
    IPsec VPN (Network-to-Network) [5]Yes
    Number of IPsec Tunnels400
    Remote User AccessYes
    L2TP VPN ServerYes
    OpenVPN ServerYes
    PPTP VPN ServerYes
    Recommended PPTP/L2TP/OpenVPN Users500
    GRE (Network-to-Network)5
    Pepwave AP Series ManagementYes
    Maximum Number of AP Supported500
    Remote AP & Multiple Config Profiles Management [6]Yes
    Bandwidth Usage MonitorYes
    QoS for VoIP and E-CommerceYes
    User Groups Bandwidth ControlYes
    Web BlockingYes
    Web Filtering BlacklistFull
    Operating Temperature32° – 104°F | 0° – 40°C
    LACP (802.3ad) NIC BondingYes
    Power Consumption70W
    High AvailabilityYes
    LAN BypassYes
    FCC, CE, RoHSYes
    Warranty1-Year Limited Warranty

    [1] For a list of supported modems, please refer to
    [2] Recommendation for sizing purposes only. No software restrictions applied.
    [3] Router Throughput and PepVPN/SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
    [4] Number of peer Peplink or Pepwave devices you can connect using SpeedFusion VPN.
    [5] IPsec only supports connection with Cisco, Juniper, Peplink or Pepwave devices.
    [6] Balance 20/30 LTE/One/210/310 comes with AP Controller Standard, which supports up to two configuration profiles with multiple SSIDs, meaning that all APs will share the same configuration, and you can only manage APs on the local physical LAN. Balance 305/380/580/710/1350/2500 comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN.

    • Balance Router
    • Power Cord (ACW-614)
    • 1 Pair of Mounting Brackets (ACW-382)
  • Product CodeProduct NameDescription
    BPL-135Balance 135013x GE WAN ports and 3x GE LAN ports. SpeedFusion capable.
