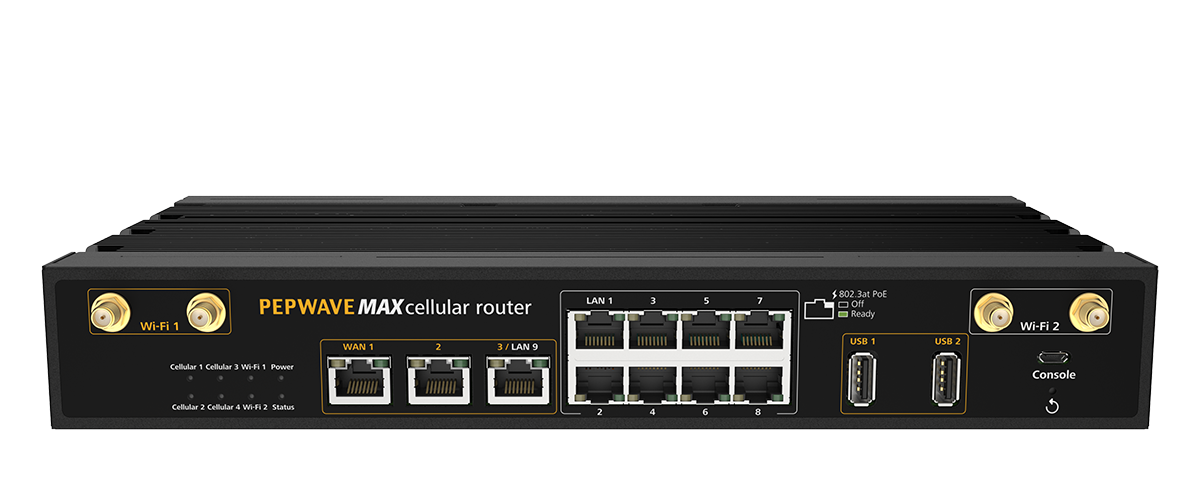

HD4 MBX

Quad Cellular Gigabit LTE Mobile Powerhouse

The HD4 MBX is capable of combining the bandwidth of up to 4 cellular links into an unbreakable, high-speed SD-WAN connection. The HD4 MBX supports up to 8 SIM cards, with room for another 8 with the optional SIM Injector. With up to 16 cellular providers to connect to, spotty coverage will simply not be a problem.

Ready for Any Environment

View Post

Fanless Design

Thrives in high-particle environments that would break other fan-based routers.

8×802.3at PoE Outputs

Power your IP phones, cameras, and access points.

Robust Metal Enclosure

Same dimensions as the previous HD4, so it can fit seamlessly into any of your previous deployments.

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #6
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Compatible on all major carriers. Certified with Verizon.

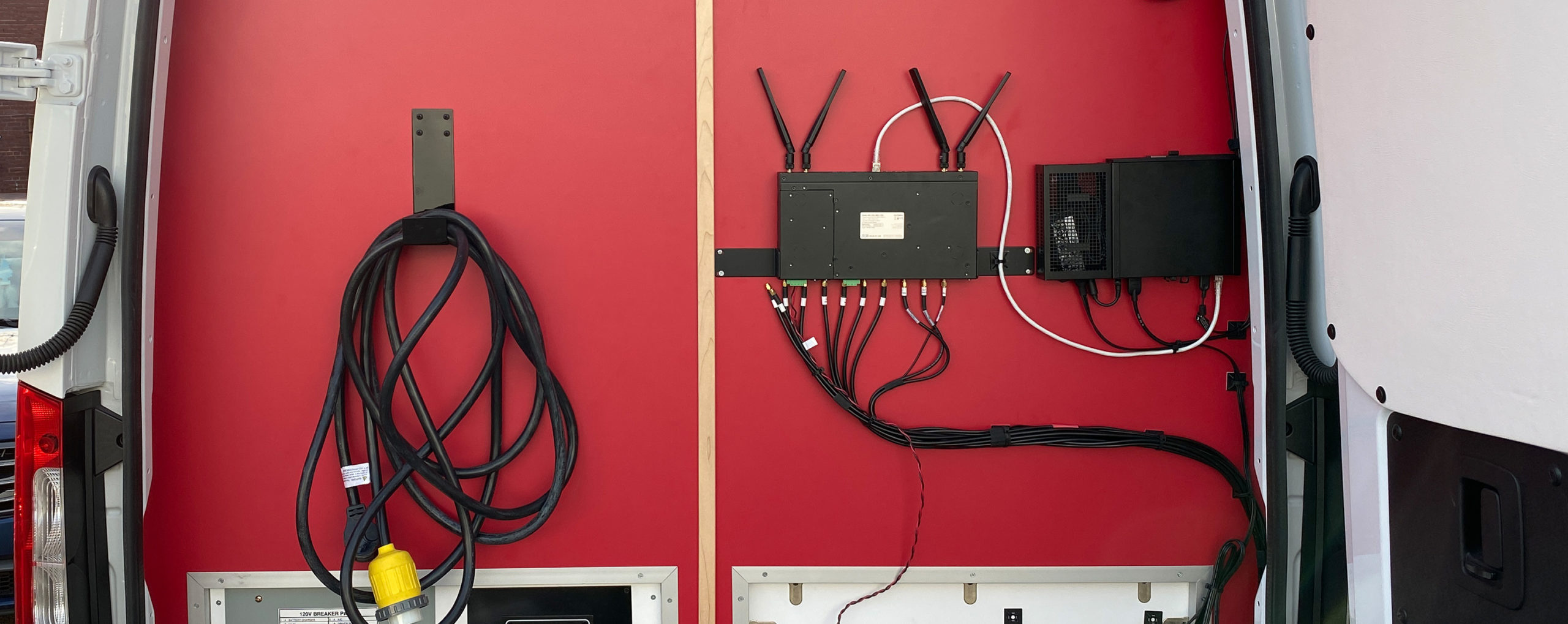

Ideal for On-The-Go Deployments

Ignition Sensing gives it the ability to turn on and off depending on whether the vehicle has started. Upon vehicle shutdown, the MBX can also shut down after a user-defined interval, saving the battery from excessive drain.

The HD4 MBX also supports the optional SIM Injector, which adds another 8 cellular providers to connect with. This mitigates weak spots in cellular coverage, ensuring consistent connectivity . If your deployment crosses national boundaries, you can also use the SIM Injector to load multiple SIM cards, preventing roaming charges.

FirstNet Ready & ESN Certified

FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity. The HD4 MBX supports band 14, providing additional coverage as the situation demands.

Device has been also certified by UK’s Emergency Services Network (ESN).

Future Proof Design. Ready for 5G

Right out of the box, the HD4 MBX supports Gigabit LTE. For future technologies, the MBX features a swappable cellular module, so when you need to upgrade to 5G, you can simply swap your old one with a new one. The MBX is also capable of 2.5Gbps of throughput, giving you plenty of bandwidth for Gigabit Ethernet, 5G, or any future mobile technologies.

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.

Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data stream.

Use Cases

The HD4 MBX Fits in a Variety of Scenarios

Live Streaming
Telemedicine
Branch Offices
Temporary Sites
Wi-Fi for Employees
Public Safety

2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #15





Event Live Streaming and Connectivity



The cellular SpeedFusion SD-WAN connection provides all the bandwidth you need to stream HD video. What’s more, our patented WAN Smoothing technology compensates for packet loss, ensuring smooth, jitter-free streaming.

2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #16





Telemedicine



Using SpeedFusion, the HD4 MBX can combine the bandwidth of 4x Gigabit LTE connections to form a fast and reliable VPN connection that can handle the requirements of remote diagnosis, that requires large amounts of data, more data than a single cellular link can transfer in a timely manner.

2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #17





Branch Offices





The HD4 MBX supports up to 8x 802.3at PoE connections, enabling you to connect your IP phones, IP cameras, and access points with minimal cabling. It also delivers 802.11ac Wi-Fi with a customizable captive portal for guest access. The HD4 MBX comes equipped with SpeedFusion WAN Smoothing, mitigating packet loss and ensuring that your videoconferences are jitter-free.

2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #18





Temporary Sites





By combining the bandwidth of up to 4x Gigabit LTE connections, you can perform fast and reliable connectivity no matter where the site is located. Quickly and safely transmit project data, emails, plans, and blueprints between personnel, sites, and headquarters.

2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #19





Wi-Fi on Employee Shuttles



Peplink ecosystem has all features that are needed for a successful employee bus deployments.  It combines the bandwidth of 4x Gigabit LTE connections on a packet level, ensuring employee productivity remains uninterrupted when cellular connections break. With HD4 MBX you can also simplify your cabling since it supports 802.3at PoE standard. Moreover you can also incorporate Smart Readers and TA system to your deployment this way controlling bus access and tracking employee usage.

2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #20





Public Safety





The HD4 MBX combines the bandwidth of 4x Gigabit LTE links into a fast, reliable, and secure SD-WAN connection, enabling you to stream high-definition video in real-time. This can all be achieved without investing in any infrastructure. With SpeedFusion-enabled devices on multiple vehicles and aerial resources, you can monitor the situation from multiple perspectives without needing a line-of-sight connection.

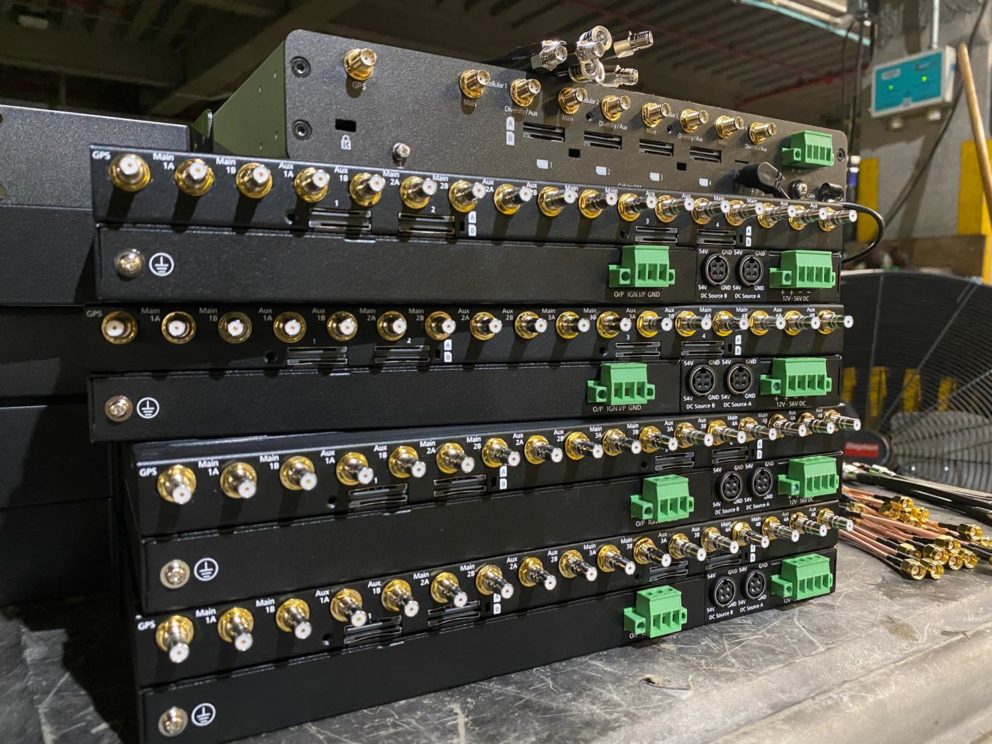

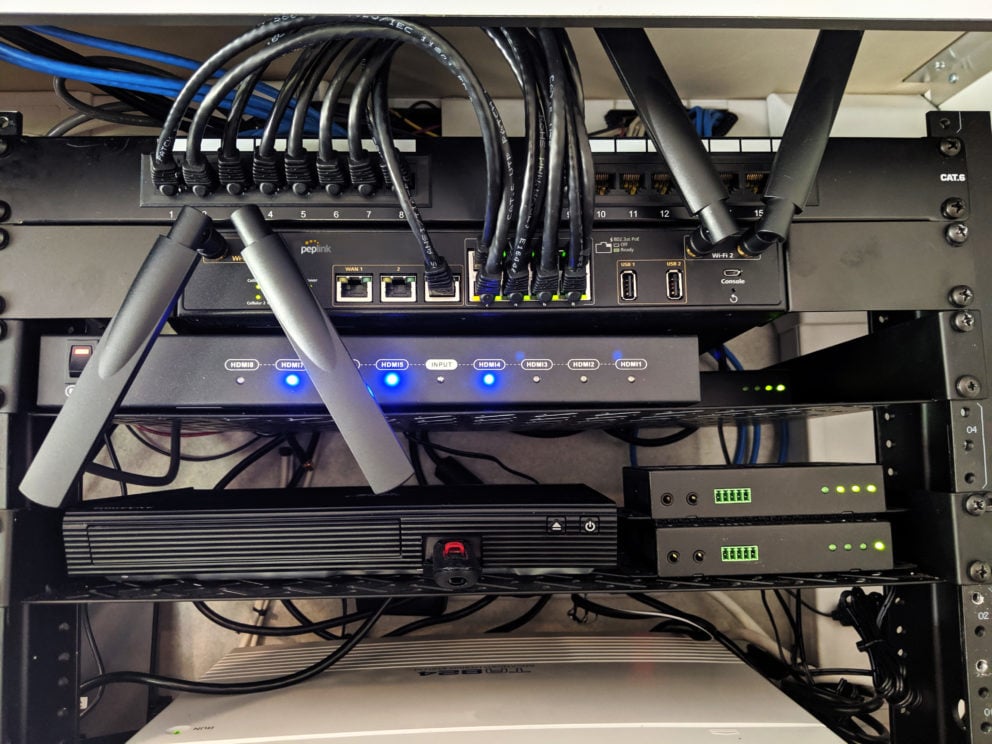

#PowerofPeplink in Action

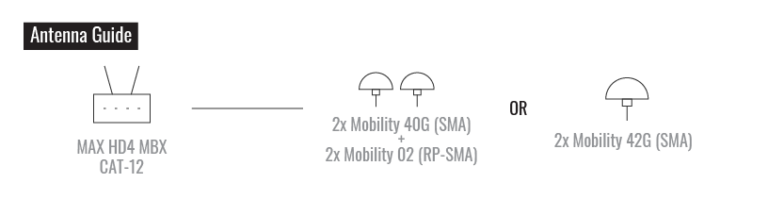

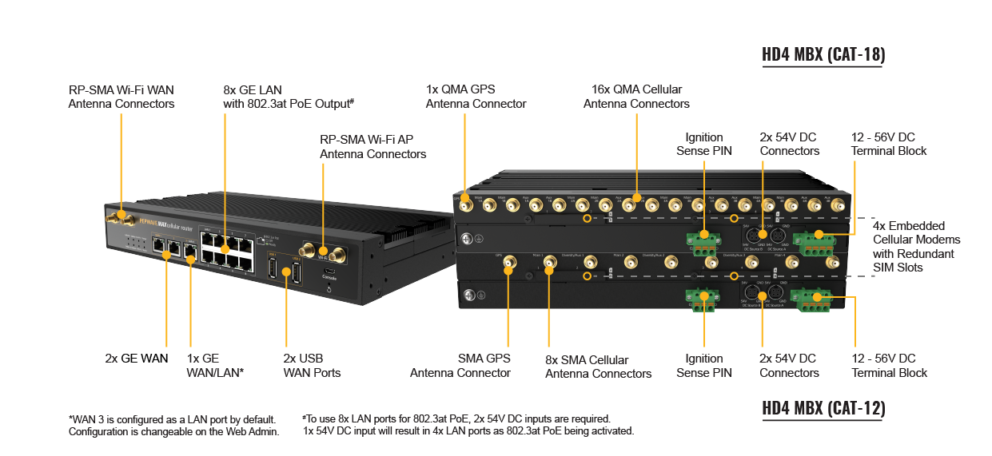

  • MAX HD4 MBX Overview. (CAT 12)



    WAN Interface2x USB Interface
    3x GE*
    4x Embedded LTE-A Pro Modems with Redundant SIM Slots
    LAN Interface9x GE*
    Wi-Fi Interface802.11ac/a/b/g/n, 1166 Mbps 2×2 MIMO Wi-Fi WAN and/or AP
    Simultaneous Dual-Band
    Router Throughput2.5 Gbps
    Number of PepVPN2/20^
    PepVPN/SpeedFusion Throughput (No Encryption) | (256-bit AES)600 Mbps | 500 Mbps
    LTE-A Pro ModemsDownlink/Uplink Datarate: 600 Mbps/150 Mbps
    Recommended Users50-500
    Cellular and GPS Antenna Connector8x SMA Antenna Connectors
    1x SMA GPS Antenna Connector
    4x RP-SMA Wi-Fi Antenna Connectors
    Power InputDC Jack/Terminal Block: 12-56 V #
    Power OutputUp to Eight 802.3at PoE Outputs #
    Power Consumption55W
    Dimensions1.7 x 11.5 x 7.0 inches | 43 x 292 x 177 mm
    Weight7.28 pounds | 3.3 kg
    Operating Temperature40 ° – 149 °F | -40 ° – 65 °C
    Humidity15% – 95% (non-condensing)
    Power RequirementsDC Jack: 10V – 56V
    Package ContentMAX HD4 MBX
    PSU for the MAX HD4 MBX LTEA (ACW-630)
    4x Dual Band Wi-Fi Antennas (ACW-341)
    1x GPS Active Antenna (ACW-232)
    8x 2dBi 4G LTE Antennas (ACW-813)
    1 Pair of Mounting Brackets (ACW-731)
    1x SIM Cover
    CertificationsFCC, CE, RoHS
    RCM
    E-Mark
    PTCRB
    Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999
    Railway Applications: EN 50155
    Electromagnetic Compatibility: EN 61000
    Warranty1-Year Limited Warranty



    *WAN 3 is configured as a LAN port by default, configuration is changeable on the Web Admin.

    #2x 54V DC input is needed for all 8x LAN ports to have 802.3at PoE. Plugging in 1x 54V DC input will result in 4x LAN ports having 802.3at PoE.

    ^With purchase of optional SpeedFusion License (MAX-HD-020-SPF) can connect to up to 20 SpeedFusion peers.

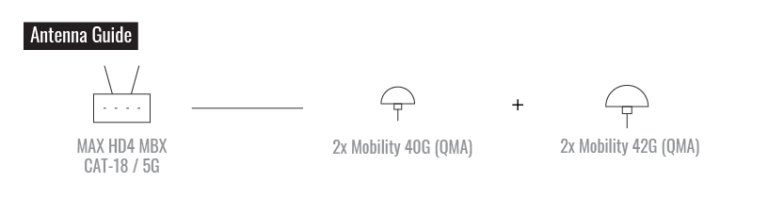

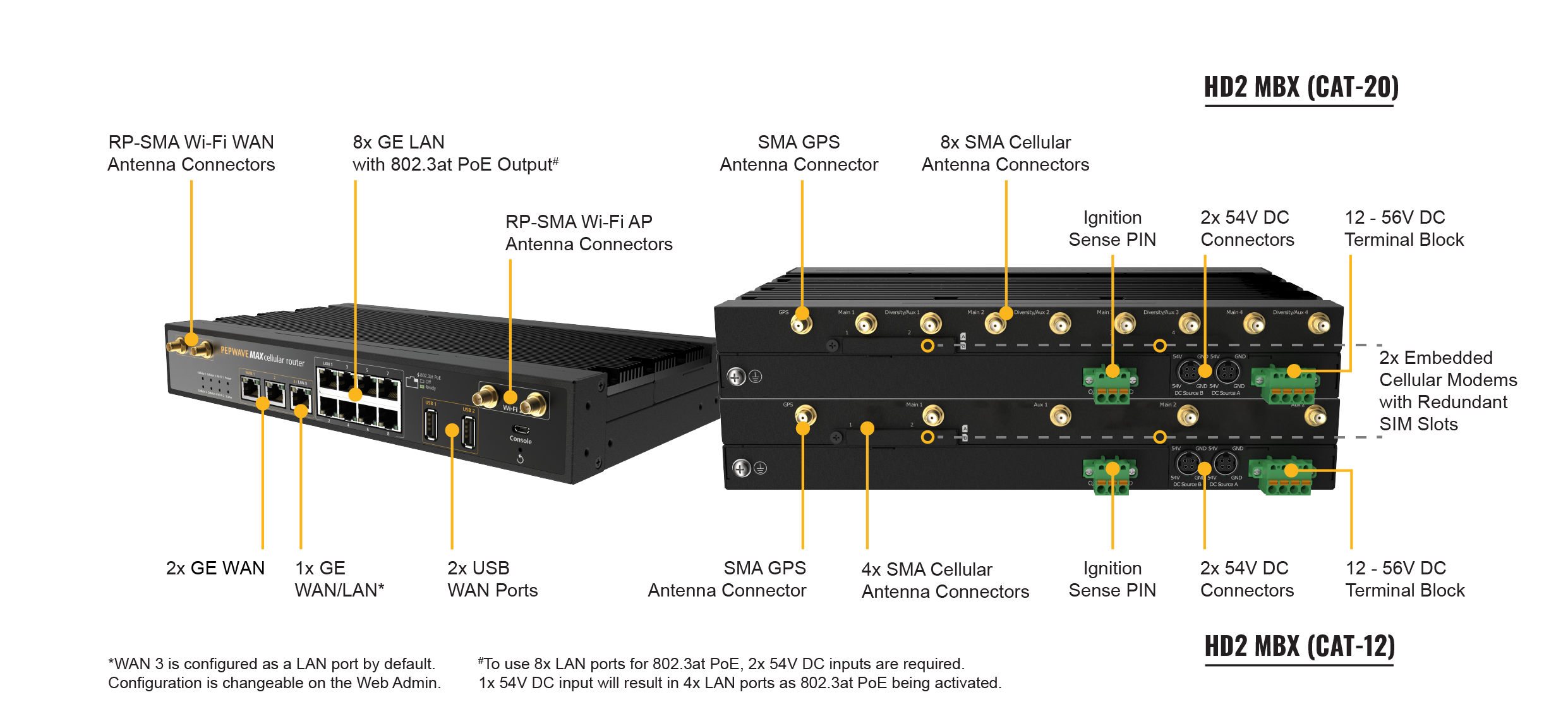

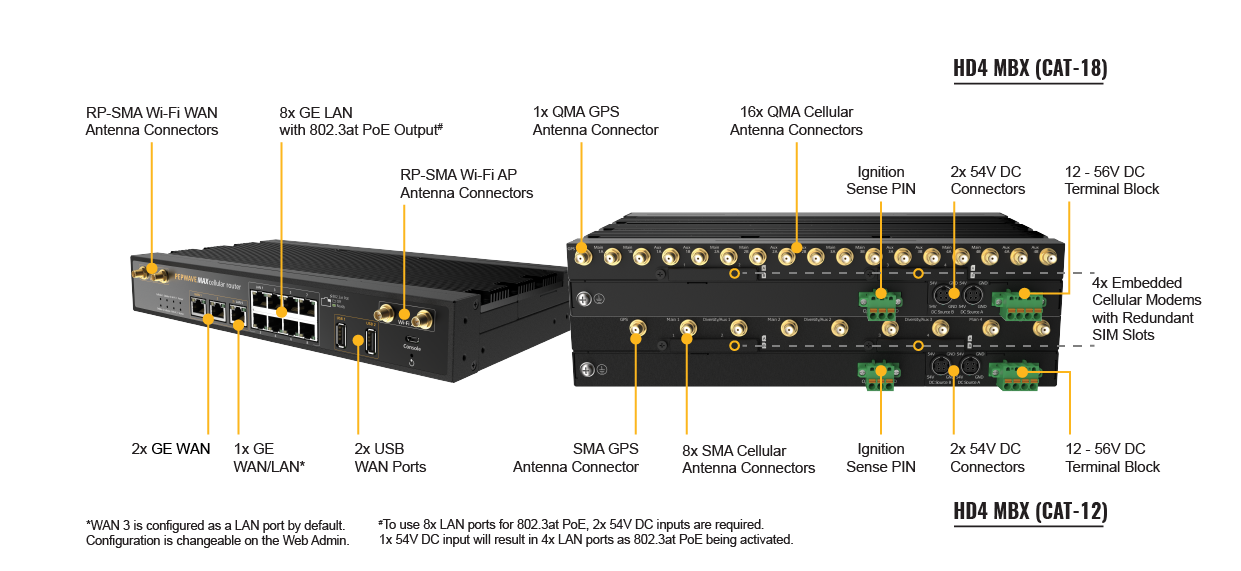

  • MAX HD2/4 MBX Overview. (CAT 18)





    WAN Interface2x USB Interface
    3x GE*
    HD2 MBX: 2x Embedded LTE-A Pro Modems with Redundant SIM Slots/
    HD4 MBX: 4x Embedded LTE-A Pro Modems with Redundant SIM Slots
    LAN Interface9x GE*
    Wi-Fi Interface802.11ac/a/b/g/n, 1166 Mbps 2×2 MIMO Wi-Fi WAN and/or AP
    Simultaneous Dual-Band
    Router Throughput2.5 Gbps
    Number of PepVPN SpeedFusion Peers2/20^
    PepVPN/SpeedFusion Throughput (No Encryption | 256-bit AES)600 Mbps | 500 Mbps
    LTE-A Pro ModemsDownlink/Uplink Datarate: 600 Mbps/150 Mbps
    Recommended Users50-500
    Cellular and GPS Antenna ConnectorHD2 MBX: 8x SMA Antenna Connectors,
    1x SMA GPS Antenna Connector,
    4x RP-SMA Wi-Fi Antenna Connectors

    HD4 MBX: 16x QMA Antenna Connectors,
    1x QMA GPS Antenna Connector,
    4x RP-SMA Wi-Fi Antenna Connectors
    Power InputDC Jack/Terminal Block: 12-56 V #
    Power OutputUp to Eight 802.3at PoE Outputs #
    Power Consumption55W
    Dimensions1.7 x 11.5 x 7.0 inches | 43 x 292 x 177 mm
    Weight7.28 pounds | 3.3 kg
    Operating Temperature40 ° – 149 °F (-40 ° – 65 °C)
    Humidity15% – 95% (non-condensing)
    Power RequirementDC Jack: 10V – 56V
    Package Content
    MAX HD2 MBX (CAT-18)
    MAX HD2 MBX, PSU (ACW-630), 4x Dual Band Wi-Fi Antennas (ACW-341),
    1x GPS Active Antenna (ACW-232), 8x 2dBi 4G LTE Antennas (ACW-813),
    1 Pair of Mounting Brackets (ACW-731), 1x SIM Cover
    Package Content
    MAX HD4 MBX (CAT-18)
    MAX HD4 MBX, PSU (ACW-630),
    1x GPS Antenna (ACW-232), 1x QMA to SMA Adaptor (for GPS),
    1 Pair of Mounting Brackets (ACW-731), 2x SIM Cover
    CertificationsFCC, CE, RoHS
    RCM
    E-Mark
    PTCRB
    Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999
    Railway Applications: EN 50155
    Electromagnetic Compatibility: EN 61000
    Warranty1-Year Limited Warranty



    *WAN 3 is configured as a LAN port by default, configuration is changeable on the Web Admin.

    #2x 54V DC input is needed for all 8x LAN ports to have 802.3at PoE. Plugging in 1x 54V DC input will result in 4x LAN ports having 802.3at PoE.

    ^With purchase of optional SpeedFusion License (MAX-HD-020-SPF) can connect to up to 20 SpeedFusion peers.

  • WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    PING
    IPv6 Support
    DNS Lookup
    HTTP
    Bandwidth Allowance Monitor
    USB 4G/3G Modem Support
    Intelligent Failover
    Support for Dynamic DNS services
    changeip.com
    dyndns.org
    no-ip.org
    tzo.com
    DNS-O-Matic
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Per-Port VLAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    Weighted
    Enforced
    Persistence
    Priority
    Overflow
    Least Used
    Lowest Latency
    Fastest Response Time
    Complete VPN SolutionPepVPN
    Site-to-Site VPN
    Bandwidth Bonding
    Hot Failover
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    PPTP VPN Server
    RADIUS, LDAP Authentication
    IPsec VPN (Network-to-Network)
    X.509 Certificate Support
    Advanced QoSUser Groups
    Bandwidth Reservation
    Individual Bandwidth Limit
    Application Prioritization
    By User Groups
    SIP, HTTPS, VPN QoS
    Custom Application QoS
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    VRRP HA Support
    BGP, OSPFv2 and RIPv2 Support
    AP ControllerAuto AP Discovery
    Auto AP Firmware Management
    AP Profile Configuration
    Wi-Fi Usage Statistics
    SecurityDoS Prevention
    Stateful Firewall
    Web Blocking
    Web Filtering Blacklist
    Captive PortalSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
  •

    Product Code

    Description

    ACW-630

    Includes 1x 54V, 3.34A Power Supply

    Enable 4x LAN with 802.3at PoE output (PoE License automatically applied after kit purchase)

    ACW-633

    Includes 2x 54V, 3.34A Power Supply

    Enables 8x LAN with 802.3at PoE output (PoE License automatically applied after kit purchase)

    MAX-HD-020-SPF

    Supports up to 20 PepVPN/SpeedFusion Peers

    SIM-BK8-4E-56V

    SIM Injector, 8x SIM cards capacity, 4x 10/100/1000 LAN ports, 56V DC

  • Product CodeCarrier
    Modems4G Bands3G Bands
    MAX-HD4-MBX-LTEA-R-TAmerica / FirstNet Ready /
    CAT-12
    4B1, B2, B3, B4, B5, B7, B8, B9, B12, B13,
    B14, B18, B19, B20, B26, B29, B30, B32,
    B41, B42, B43, B46, B48, B66
    B1, B2, B4, B5, B6, B8, B9, B19
    MAX-HD4-MBX-LTEA-K-TGlobal*/ CAT-124B1, B2, B3, B4, B5, B7, B8, B9, B12, B13,
    B18, B19, B20, B26, B28, B29, B30, B32,
    B41, B42, B43, B46, B48, B66
    B1, B2, B4, B5, B6, B8, B9, B19
    MAX-HD2-MBX-GLTE-G-T
    Global /
    CAT-18
    2B1, B3, B25(B2), B66(B4), B26(B5/B18/B19),
    B7, B8, B12(17), B13, B14 , B20, B28, B29,
    B30, B32, B71, B38, B39, B40, B41, B42, B43, B46, B48
    B1, B2, B4, B5(B19), B8
    MAX-HD4-MBX-GLTE-G-TGlobal /
    CAT-18
    4B1, B3, B25(B2), B66(B4), B26(B5/B18/B19),
    B7, B8, B12(17), B13, B14 , B20, B28, B29,
    B30, B32, B71, B38, B39, B40, B41, B42, B43, B46, B48
    B1, B2, B4, B5(B19), B8
