Switch 16 Port Rugged

Simplified LAN Management

Meet Peplink SD Switches. Benefit from multiple redundancy technologies for the always-on uptime your network needs.

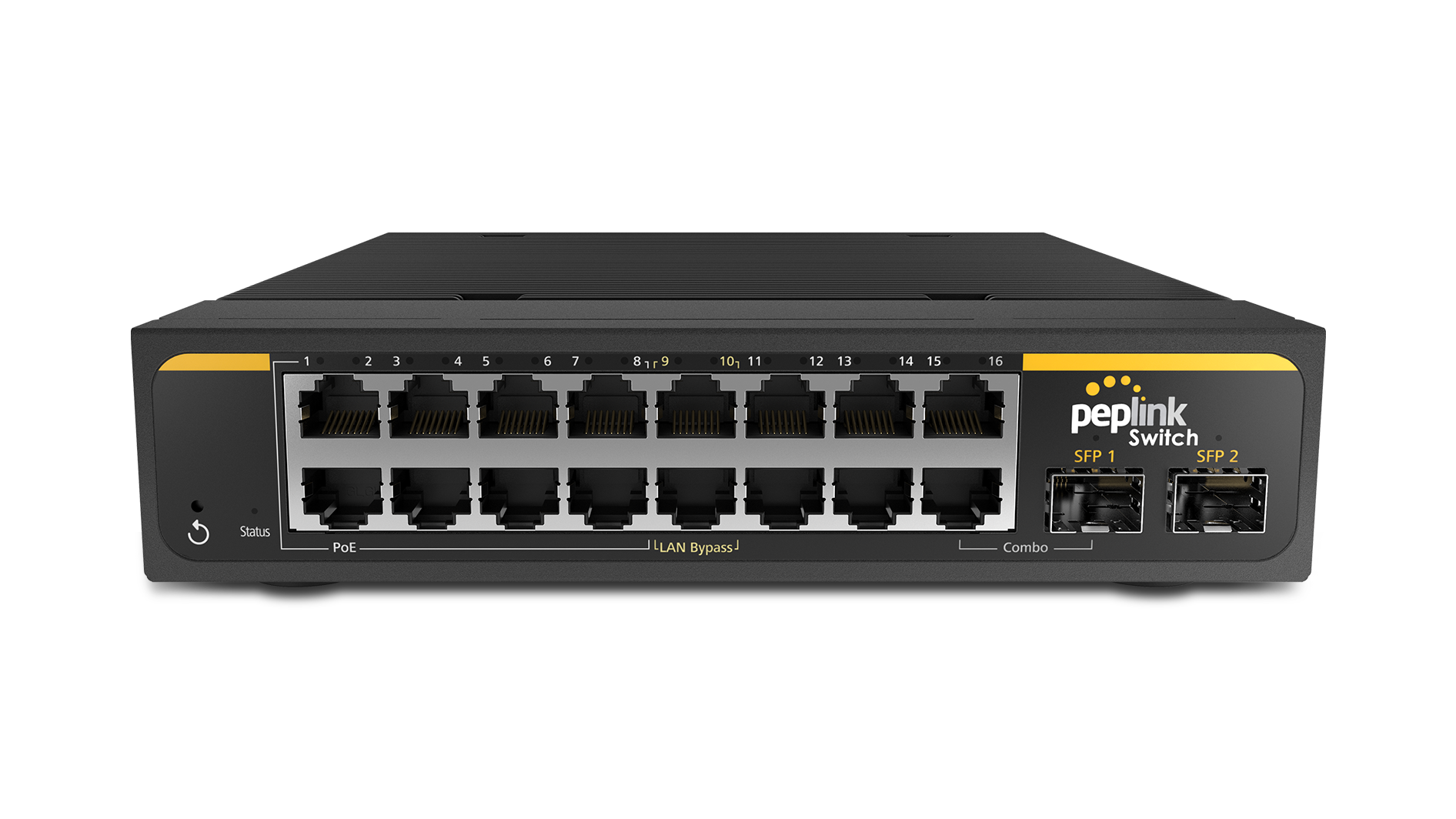

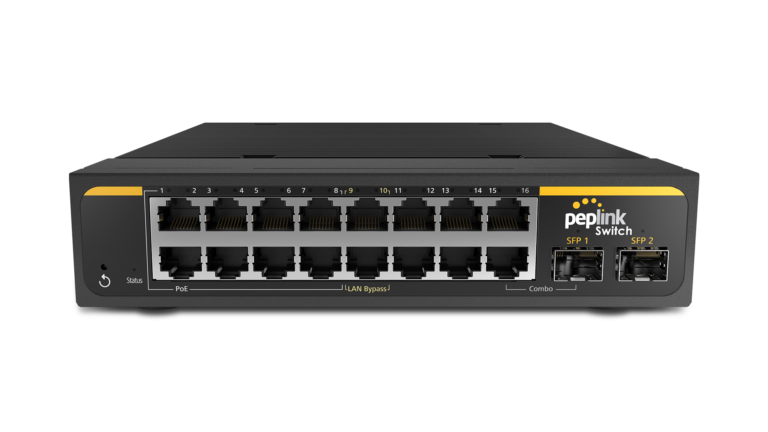

Industrial Grade 16-Port SD Switch for Rugged Environment #2
Industrial Grade 16-Port SD Switch for Rugged Environment #2

No more Command Lines

Use InControl 2 cloud management to remotely monitor, troubleshoot, and configure your network.

Monitor

Port status, connectivity, firmware version.

Troubleshoot

See all clients, search by MAC address.

Configure

Centralize VLAN, firmware, and configurations.

Powerful Robust Performance

High Capacity Uplinks

PoE+ Output

Out-Of-Band Management

Industrial Grade 16-Port SD Switch for Rugged Environment #5

Fanless Design. Ready for Any Environment

The SD-Switch Rugged can handle -40°F (-40°C) to 149°F (65°C). The fanless design enables it to function in high-particle environments.

Industrial Grade 16-Port SD Switch for Rugged Environment #6

Combo Port

ETH 16 and SFP 1 are a combo ports that share the same port number. This enables you to use either interface without configuring additional ports on client devices.

Industrial Grade 16-Port SD Switch for Rugged Environment #7

Greater Deployment Flexibility

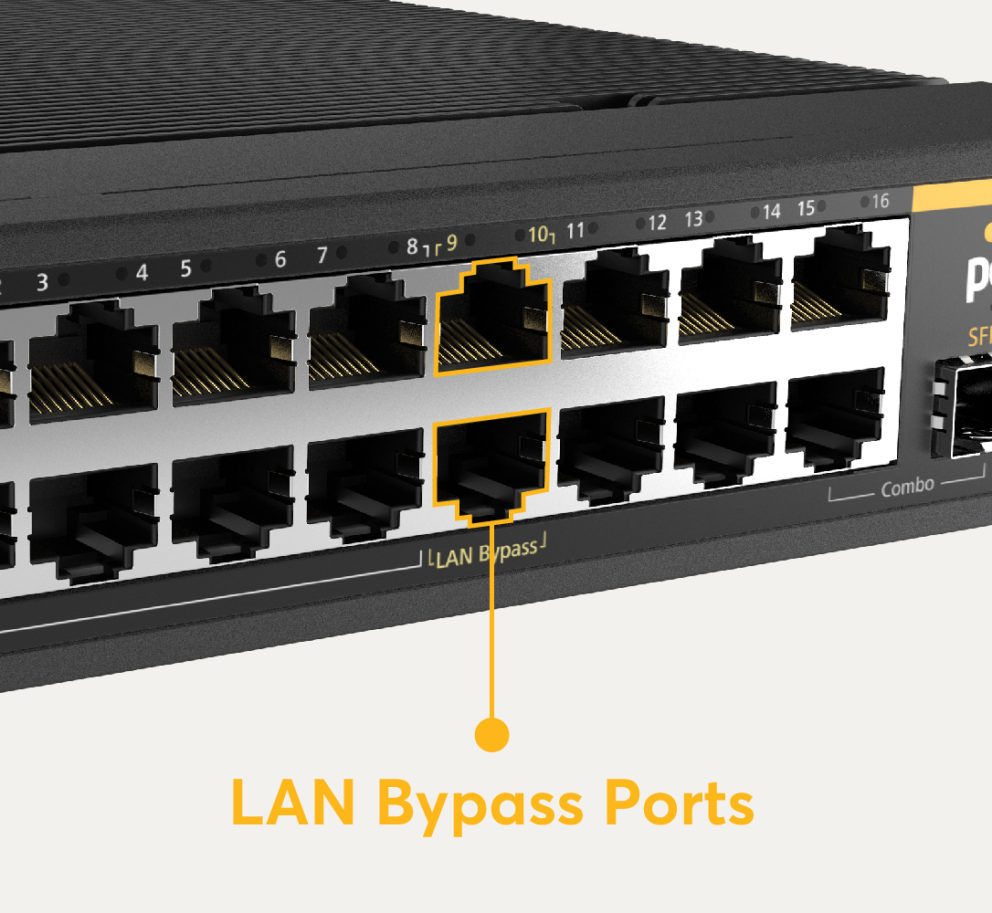

LAN bypass Ports

In the event that the switch loses power, the LAN bypass ports will still connect. This enables you safely connect the switches in a daisy chain configuration.

  • LAN Interface8x 802.3at (PoE+) GE Ports,
    8x GE Ports,
    2x SFP Ports
    VLAN GroupsYes
    Fiber Module2x 1 Gbps
    Switch Capacity36 Gbps
    Max. Packet
    Forwarding Rate
    26.8 Mpps
    MAC Address Table8,000
    Inter-VLAN RoutingNo
    AC AdaptorAC Input 100V-240V
    DC Output 54V^
    Power InputDC Power DIN 2x 54V
    Terminal Block: 12V - 56V DC
    Power
    Consumption
    20W System,
    90W PoE+ Power Budget
    (supports up to 240W^ )
    Dimensions
    (L x W x H)
    7.5 x 9.0 x 1.5 inches |
    190 x 226 x 35 mm
    Weight4.4 pounds |
    2.0 kg
    Operating Temperature-40° – 149°F |
    -40° – 65°C
    Humidity15% – 95% (non-condensing)
    CertificationFCC, CE, RoHS, E-Mark, IC
    EN 61373:1999 IEC 61373:1999 : Shock and Vibration Resistance
    EN 50155: Railway Applications
    EN 61000: Electromagnetic Compatibility
    Warranty1-Year Limited Warranty



    ^The bundled PSU provides 90W of PoE power budget. If you require 240W of power budget, please add 180W PSU (ACW-623) to your device.

  • Product Code

    Description
    PSW-16-240W-RUG

          PoE enabled (delivers up to 240W) Gigabit (16 ports) and SFP (2 ports) switch with a fanless design for industrial environments.
