MAX Adapter
Features Specifications
MAX Adapter setup in irrigation system
MAX Adapter cover

MAX
Adapter

– An Economical, Flexible LTE Cellular Modem –

MAX Adapter has instant configurability for remote devices using Peplink's InControl and InTouch MAX Adapter has instant configurability for remote devices using Peplink's InControl and InTouch

Instant configurability

Remote device management with Peplink’s InControl and InTouch eliminates the need for pre-staging configurations and eliminates truck rolls.

MAX Adapter has built-in eSIM configurations

The MAX Adapter comes with 1GB of Peplink’s eSIM Data Plan. Connect the device to InControl and download your own eSIMs straight out of the box for quick and easy deployments.

BR2 Micro setup inside emergency call box

Add rugged, reliable cellular to your network anywhere it’s needed

Metal, ventless case design

Wide temperature operation range
-22° – 149°F / -30° – 65°C

Better connectivity to your devices

Ethernet LAN port

USB-C LAN port

CAT-4 Cellular modem

Certified with all major US Carriers

MAX Adapter major US carriers including AT&T, T Mobile, Verizon
MAX Adapter has built-in eSIM and Physical Nano-SIM card
MAX Adapter has flexible powering options, including USB-C and DC, and can easily be powered from an external battery or power bank

Flexible powering options

Low power input requirement and fast bootup time

Port and Connections

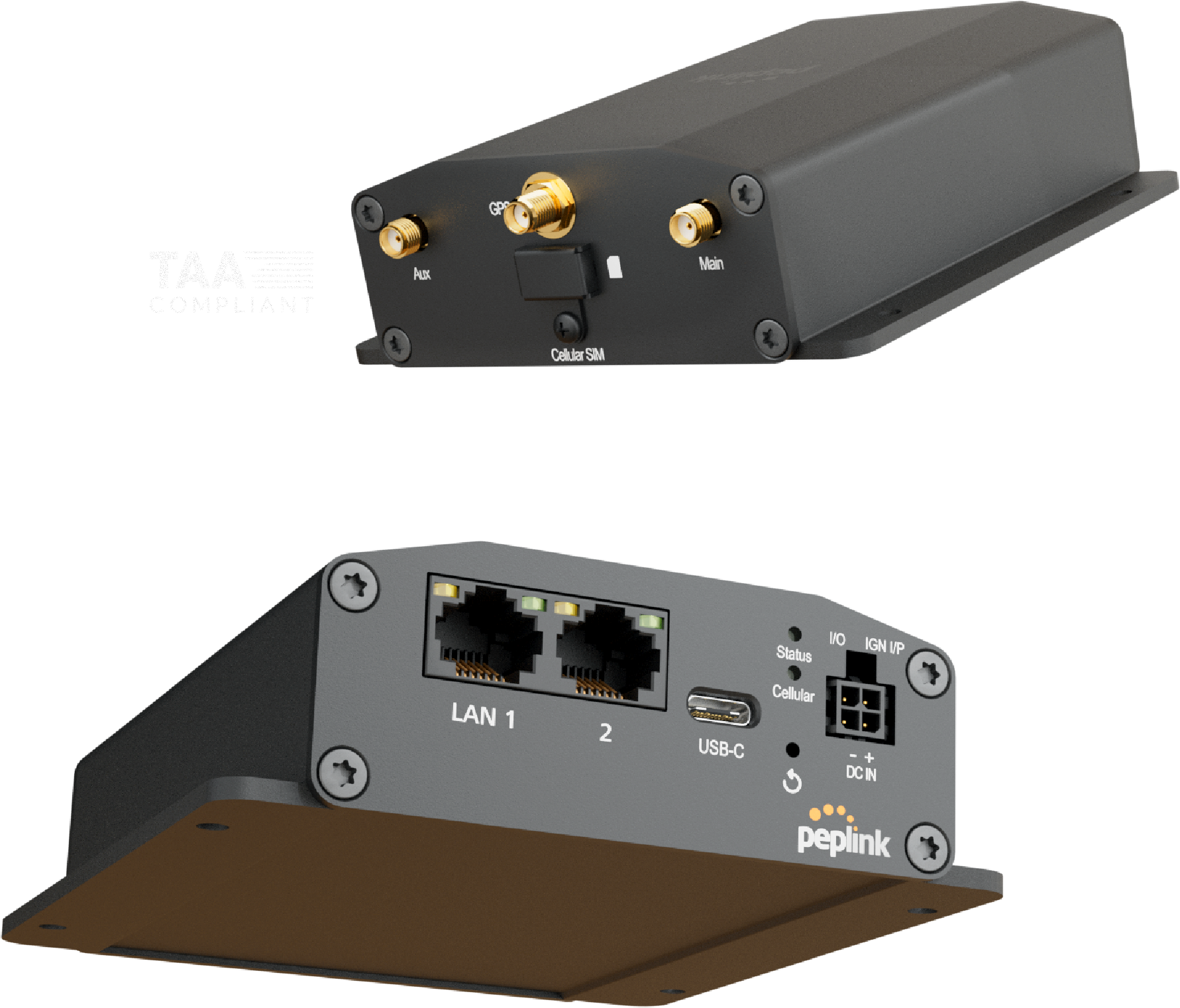

MAX Adapter Spec Front MAX Adapter Spec Back

  • Product Overview

  • SoftwarePepwave Adapter Firmware
    Global Positioning SystemIntegrated GPS
    Device Location Map with InControl 2
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    LANDHCP Server for LAN Clients
    DHCP Reservation
    DNS Proxy for LAN Clients
    USB-C Virtual Ethernet (Windows OS & Linux OS)
    Device ManagementWeb Administrative Interface
    InControl 2 Cloud Management
    Cellular ManagementAPN Setting
    SMS Control
    Data Roaming
    IP Passthrough
    GPIO SupportDigital Input Sensing
    Ignition Sensing
    Delivering Digital Output
  • Product CodeEmbedded Modem RegionLTE Bands3G Bands
    MAX-ADP-LTE-US-T-PRM1 x CAT-4
    		North America*


    *US Carrier Certifications: AT&T, T-Mobile,
    Verizon, FirstNet    		B2, B4, B5, B12, B13, B14, B66, B71B2, B4, B5
    MAX-ADP-LTE-EU-T-PRM1 x CAT-4
    		APAC, EMEAB1, B3, B7, B8, B20, B28, B38, B40, B41B1, B8
  • Product CodeDescriptions
    PRM-Z-1Y / PCP-Z-1YPrimeCare Z / PrimeCare+ Z (1-Year)
    PRM-Z-2Y / PCP-Z-2YPrimeCare Z / PrimeCare+ Z (2-Year)
    PRM-Z-4Y / PCP-Z-4YPrimeCare Z / PrimeCare+ Z (4-Year)
    ACW-232Magnetic GPS Antenna
    ACW-63410ft / 3m DC Power Cable
    ACW-643Vehicle Cigarette to Molex Power Cable
    ACW-791Peplink 4-Pin Molex to USB-C Power Cable
    ACW-DIN-BR1-MINIDIN Rail mount kit
    ANT-MB-20G-S-B-6Mobility 20G – 2×2 MIMO Cellular Antenna System with GPS Receiver (Black)
    ANT-MB-20G-S-W-6Mobility 20G – 2×2 MIMO Cellular Antenna System with GPS Receiver (White)
    ANT-SLM-22G-S-B-6Slim 22G – 2×2 MIMO Cellular and Wi-Fi Antenna System with GPS (Black)
    • 1x MAX Adapter
    • 1x 12V 2A 4 Pin Power Supply
    • 1x GPS Active Antenna
    • 2x Indoor Wideband Cellular Antennas(ACW-234)

  • MAX Adapter Datasheet
    User Manual
    FAQ
