AP One AC Mini
11AC Wave 2 AP
AP One AC Mini is an 802.11ac Wave 2 access point that delivers one of the fastest 11ac yet, and comes with multi-user MIMO (MU-MIMO). Upgrade your network to 11ac wave 2 Wi-Fi. Our access points are compatible with the latest iPhone as well as other smartphones.

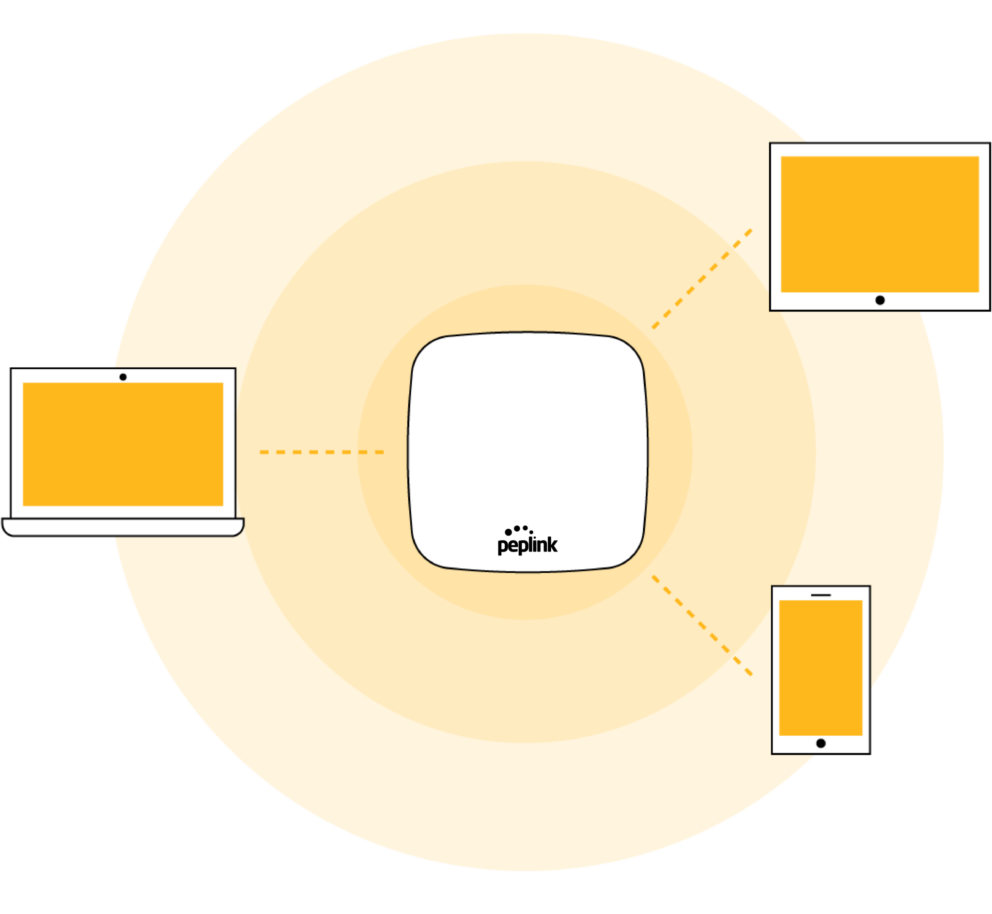

MU – MIMO
MU-MIMO offers significantly increased efficiency to your network. Now multiple client devices can receive data simultaneously through AP One AC Mini MU-MIMO and beamforming antenna technology, which concentrates and steers radio signals towards specific client devices.

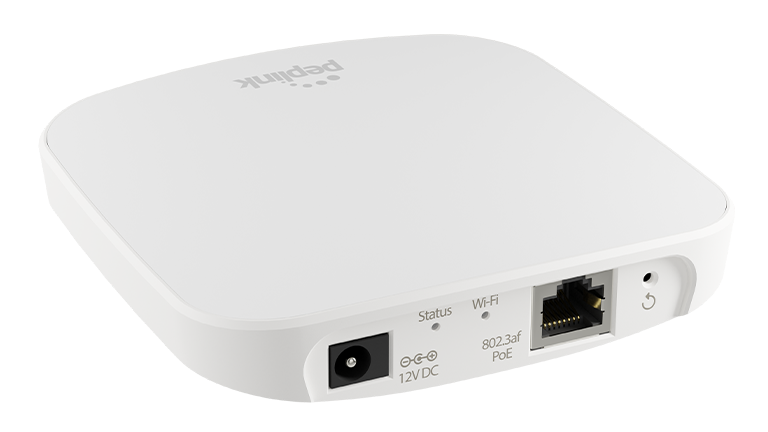

Small Form Factor
Get big performance and durability from this 11ac access point. The plenum-rated, flame-resistant AC mini measures only 3.9″ x 3.9″ x 0.8″, so it fits just about anywhere.
Boost your Network
Upgrade your network to 11ac wave 2 Wi-Fi. Increase your wireless speeds with AP One AC Mini

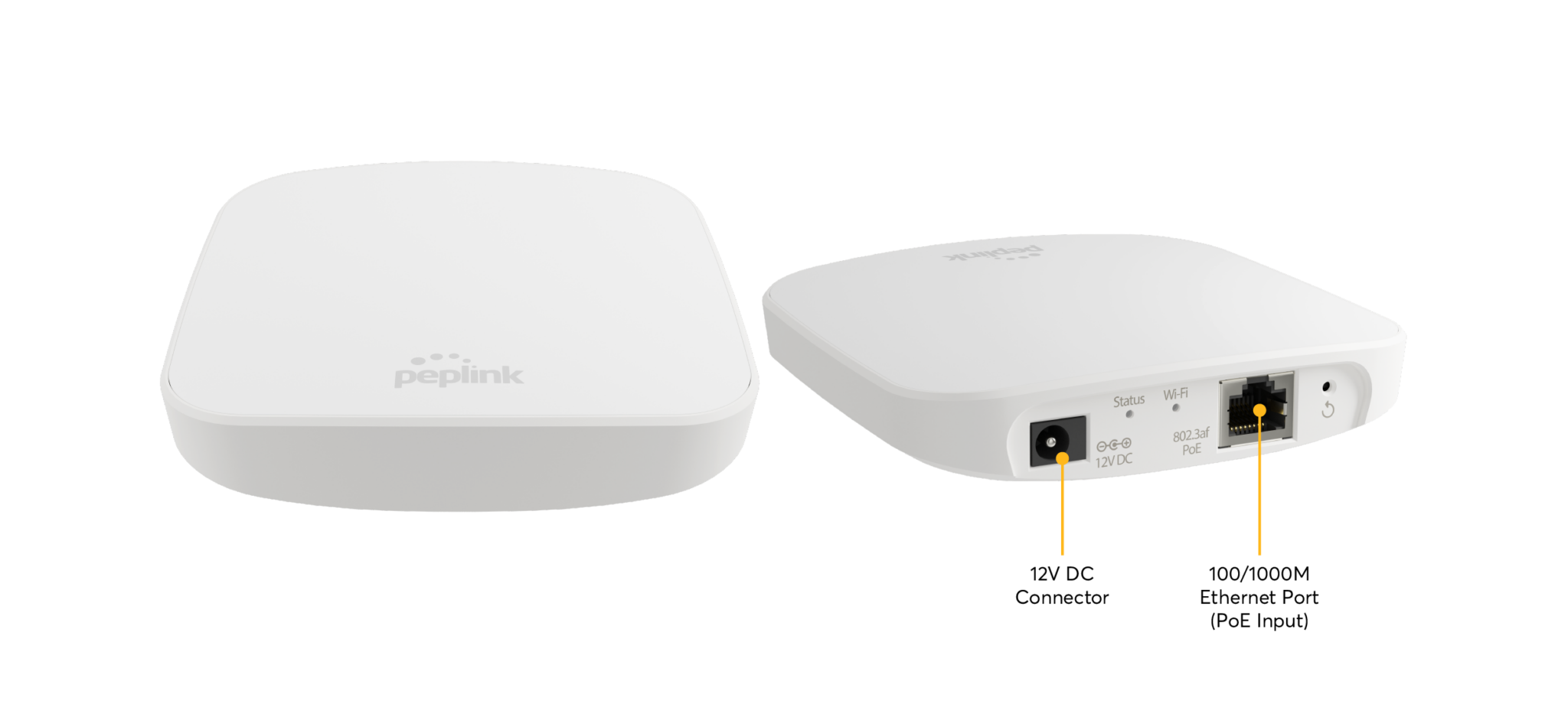

Built-in PoE
Ease your mind with 802.3af PoE input – say farewell to power cables.
User Access Control
Control network access with separate logins for each user group. AP One access points support up to 16 SSIDs, each with independent bandwidth limits and web blocking.

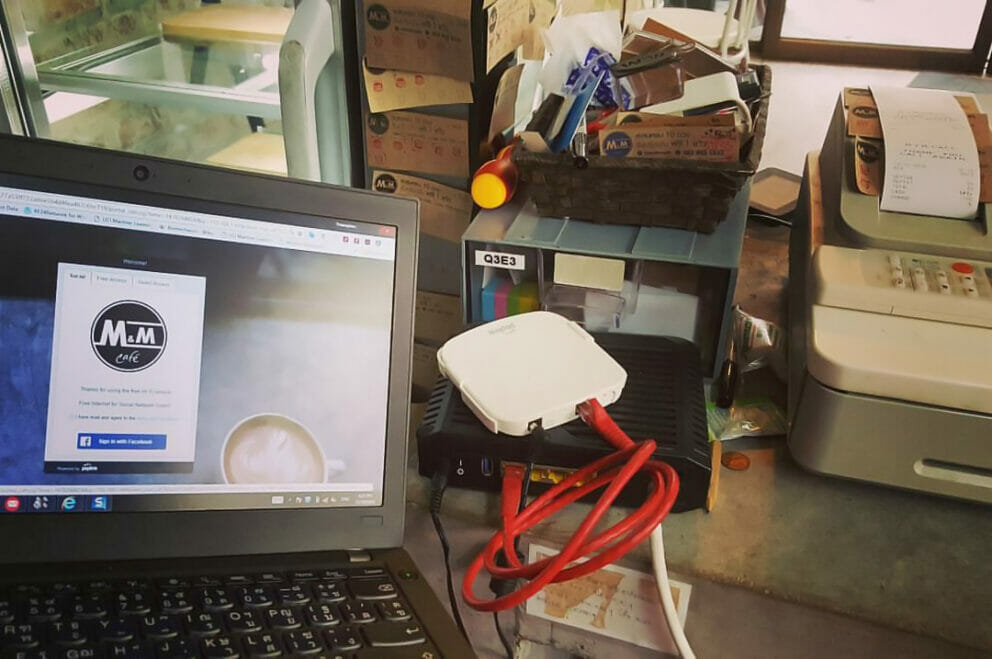

Social Wi-Fi Hotspot
Guests can now access your Wi-Fi hotspot with their Facebook login. In exchange, you can learn more about your customer base with insightful reports.
Centralized Management
Configure AP One access points onsite or from the cloud. Our AP Controller lets you locally manage access points from your Balance router, while InControl 2 offers a complete cloud-based solution accessible from any web-browser.^

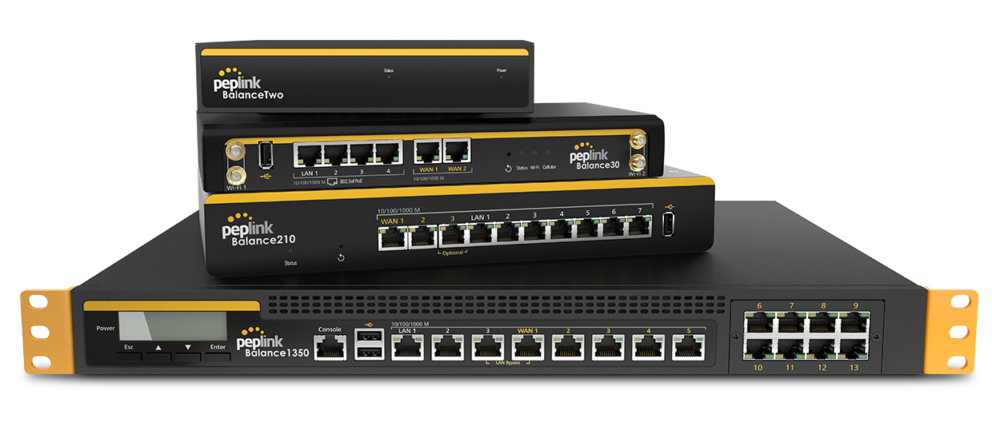

Complete Network Solution
Enjoy better network integration and performance. AP One access points are a perfect complement to Balance routers, together providing blazing speed and superior reliability across your entire network.
#PowerofPeplink
^ Requires Peplink Balance / Pepwave MAX Firmware 8.0.1 for AP Controller support on AP One AC Mini.
-
Ethernet Port 1x GE Wi-Fi Standard 802.11ac wave 2/ac/a/n and 802.11b/g/n
2×2 MU-MIMO2.4GHz * 300Mbps
5GHz * 866Mbps Simultaneous
2.4GHz and 5GHz
Yes Wi-Fi Transmit Power 2.4GHz: 22dBm
5GHz: 23dBmCoverage (With line of sight in open environments) 400ft |
122m
Recommended Concurrent Users Per Radio 60 Number of SSID Per Radio 16 Antenna Type Built-in Omni Antenna Gain 2.4GHz: 2.2dBi |
5GHz: 3dBi
Enclosure Plenum-rated, Indoor Plastic Dimensions 3.9 x 3.9 x 0.8 inches |
98 x 98 x 19.7 mm
Weight 0.33 pounds |
150 grams
AC Adapter
AC Input 100V-240V
DC Output 12V, 2APoE Input 802.3af Power Consumption 12W (max.) Operating Temperature 23° – 113°F |
-5° – 45°C
Humidity 15% – 95% (non-condensing) Certifications FCC, CE, RoHS * The frequency range for 2.4GHz and 5GHz are 2412−2472 MHz and 5180−5825 MHz respectively.
-
Network Bridge Mode
Router (NAT) Mode
Wireless Distribution System (WDS on 2.4GHz Only)
Support for PPPoE, Static IP, DHCP
Management VLAN (802.1p)
Spanning Tree Protocol (802.1d)
Radio Multiple SSID
Auto Channel Selection
Transmit Power Adjustment
Neighbour AP Detection
AP Security Open
WPA/WPA2/WPA3-Personal
WPA/WPA2-EnterpriseDevice Management Web Administrative Interface
InControl Cloud Management
Peplink AP Controller
SNMP v1, v2c and v3
Client Management per SSID VLAN with QoS (802.1p/802.1q)
Bandwidth Control
MAC Address Filtering
Layer 2 Client Isolation
Limit on Max. Number of Client
Client Management per Client VLAN with RADIUS
VLAN with VLAN Pool
Bandwidth Control
Multicast Filter
IGMP Snooping/Multicast Enhancement
Complete SpeedFusion VPN Solution Site-to-Site VPN
256-bit AES Encryption
Pre-shared Key Authentication
Dynamic Routing
Captive Portal By InControl -
Product Code Description ACW-384 AP One AC Mini Protect Cover SVL-791 1-Year EssentialCare for AP One AC Mini SVL-691 2-Year EssentialCare for AP One AC Mini ICS-012 1-Year InControl 2 Subscription ICS-024 2-Year InControl 2 Subscription ECP-A-1Y EssentialCare+ A (1-Year) ECP-A-2Y EssentialCare+ A (2-Year) ECP-A-4Y EssentialCare+ A (4-Year) -
Suitable For Product Name Product Code Description Indoor Desktop or Wall-Mount Installation. AP One AC mini APO-AC-MINI Simultaneous 802.11ac wave 2
/ac/a/n 866Mbps and 802.11b/g/n 300Mbps. Built-in omni antenna included.
-
“The Pepwave AP One Enterprise Access Points have worked very well. To my surprise, two of them completely cover my 8000SF+ house, including my patio/pool area behind my house.”
– Amazon.com Customer
“I am not an IT expert nor do I work in IT. I have been a user of Peplink routers and WAPs for five plus years and they are very well made and supported. Flexible in configuration with a web-based management tool that again is very capable but approachable to the non-IT types. The InControl web management system makes SSID and radio management a breeze. Firmware management and performance logs are also available. Highly recommended!”
– Amazon.com Customer
“Works excellently with my Balance router. Control/configuration can be done directly from the router for easy usage and support. Peplink products typically “just work” and are super alternatives to what is currently on the market. Functional, well-documented, bullet-proof, fairly easy to configure!”
– Amazon.com Customer
“Great AP. Great value. Product is commercial grade, easy to program with lots of options!”
– Amazon.com Customer
“Great product with excellent range and throughput. Integrates nicely with the Peplink router. Very easy to use to expand your Wi-Fi coverage.”
– Amazon.com Customer
-
- AP One AC Mini
- 12V2A Power Supply (ACW-601)
- 1x Mounting Bracket
