SDX Pro

Modular SD-WAN Router with Edge Computing Capability

In addition to the power of the SDX, the SDX Pro offers greater flexibility and functionality. It has two FlexModule slots, enabling you to customize the device with different modules to suit any deployment. It supports edge computing so it can deliver websites, applications, and docker containers to connected devices.

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Modular System. Ensure Flexibility

Future Proof Design

4G/5G cellular WAN

Add 4G/5G backup to enterprise networks. Add multiple cellular FlexModules for fast and unbreakable connectivity anywhere.

8x copper WAN/LAN

Connect PoE-enabled modems on the WAN, or connect PoE devices such as cameras, IP phones, and Wi-Fi APs on the LAN.

4x fiber WAN/LAN

Build an all-Fiber network by connecting Fiber WANs and LAN Switches.

56x SIM Capacity

Virtually deliver SIM cards from the FlexModule to Peplink cellular routers anywhere. Supports up to 56 SIM cards.

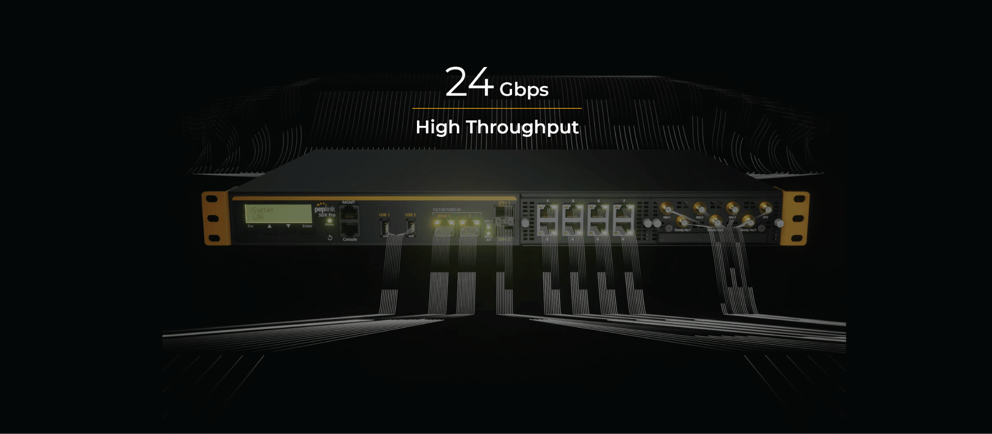

The SDX Pro has enough throughput to handle any
high-bandwidth enterprise branch or mobile deployment.

Ready-Built Infrastructure

Your SDX Pro comes ready to connect to the SpeedFusion Cloud: a global network of secure endpoints with unique capabilities. Use the SpeedFusion Cloud as an unbreakable worldwide VPN, saving setup and maintenance costs.

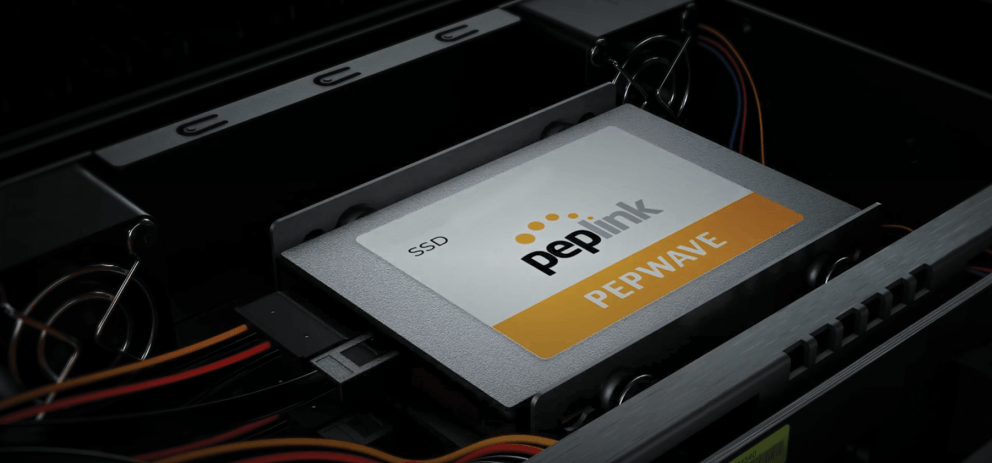

Edge Computing Capable

Websites
Virtual Machines

Docker Containers
Applications

The SDX Pro is a one-box hosting solution that can deliver Docker containers, applications, and websites to its local network. By hosting resources near the network edge, you can reduce latency and make applications more responsive.

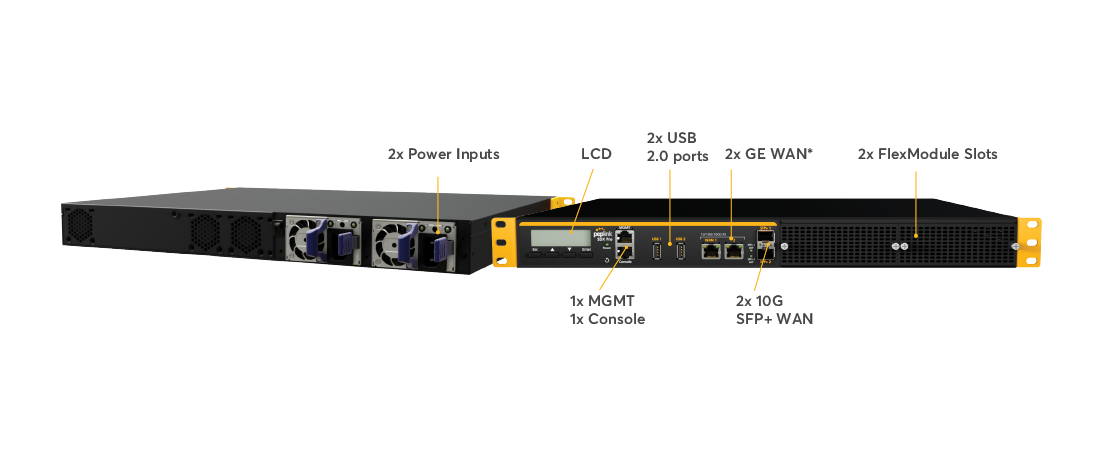

Uninterruptible Power

The SDX Pro is equipped with two power inputs and two hot-swappable power supplies. Only one of each is needed to function, ensuring continuous power delivery even if a cable gets disconnected or if a power supply drops out for any reason.

* WAN ports are configured as a LAN ports by default, configuration is changeable on the Web Admin.

  • Product Overview. Main Chassis & Comparison Table

  •
    8x GE PoE Module (EXM-8C) ^
    Interface8x 10/100/1000M Ethernet Ports *
    Capable of PoE+
    Power Consumption15W (255W max. with 802.3at/af PoE+ Output)
    Dimensions4.1 x 7.4 x 1.5 inches
    103 x 188 x 38 mm
    Weight1.1 pounds | 475 grams

    * Module can be configured with LAN or WAN ports as needed.
    # Antenna is not included.


    4x SFP+ Module (EXM-4F) #
    Interface4x SFP+ Ports *
    Power Consumption11W
    Dimensions4.1 x 7.4 x 1.5 inches
    103 x 188 x 38 mm
    Weight0.83 pounds | 375 grams

    * Module can be configured with LAN or WAN ports as needed.
    # Antenna is not included.


    SIM Injector FlexModule (EXM-SIM-BK56) #
    SIM Slot Capacity56 4FF Nano SIM Cards
    Power Consumption15W
    Dimensions4.1 x 7.4 x 1.5 inches
    103 x 188 x 38 mm
    Weight1.30 pounds | 600 grams
    Compatible with EPX, SDX Pro

    # Antenna is not included.


    3x LTE-A Module (EXM-3LTEA) #
    Interface3x Embedded LTE-A Cellular Modems
    with Redundant SIM Slots
    Antenna Connectors6x SMA Cellular Antenna Connectors
    1x SMA GPS Antenna Connector
    Downlink/Uplink Datarate300Mbps/50Mbps (CAT-6)
    600Mbps/150Mbps (CAT-12)
    Power Consumption20W
    Dimensions4.1 x 7.4 x 1.5 inches
    103 x 188 x 38 mm
    Weight0.83 pounds | 375 grams

    # Antenna is not included.


    CAT-12. 4x LTE-A Module (EXM-4LTEA) #
    Interface4x Embedded LTE-A Cellular Modems
    with Redundant 4FF Mini SIM Slots
    Antenna Connectors8x SMA Cellular Antenna Connectors
    1x SMA GPS Antenna Connector
    Downlink/Uplink Datarate600Mbps/150Mbps
    Power Consumption20W
    Dimensions4.1 x 7.4 x 1.5 inches
    103 x 188 x 38 mm
    Weight0.83 pounds | 375 grams

    # Antenna is not included.


    CAT-18. 2x LTE-A Module (EXM-2GLTE-G) #
    Interface2x Embedded LTE-A Cellular Modems
    with Redundant 4FF Nano SIM Slots
    Antenna Connectors8x SMA Cellular Antenna Connectors
    1x SMA GPS Antenna Connector
    Downlink/Uplink Datarate1.2Gbps/150Mbps
    Power Consumption20W
    Dimensions4.1 x 7.4 x 1.5 inches
    103 x 188 x 38 mm
    Weight0.83 pounds | 375 grams

    # Antenna is not included.


    2x 5G Module (EXM-2X5GD/EXM-2X5GH) #
    Interface2x Embedded Cellular Modems
    with Redundant 4FF Mini SIM Slots
    Antenna Connectors8x SMA Cellular Antenna Connectors
    1x SMA GPS Antenna Connector
    Downlink/Uplink Datarate5G: 4 Gbps / 700 Mbps
    LTE CAT-20: 2 Gbps / 150 Mbps
    Power Consumption20W
    Dimensions4.1 x 7.4 x 1.5 inches
    103 x 188 x 38 mm
    Weight0.83 pounds | 375 grams

    # Antenna is not included.

  •
    SoftwarePeplink Balance Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    -PING
    -DNS Lookup
    -HTTP
    Bandwidth Allowance Monitor
    IPv6 Support
    USB 4G/3G Modem Support
    Support for Dynamic DNS services
    -changeip.com
    -dyndns.org
    -no-ip.org
    -tzo.com
    -DNS-O-Matic
    WAN Port Convertible into LAN Port
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    -Weighted
    -Enforced
    -Persistence
    -Priority
    -Overflow
    -Least Used
    -Lowest Latency
    -Fastest Response Time
    SecurityDoS Prevention
    Stateful Firewall
    Web Blocking
    Complete VPN SolutionSpeedFusion VPN
    Site-to-Site VPN
    -Bandwidth Bonding
    -Hot Failover
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    -Dynamic Routing
    PPTP/L2TP/OpenVPN Server
    -Local User, LDAP, RADIUS, Active Directory Authentication
    IPsec VPN (Network-to-Network)
    -X.509 Certificate Support
    GRE Tunnel (Network-to-Network)
    Advanced QoS User Groups
    -Bandwidth Reservation
    -Individual Bandwidth Limit
    Application Prioritization
    -By User Groups
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    BGP, OSPFv2 and RIPv2 Support
    AP Controller Support for Pepwave AP Series
    Auto AP Discovery
    Auto AP Firmware Management
    AP Profile Configuration
    Wi-Fi Usage Statistics
    Captive PortalSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Support LDAP Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    DNSBuilt-in Authoritative DNS

    Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT records
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
    Power RequirementsUniversal Input 100V – 240V AC



    *Only valid for customers who have purchased Peplink Balance devices directly from Peplink.

    All specifications are subject to change without notice.



    • Balance SDX Pro
      • SDX Pro Base Chassis
      • 1U 19″ Rack-mount Chassis (ACW-752)
      • L-mount Set (ACW-750)
      • 2x Power Cord (ACW-614)
      • Rubber Foot Pad set
  • Product CodeCarrierModem 4G Bands3G Bands
    EXM-3LTEA-WAmerica/Europe/
    CAT-6
    		3B1, B2, B3, B4, B5, B7, B8 , B12,
    B13, B20, B25, B26, B29, B30, B41
    		B1, B2, B3, B4, B5, B8
    EXM-3LTEA-PAsia Pacific/
    CAT-6
    		3B1, B3, B5, B7, B8, B18, B19,
    B21, B28, B38, B39, B40, B41
    		B1, B5, B6, B8, B9, B19, B39
    EXM-3LTEA-RAmerica /
    FirstNet /
    CAT-12
    		3B1, B2, B3, B4, B5, B7, B8, B9,
    B12, B13, B14, B18, B19, B20,
    B26, B29, B30, B32, B41, B42,
    B43, B46, B48, B66
    		B1, B2, B4, B5, B6, B8, B9, B19
    EXM-4LTEA-DAPAC & EMEA /
    CAT-12    		4B1, B2, B3, B4, B5, B7, B8, B9,
    B12,B13, B14, B17, B18, B19,
    B20, B21,B25, B26, B28, B29,
    B30, B32, B38, B39, B40, B41,
    B66    		HSPA+: B1, B2, B3, B4,
    B5, B8, B9, B19
    EXM-4LTEA-RAmerica /
    FirstNet /
    CAT-12
    		4B1, B2, B3, B4, B5, B7, B8, B9,
    B12, B13, B14, B18, B19, B20,
    B26, B29, B30, B32, B41, B42,
    B43, B46, B48, B66
    		HSPA+: B1, B2, B4, B5, B6, B8, B9, B19
    EXM-2GLTE-GGlobal /
    CAT-18
    		2B1, B3, B25(B2), B66(B4),
    B26(B5/B18/B19), B7, B8,
    B12(17), B13, B14 , B20, B28,
    B29, B30, B32, B71, B38, B39,
    B40, B41, B42, B43, B46, B48
    		B1, B2, B4, B5(B19), B8



    Product CodeCarrierModems5G BandsLTE Bands
    EXM-2X5GDPrimary: APAC & EMEA
    Compatible: Global    		25G (NSA) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n20, n28,
    n38, n41, n66, n71, n77, n78, n79    		B1, B2, B3, B4, B5, B7, B8, B12, B13,
    B14, B17, B18, B19, B20, B25, B26,
    B28, B29, B30, B32, B34, B38, B39,
    B40, B41, B42, B46, B66, B71
    EXM-2X5GHPrimary: North America
    Compatible: Global    		25G (NSA) Sub 6Ghz:
    n1, n2, n3, n5, n28, n41, n66, n71,
    n77, n78, n79    		B1, B2, B3, B4, B5, B7, B8, B12, B13,
    B14, B17, B18, B19, B20, B25, B26,
    B28, B29, B30, B32, B34, B38, B39,
    B40, B41, B42, B46, B48, B66, B71
  • Product CodeDescription
    BPL-SDX-PRO-M2SDX Pro Base Model, No Expansion module, 500GB SSD, 2x GE WAN/LAN Ports, 2x 10GE SFP+ WAN/LAN ports, 2x USB WAN
    BPL-SDX-PRO-M2-1TBSDX Pro Base Model, No Expansion module, 1TB SSD, 2x GE WAN/LAN Ports, 2x 10GE SFP+ WAN/LAN ports, 2x USB WAN
    BPL-SDX-PRO-M2-2TBSDX Pro Base Model, No Expansion module, 2TB SSD, 2x GE WAN/LAN Ports, 2x 10GE SFP+ WAN/LAN ports, 2x USB WAN



    Product CodeDescription
    EXM-8CExpansion Module with 8x GE PoE ports
    EXM-4FExpansion Module with 4x SFP+ ports
    EXM-SIM-BK56Expansion Module with 56 SIM slots
    EXM-4LTEA-DExpansion Module with 4x LTE-A Pro modems (CAT-12)
    EXM-4LTEA-RExpansion Module with 4x LTE-A Pro modems (CAT-12)
    EXM-2GLTE-GExpansion Module with 2x LTE-A Pro modems (CAT-18)
    EXM-2X5GDExpansion Module with 2x 5G modems
    EXM-2X5GHExpansion Module with 2x 5G modems
    EXM-2X5GNExpansion Module with 2x 5G modems



  • Product Code Description
    LIC-VWAN  Activate 1x Virtual WAN on Balance SDX Pro*
    LIC-2VWAN  Activate 2x Virtual WAN on Balance SDX Pro*
    LIC-3VWAN  Activate 3x Virtual WAN on Balance SDX Pro*
    LIC-OPN-WAN OpenVPN WAN License
    ECP-BPL-SDX-PRO-M2-1Y EssentialCare+ (1-Year) for Balance SDX Pro
    ECP-BPL-SDX-PRO-M2-2Y EssentialCare+ (2-Year) for Balance SDX Pro
    ECP-BPL-SDX-PRO-M2-4Y EssentialCare+ (4-Year) for Balance SDX Pro
    SVL-BPL-SDX-PRO-M2-1Y 1-Year EssentialCare for Balance SDX Pro
    SVL-BPL-SDX-PRO-M2-2Y 2-Year EssentialCare for Balance SDX Pro



    * Learn more about Virtual WAN Activation License here.

  • SDX Pro datasheet

    FlexModule datasheet

    SDX Pro Module upgrade guide

    User Manual

    FAQ



    Case Studies

    • Do you have any suggestions for a 10G SFP transceiver?

      Learn more about the recommended SFP transceiver at this post
