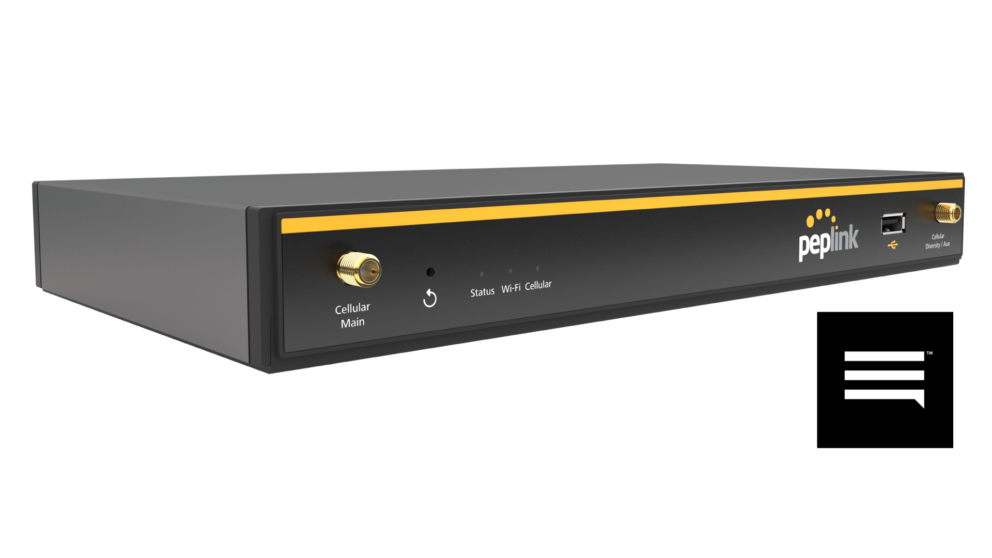

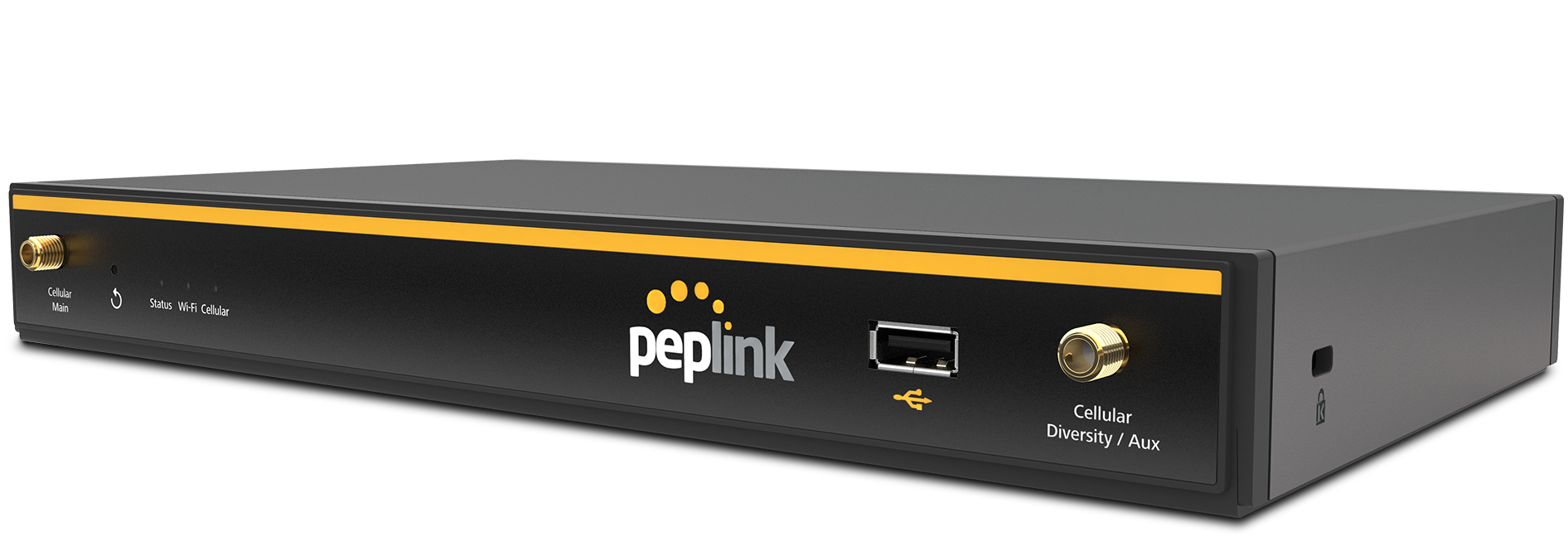

Balance 20X

DC Rugged anchor DC IP55 anchor

Add Cellular Backup



Back up your xDSL with a cellular link (up to two with the FlexModule Mini) and redundant SIM cards. When a line goes down, your office won’t even notice.

Need Another LTE?

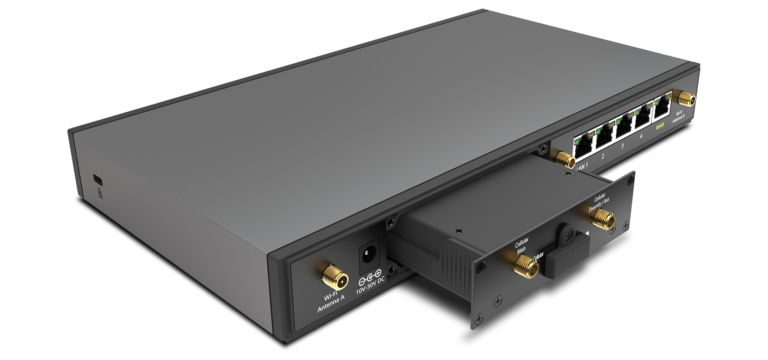

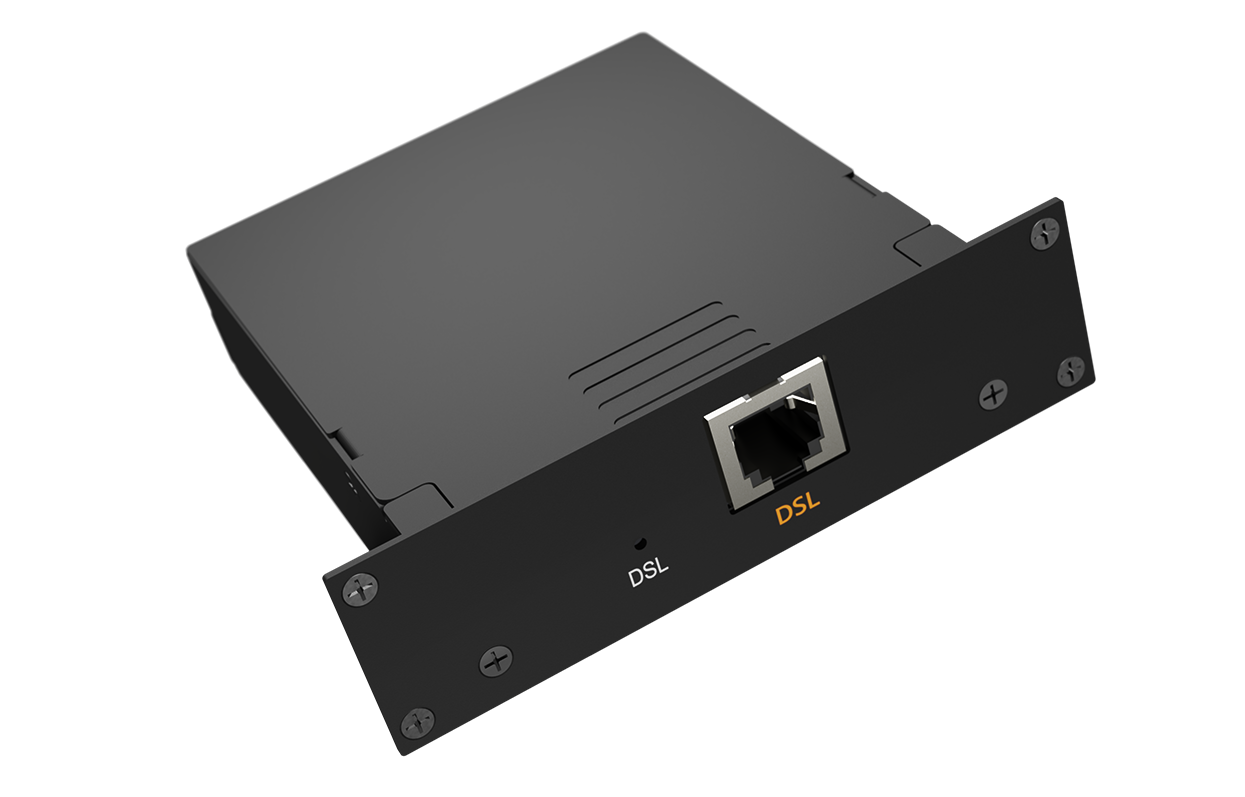

The Balance 20X has a FlexModule Mini slot which will support all kinds of WAN technology. So when it’s time to add a second LTE connection, the Balance 20X will be ready.

Better with PrimeCare



Everything’s Included: PrimeCare includes everything you need to provide your office with unbreakable, scalable connectivity.

Pay Less Upfront: PrimeCare lowers the entry cost of getting the device you want. Annual subscription gets you a wide range of services.

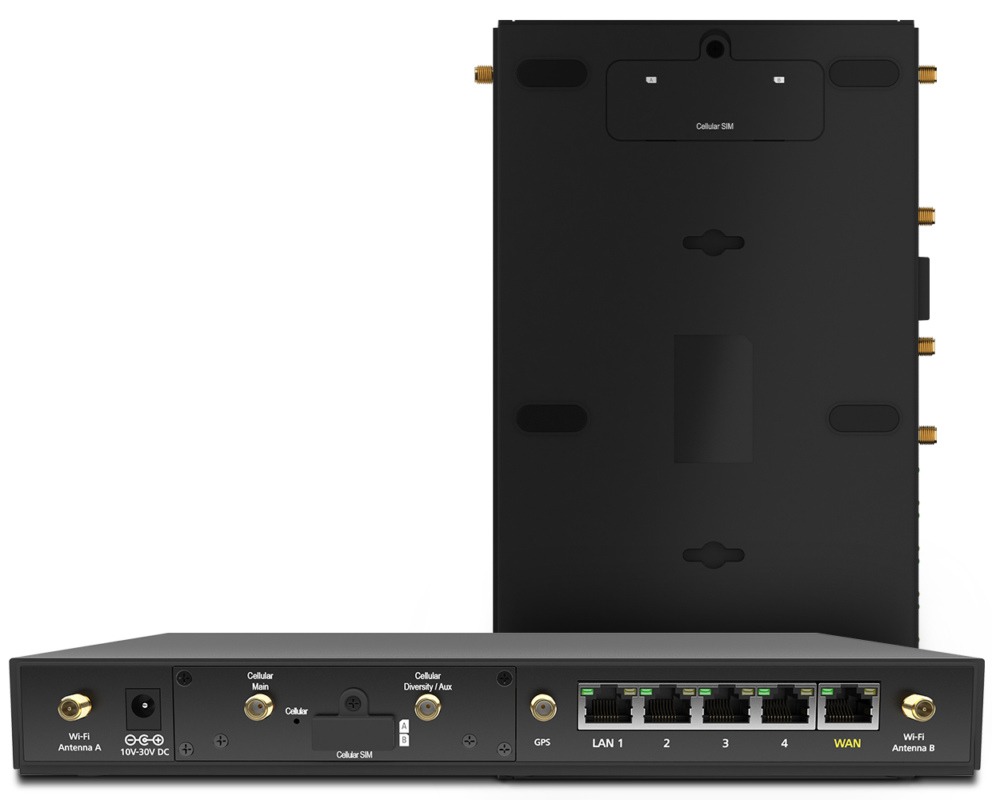

Specifications – Balance 20X

 Balance 20X
WAN Interface1 x GE, 1x Embedded LTE Modem
1x USB Interface
1x Expansion Modules (Option)
SpeedFusion Hot Failover
SpeedFusion WAN Smoothing ^
SpeedFusion Bandwidth Bonding ^
Number of PepVPN SpeedFusion Peers5 ^

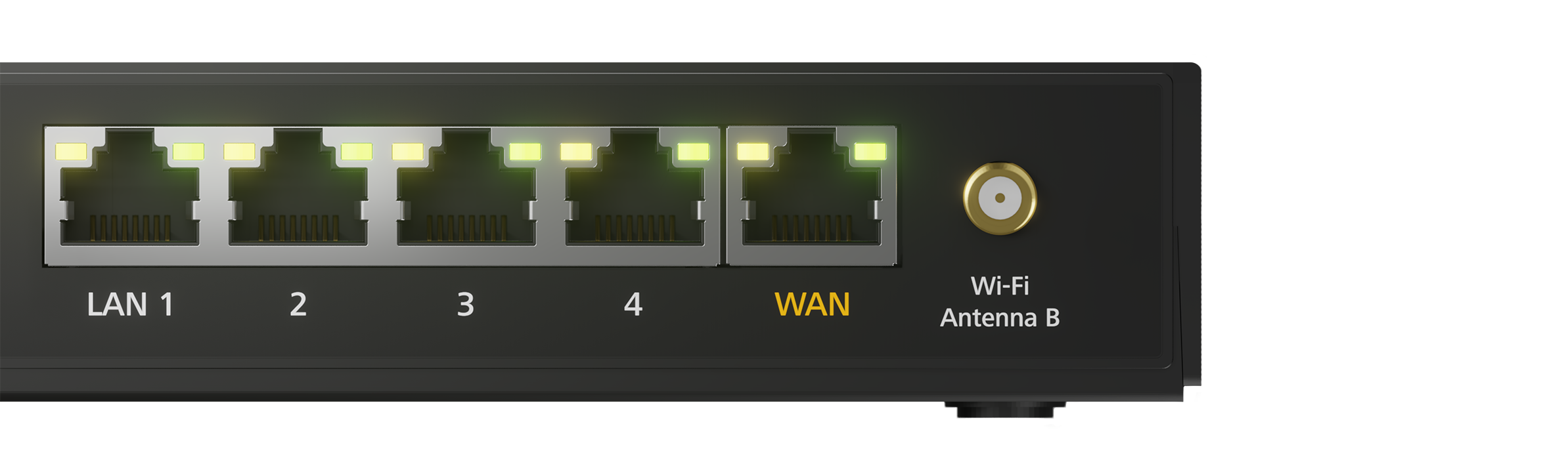

LAN Interface4x GE
Wi-Fi InterfaceSimultaneous 802.11ac wave 2/ac/a/n
and 802.11b/g/n
Stateful Firewall Throughput900Mbps
PepVPN / SpeedFusion
Throughput		No Encryption: 100Mbps
256-bit AES: 60 Mbps
Recommended Users1-60
IP Passthrough

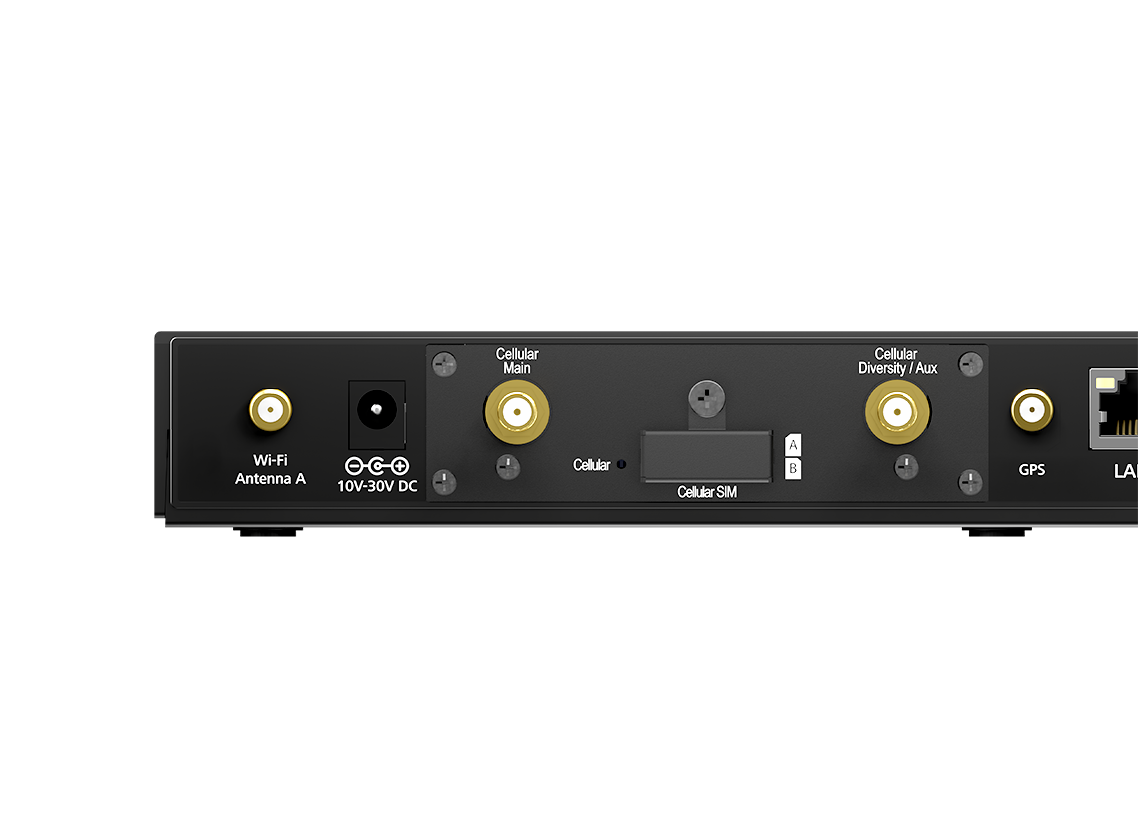

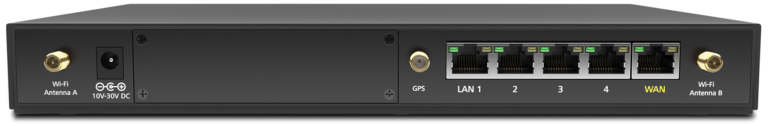

Antenna Connectors2x SMA Antenna Connectors
2x RP-SMA Wi-Fi Antenna Connectors
1x GPS SMA Antenna Connectors
Power InputDC Jack: 10V - 30V
Power Consumption28W (max.)
Dimensions6.3 x 10.3 x 1.3 inches
160 x 262 x 33 mm
Weight1.74 pounds / 0.67 kg
Operating Temperature14° – 113°F / -10° – 45°C
CertificationsFCC, CE, RoHS
Warranty1-Year Limited Warranty
^ Requires PrimeCare Subscription, complementary for the first year.



Specifications – Expansion Modules

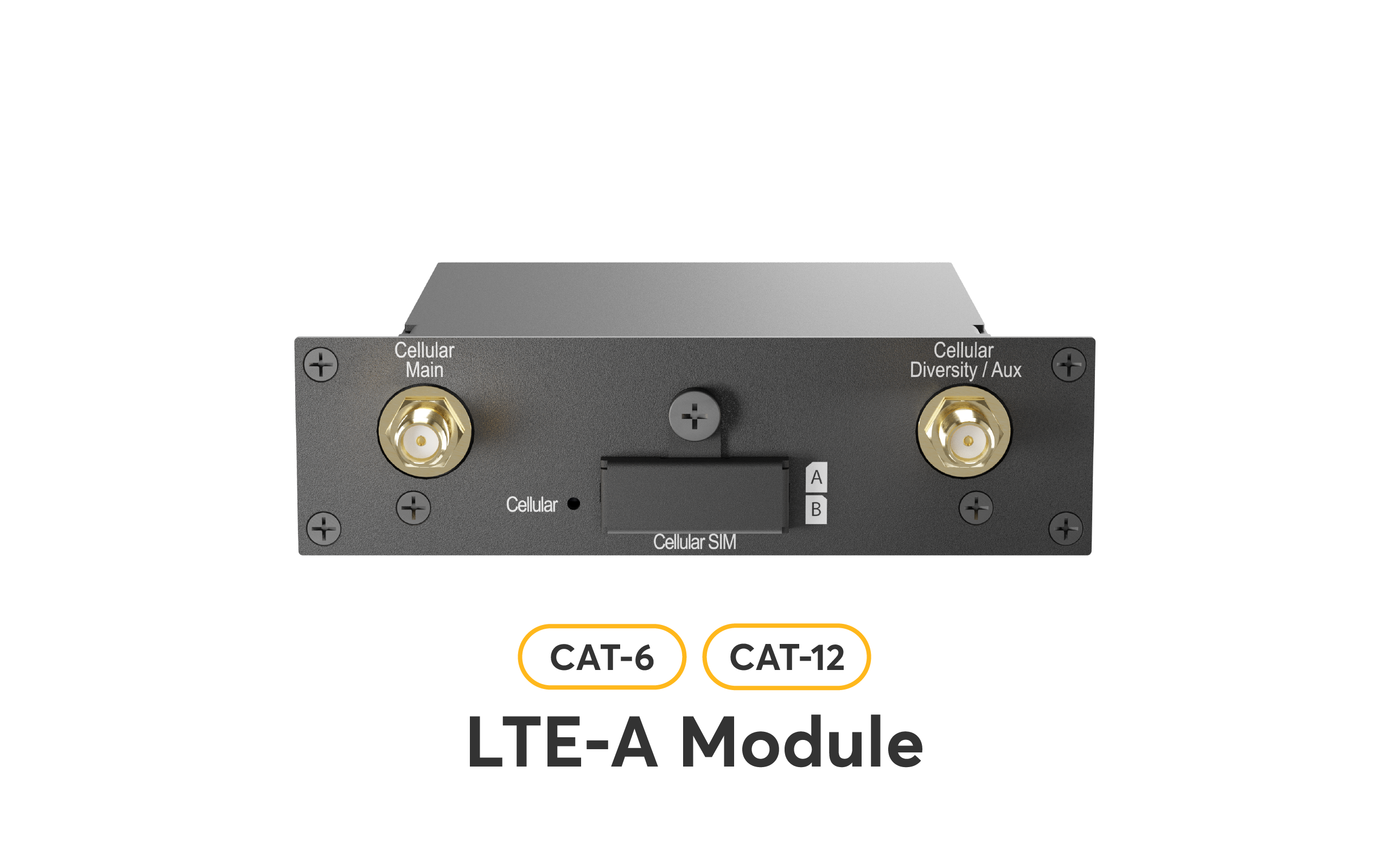

1x LTE-A Module (EXM-MINI-1LTEA)
Interface1x Embedded LTE-A Cellular Modems
with Redundant SIM Slots
Antenna Connectors2x SMA Cellular Antenna Connectors
Downlink/Uplink Datarate300Mbps/50Mbps (CAT-6)
600Mbps/150Mbps (CAT-12)
Power Consumption20W
Weight0.83 pounds
375 grams

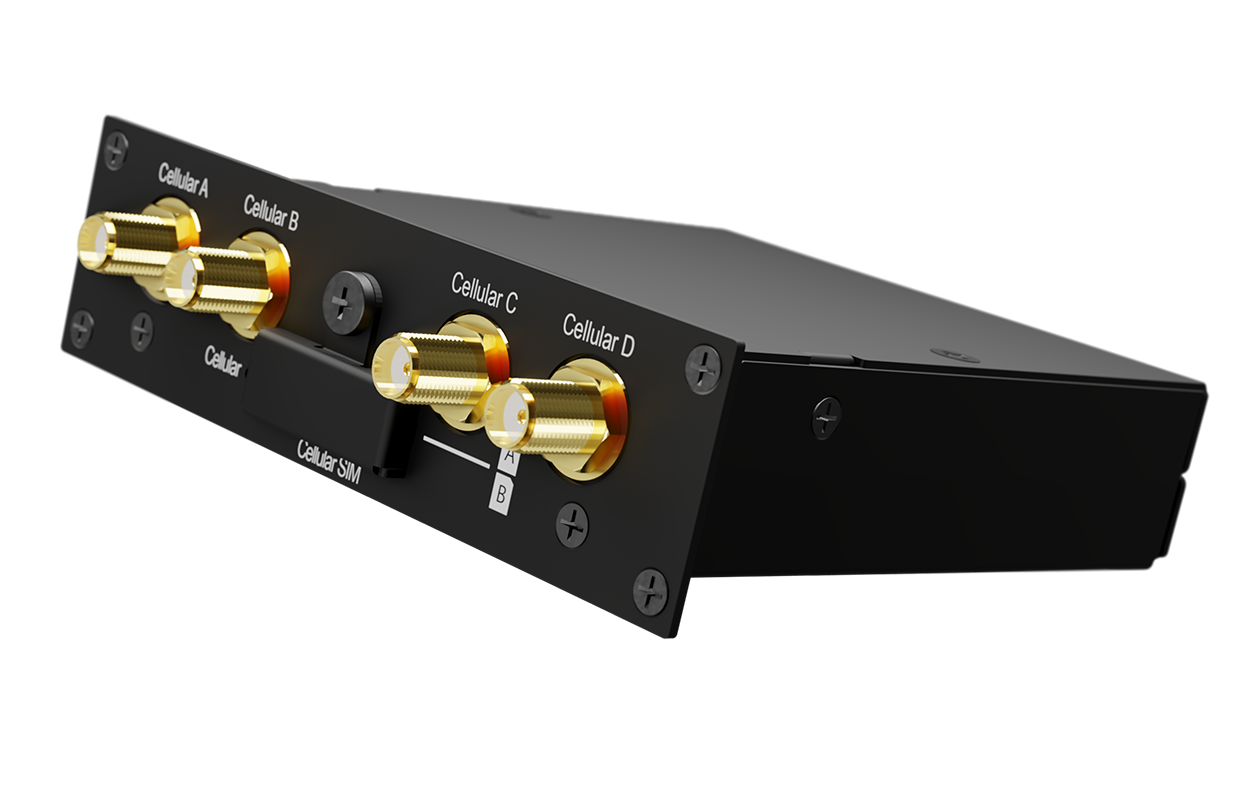

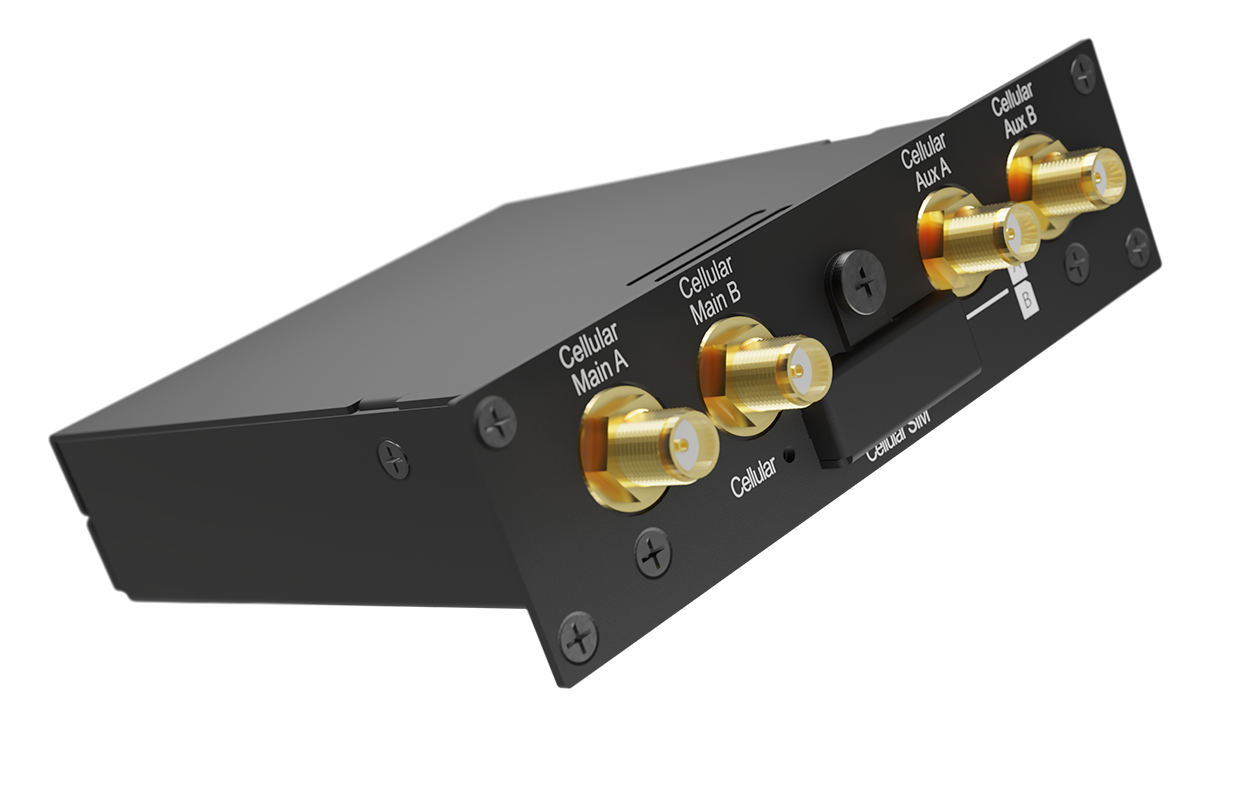

1x LTE-A Module (EXM-MINI-1GLTE-G)
Interface1x Embedded LTE-A Cellular Modems
with Redundant SIM Slots
Antenna Connectors4x SMA Cellular Antenna Connectors
Downlink/Uplink Datarate1.2 Gbps/150 Mbps (CAT-18)
Power Consumption20W
Weight0.83 pounds (375 grams)




Ordering Information – Balance 20X

Product CodeDescription
BPL-021X-LTE-E-T-PRMBalance 20X, 1x GE WAN ports, 4x GE LAN ports and 1x LTE modem (CAT-4)
BPL-021X-LTE-US-T-PRMBalance 20X, 1x GE WAN ports, 4x GE LAN ports and 1x LTE modem (CAT-4)


Ordering Information – Expansion Modules

Product CodeDescription
EXM-MINI-1LTEA-WExpansion Module with 1x LTE-A modems (CAT-6)
EXM-MINI-1LTEA-PExpansion Module with 1x LTE-A modems (CAT-6)
EXM-MINI-1LTEA-RExpansion Module with 1x LTE-A Pro modems (CAT-12)
EXM-MINI-1LTEA-KExpansion Module with 1x LTE-A Pro modems (CAT-12)
EXM-MINI-1GLTE-GExpansion Module with 1x LTE-A Pro modems (CAT-18)


Bands – Balance 20X

 Product CodeCarrierEmbedded Modem4G Bands3G Bands
LTEBPL-021X-LTE-E-T-PRMEurope / International /
CAT-4		1B1, B3, B5, B7, B8, B20, B38, B40, B41WCDMA/HSPA+/DC-HSPA+:
B1, B5, B8
BPL-021X-LTE-US-T-PRMAmericas /
CAT-4		1B12, B14, B4, B2, B5, B13, B66, B71B2, B4, B5


Bands – Expansion Modules

Product CodeCarrierModems4G Bands3G Bands
EXM-MINI-1LTEA-WWorldwide /
CAT-6		1B1, B2, B3, B4, B5, B7, B8 , B12,
B13, B20, B25, B26, B29, B30, B41		B1, B2, B3, B4, B5, B8
EXM-MINI-1LTEA-PAsia Pacific /
CAT-6		1B1, B3, B5, B7, B8, B18, B19,
B21, B28, B38, B39, B40, B41		B1, B5, B6, B8, B9, B19, B39
EXM-MINI-1LTEA-RAmerica /
FirstNet /
CAT-12		1B1, B2, B3, B4, B5, B7, B8, B9,
B12, B13, B14, B18, B19, B20,
B26, B29, B30, B32, B41, B42,
B43, B46, B48, B66		B1, B2, B4, B5, B6, B8, B9, B19
EXM-MINI-1LTEA-KGlobal* /
CAT-12		1B1, B2, B3, B4, B5, B7, B8, B9,
B12, B13, B18, B19, B20, B26,
B28, B29,B30, B32, B41, B42,
B43, B46, B48, B66		B1, B2, B4, B5, B6, B8, B9, B19
EXM-MINI-1GLTE-GGlobal /
CAT-18		1B1, B3, B25(B2), B66(B4),
B26(B5/B18/B19), B7, B8,
B12(17), B13, B14 , B20, B28,
B29, B30, B32, B71, B38, B39,
B40, B41, B42, B43, B46, B48		B1, B2, B4, B5(B19), B8
*China & HK TD LTE are excluded.


Technical Specifications

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
    • PING
    • IPv6 Support
    • DNS Lookup
    • HTTP
  • Bandwidth Allowance Monitor
  • USB 4G/3G Modem Support
  • Intelligent Failover
  • Support for Dynamic DNS services
    • changeip.com
    • dyndns.org
    • no-ip.org
    • tzo.com
    • DNS-O-Matic

    • LAN

    • DHCP Server for LAN Clients
    • Extended DHCP Option
    • DHCP Reservation
    • DNS Proxy for LAN Clients
    • VLAN on LAN Support
    • Per-Port VLAN Support

    Load Balancing

    • Intelligent Failover
    • Session Persistence
    • Per-Service Load Distribution
    • Multiple Algorithms
      • Weighted
      • Enforced
      • Persistence
      • Priority
      • Overflow
      • Least Used
      • Lowest Latency
      • Fastest Response Time

Complete VPN Solution

  • PepVPN
    • Site-to-Site VPN
    • Bandwidth Bonding
    • Hot Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
  • PPTP/L2TP/OpenVPN Server
    • Local User, LDAP, RADIUS, Active Directory Authentication
  • IPsec VPN (Network-to-Network)
    • X.509 Certificate Support
  • GRE Tunnel (Network-to-Network)

Advanced QoS

  • User Groups
    • Bandwidth Reservation
    • Individual Bandwidth Limit
  • Application Prioritization
    • By User Groups
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP
  • WINS Server
  • VRRP HA Support
  • BGP, OSPFv2 and RIPv2 Support

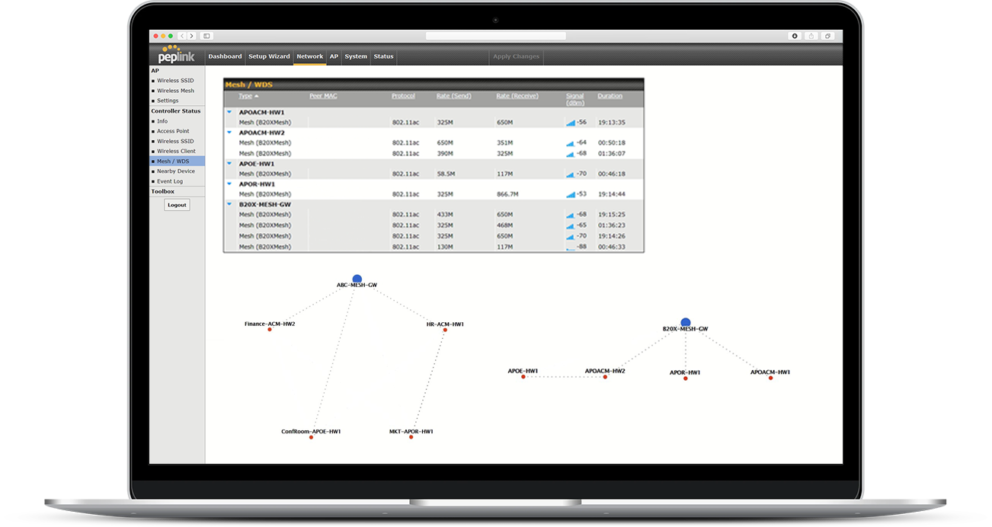

AP Controller

  • Auto AP Discovery
  • Auto AP Firmware Management
  • AP Profile Configuration
  • Wi-Fi Usage Statistics

Security

  • DoS Prevention
  • Stateful Firewall
  • Web Blocking
  • Web Filtering Blacklist

Captive Portal

  • Support for Wired and Wireless LAN Clients
  • Support RADIUS Authentication
  • Time and Usage Quotas on Open Access Mode
  • Built-in Customizable Splash Page

Device Management

Power Requirements

  • DC Jack: 10V – 30V

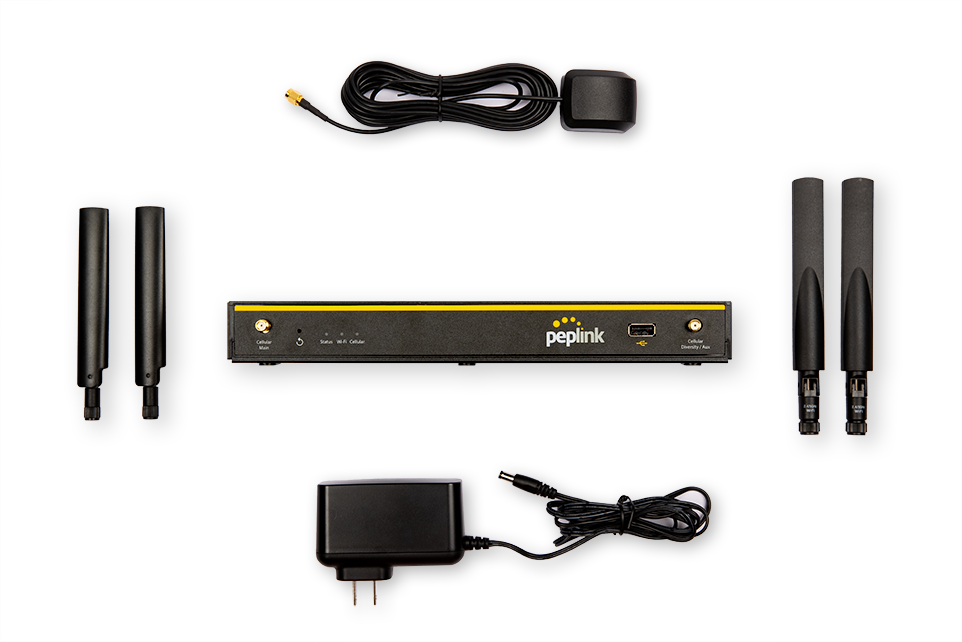

Package Content

  • Balance 20X
    • LTE Antenna x 2 (ACW-813)
    • GPS Antenna x 1 (ACW-232)
    • Wi-Fi Antenna x 2 (ACW-341)
    • 12V 3A PSU x 1 (ACW-602)
