SIM Injector

More SIM, More Range

8 Additional SIM With the SIM Injector

Use the SIM Injector to add another 8 SIM cards to your deployment, giving you the ability to connect to multiple carriers and ensuring that your connection remains unbreakable. The SIM Injector is capable of PoE output, so you don’t need to add another PoE switch to your deployment.

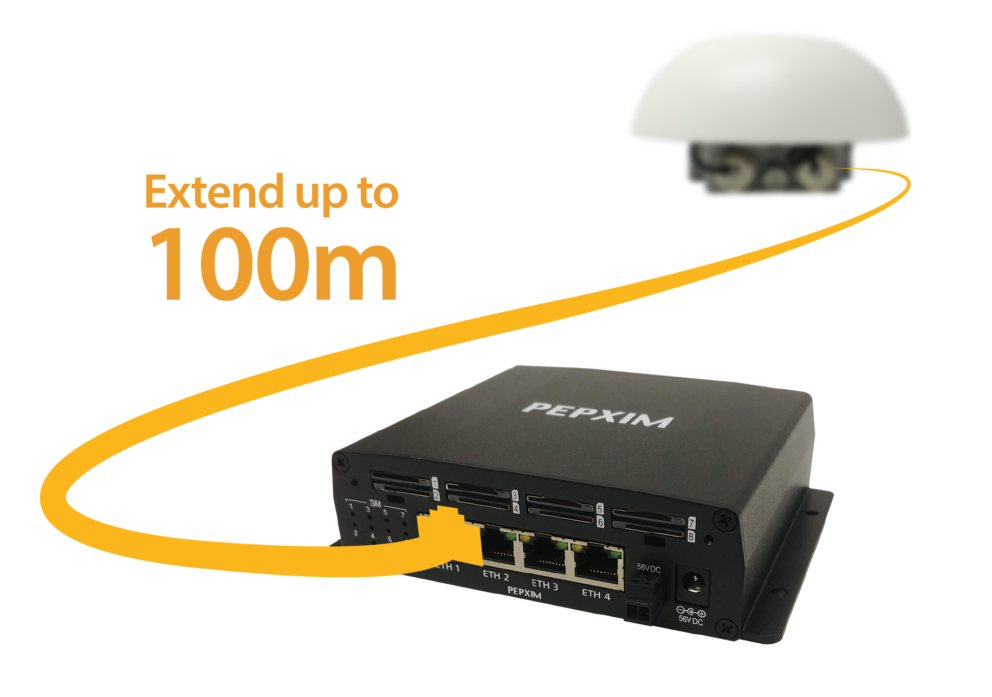

100 meter flexibility can be added with SIM Injector

In addition to adding SIM capacity, the SIM Injector also adds 100 meters of flexibility between the Router and the SIM cards, enabling you to place the cellular router anywhere you want without worrying about changing SIM cards.

SIM Injector uses a flexible architecture

You can connect multiple SIM Injectors to your device, and it will have access to all the SIM cards carried by the SIM Injectors.

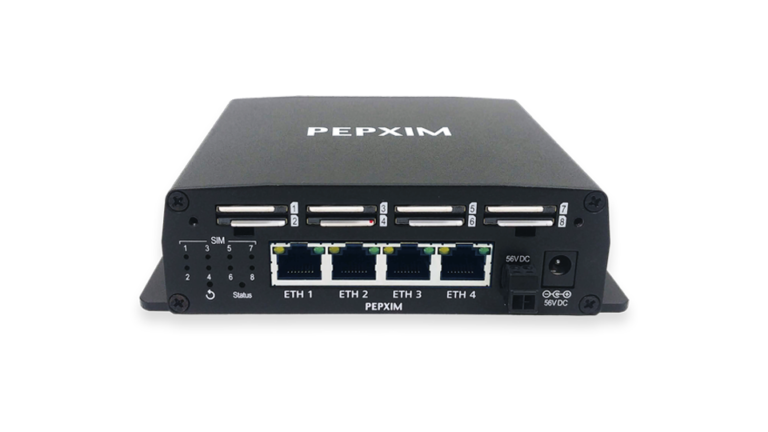

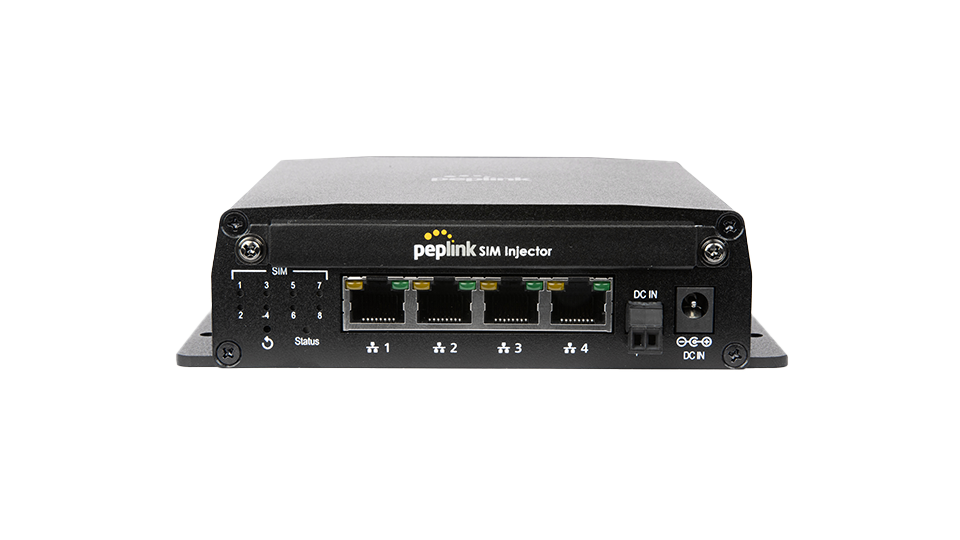

  • Injector Overview
    Specification Description
    SIM Slots8x Active SIM Slots, Standard Size
    LAN Interface4x GE, PoE 802.3at Support *
    Power InputDC Jack/Terminal Block: 12-56V
    Dimensions1.6 x 5.8 x 5 inches | 40 x 147 x 128 mm
    Weight430 grams | 0.94 pounds
    Operating Temperature-40° – 149°F | -40° – 65°C
    Humidity15% – 95% (non-condensing)

    * 56V DC input is needed for 4x LAN ports to have 802.3at



  • Product CodeDescription
    SIM-BK8-4E-56VSIM Injector, 8x SIM cards capacity, 4x 10/100/1000 LAN ports, 56V DC



    • Power cable (ACW-614)
    • Power supply (ACW-622)
    • Balance series: 20X*, 310 5G, 310 Fiber 5G, 310X, 310X 5G, 380X*, 580X*, SDX Pro^, EPX^
    • MAX series: MBX, MBX 5G, MBX Mini, PDX, BR1 Classic (HW 3), BR1 ESN, BR1 Pro (HW 5/6, CAT-4 & CAT-6), BR2 Pro, BR1 IP55 (HW 4 or above), HD2 Mini (SKU: MAX-HD2-MINI-XXXX-RM-T), HD1 Dome, HD1 Dome Pro, HD2 Dome, HD2 IP67(HW 4+), Transit Pro, Transit Pro E, Transit Core, UBR LTE, UBR Plus, SFE (HW 2 or above), SFE CAM.

    * with FlexModule Mini EXM-MINI-1LTEA-W, EXM-MINI-1LTEA-P, EXM-MINI-LTEA-US, EXM-MINI-1LTEA-R, EXM-MINI-1LTEA-K, EXM-MINI-1GLTE-G, EXM-MINI-GLTE-S or EXM-MINI-15GH

    ^ with FlexModule Plus EXM-3LTEA-W, EXM-3LTEA-P, EXM-3LTEA-R, EXM-3LTEA-K, EXN-4LTEA-R, EXM-4LTEA-K, EXM-2GLTE-G, EXM-2X5GD, EXM-2X5GH

  • Pepxim SIM Injector Datasheet
