SDX

Modular Enterprise Grade Router

As a member of our “X” series, the SDX offers extreme performance and future proof design at a practical price point. The SDX can handle the bandwidth requirements of any enterprise branch network. The SDX supports a FlexModule, enabling you to customize the router with your choice of ports, as well as instantly apply new technology as we release new modules.

Locate a Reseller

Future Proof Design

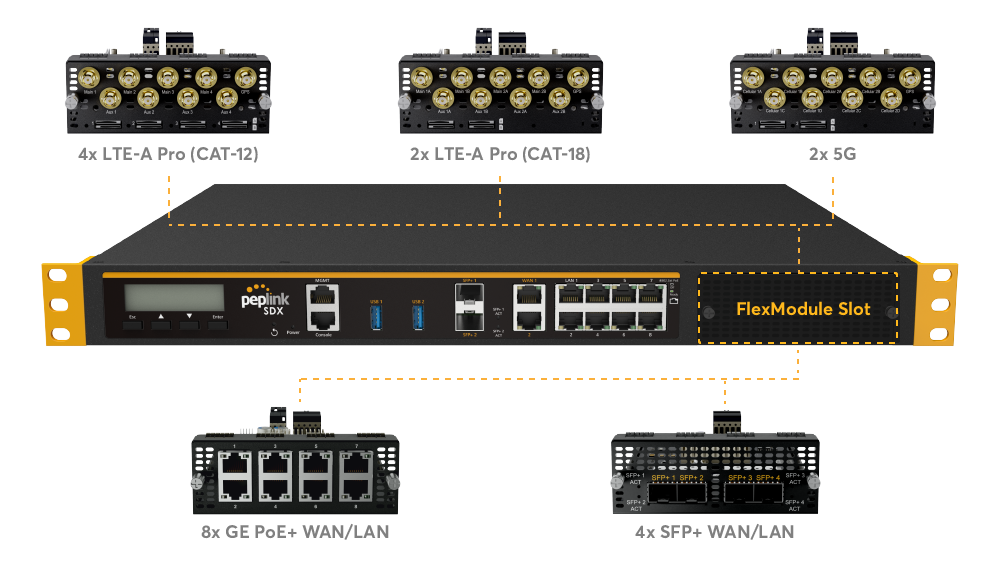

The SDX supports a FlexModule, enabling you to customize the router with your choice of ports, as well as instantly apply new technology as it will be released and available.

Peplink team will build additional FlexModules as new technologies such as 5G emerge. Simply insert the new FlexModule and the SDX will become 5G ready; no need to purchase a new router.

Compatible With:

Compatible with all major carriers. Certified on Verizon.

Modular System. Complete Flexibility

12Gbps Modular Enterprise Branch Router Balance SDX #4

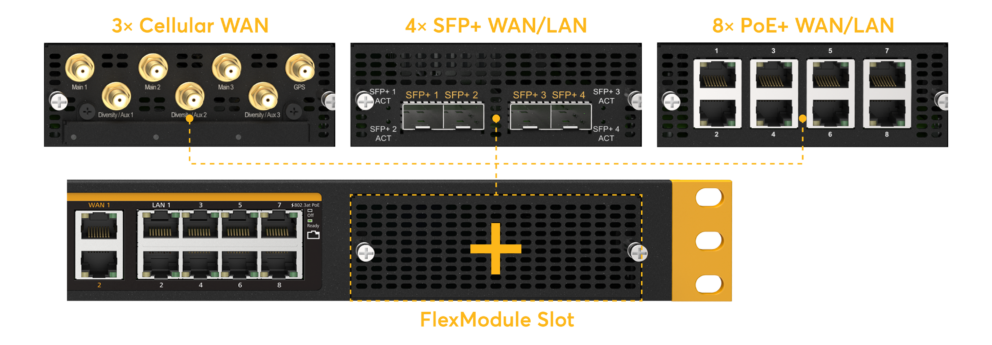

3x cellular WAN

Combine cellular links for wireless SD-WAN backup to the primary connection. 5G FlexModule coming soon!

8x copper WAN/LAN

Connect PoE-enabled modems on the WAN, or connect PoE devices such as cameras, IP phones, and Wi-Fi APs on the LAN.

4x fiber WAN/LAN

Build an all-Fiber network by connecting Fiber WANs and LAN Switches.

Enterprise Ready

Even without a FlexModule, the SDX is already prepared for any enterprise branch deployment. It comes equipped with 2x Ethernet WAN, 2x Gigabit Fiber WAN, and 2x USB WAN, enabling connectivity from multiple sources. The 8x integrated LAN ports can also power devices via PoE+.

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.

Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data stream.

learn more

FirstNet Ready

FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity. The HD4 MBX supports band 14, providing additional coverage as the situation demands.

Unbreakable Access to Cloud Applications

Whether via datacenter or Azure/AWS cloud, businesses now access their vital ERP, CRM, and POS applications online. To ensure absolute business continuity, the Balance SDX combines Ethernet and SFP+ WAN into an unbreakable SpeedFusion VPN.

End-to-End Fiber Network for Branch Offices

Insert a fiber FlexModule onto your SDX to create an all-fiber local network. Use the SDX’s built-in WAN ports to combine SFP+ and Ethernet links into a super-fast SpeedFusion VPN connection. Then use the fiber FlexModule to connect 4x 48-port fiber switches to the SDX. This creates a full fiber local network with optimimal connectivity between each client.

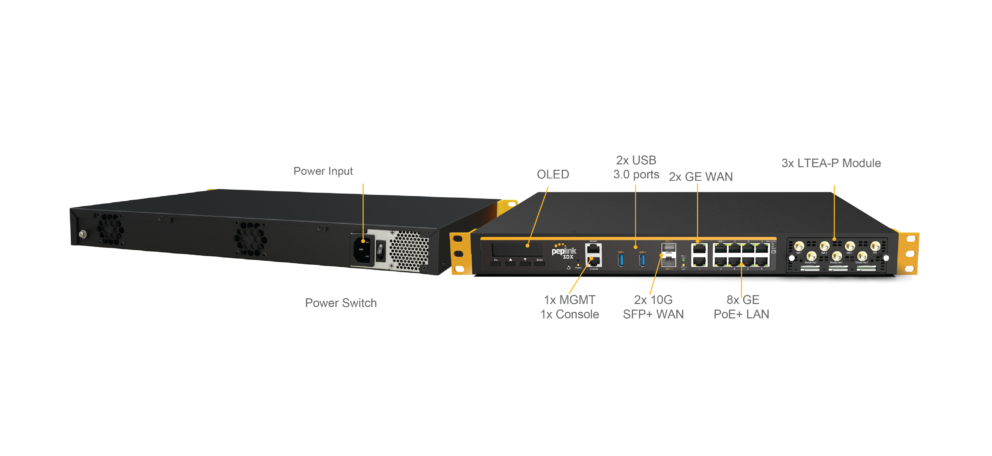

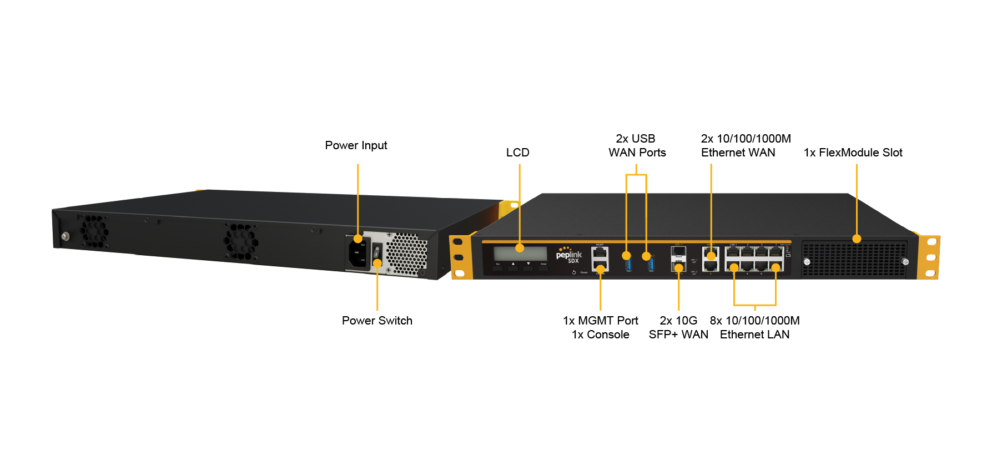

Product Overview. Base Chassis

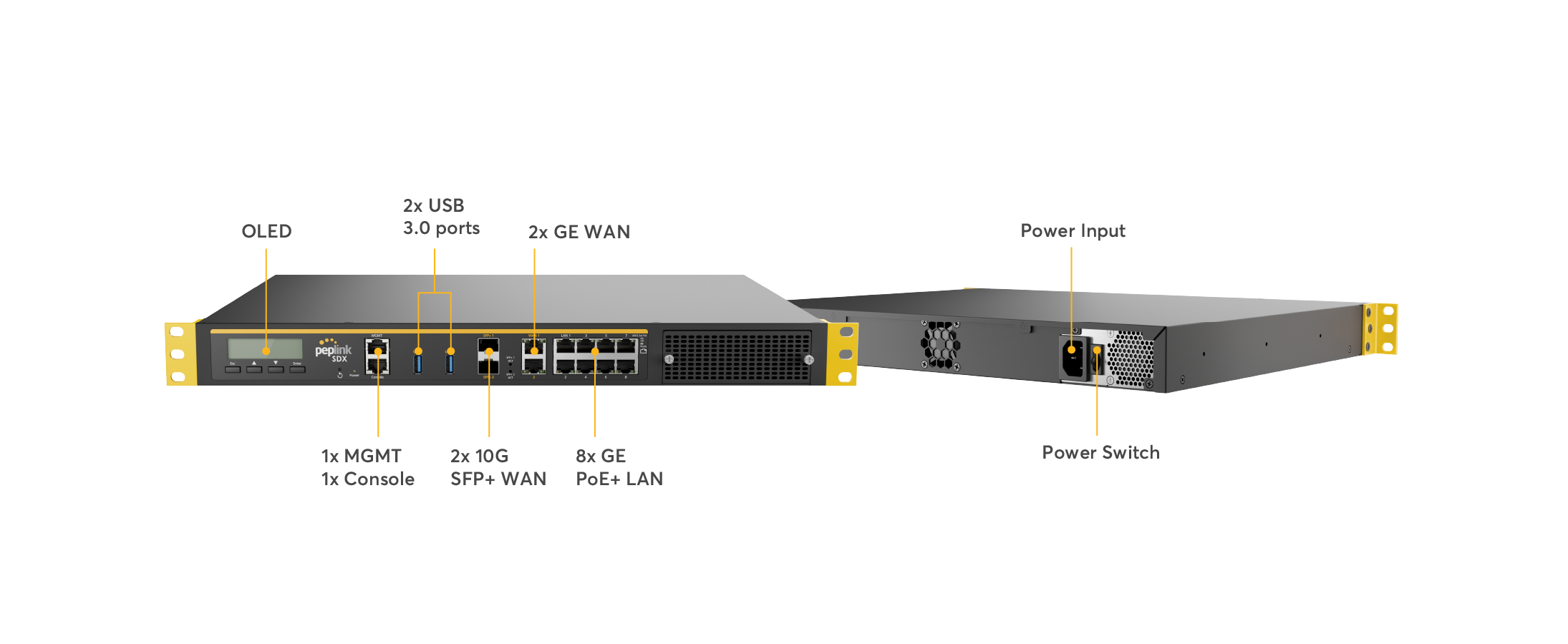

WAN Interfaces	2x 10G SFP+ Ports, 2x GE Ports, 2x USB 3.0 Ports, 1x Expansion Module (Option)
LAN Interface	8x GE Ports
Router Throughput	12 Gbps
PepVPN / SpeedFusion Throughput# No Encryption \| 256 -bit AES	1 Gbps \| 600 Mbps
Recommended Users	500-2000
Max PepVPN/SpeedFusion Peers	300
Power Input	AC Input 100V – 240V
PoE Output	8x 802.3at PoE+ Output
Power Consumption	80W, 330W PoE+ Power Budget
Number of IPsec Tunnels	200
802.1q VLANs Supported	1024
Drop-In Mode	Yes
Recommended PPTP/L2TP/OpenVPN Users	200
Maximum Number of APs Supported	250
High Availability	Yes
Dimensions	17.2 x 13.3 x 1.7 inches \| 438 x 340 x 44 mm
Weight (No Modules)	11.7 pounds \| 5.3 kg
Operating Temperature	32° – 104°F (0° – 40°C)
Humidity	5% – 90% (non-condensing)
Certifications	FCC, IC, CE, RoHS
Warranty	1-Year Limited Warranty
Package Content	Balance SDX SDX Base Chassis 1U 19″ Rack-mount Chassis
Power Requirements	Universal Input 100V – 240V AC

Product Overview. Expansion Modules

8x GE PoE Module (EXM-8C)
Interface	8x 10/100/1000M Ethernet Ports * Capable of PoE+
Power Consumption	15W (255W max. with 802.3at/af PoE+ Output)
Dimensions	4.1 x 7.4 x 1.5 inches 103 x 188 x 38 mm
Weight	1.1 pounds \| 475 grams

* Module can be configured with LAN or WAN ports as needed

4x SFP+ Module (EXM-4F)
Interface	4x SFP+ Ports *
Power Consumption	11W
Dimensions	4.1 x 7.4 x 1.5 inches 103 x 188 x 38 mm
Weight	0.83 pounds \| 375 grams

* Module can be configured with LAN or WAN ports as needed

SIM Injector FlexModule (EXM-SIM-BK56)
SIM Slot Capacity	56 4FF Nano SIM Cards
Power Consumption	15W
Dimensions	4.1 x 7.4 x 1.5 inches 103 x 188 x 38 mm
Weight	1.30 pounds \| 600 grams

3x LTE-A Module (EXM-3LTEA)
Interface	3x Embedded LTE-A Cellular Modems with Redundant SIM Slots
Antenna Connectors	6x SMA Cellular Antenna Connectors 1x SMA GPS Antenna Connector
Downlink/Uplink Datarate	300Mbps/50Mbps (CAT-6) 600Mbps/150Mbps (CAT-12)
Power Consumption	20W
Dimensions	4.1 x 7.4 x 1.5 inches 103 x 188 x 38 mm
Weight	0.83 pounds \| 375 grams

CAT-18. 2x LTE-A Module (EXM-2GLTE-G)
Interface	2x Embedded LTE-A Cellular Modems with Redundant 4FF Nano SIM Slots
Antenna Connectors	8x SMA Cellular Antenna Connectors 1x SMA GPS Antenna Connector
Downlink/Uplink Datarate	1.2Gbps/150Mbps
Power Consumption	20W
Dimensions	4.1 x 7.4 x 1.5 inches 103 x 188 x 38 mm
Weight	0.83 pounds \| 375 grams

2x 5G Module (EXM-2X5G)
Interface	2x Embedded 5G/4G/3G Multi-mode Modems with Redundant 4FF Nano SIM Slots
Antenna Connectors	8x SMA Cellular Antenna Connectors 1x SMA GPS Antenna Connector
Downlink/Uplink Datarate	5G: 3.4Gbps/200Mbps LTE: 2Gbps/150Mbps
Power Consumption	20W
Dimensions	4.1 x 7.4 x 1.5 inches 103 x 188 x 38 mm
Weight	0.83 pounds \| 375 grams

1x LTE-A Pro Module, 1x 5G Module (EXM-1X5G-1GLTE-G)
Interface	1x Embedded 5G/4G/3G Multi-mode Modems with Redundant 4FF Nano SIM Slots
Antenna Connectors	8x SMA Cellular Antenna Connectors 1x SMA GPS Antenna Connector
Downlink/Uplink Datarate	5G Module – 5G: 3.4Gbps/200Mbps LTE: 2Gbps/150Mbps 4G Module: 1.2 Gbps/150 Mbps
Power Consumption	20W
Dimensions	4.1 x 7.4 x 1.5 inches 103 x 188 x 38 mm
Weight	0.83 pounds \| 375 grams

Deep Dive

Software	Peplink Balance Firmware
WAN	Support for PPPoE, Static IP, DHCP WAN Link Health Check -PING -DNS Lookup -HTTP Bandwidth Allowance Monitor IPv6 Support USB 4G/3G Modem Support Support for Dynamic DNS services -changeip.com -dyndns.org -no-ip.org -tzo.com -DNS-O-Matic WAN Port Convertible into LAN Port
LAN	DHCP Server for LAN Clients Extended DHCP Option DHCP Reservation DNS Proxy for LAN Clients VLAN on LAN Support
Load Balancing	Intelligent Failover Session Persistence Per-Service Load Distribution Multiple Algorithms -Weighted -Enforced -Persistence -Priority -Overflow -Least Used -Lowest Latency
Security	DoS Prevention Stateful Firewall Web Blocking
Complete VPN Solution	PepVPN/SpeedFusion Bandwidth Bonding -Site-to-Site VPN -Bandwidth Aggregation -Hot Failover -256-bit AES Encryption -Pre-shared Key Authentication -Dynamic Routing -X.509 Certificate Support PPTP VPN Server -RADIUS, LDAP Authentication IPsec VPN (Network-to-Network) -X.509 Certificate Support
Advanced QoS	User Groups -Bandwidth Reservation -Individual Bandwidth Limit Application Prioritization -By User Groups -SIP, HTTPS, VPN QoS -Custom Application QoS
Networking	NAT and IP Forwarding Static Routes Port Forwarding Many to One, One to One NAT NAT Pool SIP ALG, H.323 ALG UPnP, NAT-PMP WINS Server BGP, OSPFv2 and RIPv2 Support
AP Controller	Support for Pepwave AP Series Auto AP Discovery Auto AP Firmware Management AP Profile Configuration Wi-Fi Usage Statistics
Captive Portal	Support for Wired and Wireless LAN Clients Support RADIUS Authentication Support LDAP Authentication Time and Usage Quotas on Open Access Mode Built-in Customizable Splash Page
DNS	Built-in Authoritative DNS Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT records
Device Management	Web Administrative Interface Command Line Interface InControl Cloud Management Email Notification Active Client & Session Lists Bandwidth Usage Statistics Syslog Service SNMP v1, v2c and v3
Power Requirements	Universal Input 100V – 240V AC

*Only valid for customers who have purchased Peplink Balance devices directly from Peplink.

All specifications are subject to change without notice.

Package Content
- Balance SDX
  - SDX Base Chassis
  - 1U 19″ Rack-mount Chassis
  - 1x Power Cord
Accessories

Product Code

Description

ACW-748
Rack Mount Ears for Balance SDX

ACW-752
Rack Mount Rails for Balance SDX

Bands

Product Code	Carrier	Modem	4G Bands	3G Bands
