Faster, Wider, Stronger
The BR2 Pro is not just designed to be tough. Its dual 5G connections, Wi-Fi 6 and PoE input ensure an unbreakable connection in any scenario.
Peace of Mind
With so many WAN options, the BR2 Pro can seamlessly failover to guarantee your flow of data, even during the most critical circumstances. The Gigabit routing speed and serial port for OOBM allow versatility for any SD-WAN deployment.
Oh, So Many WANs
Complement any SD-WAN deployment with the Dual Ethernet WANs, Dual 5G/LTE, USB WAN, and Wi-Fi WAN. Not enough WANs? Add the MAX Adapter 5G for an instant third 5G connection. Literally, all the WANs to keep you going.
Made for Vehicle applications
Secure your power source in mobile environments with the Molex Micro-Fit power connector. Wide input power range along with Ignition Sensing capabilities makes this a sure fit for your vehicle installs.
Effortless Cellular Extension
With the PoE input feature, the BR2 Pro can seamlessly extend your existing SD-WAN infrastructure to provide dual LTE/5G connectivity. One cable for both power and data, it’s that simple.
SIM-plicity as always
Built-in eSIM and SIM Injector support, the BR2 Pro maximizes your possibilities with flexible remote SIM management.
Running applications just got easier!
Want to run third party applications directly with your MAX BR2 Pro? Well now you can! With edge computing Docker and Python*, the possibilities are endless!
* Available in firmware 8.3.0.
Watch the film

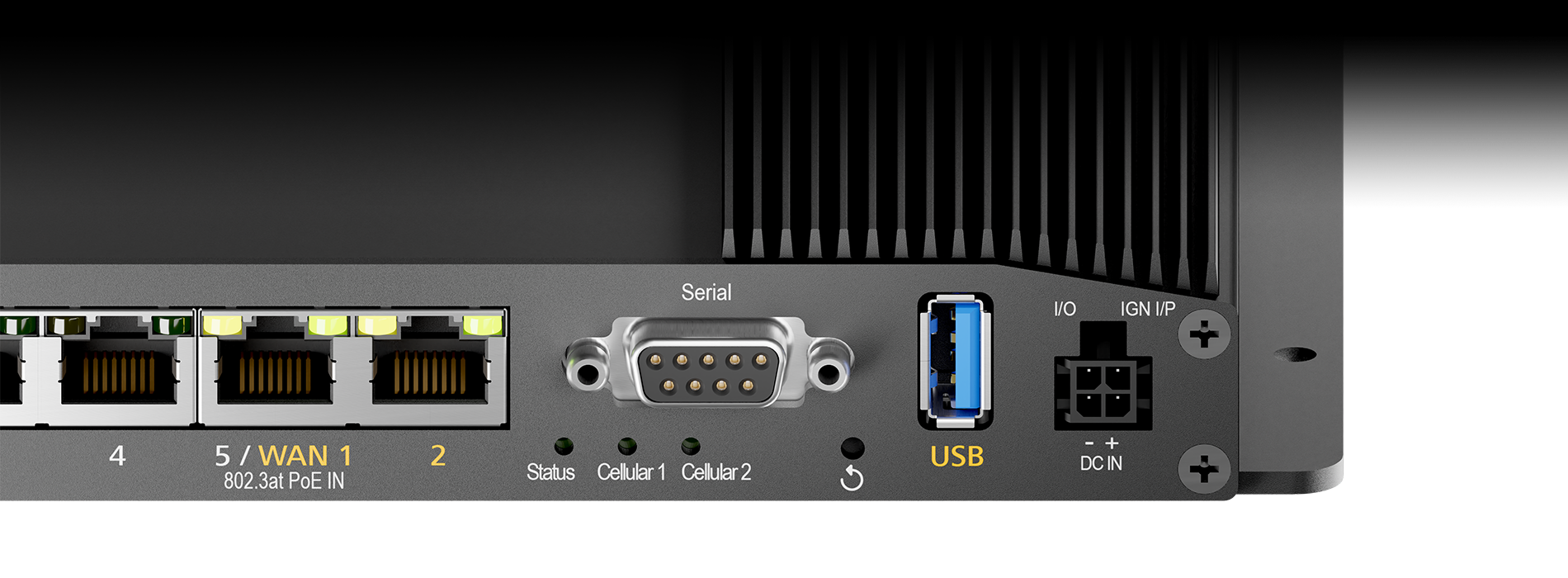

Ports and Connections
Product Overview & Comparison Table
Deep Dive
| Software | Peplink MAX Firmware |
|---|---|
| WAN | Support for PPPoE, Static IP, DHCP WAN Link Health Check Bandwidth Allowance Monitor Support for Dynamic DNS services WAN Port Convertible into LAN Port |
| LAN | DHCP Server for LAN Clients Extended DHCP Option DHCP Reservation DNS Proxy for LAN Clients VLAN on LAN Support |
| Load Balancing | Multiple Outbound Policy Algorithms • Weighted Balance • Priority • Overflow • Persistence • Least Used • Lowest Latency • Enforced • Fastest Response Time |
| Security | Stateful Firewall DoS Prevention Web Blocking |
| Complete VPN Solution | SpeedFusion VPN • Site-to-Site VPN • 256-bit AES Encryption • Pre-shared Key Authentication • Dynamic Routing X.509 Certificate Support * IPsec VPN (Network-to-Network) ^ Remote User Access (PPTP/L2TP/OpenVPN) |
| Edge Computing | Support on Applications and Docker |
| Advanced QoS | Individual Bandwidth Limit Application Prioritization • SIP, HTTPS, VPN QoS • Custom Application QoS |
| Global Positioning System | Integrated GPS Device Location Map Location Tracking Data with InControl 2 Fleet Management with InControl 2 |
| Networking | NAT and IP Forwarding Static Routes Port Forwarding Many to One, One to One NAT NAT Pool SIP ALG, H.323 ALG UPnP, NAT-PMP |
| AP Controller | Support for Peplink AP Series Auto AP Discovery Auto AP Firmware Management AP Profile Configuration Wi-Fi Usage Statistics |
| Captive Portal Support | Support for Wired LAN clients Support RADIUS Authentication Time and Usage Quotas on Open Access Mode Built-in Customizable Splash Page |
| Device Management | Web Administrative Interface Command Line Interface InControl 2 Cloud Management Email Notification Active Client & Session Lists Bandwidth Usage Statistics Syslog Service SNMP v1, v2c and v3 |
Ordering Information
| Product Code | Embedded Modem | Region | 5G Bands | LTE Bands |
|---|---|---|---|---|
| MAX-BR2-PRO-5GD-T-PRM | 2x 5G | Global | 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71 |
| MAX-BR2-PRO-5GN-T-PRM | 2x 5G | Global* *US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet | 5G (NSA & SA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| MAX-BR2-PRO-5GK-T-PRM | 2x 5G | Global* *US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet | 5G (NSA & SA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
User Feedback
“The products are rugged and perform well. The ability to connect to multiple data paths, and then prioritize how the paths are used based on cost and performance, is key to getting what we want out of a mobile router. Great reliability in handy form factor”
– Ecommerce Customer Feedback
Feature Add – On
| Product Code | Descriptions |
|---|---|
| PRM-E-1Y | PrimeCare E (1-Year) |
| PRM-E-2Y | PrimeCare E (2-Year) |
| PRM-E-4Y | PrimeCare E (4-Year) |
| PCP-E-1Y | PrimeCare+ E (1-Year) |
| PCP-E-2Y | PrimeCare+ E (2-Year) |
| PCP-E-4Y | PrimeCare+ E (4-Year) |
| ACW-111 | PoE Adapter |
| ACW-622 | PoE+ Activation Kit |
| ACW-634 | 10ft DC Power Cable |
| ACW-643 | Vehicle Cigarette to Molex Power Cable |
| ACW-791 | Peplink 4-Pin to USB-C Power Cable |
| ANT-SLM-40G-S-B-6 | Slim 40G - 4x4 MIMO 5G Ready Cellular Antenna System with GPS (Black) |
| ANT-MB-42G-S-W-6 | Mobility 42G - 4x4 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (White) |
| ANT-MB-42G-S-B-6 | Mobility 42G - 4x4 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (Black) |
| ANT-MB-82G-S-W-6 | Mobility 82G - 8x8 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (White) |
Package Content
- 1x MAX BR2 Pro
- 1x 12V3A 4-Pin Power Supply (ACW-663)
- 8x LTE/5G Antennas (ACW-235)
- 2x Dual Band Wi-Fi Antennas (ACW-341)
- 1x GPS Antenna (ACW-232)
