Single Cellular Outdoor Router

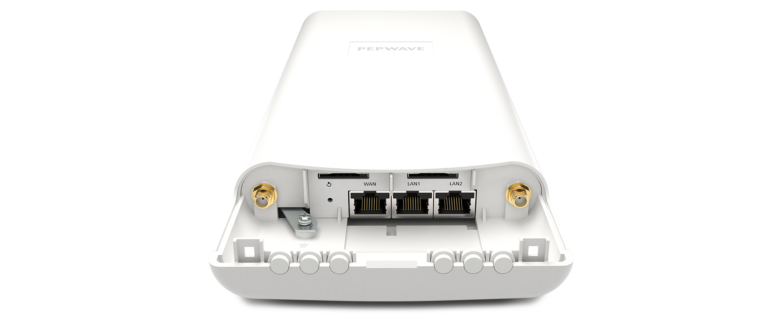

The BR1 IP55 Outdoor Router offers embedded Omni-directional cellular antennas, plus built-in PoE and a 3-port switch, all enclosed in a durable and waterproof IP55 enclosure.

Single Celular Outdoor LTE Router (Dual SIM, 2 LAN Ports) BR1 IP55 #2
Single Celular Outdoor LTE Router (Dual SIM, 2 LAN Ports) BR1 IP55 #2

Use Cases

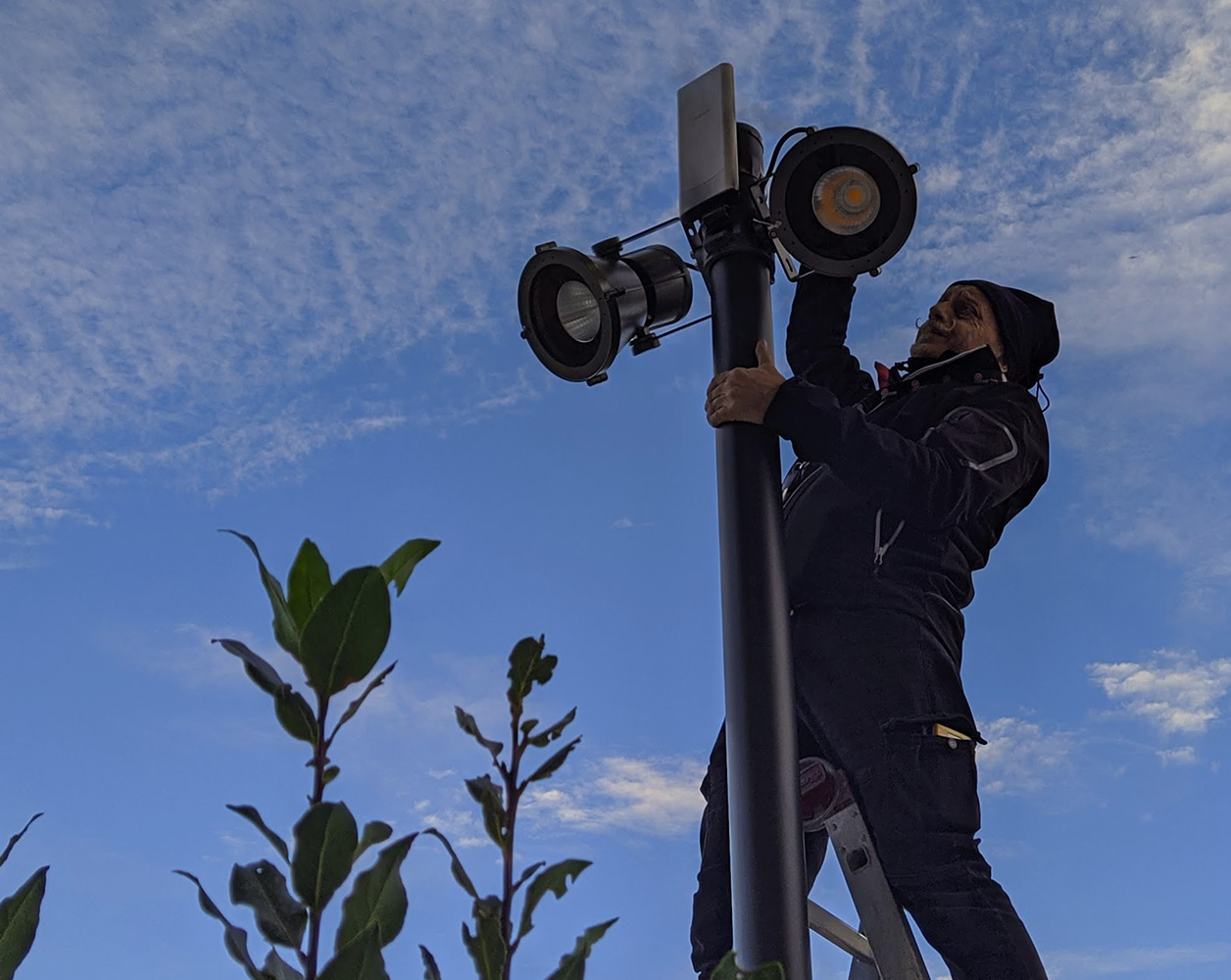

Industrial Deployments

Directional or Omni Antennas

The BR1 IP55’s built-in Directional and Omni-directional Wi-Fi antennas, which are software selectable. So, it’s easy to optimize antenna performance at any time.

 Built-in PoE and 3-Port Switch

The BR1 IP55 includes built-in PoE input and a 3-port LAN switch to reduce clutter and the need for extra equipment. 802.3at PoE+ output is optional add-on, so one wire is all you need for both connectivity and power you can share with security cameras and other devices.

Embedded 802.11ac Wi-Fi

The MAX BR1 IP-55 comes equipped with integrated 802.11ac Wi-Fi AP.

Waterproof IP55 Enclosure

Deploy the BR1 IP55 router with confidence in harsh indoor and outdoor environments. Its waterproof IP55 enclosure stands up to dust, vibration, and inclement weather, making it a great choice for industrial, emergency, and other heavy-duty applications.

There is More

We specialize in making complicated technologies simple. Achieve what others cannot with the following

Captive Portal
Hot Failover

Single Celular Outdoor LTE Router (Dual SIM, 2 LAN Ports) BR1 IP55 #9



Customizable Captive Portal



Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS server.

With Social Wi-Fi Hotspot support, you can also receive valuable demographic data from your users.

Single Celular Outdoor LTE Router (Dual SIM, 2 LAN Ports) BR1 IP55 #10



SpeedFusion Hot Failover



In case of a WAN failure, SpeedFusion technology powers the MAX BR1 IP55 for instant failover, giving you reliable internet connectivity and resources access to datacenter.

  • WAN Interface1x GE
    1 x Embedded LTE Modem
    LAN Interface2 (GE)
    Wi-Fi Interface802.11ac wave 2/ac/a/b/g/n Wi-Fi WAN and AP
    Antenna Cellular: Build-in/ External SMA Connector Wi-Fi: Build-in Directional/ Omni Software Configuration
    Transmit Power (2.4GHz) / (5GHz)24dBm/ 23dBm
    Dual-Band Wi-Fi AP
    Maximum number of SSID16
    Recommended Users1-60
    Router Throughput #100 Mbps
    SpeedFusion Hot FailoverYes
    Drop-in ModeYes
    Number of PepVPN SpeedFusion Peers2
    PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES)40 Mbps / 20 Mbps
    802.1q VLANs Supported16
    High AvailabilityYes
    WAN as LANYes
    Web Filtering BlacklistLite
    Power Input *802.3at PoE+ 56V Pepwave Passive PoE Input is Needed for full 1x 802.3at PoE+ LAN Output *
    Power ConsumptionMax: 18W, Typical: 11W, Min: 8W
    Dimensions11.8 x 4.9 x .1.75 inches | 300 x 124 x 44.5 mm
    Weight0.96 pounds | 435 grams
    Operating Temperature -40 ° – 149 °F | -40 ° – 65 °C
    Certifications CE, RoHS
    Warranty1-Year Limited Warranty


    *PoE injector and AC power adapter are available separately.

    # Router Throughput and PepVPN/SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision. The throughput result is tested with DHCP/Static IP WAN.

  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    WAN Port Convertible into LAN Port

    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionPepVPN/SpeedFusion
    -Hot Failover
    -Site-to-Site VPN
    -Hot Failover
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    -Dynamic Routing
    -X.509 Certificate Support *
    IPsec VPN (Network-to-Network) ^
    -X.509 Certificate Support *
    Advanced QoS Individual Bandwidth Limit
    Application Prioritization
    -Custom Application QoS

    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    Captive Portal SystemSupport for Wired and Wireless LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Power RequirementsPepwave Passive PoE
    -12V – 56V DC
    -56V Pepwave Passive PoE Input is Needed for 802.3at or Pepwave Passive PoE Output
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3


    *Feature is available as an upgrade.

    ^ IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

  • Product CodeRegion | CarrierEmbedded Modem 4G Bands3G Bands
    MAX-BR1-LTEA-W-IP55Europe / CAT-6
    1FDD LTE: B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41WCDMA/HSPA+/DC-HSPA+: B1, B2, B3, B4, B5, B8

    MAX-BR1-LTEA-P-IP55Asia Pacific / CAT-6
    1B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41WCDMA/HSPA+/DC-HSPA+: B1, B5, B8, B9, B19
    UMTS: B6
    TD-SCDMA: B39
    MAX-BR1-LTE-E-IP55Europe / International /

    14G LTE
    B1, B3, B5, B7, B8, B20, B38, B40, B41
    WCDMA/HSPA+/DC-HSPA+: B1, B5, B8

    * BR1 IP55 is not available in the United States


    Product Code

    Feature Pack



      802.3af/at PoE+ Injector

      802.3af/at PoE+ Injector

      IEEE 802.3af/at compliant


      56V Passive PoE Kit for IP55 Outdoor Products   Include 56V 2A PSU and Passive PoE Injector

          Enable 1x full power 25.5W 802.3at PoE output of IP55 enclosure products.

    ACW-510   Ball Joint Mount for IP55 Outdoor Products

       Wall/pole mount with flexible ball-joint for high-precision installation.


  • PoE Input

    PoE Output


        Standard 802.3at (25.5W)

     802.3at (7.5W)                 Shared power budget 25.5W with system which maximum consumes 18W. Therefore, the LAN PoE device should not consume more than 7.5W.
        56V/2.1A Pepwave Passive PoE (ACW-109)    802.3at (25.5W)

             Provide full 1x 802.3at PoE output.

    • MAX BR1 IP55
    • 2 x Plastic Cable Tie
