HD1 Dome Pro

5G Cellular Router for outdoor deployments

A refinement in outdoor interconnectivity

The HD1 Dome Pro adapts to the flexible nature of outdoor deployments, offering powerful speeds, with refined Wi-Fi options. The 5G modem, with its embedded cellular antennas, ensures minimal cable loss and offers the finest signal quality.

Wi-Fi as WAN     Wi-Fi 6

The Wi-Fi 6 and Wi-Fi as WAN support can optimize your network and provide versatility as and when required. Leverage bandwidth costs and easily expand your network. Experience no more interruptions with SpeedFusion’s hot failover options.

A design that’s made to meet your needs

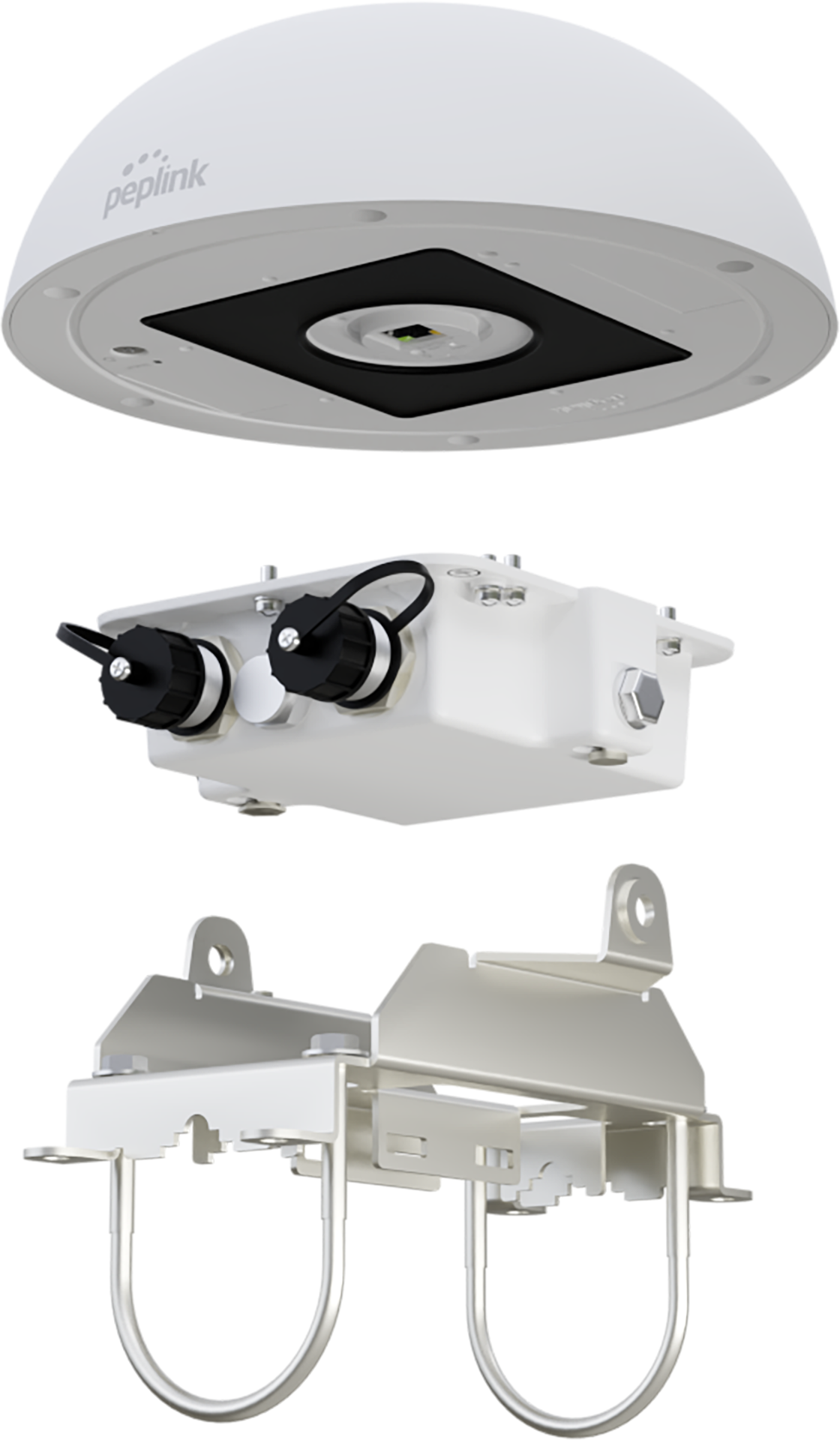

It’s simple design offers a multitude of installation options. The HD1 Dome Pro includes an M35 screw mount and Ethernet splitter, making it easy for wall or pole mount. If mounting is not needed, simply connect an Ethernet cable and it’s good to go.

Together it works

The HD1 Dome Pro can optimize network performance with its PoE functionality. Leverage the power of SpeedFusion by simply connecting Peplink PoE routers, for a mega-bandwidth channel, with the simplest failover option. Or alternatively, extend the Wi-Fi range by connecting an external access point.

Instant flexibility with the SIM injector

Simply connect an Ethernet cable between the SIM injector^ and the HD1 Dome Pro to manage up to 10 physical SIMs.



With remote network management available via Peplink’s cloud-based management system, InControl2, accessibility worries are a thing of the past.









^For a limited time only, we are now offering bundle value when purchased together. Contact your point of sales for more information.

Photos

  • Product Overview & Comparison Table

  •
    SoftwarePepwave MAX Firmware
    WAN CellularSupport for DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    - Weighted
    - Enforced
    - Persistence
    - Priority
    - Overflow
    - Least Used
    - Lowest Latency
    - Fastest Response Time
    Complete VPN SolutionSpeedFusion VPN
    SpeedFusion
    - Site-to-Site VPN
    - SpeedFusion Hot Failover
    - SpeedFusion WAN Smoothing
    - SpeedFusion Bandwidth Bonding
    - 256-bit AES Encryption
    - Pre-shared Key Authentication
    - Dynamic Routing
    - X.509 Certificate Support
    - PPTP VPN Server
    - RADIUS, LDAP Authentication
    IPsec VPN (Network-to-Network) *
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    VRRP HA support
    SecurityWPA & WPA 2
    Stateful Firewall
    DoS Prevention
    Web Blocking
    Advanced QoSUser Groups
    Bandwidth Reservation
    Individual Bandwidth Limit
    Application Prioritization
    By User Groups
    SIP, HTTPS, VPN QoS
    Custom Application QoS
    AP ControllerAP Controller Support
    Wi-Fi Usage Statistics
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    Captive Portal SupportSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Social Wi-Fi Hotspot support
    External Captive Portal support
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client and Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
    • IPSec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.
  • PRODUCT CODEEMBEDDED MODEMSREGIONS5G BANDSLTE BANDS
    MAX-HD1-DOM-PRO-5GD1x 5GGlobal5G (NSA) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n20,
    n28, n38, n41, n66, n71, n77, n78,
    n79    		B1, B2, B3, B4, B5, B7, B8, B12, B13,
    B14, B17, B18, B19, B20, B25, B26,
    B28, B29, B30, B32, B34, B38, B39,
    B40, B41, B42, B46, B48, B66, B71
    MAX-HD1-DOM-PRO-5GH1x 5GGlobal*
    		5G (NSA) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n20, n25
    n28, n38, n40, n41, n66, n71, n77,
    n78, n79    		B1, B2, B3, B4, B5, B7, B8, B12, B13,
    B14, B17, B18, B19, B20, B25, B26,
    B28, B29, B30, B32, B34, B38, B39,
    B40, B41, B42, B46, B48, B66, B71
    MAX-HD1-DOM-PRO-5GN1x 5GGlobal*5G (SA & NSA) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n13, n14,
    n18, n20, n25, n26, n28, n29, n30, n38,
    n40, n41, n48, n66, n70, n71, n75, n76,
    n77, n78, n79    		B1, B2, B3, B4, B5, B7, B8, B12, B13, B14,
    B17, B18, B19, B20, B25, B26, B28, B29,
    B30, B32, B34, B38, B39, B40, B41, B42,
    B43, B46, B48, B66, B71

    *US Carrier Certifications: AT&T, FirstNet, T-Mobile, Verizon



  • Product CodeDescription
    ACW-112Waterproof Ethernet Adaptor (learn more)
    SIM-BK8-4E-56V-DOMSIM Injector (bundle offer)
    SIM-BK8-4E-56VSIM Injector
    ACW-107PoE Injector

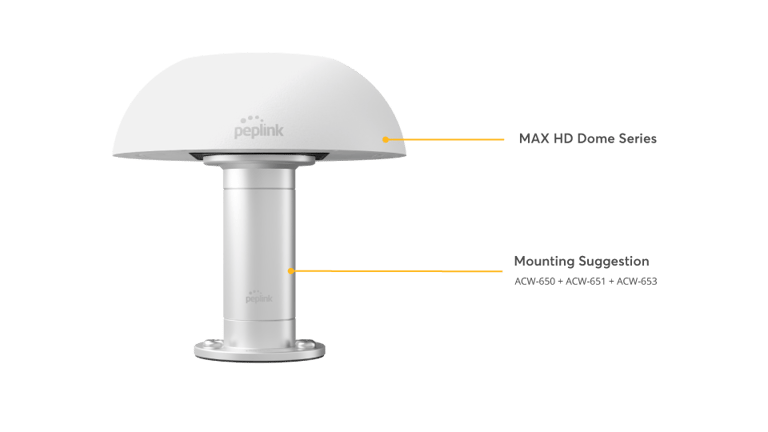

    ACW-650Mobility thread to HD Dome
    ACW-6511" 14TPI female to Mobility thread
    ACW-6531 1/4" 11 TPI Male Adapter
    ECP-MAX-HD1-DOM-PRO-5G-1YEssentialCare+ (1-Year) for MAX HD1 Dome Pro
    ECP-MAX-HD1-DOM-PRO-5G-2YEssentialCare+ (2-Year) for MAX HD1 Dome Pro
    ECP-MAX-HD1-DOM-PRO-5G-4YEssentialCare+ (4-Year) for MAX HD1 Dome Pro
    SVL-MAX-HD1-DOM-PRO-5G-1Y1-Year EssentialCare for MAX HD1 Dome Pro
    SVL-MAX-HD1-DOM-PRO-5G-2Y2-Year EssentialCare for MAX HD1 Dome Pro
    LIC-VWANActivate 1x Virtual WAN
    LIC-2VWANActivate 2x Virtual WAN
    LIC-3VWANActivate 3x Virtual WAN

    • HD1 Dome Pro
    • Ethernet Splitter
    • 2x Waterproof Ethernet Connector (ACW-112)
    • Mounting Kit Set

  • HD1 Dome Pro Datasheet
    Premium Deck Mounts Datasheet
    User Manual
