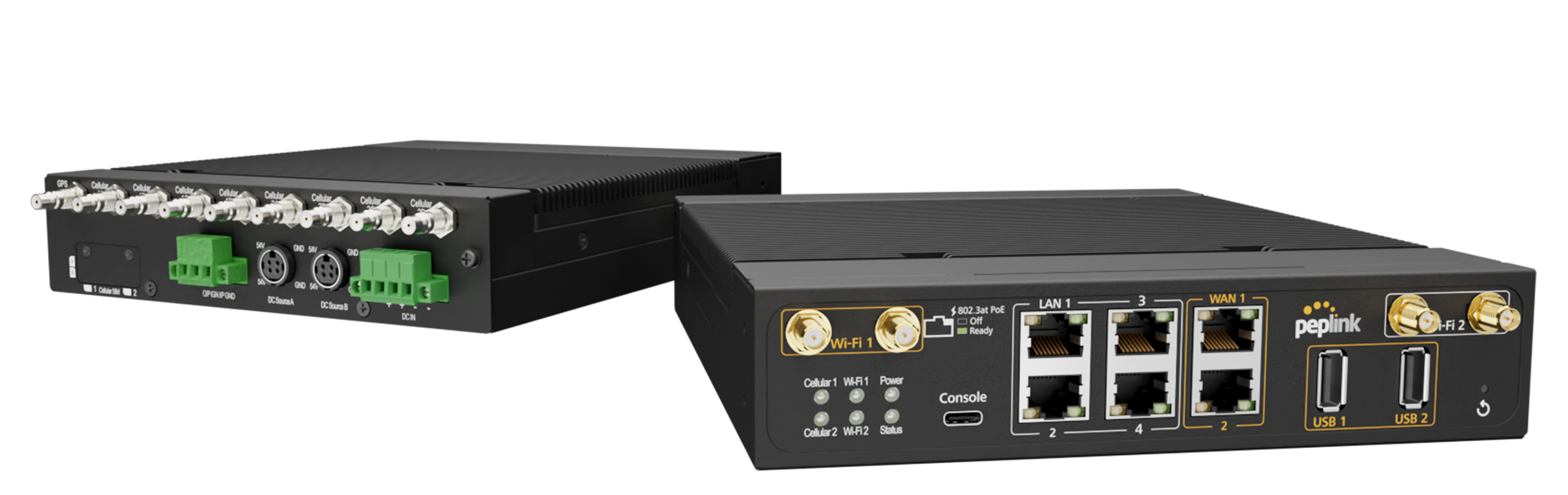

MBX Mini
Good things come in small packages.
Small is the new mighty.
Bring your deployments to life with the versatility of the MBX Mini. It’s just as brilliant as any other MBX device we have to offer. So connect your devices to the PoE enabled LAN ports to provide network simplicity as well as IEEE 802.1X port authentication. This MBX Mini has the power to achieve it all.
Keep your connection flowing in whatever deployment that you’re immersed in and deliver more power and redundancy with THREE power input options: AC, DC, and USB-C.
One. Two. Three. Four.

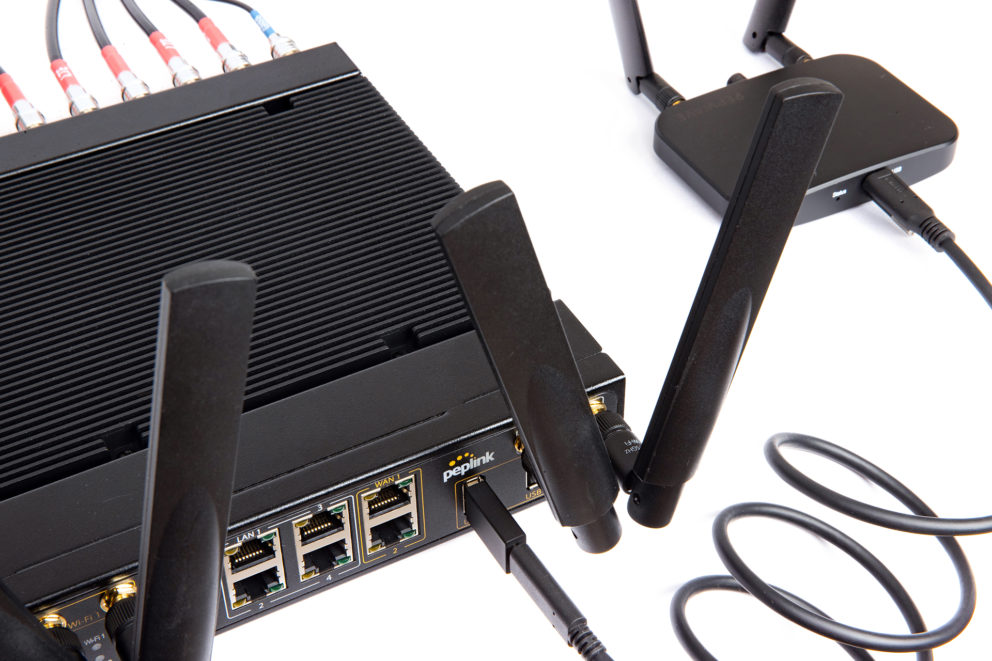

We know fast connections are critical to achieving great things. Its dual-band Wi-Fi and 5G capabilities ensure you experience the fastest available network. If the dual embedded cellular WANs are not enough, the MBX Mini can be expanded to FOUR cellular WANs by simply connecting it to our MAX Adapters via the dual USB ports.
Experience on-demand connectivity with SpeedFusion Connect
Enabling the benefits of SpeedFusion has just gotten easier with SpeedFusion Connect. Allowing you to leverage the LTE of multiple connections and SpeedFusion technologies all under one subscription. Enabling backup connectivity has never been so simple!
LEARN MORE*Compatible for use in the US and selected regions in Europe
Product Overview & Comparison Table
Deep Dive
| Software | Peplink MAX Firmware |
|---|---|
| WAN | Support for PPPoE, Static IP, DHCP WAN Link Health Check (PING, IPv6, DNS Lookup, HTTP) Bandwidth Allowance Monitor USB 4G/3G Modem Support Intelligent Failover Dynamic DNS services (changeip.com, dyndns.org, no-ip.org, tzo.com, DNS-O-Matic) |
| LAN | DHCP Server for LAN Clients Extended DHCP Option DHCP Reservation DNS Proxy for LAN Clients VLAN on LAN Support Per-Port VLAN Support |
| Load Balancing | Intelligent Failover Session Persistence Per-Service Load Distribution Weighted Enforced Persistence Priority Overflow Least Used, Lowest Latency, Fastest Response Time |
| VPN | SpeedFusion VPN with Bandwidth Bonding, Hot Failover Site-to-Site VPN 256-bit AES Encryption Pre-shared Key Authentication Dynamic Routing PPTP VPN Server RADIUS, LDAP Authentication IPsec VPN (Network-to-Network) X.509 Certificate Support |
| Advanced QoS | User Groups Bandwidth Reservation Individual Bandwidth Limit Application Prioritization (By User Groups, SIP, HTTPS, VPN QoS) Custom Application QoS |
| Networking | NAT and IP Forwarding Static Routes Port Forwarding (Many-to-One, One-to-One NAT) NAT Pool SIP ALG, H.323 ALG UPnP, NAT-PMP WINS Server VRRP HA Support BGP, OSPFv2 and RIPv2 Support |
| AP Controller | Auto AP Discovery Auto AP Firmware Management AP Profile Configuration Wi-Fi Usage Statistics |
| Security | DoS Prevention Stateful Firewall Web Blocking Web Filtering Blacklist |
| Captive Portal | Support for Wired and Wireless LAN Clients RADIUS Authentication Time and Usage Quotas on Open Access Mode Built-in Customizable Splash Page |
| Device Management | Web Administrative Interface Command Line Interface InControl Cloud Management Email Notification Active Client & Session Lists Bandwidth Usage Statistics Syslog Service SNMP v1, v2c and v3 |
Ordering Information
| Product Code | Region | 5G Bands | LTE Bands |
|---|---|---|---|
| MAX-MBX-MINI-5GH-T
Embedded Modem(s):
2 x 5G | Global
US Carrier Certifications: AT&T, FirstNet, US Cellular, Verizon (C-Band) | 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71 |
| MAX-MBX-MINI-5GD-T
Embedded Modem(s):
2 x 5G | Global | 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71 |
| MAX-MBX-MINI-5GN-T
Embedded Modem(s):
2 x 5G | Global | 5G (NSA & SA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
*US Carrier Certification: AT&T, FirstNet, US Cellular, Verizon (C-Band)
Feature Add – On
| Product Code | Description |
|---|---|
| ACW-630 | 54V/3.34A 180W Power Supply |
| ACW-674 | 54V/5.56A 300W Power Supply |
| ACW-675 | 54V/7.41A 400W Power Supply |
| PVN-LC-05 | Up to 5 SpeedFusion VPN Peers License |
| PVN-LC-10 | Up to 10 SpeedFusion VPN Peers License |
| PVN-LC-20 | Up to 20 SpeedFusion VPN Peers License |
| ECP-MAX-MBX-MINI-5G-1Y | EssentialCare+ (1-Year) |
| ECP-MAX-MBX-MINI-5G-2Y | EssentialCare+ (2-Year) |
| ECP-MAX-MBX-MINI-5G-4Y | EssentialCare+ (4-Year) |
| SVL-MAX-MBX-MINI-5G-1Y | 1-Year EssentialCare |
| SVL-MAX-MBX-MINI-5G-2Y | 2-Year EssentialCare |
| LIC-VWAN | Activate 1x Virtual WAN |
| LIC-2VWAN | Activate 2x Virtual WAN |
| LIC-3VWAN | Activate 3x Virtual WAN |

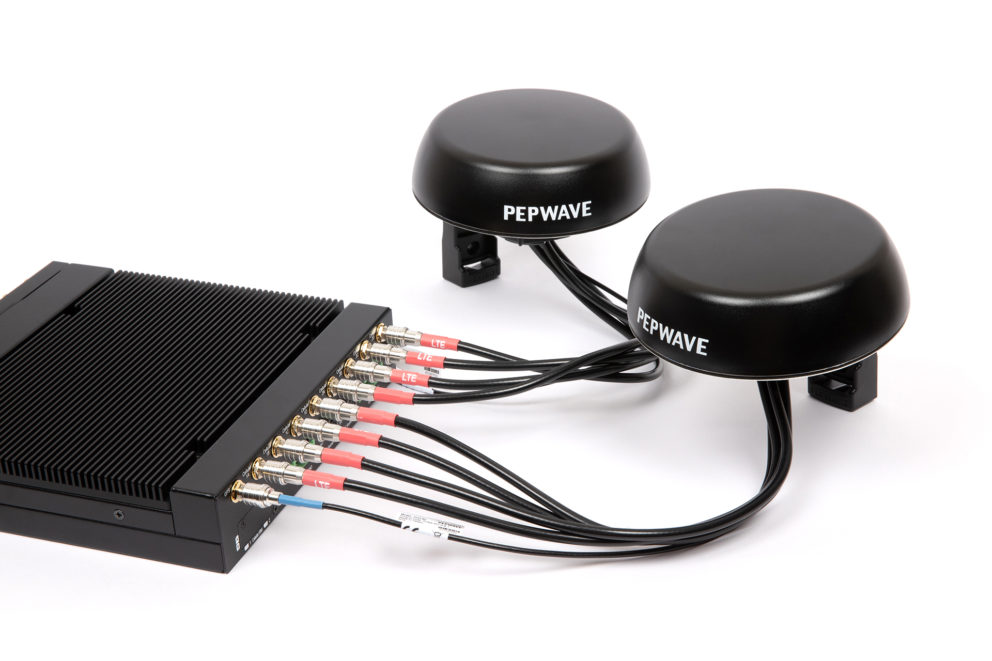

| ANT-MR-40G-S-W-6 | 4X4 MIMO 5G-Ready Maritime Antenna with GPS |
| ANT-MB-42G-Q-W-1 | 7-in-1 Cellular and Wi-Fi Antenna System (White, 1 ft) |
| ANT-MB-42G-Q-B-1 | 7-in-1 Cellular and Wi-Fi Antenna System (Black, 1 ft) |
| ANT-MB-42G-Q-W-6 | 7-in-1 Cellular and Wi-Fi Antenna System (White, 6.5 ft) |
| ANT-MB-42G-Q-B-6 | 7-in-1 Cellular and Wi-Fi Antenna System (Black, 6.5 ft) |
| ANT-MB-82G-S-W-6 | 11-in-1 Cellular and Wi-Fi Antenna System (SMA) |
| ANT-MB-82G-Q-W-6 | 11-in-1 Cellular and Wi-Fi Antenna System (QMA) |
Package Content
- MBX Mini, PSU 180W (ACW-630)
- 4x Dual-Band Wi-Fi Antennas (ACW-341)
- 1x QMA to SMA Adapter (for GPS)
- 1x GPS Antenna (ACW-232)
- Power Cord
- 1 Pair of Ear L-Mounts Kit (ACW-756)
- Screw set of Ear L-Mounts Kit
- 3pin Terminal Block Connector (Ignition Sense)
- 4pin Terminal Block Connector (Power Supply)
- Rubber Foot Pad set

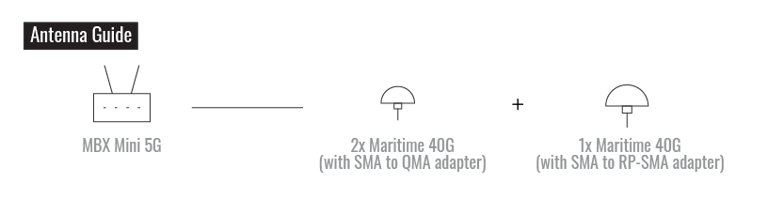

*Cellular antennas not included. To enhance the MBX Mini, Mobility and Maritime antennas are recommended.
