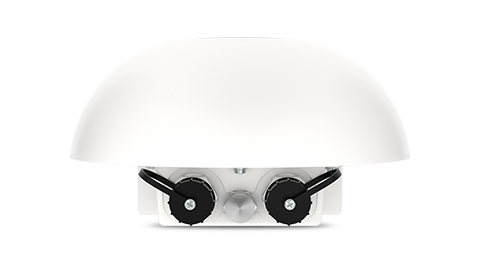

MAX HD1 Dome

Single Cellular Router for Mobile Outdoor Deployments

The HD1 Dome provides single-cellular Bandwidth Bonding in an IP67 enclosure that has a minimal profile on the rooftop while providing maximum signal. With redundant SIM, the HD1 Dome supports single cellular radios and two SIM cards. Combine the HD1 Dome with the SIM Injector, and the number of cards increases to ten.

Dual-Cellular Outdoor Router MAX HD2 DOME #2
Dual-Cellular Outdoor Router MAX HD2 DOME #2

Minimum Cable Loss, Best Cellular Signal Quality

Most outdoor deployments require a centrally placed router attached to strategically placed antennas. With the HD1 Dome, the antennas are placed in the same integrated enclosure as the cellular radios. This arrangement minimizes cable loss, giving you the best signal possible.

Simple Installation Running a Single Ethernet Cable

The HD1 Dome has a M35 screw mount, and only requires a single Ethernet cable to install. For wall or pole mounted deployments, the HD1 Dome comes with an Ethernet splitter and a mounting rack that provides a multitude of installation options.

Dual-Cellular Outdoor Router MAX HD2 DOME #8

8 Additional SIM With the SIM Injector

With the addition of the SIM Injector, the HD1 Dome can support up to 10 SIM at your fingertips. Simply connect an Ethernet cable between the SIM Injector and the HD1 Dome. The SIM Injector is capable of PoE output, so you don’t need to add another PoE switch to your deployment.

Certified Toughness

In addition to rugged metal enclosure, the MAX HD1 Dome is certified on:

Shock and Vibration Resistance

(EN 61373:1999 IEC 61373:1999)
(Upon Request)

Railway Applications

(EN 50155)
(Upon Request)

Electromagnetic Compatibility

(EN 61000)

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Compatible with all major carriers. Certified on Verizon.

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.

Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

With the help of Smoothing, network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data stream.

Dual-Cellular Outdoor Router MAX HD2 DOME #10

Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device. InControl 2 is our cloud based device management, monitoring, and reporting tool designed specifically for Peplink and Pepwave devices.

Multiple Mounting Options

The HD1 Dome offers significant deployment flexibility due to its modular construction. By itself, it has an M35 thread, making it easy to mount on top of any pole or on the rooftop of any vehicle.

The HD1 Dome comes with an Ethernet splitter that enables an additional GE LAN output. With the splitter installed, the HD2 Dome can then be used with the included mounting bracket to fix onto any wall, or to securely tie onto any pole.

The HD1 Dome, Ethernet splitter, and the mounting bracket are all included, so you can deploy this device just about anywhere.

Dual-Cellular Outdoor Router MAX HD2 DOME #11

SIM Injector – More SIM, More Range

Together, the HD1 Dome and SIM Injector can make deployments significantly easier to set up and manage.

  • SoftwarePepwave MAX Firmware
    WAN CellularSupport for DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    Weighted
    Enforced
    Persistence
    Priority
    Overflow
    Least Used
    Lowest Latency
    Fastest Response Time
    Complete VPN SolutionSite-to-Site VPN
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    X.509 Certificate Support
    PPTP VPN Server
    RADIUS, LDAP Authentication
    IPsec VPN (Network-to-Network) *
    X.509 Certificate Support
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    VRRP HA support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Advanced QoSUser Groups
    Bandwidth Reservation
    Individual Bandwidth Limit
    Application Prioritization
    By User Groups
    SIP, HTTPS, VPN QoS
    Custom Application QoS
    AP ControllerAP Controller Support
    Wi-Fi Usage Statistics
    Captive Portal SupportSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client and Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3



    *IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.



    All specifications are subject to change without notice.

  • MAX-HD1-DOM-M-GLTE-GGlobal /
    FirstNet /
    CAT-18
    1B1, B3, B25(B2), B66(B4),
    B26(B5/B18/B19), B7, B8,
    B12(17), B13, B14 , B20,
    B28, B29, B30, B32, B71,
    B38, B39, B40, B41, B42,
    B43, B46, B48
    B1, B2, B4, B5(B19), B8



    * China & HK TD LTE are excluded.

  • Product CodeDescription
    ACW-112Waterproof Ethernet Adaptor (learn more)
    SIM-BK8-4E-56V-DOMSIM Injector (bundle offer)
    SIM-BK8-4E-56VSIM Injector
    ACW-650Mobility thread to HD Dome
    ACW-6511″ 14TPI female to Mobility thread
    ACW-6531 1/4″ 11 TPI Male Adapter
    ECP-MAX-HD1-DOM-M-GLTE-G-1YEssentialCare+ (1-Year) for MAX HD1 Dome
    ECP-MAX-HD1-DOM-M-GLTE-G-2YEssentialCare+ (2-Year) for MAX HD1 Dome
    ECP-MAX-HD1-DOM-M-GLTE-G-4YEssentialCare+ (4-Year) for MAX HD1 Dome
    SVL-MAX-HD1-DOM-M-GLTE-G-1Y1-Year EssentialCare for MAX HD1 Dome
    SVL-MAX-HD1-DOM-M-GLTE-G-2Y2-Year EssentialCare for MAX HD1 Dome
    ECP-MAX-HD1-DOM-5G-1YEssentialCare+ (1-Year) for MAX HD1 Dome 5G
    ECP-MAX-HD1-DOM-5G-2YEssentialCare+ (2-Year) for MAX HD1 Dome 5G
    ECP-MAX-HD1-DOM-5G-4YEssentialCare+ (4-Year) for MAX HD1 Dome 5G

    • MAX HD1 Dome
    • Ethernet Splitter
    • 2x Waterproof Ethernet Connector (ACW-112)
    • Mounting Kit Set
