Balance One

b1-banner-2

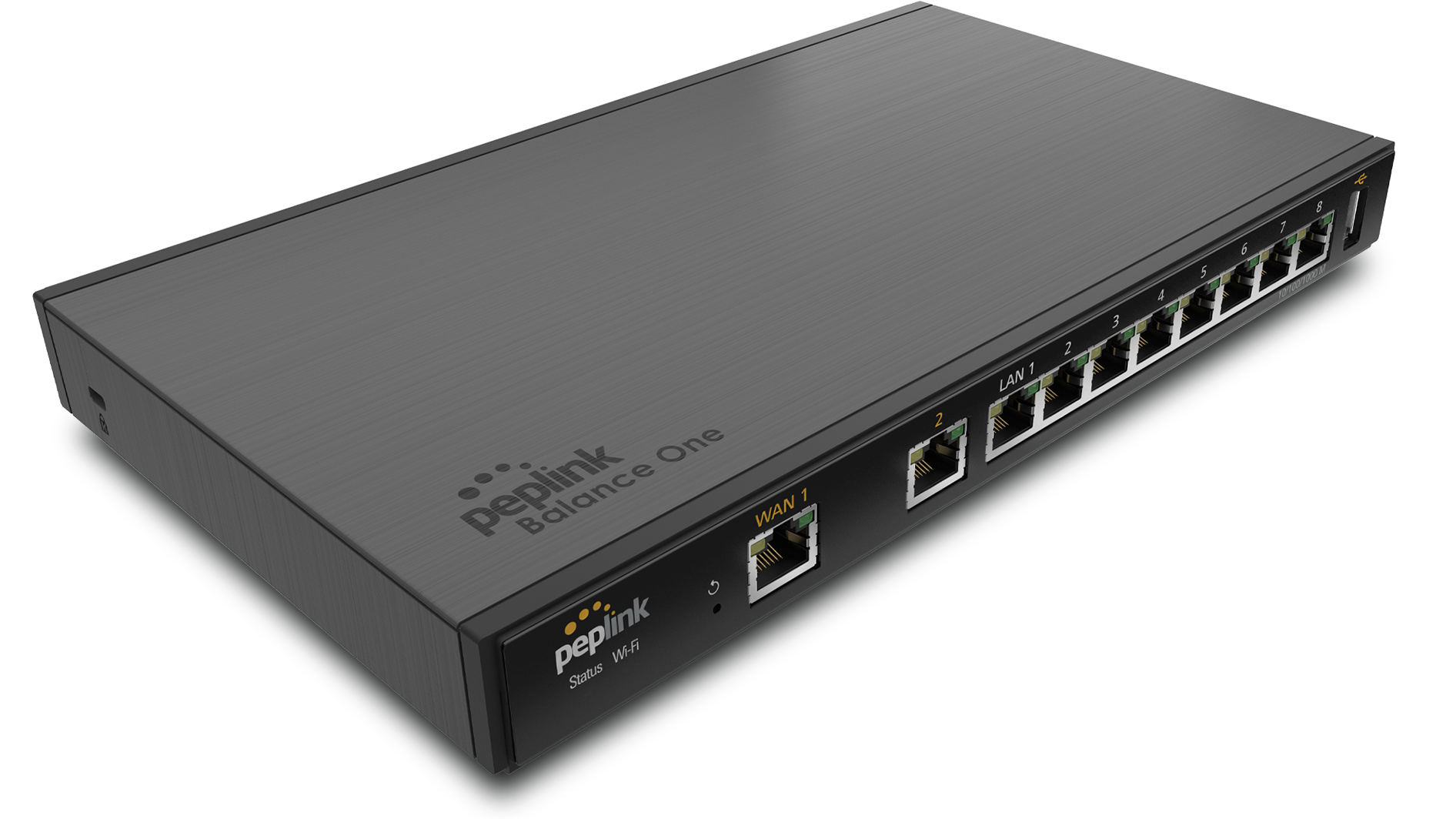

Peplink Balance One

Advanced Dual-WAN Router for Branch Networking.




b1-600mbps

600Mbps Throughput

Keeps your connections fast.




Dual-wan

Dual WAN Support

Dependable connections with balancing and automatic failover between links.

b1-2wan



Enterprise Features

Connect remote clients to your private network using L2TP with IPsec, monitor Bandwidth Usage, allocate bandwidth on application, and more.

b1-enterprise-features





Simultaneous Dual-Band 11ac Wi-Fi

Balance One gives you two independent networks that also work together, so all your devices can connect without clashing. Recommended Concurrent Users Per Radio is 60.
b1-wifi

8-port-switch




LAN-ports

8x GbE LAN Ports

Connect all your devices at high speeds, without complicated setup, or external switches.




USB-support

USB LTE Connectivity

Plug in a USB modem to use an LTE connection for load balancing and failover. The Balance One’s USB port supports more than 250 4G LTE/3G modems used by a variety of carriers worldwide.
List of supported modems


b1-ap apcontroller-captiveportal




AP Controller & InControl 2

Built in AP Controller or InControl 2 cloud management puts you in charge of all connected access points, create and manage custom captive portals.



Deployment Diagrams





Setup, Manage, and Monitor
Office Wi-Fi from Your Balance One

See Deployment Diagram
Learn more about AP One





Home Office with LTE Backup for 100% Uptime

See Deployment Diagram

Model Comparison

ModelBalance 20Balance One CoreBalance One
Product CodeBPL-021BPL-ONE-COREBPL-ONE
Capacity
Ethernet WAN Ports2/3%2/5#
USB WAN Modem Port
Router Throughput1100Mbps600Mbps/400Mbps#
Recommended Users1-601-601-60
Simultaneous Dual-Band 802.11a/b/g/n Wi-Fi APspec_nonespec_none
Ethernet LAN Ports4 (GE)8/5#(GE)
Core Functionality
Port-Based VLAN
Load Balancing
Drop-In Modespec_nonespec_none
Inbound Load Balancingspec_nonespec_none
InControl Cloud Management
VPN Functionality
PepVPN
SpeedFusion Hot Failoverspec_nonespec_none^
SpeedFusion Bandwidth Bondingspec_nonespec_none^
Advanced Management Functionality
Per-User Bandwidth Control
QoS for VoIP and E-Commerce
Web Filtering Blacklistsspec_noneLite
1 Router Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
# If the WAN Activation License (BPL-ONE-LC-5WAN) is activated, router throughput will be changed to 400Mbps, both number of WAN and LAN will become 5.
% The Balance 20 has an extra WAN port which can be activated through license key.
^ SpeedFusion is available as an optional add-on.

See a Full Balance Comparison Matrix

GO

Ordering Information

Product CodeProduct Name802.11a/b/g/n APDual-WANPepVPNSpeedFusion Hot Failover/
Bandwidth Bonding
BPL-ONE-COREBalance One Corespec_none Upgrade with License Key
(BPL-ONE-LC-SF)
BPL-ONEBalance One Upgrade with License Key
(BPL-ONE-LC-SF)

Contact A Reseller


Feature Add-On

Product CodeDescription
BPL-ONE-LC-SFSpeedFusion bandwidth bonding license
BPL-ONE-LC-5WANDefine LAN 1-3 to WAN 2-5

Technical Specifications

^ SpeedFusion is available as an optional add-on.
1 IPsec VPN supports connection with Cisco, Juniper, Pepwave, or Peplink devices.
2 Certification differs for different models, please refer to the respective model for details.

All specifications are subject to change without notice.
