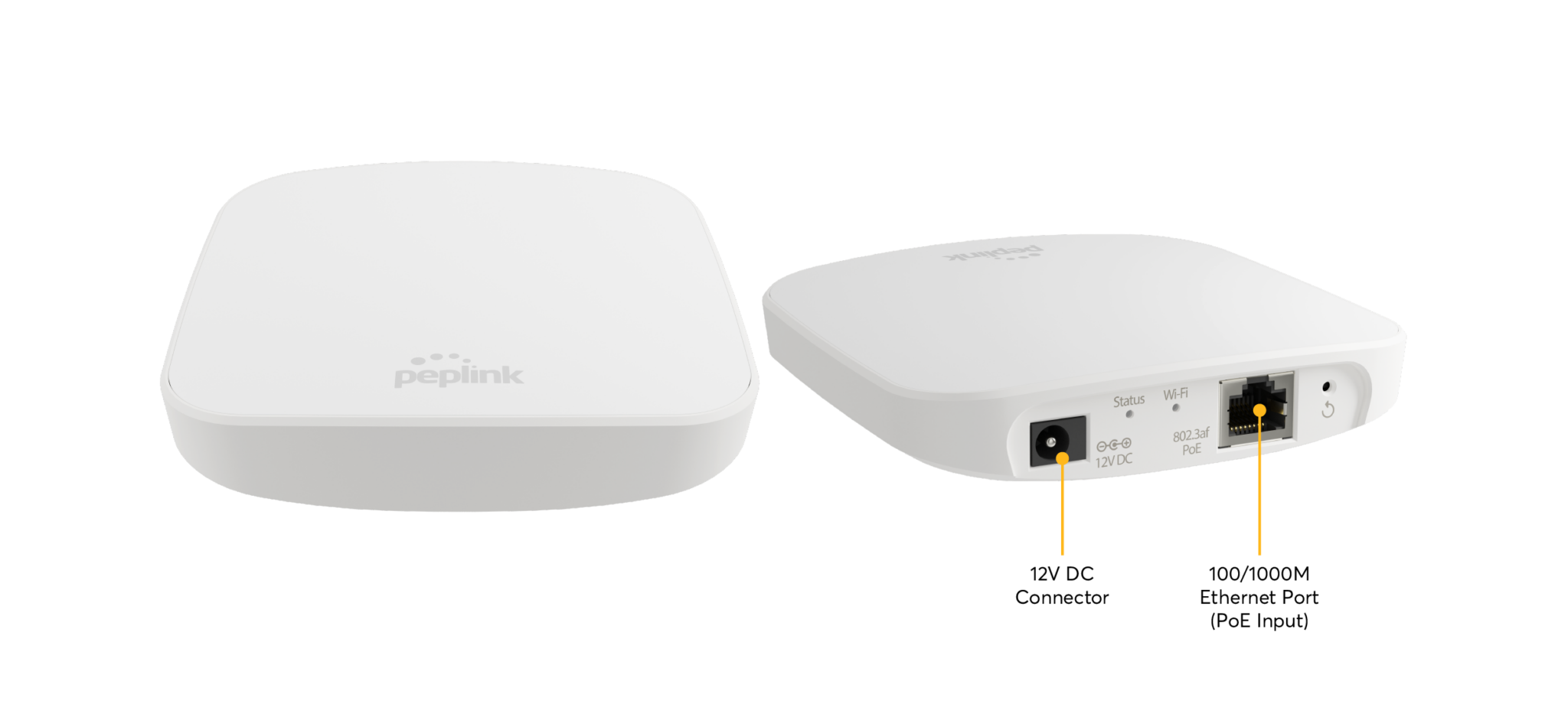

AP One Mini

11AC Wave 2 AP

AP One Mini is an 802.11ac Wave 2 access point that delivers one of the fastest 11ac yet, and comes with multi-user MIMO (MU-MIMO). Upgrade your network to 11ac wave 2 Wi-Fi. Our access points are compatible with the latest iPhone as well as other smartphones.

Product Image


Buy Online


MU-MIMO offers significantly increased efficiency to your network. Now multiple client devices can receive data simultaneously through AP One Mini MU-MIMO and beamforming antenna technology,  which concentrates and steers radio signals towards specific client devices.

Small Form Factor

Get big performance and durability from this 11ac access point. The plenum-rated, flame-resistant AC mini measures only 3.9″ x 3.9″ x 0.8″, so it fits just about anywhere.

Boost your Network

Upgrade your network to 11ac wave 2 Wi-Fi. Increase your wireless speeds with AP One Mini

Built-in PoE

Ease your mind with 802.3af PoE input – say farewell to power cables.

User Access Control

Control network access with separate logins for each user group. AP One access points support up to 16 SSIDs, each with independent bandwidth limits and web blocking.

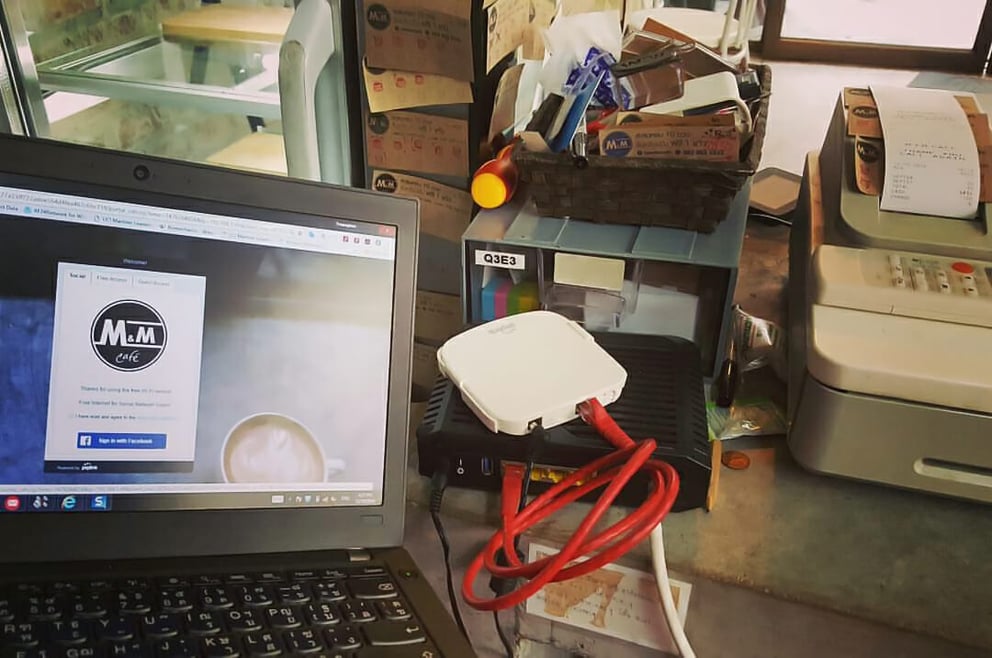

Social Wi-Fi Hotspot

Guests can now access your Wi-Fi hotspot with their Facebook login. In exchange, you can learn more about your customer base with insightful reports.

300 866Mbps 11ac Wave2 Dual Band Access Point AP One AC Mini #6

Centralized Management

Configure AP One access points onsite or from the cloud. Our AP Controller lets you locally manage access points from your Balance router, while InControl 2 offers a complete cloud-based solution accessible from any web-browser.^

300 866Mbps 11ac Wave2 Dual Band Access Point AP One AC Mini #7

Complete Network Solution

Enjoy better network integration and performance. AP One access points are a perfect complement to Balance routers, together providing blazing speed and superior reliability across your entire network.

^ Requires Peplink Balance / Pepwave MAX Firmware 8.0.1 for AP Controller support on AP One Mini.

    Ethernet Port1x GE
    Wi-Fi Standard802.11ac wave 2/ac/a/n and 802.11b/g/n
    2×2 MU-MIMO
    2.4GHz *300Mbps
    5GHz *866Mbps
    2.4GHz and 5GHz
    Wi-Fi Transmit Power2.4GHz: 22dBm
    5GHz: 23dBm
    Coverage (With line of sight in open environments)400ft |

    Recommended Concurrent Users Per Radio60
    Number of SSID Per Radio16
    Antenna TypeBuilt-in Omni
    Antenna Gain2.4GHz: 2.2dBi |
    5GHz: 3dBi
    EnclosurePlenum-rated, Indoor Plastic
    Dimensions3.9 x 3.9 x 0.8 inches |
    98 x 98 x 19.7 mm

    Weight0.33 pounds |
    150 grams

    AC Adapter
    AC Input 100V-240V
    DC Output 12V, 2A
    PoE Input802.3af
    Power Consumption9.5W (max.)
    Operating Temperature23° – 113°F |
    -5° – 45°C
    Humidity15% – 95% (non-condensing)
    CertificationsFCC, CE, RoHS


    * The frequency range for 2.4GHz and 5GHz are 2412−2472 MHz and 5180−5825 MHz respectively.

    NetworkBridge Mode
    Router (NAT) Mode
    Wireless Distribution System (WDS on 2.4GHz Only)
    Support for PPPoE, Static IP, DHCP
    Management VLAN (802.1p)
    Spanning Tree Protocol (802.1d)
    RadioMultiple SSID
    Auto Channel Selection
    Transmit Power Adjustment
    Neighbour AP Detection
    AP SecurityOpen
    Device ManagementWeb Administrative Interface
    InControl Cloud Management
    Peplink AP Controller
    SNMP v1, v2c and v3
    Client Management per SSIDVLAN with QoS (802.1p/802.1q)
    Bandwidth Control
    MAC Address Filtering
    Layer 2 Client Isolation
    Limit on Max. Number of Client
    Client Management per ClientVLAN with RADIUS
    VLAN with VLAN Pool
    Bandwidth Control
    Multicast Filter
    IGMP Snooping/Multicast Enhancement
    Complete SpeedFusion VPN SolutionSite-to-Site VPN
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    Captive PortalBy InControl
  • Product CodeDescription
    ACW-384AP One Mini Protect Cover
    SVL-7911-Year EssentialCare for AP One Mini
    SVL-6912-Year EssentialCare for AP One Mini
    ICS-0121-Year InControl 2 Subscription
    ICS-0242-Year InControl 2 Subscription
    ECP-A-1YEssentialCare+ A (1-Year)
    ECP-A-2YEssentialCare+ A (2-Year)
    ECP-A-4YEssentialCare+ A (4-Year)
  • Suitable ForProduct NameProduct CodeDescription
    Indoor Desktop or Wall-Mount Installation.AP One MiniAPO-AC-MINISimultaneous 802.11ac wave 2
    /ac/a/n 866Mbps and 802.11b/g/n 300Mbps. Built-in omni antenna included.
  • “The Pepwave AP One Enterprise Access Points have worked very well. To my surprise, two of them completely cover my 8000SF+ house, including my patio/pool area behind my house.”

    – Amazon.com Customer


    “I am not an IT expert nor do I work in IT. I have been a user of Peplink routers and WAPs for five plus years and they are very well made and supported. Flexible in configuration with a web-based management tool that again is very capable but approachable to the non-IT types. The InControl web management system makes SSID and radio management a breeze. Firmware management and performance logs are also available. Highly recommended!”

    – Amazon.com Customer


    “Works excellently with my Balance router. Control/configuration can be done directly from the router for easy usage and support. Peplink products typically “just work” and are super alternatives to what is currently on the market. Functional, well-documented, bullet-proof, fairly easy to configure!”

    – Amazon.com Customer


    “Great AP. Great value. Product is commercial grade, easy to program with lots of options!”

    – Amazon.com Customer


    “Great product with excellent range and throughput. Integrates nicely with the Peplink router. Very easy to use to expand your Wi-Fi coverage.”

    – Amazon.com Customer

    • AP One Mini
    • 12V2A Power Supply (ACW-601)
    • 1x Mounting Bracket
