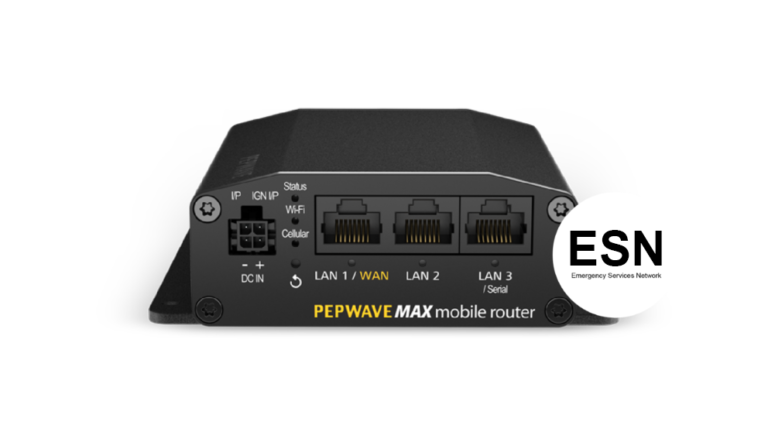

ESN Certified
GPIO Terminal Block
Small Form Factor

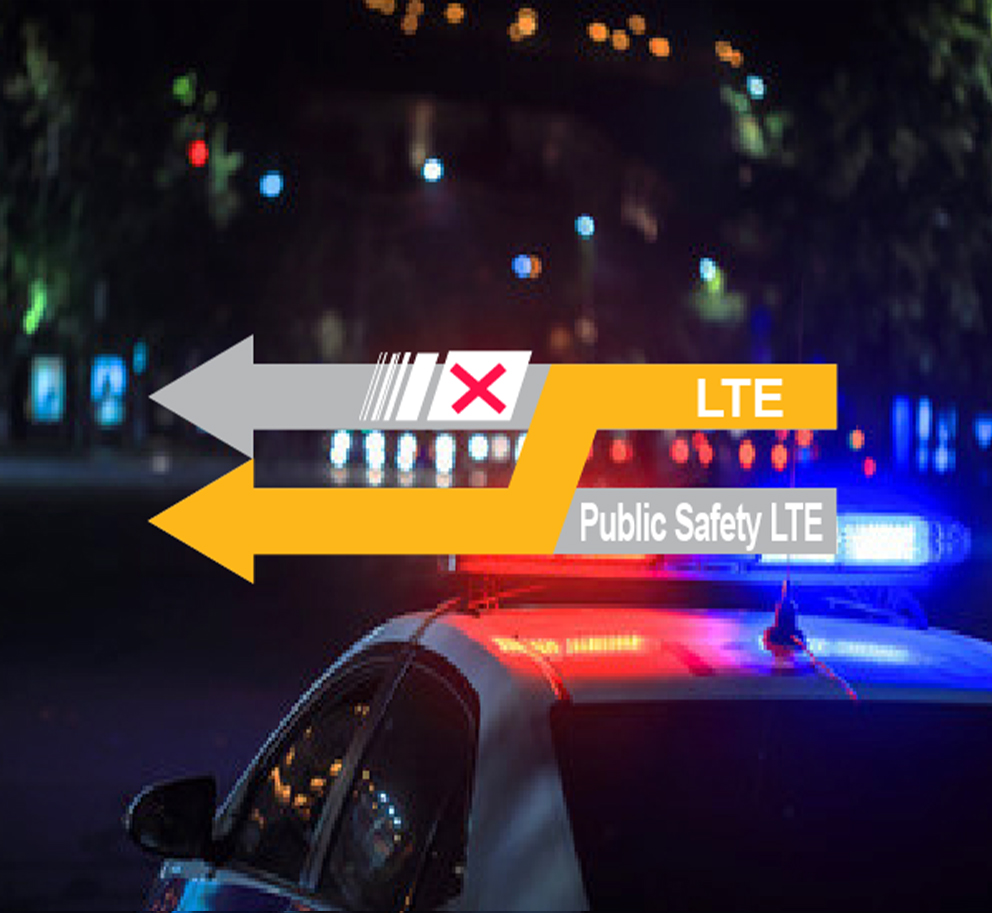

Achieve Unbreakable Connectivity
Use our patented SpeedFusion technology to combine ESN and commercial links into an unbreakable VPN connection that stays up even if a link goes down. As traffic goes from one WAN to the next, your session will continue streaming without any interruption. SpeedFusion also has greater coverage and bandwidth than that of a single cellular link.
Videos/DVRs
Currently, first responders can only record video on site; live streaming remains a challenge. Use SpeedFusion to bond multiple cellular links into a powerful VPN connection that can stream HD video back to headquarters. WAN Smoothing technology ensures that your video stream remains consistent and uninterrupted even as traffic moves between different WAN links.


Extend 2-Way Radios Anywhere
Previously, 2-way radios such as LMR, P.25, TETRA, NXDN, and DMR only worked with other radios connected to the same repeater. With SpeedFusion, they become a single unbreakable network. This extends the reach of existing 2-way radio networks to anywhere an LTE or other IP network is available.
-
WAN Interface 1x 10/100M Ethernet Port # LAN Interface 3x 10/100M Ethernet Port #
(1x WAN Port shared with LAN Interface)
(1x Serial Port shared with LAN Interface)
Cellular WAN Interfaces Single LTE Modem Redundant SIM Slot Yes SpeedFusion Hot Failover Yes ^ Drop-In Mode Yes Wi-Fi Interface 802.11b/g/n Wi-Fi WAN or AP Downlink/Uplink Datarate 600Mbps/150Mbps Recommended Users 60 Stateful Firewall Throughput 100 Mbps Antenna Connectors 2x SMA Cellular, 1x SMA GPS, 1x RP-SMA Wi-Fi Power Input Passive PoE Input (WAN Port, 12V – 28V DC) /
Power + GPIOPower Consumption 12W (max.) Dimensions 4.1 x 4.3 x 1.2 inches | 105 x 110 x 30 mm
Weight 0.54 pound |
244 grams
Operating Temperature -40° – 149°F | -40° – 65°C
Certifications CE, ROHS, ESN Warranty 1-Year Limited Warranty ^ Failover software license is required to activate SpeedFusion Failover feature and enable Ethernet and Wi-Fi WAN.
# 2 SpeedFusion VPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05. -
Software Pepwave MAX Firmware WAN Support for PPPoE, Static IP, DHCP
WAN Link Health Check
Bandwidth Allowance Monitor
Support for Dynamic DNS services
WAN Port Convertible into LAN PortLAN DHCP Server for LAN Clients
Extended DHCP Option
DHCP Reservation
DNS Proxy for LAN Clients
VLAN on LAN Support
Security Stateful Firewall
DoS Prevention
Web Blocking
Complete VPN Solution SpeedFusion VPN/SpeedFusion
-Hot Failover
-Site-to-Site VPN
-256-bit AES Encryption
-Pre-shared Key Authentication
-Dynamic Routing
-X.509 Certificate Support *
IPsec VPN (Network-to-Network) ^
-X.509 Certificate Support *
Advanced QoS Individual Bandwidth Limit
Application Prioritization
-SIP, HTTPS, VPN QoS
-Custom Application QoSGlobal Positioning System Integrated GPS
Device Location Map
Location Tracking Data with InControl 2
Fleet Management with InControl 2Networking NAT and IP Forwarding
Static Routes
Port Forwarding
Many to One, One to One NAT
NAT Pool
SIP ALG, H.323 ALG
UPnP, NAT-PMP
Captive Portal Support Support for Wired and Wireless LAN clients
Support RADIUS Authentication
Time and Usage Quotas on Open Access Mode
Built-in Customizable Splash PageDevice Management Web Administrative Interface
Command Line Interface
InControl Cloud Management
Email Notification
Active Client & Session Lists
Bandwidth Usage Statistics
Syslog Service
SNMP v1, v2c and v3*Feature is available as an upgrade.
^ IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.
-
Product Code
Description
MAX-BR1-ADV Advanced Feature Package includes a software license key for X.509 Certificate Support (SpeedFusion and IPsec)
PVN-LC-05
Enables up to 5 SpeedFusion VPN peers MAX-BR1-MINI-LC-FS Failover software license and related feature set for BR1MINI and BR1 ESN, enables Ethernet and Wi-Fi WAN
-
Product Code Region | Carrier Standard 4G Bands 3G Bands MAX-BR1-ESN-LTEA-K-T Global* / ESN /
CAT-12LTEA LTE Advanced B1, B2, B3, B4, B5, B7, B8, B9,
B12, B13, B18, B19, B20, B26,
B28, B29, B30, B32, B41, B42,
B43, B46, B48, B66HSPA+: B1, B2, B4, B5,
B6, B8, B9, B19* China & HK TD LTE are excluded.
-

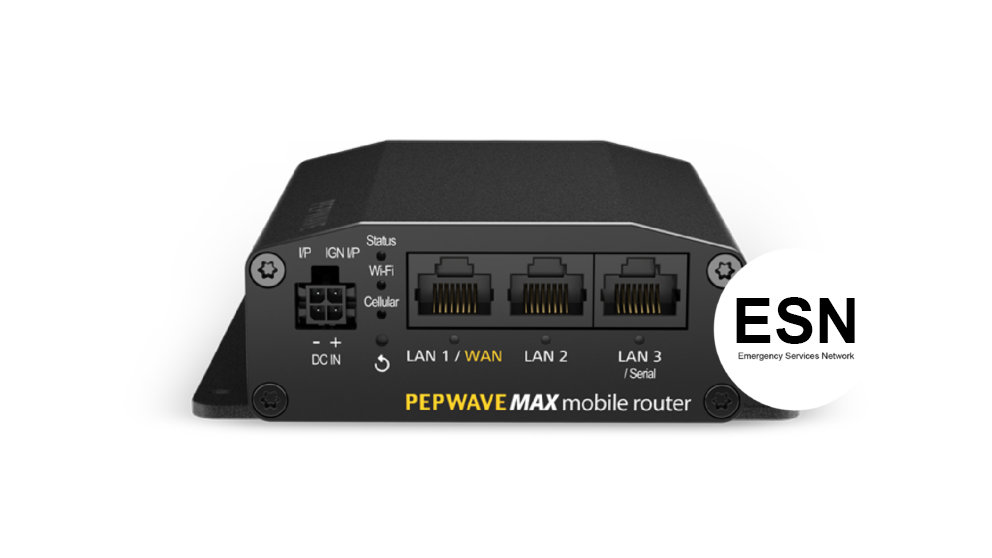

- MAX BR1 ESN
- 12V2A Power Supply (ACW-632)
- 1x Wi-Fi 2.4G Antenna (ACW-304)
- 1x GPS Antenna (ACW-232)
- 2x LTE/5G Antennas (ACW-235)
