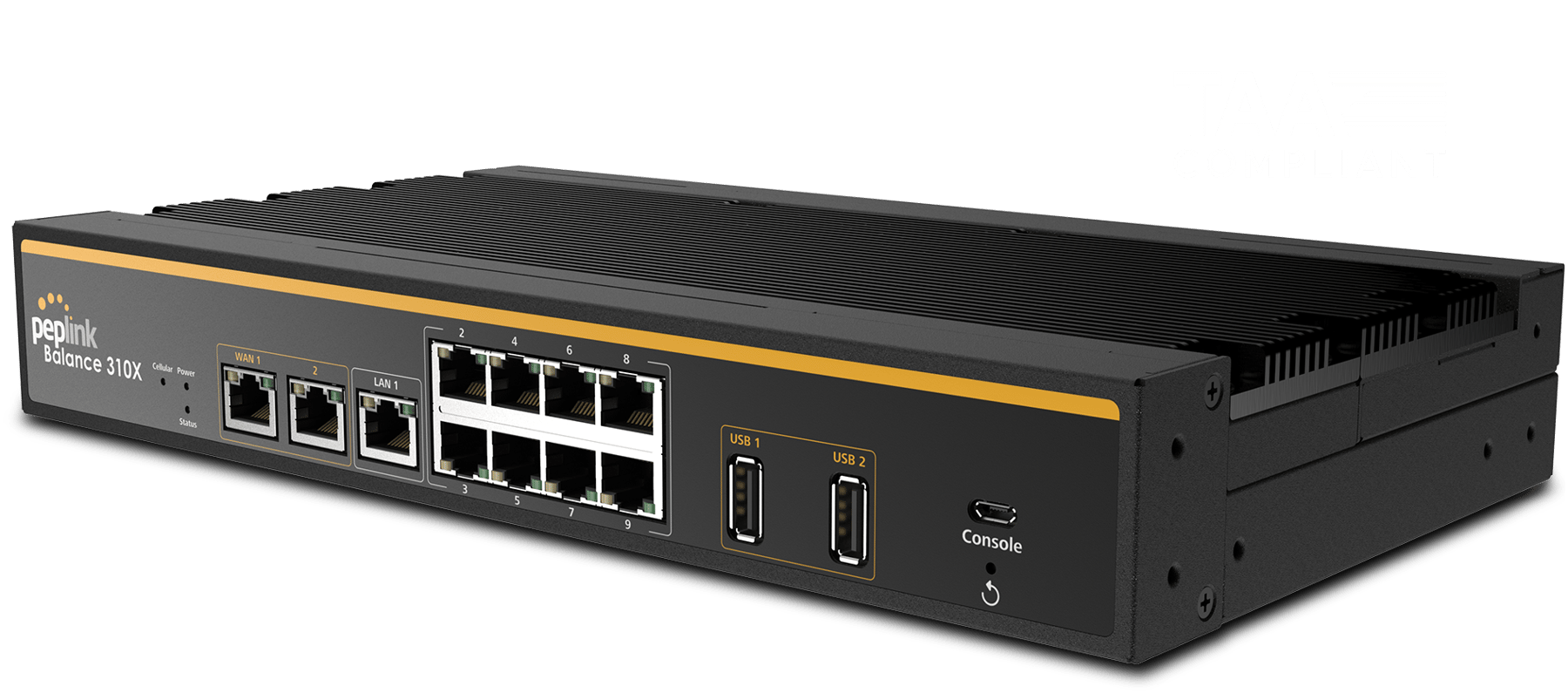

Balance 310X

Enterprise SD-WAN router for Medium Sized Branches

The Balance 310X uses all GE ports and offers a routing throughput of 2.5 Gbps. It provides all the connectivity needed to support small and medium sized business operations.

2.5 Gbps Enterprise SD-WAN Router Balance 310 X #2
2.5 Gbps Enterprise SD-WAN Router Balance 310 X #2

Ultimate Performance for your Branch Office

2.5 Gbps Enterprise SD-WAN Router Balance 310 X #3
  • 30 VPN Peers
  • High Capacity. 500 Users
  • 2.5 Gbps Throughput
2.5 Gbps Enterprise SD-WAN Router Balance 310 X #4

Unbreakable Connectivity with LTE

The Balance 310X provides built-in LTE for seamless failover. Patented SpeedFusion technology combines multiple connections for jitter-free calls and high-speed transfers.

FirstNet Ready

FirstNet (Band 14) provides first responders with a specialized LTE network with more priority and network capacity. The Balance 310X supports Band 14, providing additional coverage as the situation demands.

Rugged Industrial-Grade Design

The Balance 310X has a fanless design and a wide temperature range. Drop it into demanding environments and run it for years without worry.

Scalable Cloud Management

The Balance 310X comes with the InControl central management system. Easily centralize firewall rules, outbound policy, VLAN, device configurations and more.

Experience on-demand connectivity with SpeedFusion Connect

Enabling the benefits of SpeedFusion has just gotten easier with SpeedFusion Connect. Allowing you to leverage the LTE of multiple connections and SpeedFusion technologies all under one subscription. Enabling backup connectivity has never been so simple!

*Compatible for use in the US and selected regions in Europe

  •
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    -PING
    -IPv6 Support
    -DNS Lookup
    -HTTP
    Bandwidth Allowance Monitor
    USB 4G/3G Modem Support
    Intelligent Failover
    Support for Dynamic DNS services
    -changeip.com
    -dyndns.org
    -no-ip.org
    -tzo.com
    -DNS-O-Matic
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    -Weighted
    -Enforced
    -Persistence
    -Priority
    -Overflow
    -Least Used
    -Lowest Latency
    -Fastest Response Time
    SecurityDoS Prevention
    Stateful Firewall
    Web Blocking
    Web Filtering Blacklist
    Complete VPN SolutionSpeedFusion VPN
    Site-to-Site VPN
    -Bandwidth Bonding
    -Hot Failover
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    -Dynamic Routing
    PPTP/L2TP/OpenVPN Server
    -Local User Active Directory Authentication
    IPsec VPN (Network-to-Network)
    -X.509 Certificate Support
    GRE Tunnel (Network-to-Network)
    Advanced QoS User Groups
    -Bandwidth Reservation
    -Individual Bandwidth Limit
    Application Prioritization
    -By User Groups
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    VRRP HA Support
    BGP, OSPFv2 and RIPv2 Support
    AP Controller Support for Pepwave AP Series
    Auto AP Discovery
    Auto AP Firmware Management
    AP Profile Configuration
    Wi-Fi Usage Statistics
    Captive PortalSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Support LDAP Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    DNSBuilt-in Authoritative DNS

    Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT records
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
  • Product CodeCarrier Embedded Modem4G Bands3G Bands
    BPL-310X-
    LTEA-R-T
    America /
    FirstNet /
    CAT-12
    1B1, B2, B3, B4, B5, B7, B8, B9, B12,
    B13, B14 ,B18, B19, B20, B26, B29,
    B30, B32, B41, B42, B43, B46, B48, B66
    B1, B2, B4, B5, B6, B8, B9, B19
    BPL-310X-
    LTEA-D-T
    Global /
    CAT-12
    1B1, B2, B3, B4, B5, B7, B8, B9, B12,
    B13, B14, B17, B18, B19, B20, B21,
    B25, B26, B28, B29, B30, B32, B38,
    B39, B40, B41, B66
    B1, B2, B4, B5, B6, B8, B9, B19

    BPL-310X-
    LTEA-K-T
    Global /
    CAT-12
    1B1, B2, B3, B4, B5, B7, B8, B9, B12, B13,
    B18, B19, B20, B26, B28, B29, B30, B32,
    B41, B42, B43, B46, B48, B66
    HSPA+: B1, B2, B4, B5, B6, B8, B9, B19
    BPL-310X-
    GLTE-S-T
    Global /
    FirstNet /
    CAT-20
    1B1, B2, B3, B4, B5, B7, B8, B12, B13, B14,
    B17, B18, B19, B20, B25, B26, B28, B29,
    B30, B32, B34, B38, B39, B40, B41, B42,
    B46 (LAA), B48, B66, B71
    HSPA+/WCDMA: B1, B2, B3, B4, B5, B6, B8, B9, B19
    EXM-310X-
    GLTE-S *
    Global /
    CAT-20
    1B1, B2, B3, B4, B5, B7, B8, B12, B13, B14,
    B17, B18, B19, B20, B25, B26, B28, B29,
    B30, B32, B34, B38, B39, B40, B41, B42,
    B46 (LAA), B48, B66, B71
    HSPA+/WCDMA: B1, B2, B3, B4, B5, B6, B8, B9, B19

    *Expansion Module for B310X with 1x LTE-A Pro (CAT-20) modem

  • Product CodeEmbedded Modem(s)Region5G BandsLTE Bands
    BPL-310X-5GD-T1x 5GGlobal5G (NSA) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n20, n28,
    n38, n41, n66, n71, n77, n78, n79
    B1, B2, B3, B4, B5, B7, B8, B12, B13,
    B14, B17, B18, B19, B20, B25, B26,
    B28, B29, B30, B32, B34, B38, B39,
    B40, B41, B42, B46, B48, B66, B71
    BPL-310X-5GH-T1x 5GGlobal^5G (NSA) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n20, n25,
    n28, n38, n40, n41, n66, n71, n77,
    n78, n79
    B1, B2, B3, B4, B5, B7, B8, B12, B13,
    B14, B17, B18, B19, B20, B25, B26,
    B28, B29, B30, B32, B34, B38, B39,
    B40, B41, B42, B46, B48, B66, B71
    BPL-310X-5GN-T1x 5GGlobal5G (NSA & SA)) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n13, n14,
    n18, n20, n25, n26, n28, n29, n30,
    n38, n40, n41, n48, n66, n70, n71,
    n75, n76, n77, n78, n79
    B1, B2, B3, B4, B5, B7, B8, B12, B13,
    B14, B17, B18, B19, B20, B25, B26,
    B28, B29, B30, B32,B34, B38, B39,
    B40, B41, B42, B46, B48, B66, B71
    EXM-310X-5GD *1x 5GGlobal5G (NSA) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n20, n28,
    n38, n41, n66, n71, n77, n78, n79
    B1, B2, B3, B4, B5, B7, B8, B12, B13,
    B14, B17,B18, B19, B20, B25, B26,
    B28, B29, B30, B32,B34, B38, B39,
    B40, B41, B42, B46, B48, B66, B71
    EXM-310X-5GH1x 5GGlobal#5G (NSA) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n20, n25,
    n28, n38, n40, n41, n66, n71, n77,
    n78, n79
    B1, B2, B3, B4, B5, B7, B8, B12, B13,
    B14, B17, B18, B19, B20, B25, B26,
    B28, B29, B30, B32, B34, B38, B39,
    B40, B41, B42, B46, B48, B66, B71
    EXM-310X-5GN *1x 5GGlobal
    5G (NSA & SA)) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n13, n14,
    n18, n20, n25, n26, n28, n29, n30,
    n38, n40, n41, n48, n66, n70, n71,
    n75, n76, n77, n78, n79
    B1, B2, B3, B4, B5, B7, B8, B12, B13,
    B14, B17,B18, B19, B20, B25, B26,
    B28, B29, B30, B32,B34, B38, B39,
    B40, B41, B42, B46, B48, B66, B71

    *Expansion Module for B310X with 1x 5G modem

    ^US Carrier Certifications: AT&T, T-Mobile, US Cellular, Verizon

    #  US Carrier Certifications (Pending)

  • Product CodeProduct Name
    SFN-LC-50Up to 50 SpeedFusion Peers License Key for Balance 310X
    SFN-LC-30Up to 30 SpeedFusion Peers License Key for Balance 310X
    SVL-3211-Year EssentialCare for Balance 310X LTEA
    SVL-9232-Year EssentialCare for Balance 310X LTEA
    ECP-BPL-310X-LTEA-1YEssentialCare+ (1-Year) for Balance 310X LTEA
    ECP-BPL-310X-LTEA-2YEssentialCare+ (2-Year) for Balance 310X LTEA
    ECP-BPL-310X-LTEA-4YEssentialCare+ (4-Year) for Balance 310X LTEA
    ECP-BPL-310X-5G-1YEssentialCare+ (1-Year) for Balance 310X 5G
    ECP-BPL-310X-5G-2YEssentialCare+ (2-Year) for Balance 310X 5G
    ECP-BPL-310X-5G-4YEssentialCare+ (4-Year) for Balance 310X 5G
    SVL-BPL-310X-5G-1Y1-Year EssentialCare for Balance 310X 5G
    SVL-BPL-310X-5G-2Y2-Year EssentialCare for Balance 310X 5G
    LIC-VWANActivate 1x Virtual WAN
    LIC-2VWANActivate 2x Virtual WAN
    LIC-3VWANActivate 3x Virtual WAN
  •

    • Balance 310X
    • 1x PSU 24V 2.5A (ACW-647)
    • 2x or 4x LTE/5G Antennas (ACW-234)
    • 1x GPS Antenna (ACW-232)
    • Ear L-Mounts kit (ACW-513)
    • Rubber Foot Pad Set
    • Grounding Cable
