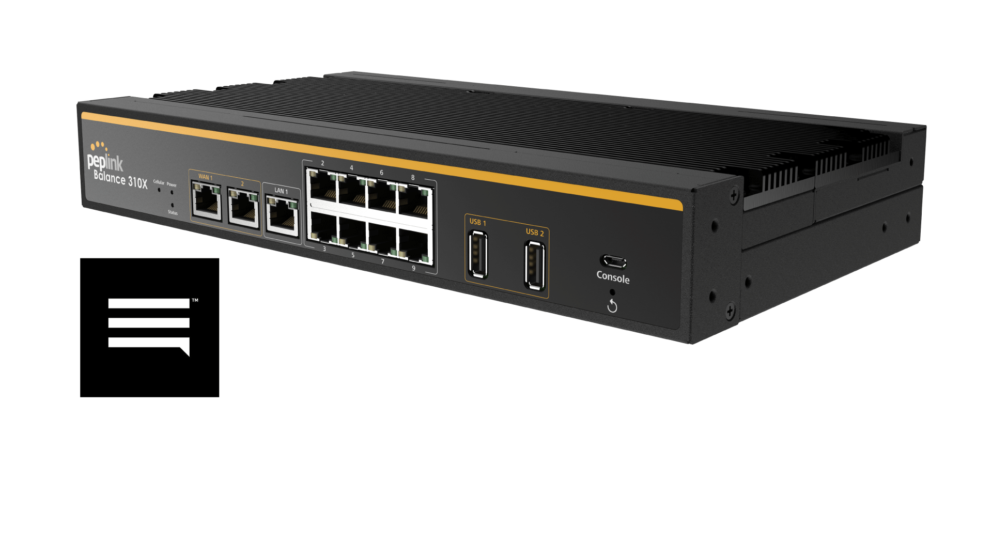

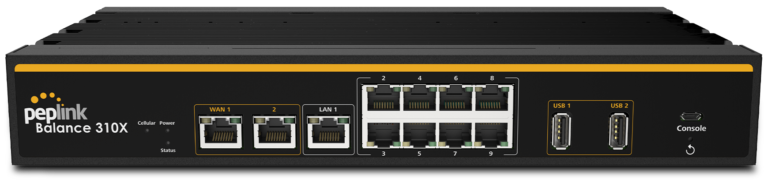

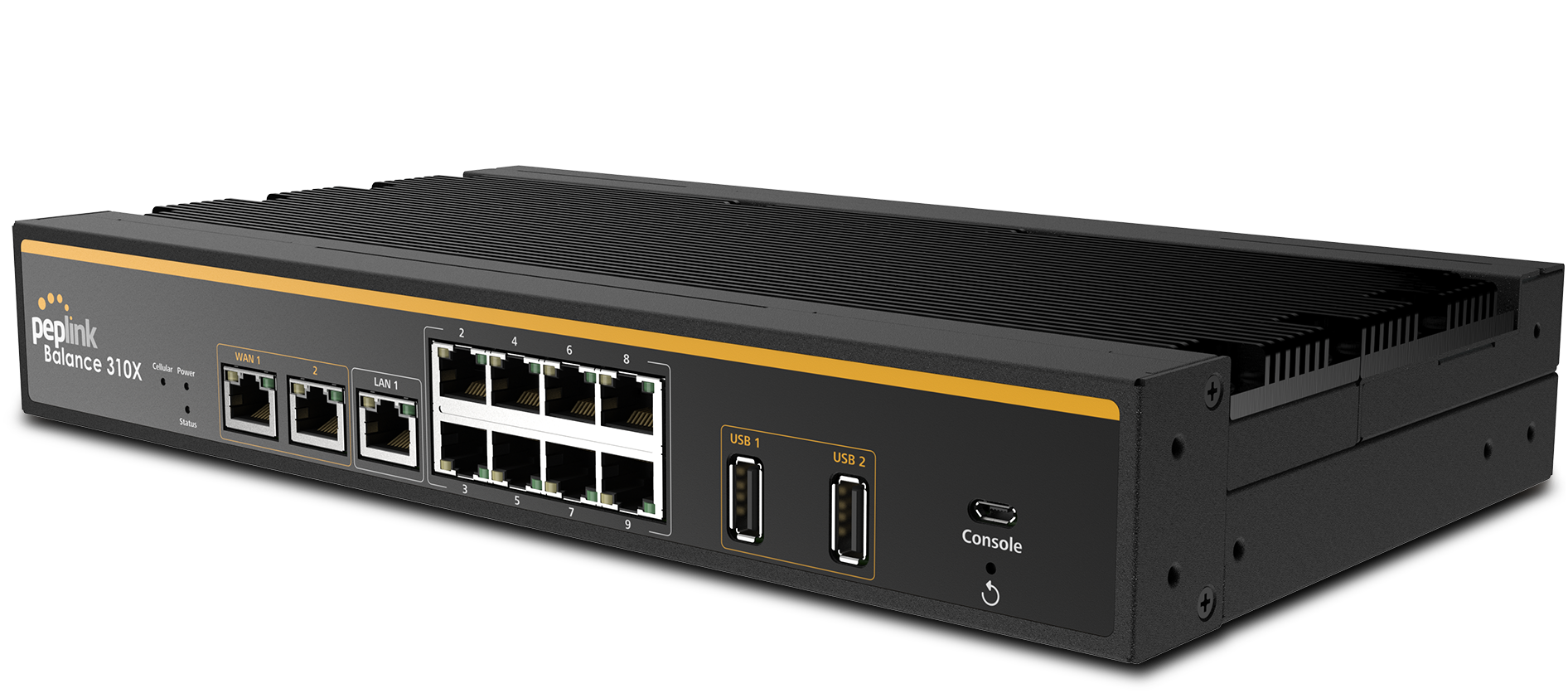

Balance 310X

Enterprise SD-WAN router for Medium Sized Branches

The Balance 310X uses all GE ports and offers a routing throughput of 2.5 Gbps. It provides all the connectivity needed to support small and medium sized business operations.

2.5 Gbps Enterprise SD-WAN Router Balance 310 X #2
2.5 Gbps Enterprise SD-WAN Router Balance 310 X #2
Locate a Reseller

Ultimate Performance for your Branch Office

2.5 Gbps Enterprise SD-WAN Router Balance 310 X #3
  • 30 VPN Peers
  • High Capacity. 500 Users
  • 2.5 Gbps Throughput
2.5 Gbps Enterprise SD-WAN Router Balance 310 X #4

Unbreakable Connectivity with LTE

The Balance 310X provides built-in LTE for seamless failover. Patented SpeedFusion technology combines multiple connections for jitter-free calls and high-speed transfers.

Rugged Industrial-Grade Design

The Balance 310X has a fanless design and a wide temperature range. Drop it into demanding environments and run it for years without worry.

Scalable Cloud Management

The Balance 310X comes with the InControl central management system. Easily centralize firewall rules, outbound policy, VLAN, device configurations and more.

Visit InControl2 Page

#PowerofPeplink

  • 2.5 Gbps Enterprise SD-WAN Router Balance 310 X #7
  • 2.5 Gbps Enterprise SD-WAN Router Balance 310 X #8
  • 2.5 Gbps Enterprise SD-WAN Router Balance 310 X #11
  • 2.5 Gbps Enterprise SD-WAN Router Balance 310 X #9
  • 2.5 Gbps Enterprise SD-WAN Router Balance 310 X #10
  • WAN Interface2x USB Interface
    2x GE
    1x Embedded LTE-A Modem with Redundant SIM Slot
    SpeedFusion Hot FailoverYes
    SpeedFusion WAN SmoothingYes
    SpeedFusion Bandwidth BondingYes
    Number of PepVPN SpeedFusion Peers2/30*
    LAN Interface9x (GE)
    Router Throughput2.5 Gbps
    PepVPN/SpeedFusion ThroughputNo Encryption: 256-bit AES: 500Mbps
    LTE ModemLTE Advanced Pro CAT-12/ CAT-18
    CAT 12: Downlink/Uplink Datarate:
    600 Mbps/150 Mbps
    CAT 18: Downlink/Uplink Datarate:
    1.2 Gbps/150 Mbps
    Recommended Users50-500
    Cellular and GPS Antenna Connector2x SMA Antenna Connectors (for CAT-12)
    4x SMA Antenna Connectors (for CAT-18)
    1x SMA GPS Antenna Connector
    Power InputPower Din DC: 12V – 30V
    Power Consumption30W (max.)
    Dimension1.7 x 11.5 x 7.0 inches
    (W x D x H)43 x 292 x 177 mm
    Weight7.28 pounds | 3.3 kg
    Operating Temperature-40° – 149°F | -40° – 65°C
    Humidity15% – 95% (non-condensing)
    CertificationsCE, FCC, RoHS
    Warranty1-Year Limited Warranty

    * 2 SpeedFusion Peers are enabled by default. Can be increased to 30 Peers with purchase of SpeedFusion license SFN-LC-30.

  • WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    -PING
    -IPv6 Support
    -DNS Lookup
    -HTTP
    Bandwidth Allowance Monitor
    USB 4G/3G Modem Support
    Intelligent Failover
    Support for Dynamic DNS services
    -changeip.com
    -dyndns.org
    -no-ip.org
    -tzo.com
    -DNS-O-Matic
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    -Weighted
    -Enforced
    -Persistence
    -Priority
    -Overflow
    -Least Used
    -Lowest Latency
    SecurityDoS Prevention
    Stateful Firewall
    Web Blocking
    Web Filtering Blacklist
    Complete VPN SolutionPepVPN
    Site-to-Site VPN
    -Bandwidth Bonding
    -Hot Failover
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    -Dynamic Routing
    PPTP/L2TP/OpenVPN Server
    -Local User, LDAP, RADIUS, Active Directory Authentication
    IPsec VPN (Network-to-Network)
    -X.509 Certificate Support
    GRE Tunnel (Network-to-Network)
    Advanced QoS User Groups
    -Bandwidth Reservation
    -Individual Bandwidth Limit
    Application Prioritization
    -By User Groups
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    VRRP HA Support
    BGP, OSPFv2 and RIPv2 Support
    AP Controller Support for Pepwave AP Series
    Auto AP Discovery
    Auto AP Firmware Management
    AP Profile Configuration
    Wi-Fi Usage Statistics
    Captive PortalSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Support LDAP Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    DNSBuilt-in Authoritative DNS

    Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT records
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
    Power RequirementsPower Din DC: 12V – 30V
  • Product CodeProduct NameProduct Description
    SFN-LC-30SpeedFusion Bonding
    License Key for Balance 310X
    		Enable up to 30 SpeedFusion Bonding peers for Balance 310X

  •

    • Balance 310X
    • LTE Antenna x 2 (ACW-234)
    • GPS Antenna x 1 (ACW-232)
    • 24V 2.5A PSU x 1
    • L-Mount x 2
    • Power Cord x 1
  • Product CodeCarrier Embedded Modem4G Bands3G Bands
    BPL-310X-
    LTEA-R-T
    		America /
    FirstNet /
    CAT-12
    		1B1, B2, B3, B4, B5, B7, B8, B9, B12,
    B13, B14 ,B18, B19, B20, B26, B29,
    B30, B32, B41, B42, B43, B46, B48, B66
    		B1, B2, B4, B5, B6, B8, B9, B19
    BPL-310X-
    LTEA-K-T
    		Global* /
    CAT-12
    		1B1, B2, B3, B4, B5, B7, B8, B9, B12,
    B13, B18, B19, B20, B26, B28 , B29,
    B30, B32, B41, B42, B43, B46, B48, B66
    		B1, B2, B4, B5, B6, B8, B9, B19
    BPL-310X-
    GLTE-G-T
    		Global /
    CAT-18
    		1B1, B3, B25(B2), B66(B4),
    B26(B5/B18/B19), B7, B8, B12(17),
    B13,B14 , B20, B28 , B29, B30, B32,
    B71, B38,B39, B40, B41, B42, B43,
    B46, B48
    		B1, B2, B4, B5(B19), B8

  • Balance 310X Datasheet
