AP One AC Mini

World Smallest 11AC Wave 2 AP

AP One AC Mini is the world smallest 802.11ac Wave 2 access point that delivers one of the fastest 11ac yet, and comes with multi-user MIMO (MU-MIMO). Upgrade your network to 11ac wave 2 Wi-Fi. Our access points are compatible with the latest iPhone as well as other smartphones.

300 866Mbps 11ac Wave2 Dual-Band Access Point AP One AC Mini #2
300 866Mbps 11ac Wave2 Dual-Band Access Point AP One AC Mini #2
Locate a Reseller
300 866Mbps 11ac Wave2 Dual Band Access Point AP One AC Mini #3

MU – MIMO

MU-MIMO offers significantly increased efficiency to your network. Now multiple client devices can receive data simultaneously through AP One AC Mini MU-MIMO and beamforming antenna technology,  which concentrates and steers radio signals towards specific client devices.

300 866Mbps 11ac Wave2 Dual Band Access Point AP One AC Mini #4

Small Form Factor

Get big performance and durability from the world’s smallest 11ac access point. The plenum-rated, flame-resistant AC mini measures only 3.9″ x 3.9″ x 0.8″, so it fits just about anywhere.

Boost your Network

Upgrade your network to 11ac wave 2 Wi-Fi. Increase your wireless speeds with AP One AC Mini

Built-in PoE

Ease your mind with 802.3af PoE input – say farewell to power cables.

User Access Control

Control network access with separate logins for each user group. AP One access points support up to 16 SSIDs, each with independent bandwidth limits and web blocking.

Social Wi-Fi Hotspot

Guests can now access your Wi-Fi hotspot with their Facebook login. In exchange, you can learn more about your customer base with insightful reports.

300 866Mbps 11ac Wave2 Dual Band Access Point AP One AC Mini #6

Centralized Management

Configure AP One access points onsite or from the cloud. Our AP Controller lets you locally manage access points from your Balance router, while InControl 2 offers a complete cloud-based solution accessible from any web-browser.^

VISIT INCONTROL PAGE
LEARN MORE ABOUT AP CONTROLLER
300 866Mbps 11ac Wave2 Dual Band Access Point AP One AC Mini #7

Complete Network Solution

Enjoy better network integration and performance. AP One access points are a perfect complement to Balance routers, together providing blazing speed and superior reliability across your entire network.

EXPLORE BALANCE SERIES

#PowerofPeplink

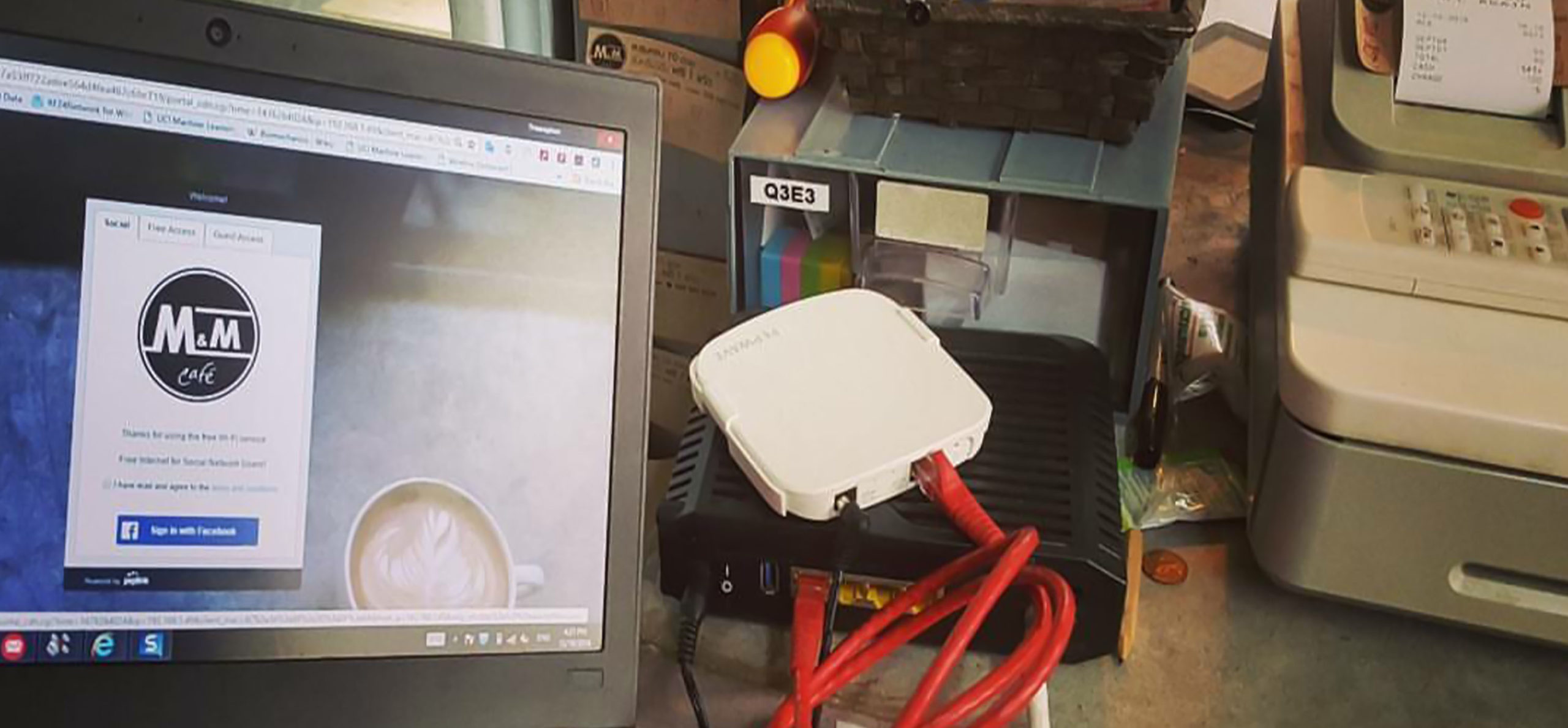

  • 300 866Mbps 11ac Wave2 Dual Band Access Point AP One AC Mini #8

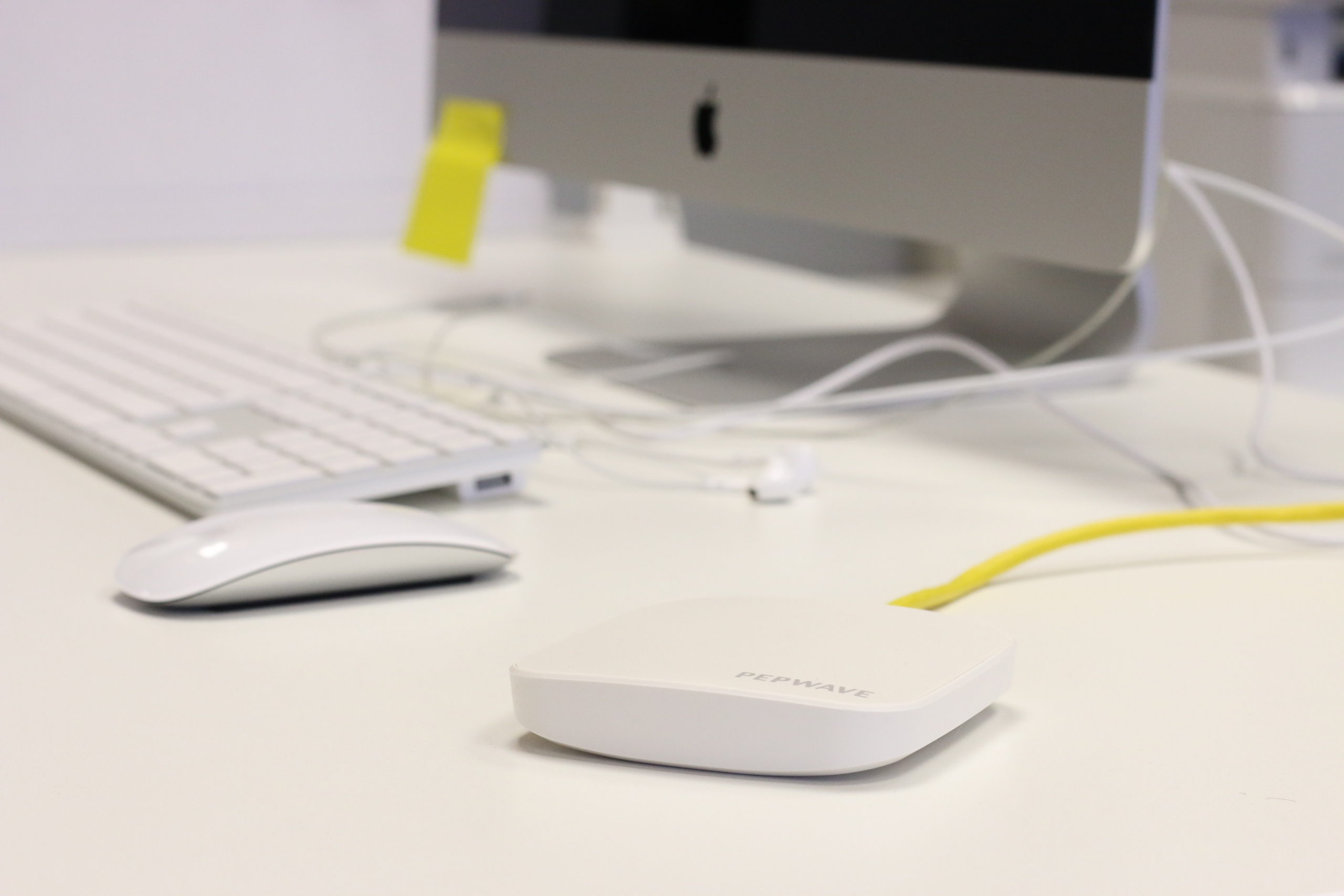

  • 300 866Mbps 11ac Wave2 Dual Band Access Point AP One AC Mini #9
  • 300 866Mbps 11ac Wave2 Dual Band Access Point AP One AC Mini #10
  • 300 866Mbps 11ac Wave2 Dual Band Access Point AP One AC Mini #11

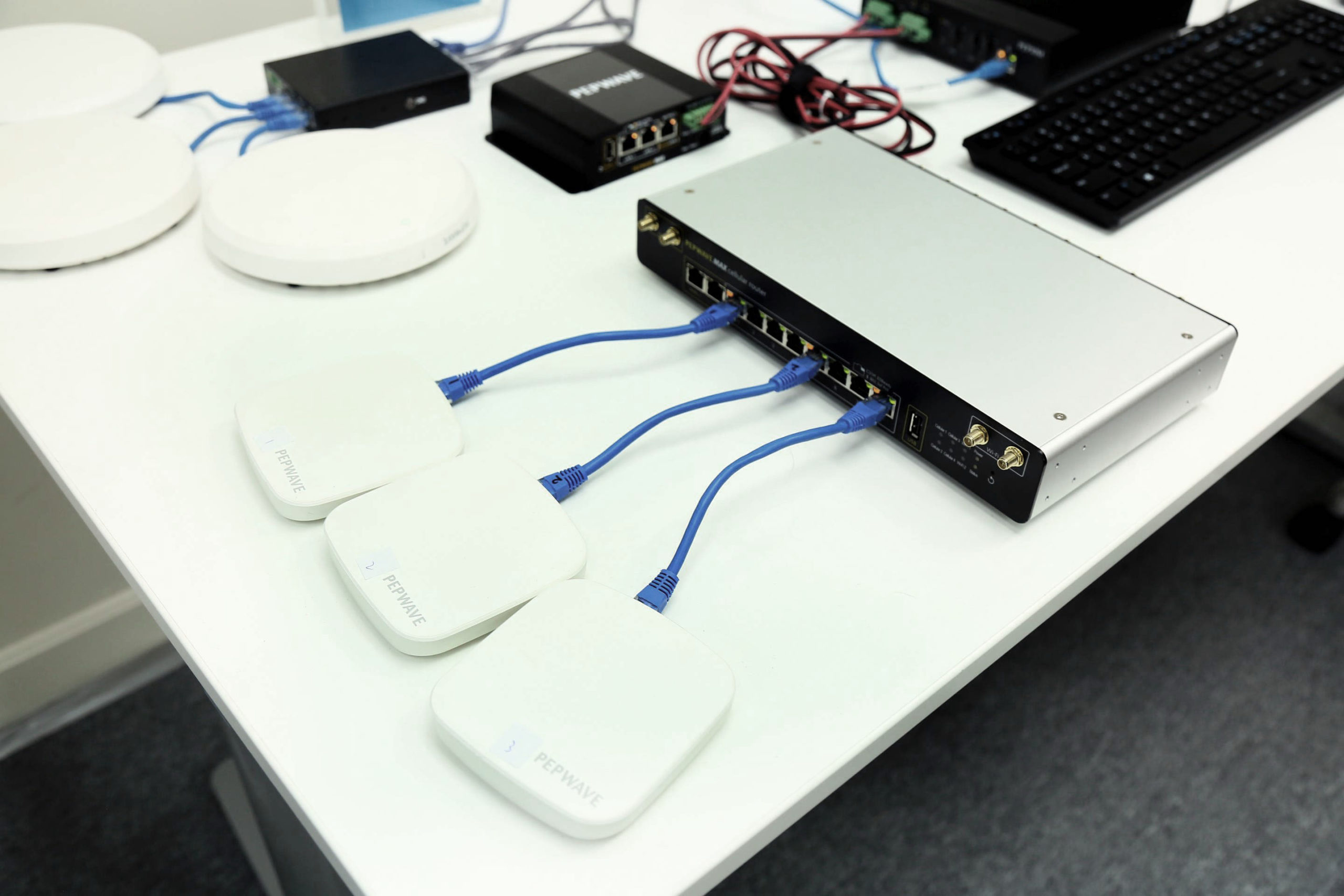

  • 300 866Mbps 11ac Wave2 Dual Band Access Point AP One AC Mini #14

^ Requires Peplink Balance / Pepwave MAX Firmware 8.0.1 for AP Controller support on AP One AC Mini.

  • Ethernet Port1x GE
    Wi-Fi Standard802.11ac wave 2/ac/a/n and 802.11b/g/n
    2×2 MU-MIMO
    2.4GHz *300Mbps
    5GHz *866Mbps
    Simultaneous
    2.4GHz and 5GHz
    		Yes
    Wi-Fi Transmit Power2.4GHz: 22dBm
    5GHz: 23dBm
    Coverage (With line of sight in open environments)400ft |
    122m
    Recommended Concurrent Users Per Radio60
    Number of SSID Per Radio16
    Antenna TypeBuilt-in Omni
    Antenna Gain2.4GHz: 2.2dBi |
    5GHz: 3dBi
    EnclosurePlenum-rated, Indoor Plastic
    Dimensions3.9 x 3.9 x 0.8 inches |
    98 x 98 x 19.7 mm
    Weight0.33 pounds |
    150 grams
    AC Adapter
    		AC Input 100V-240V
    DC Output 12V, 2A
    PoE Input802.3af
    Power Consumption12W (max.)
    Operating Temperature23° – 113°F |
    -5° – 45°C
    Humidity15% – 95% (non-condensing)
    CertificationsFCC, CE, RoHS



    * The frequency range for 2.4GHz and 5GHz are 2412−2472 MHz and 5180−5825 MHz respectively.

  • NetworkBridge Mode
    Router (NAT) Mode
    Wireless Distribution System (WDS on 2.4GHz Only)
    Support for PPPoE, Static IP, DHCP
    Management VLAN (802.1p)
    Spanning Tree Protocol (802.1d)
    RadioMultiple SSID
    Auto Channel Selection
    Transmit Power Adjustment
    Neighbour AP Detection
    AP SecurityOpen
    WPA/WPA2/WPA3-Personal
    WPA/WPA2-Enterprise
    Device ManagementWeb Administrative Interface
    InControl Cloud Management
    Peplink AP Controller
    SNMP v1, v2c and v3
    Client Management per SSIDVLAN with QoS (802.1p/802.1q)
    Bandwidth Control
    MAC Address Filtering
    Layer 2 Client Isolation
    Limit on Max. Number of Client
    Client Management per ClientVLAN with RADIUS
    VLAN with VLAN Pool
    Bandwidth Control
    Multicast Filter
    IGMP Snooping/Multicast Enhancement
    Complete PepVPN SolutionSite-to-Site VPN
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    Captive PortalBy InControl
  • Product CodeDescription
    ACW-384AP One AC Mini Protect Cover
    SVL-7911-Year EssentialCare for AP One AC Mini
    SVL-6912-Year EssentialCare for AP One AC Mini
    ICS-0121-Year InControl 2 Subscription
    ICS-0242-Year InControl 2 Subscription
  • Suitable ForProduct NameProduct CodeDescription
    Indoor Desktop or Wall-Mount Installation.AP One AC miniAPO-AC-MINISimultaneous 802.11ac wave 2
    /ac/a/n 866Mbps and 802.11b/g/n 300Mbps. Built-in omni antenna included.
    • AP One AC Mini
    • 12V2A Power Supply (ACW-601)
    • 1x Mounting Bracket

  • Pepwave AP One Series Datasheet
