MAX BR1 Pro 5G
Features Specifications

MAX BR1 Pro 5G

The Classic Goes Sonic

Available via E-Tailer Locate a Reseller

Sonic for a Reason

The ‘classic goes sonic’, why? The BR1 Pro 5G is integrated with the new generation multi-core CPU ensuring delivery of gigabit speeds. Achieving 8 times faster than the original BR1 classic.

Why Settle For An Adapter When You Can Get The Full Suite?

5G Adapter

Need a simple 5G adapter? Add a 5G WAN to any existing router or firewall without the need to replace any of your devices.

5G Router / Gateway

Why stop there? It can also serve as a powerful 5G router for your network. No matter if it’s C-Band or LTE, you’ll be able to add cellular connectivity easily to your network.

Fixed or Mobile

Supercharged with SpeedFusion, use the BR1 Pro 5G as the central router for your branch network. Guarantee unbreakable connections for important applications, like video calls, POS systems and more.

Wi-Fi 6

Experience less interference and connect to multiple devices simultaneously.

Deploy with Confidence

Just like the original BR1 Classic, the BR1 Pro 5G has also been certified to meet the standards of a wide array of deployment criterias.

Low-Profile Form Factor

At 1.15 inches short, the BR1 Pro 5G is 25% slimmer than the BR1 Classic.

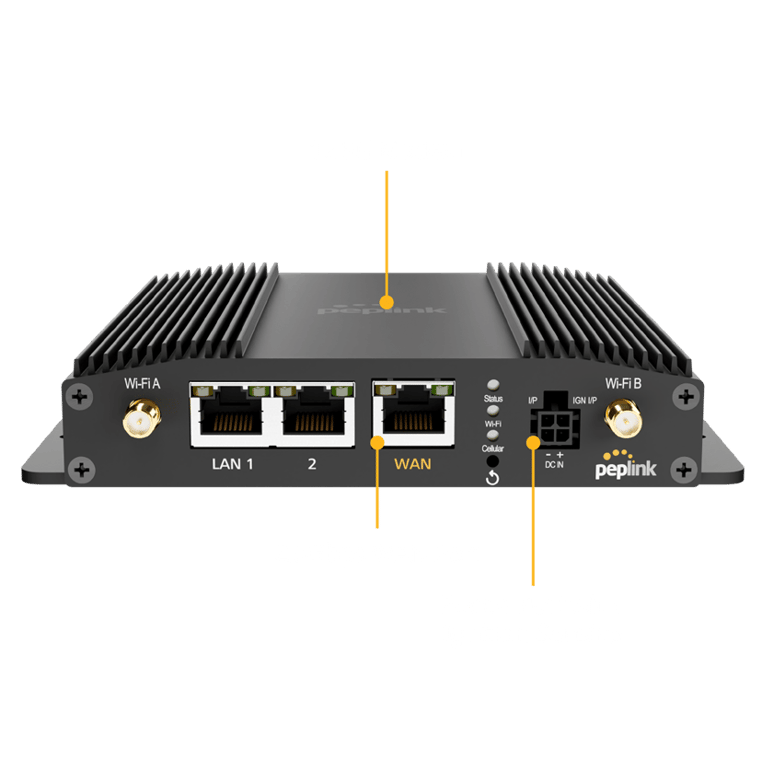

Ports and Connections

Photos

Product Overview & Comparison Table
Product Overview & Comparison Table
Deep Dive
SoftwarePepwave MAX Firmware
WAN Support for PPPoE, Static IP, DHCP WAN Link Health Check Bandwidth Allowance Monitor Support for Dynamic DNS services WAN Port Convertible into LAN Port
LAN DHCP Server for LAN Clients Extended DHCP Option DHCP Reservation DNS Proxy for LAN Clients VLAN on LAN Support
Load Balancing Multiple Outbound Policy Algorithms • Weighted Balance • Priority • Overflow • Persistence • Least Used • Lowest Latency • Enforced • Fastest Response Time
Security Stateful Firewall DoS Prevention Web Blocking
Complete VPN Solution SpeedFusion VPN • Site-to-Site VPN • 256-bit AES Encryption • Pre-shared Key Authentication • Dynamic Routing X.509 Certificate Support * IPsec VPN (Network-to-Network) ^ Remote User Access (PPTP/L2TP/OpenVPN)
Advanced QoS Individual Bandwidth Limit Application Prioritization • SIP, HTTPS, VPN QoS • Custom Application QoS
Edge Computing Support on Applications and Docker (HW3+)
Global Positioning System Integrated GPS Device Location Map Location Tracking Data with InControl 2 Fleet Management with InControl 2
Networking NAT and IP Forwarding Static Routes Port Forwarding Many to One, One to One NAT NAT Pool SIP ALG, H.323 ALG UPnP, NAT-PMP
AP Controller Support for Peplink AP Series Auto AP Discovery Auto AP Firmware Management AP Profile Configuration Wi-Fi Usage Statistics
Captive Portal Support Support for Wired LAN clients Support RADIUS Authentication Time and Usage Quotas on Open Access Mode Built-in Customizable Splash Page
Device Management Web Administrative Interface Command Line Interface InControl 2 Cloud Management Email Notification Active Client & Session Lists Bandwidth Usage Statistics Syslog Service SNMP v1, v2c and v3
* Feature is available as an upgrade (MAX-BR1-ADV).
^ IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.
Ordering Information
Product CodeEmbedded ModemRegion5G BandsLTE Bands
MAX-BR1-PRO-5GN-T-PRM 1x 5G Global* *US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet 5G (NSA & SA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
MAX-BR1-PRO-5GK-T-PRM 1x 5G Global* *US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet 5G (NSA & SA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
User Feedback

“I live in the mountains and was getting 1 or 2 bars @ 300-500 Mbps on my regular mobile hotspot. I connected the exterior antenna to my Peplink MAX BR1 Pro 5G and now I’m getting 4 bars @ 1200 Mbps. Tremendous improvement in connectivity, even in the most remote locations.”

– Amazon.com Customer

Feature Add - On
Product CodeDescription
PRM-C-1Y PrimeCare C (1-Year)
PRM-C-2Y PrimeCare C (2-Year)
PRM-C-4Y PrimeCare C (4-Year)
PCP-C-1Y PrimeCare+ C (1-Year)
PCP-C-2Y PrimeCare+ C (2-Year)
PCP-C-4Y PrimeCare+ C (4-Year)
ACW-634 10ft DC Power Cable
ACW-643 Vehicle Cigarette to Molex Power Cable
ACW-791 Peplink 4-Pin to USB-C Power Cable
ANT-SLM-40G-S-B-6 Slim 40G - 4x4 MIMO 5G Ready Cellular Antenna System with GPS (Black)
ANT-MB-42G-S-W-6 Mobility 42G - 4x4 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (White)
ANT-MB-42G-S-B-6 Mobility 42G - 4x4 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (Black)
ANT-MAX Antenna MAX - Enclosed with 4x LTE/5G, 2x Wi-Fi, 1x GPS 600-6000MHz, IP67, SMA male (Cellular, GPS), RP-SMA male (Wi-Fi), White
MAX-BR1-ADV IPsec X.509 Certificate License Key
* Learn more about Virtual WAN Activation License here.
Package Content
  • 1x BR1 Pro 5G
  • 1x 12V2A Power Supply (ACW-632)
  • 4x LTE/5G Antennas (ACW-235)
  • 2x Wi-Fi Dual Band Antenna (ACW-341)
  • 1x GPS Antenna (ACW-232)
Datasheet / Resources
