BR2 Pro







Designed for Pros, by Pros.

MAX BR2 Pro
br2_pro_web_01a

Faster, Wider, Stronger







The BR2 Pro is not just designed to be tough. Its dual 5G connections, Wi-Fi 6 and PoE input ensure an unbreakable connection in any scenario.

br2_pro_web_03b

Peace of Mind

With so many WAN options, the BR2 Pro can seamlessly failover to guarantee your flow of data, even during the most critical circumstances. The Gigabit routing speed and serial port for OOBM allow versatility for any SD-WAN deployment.

br2_pro_web_04a

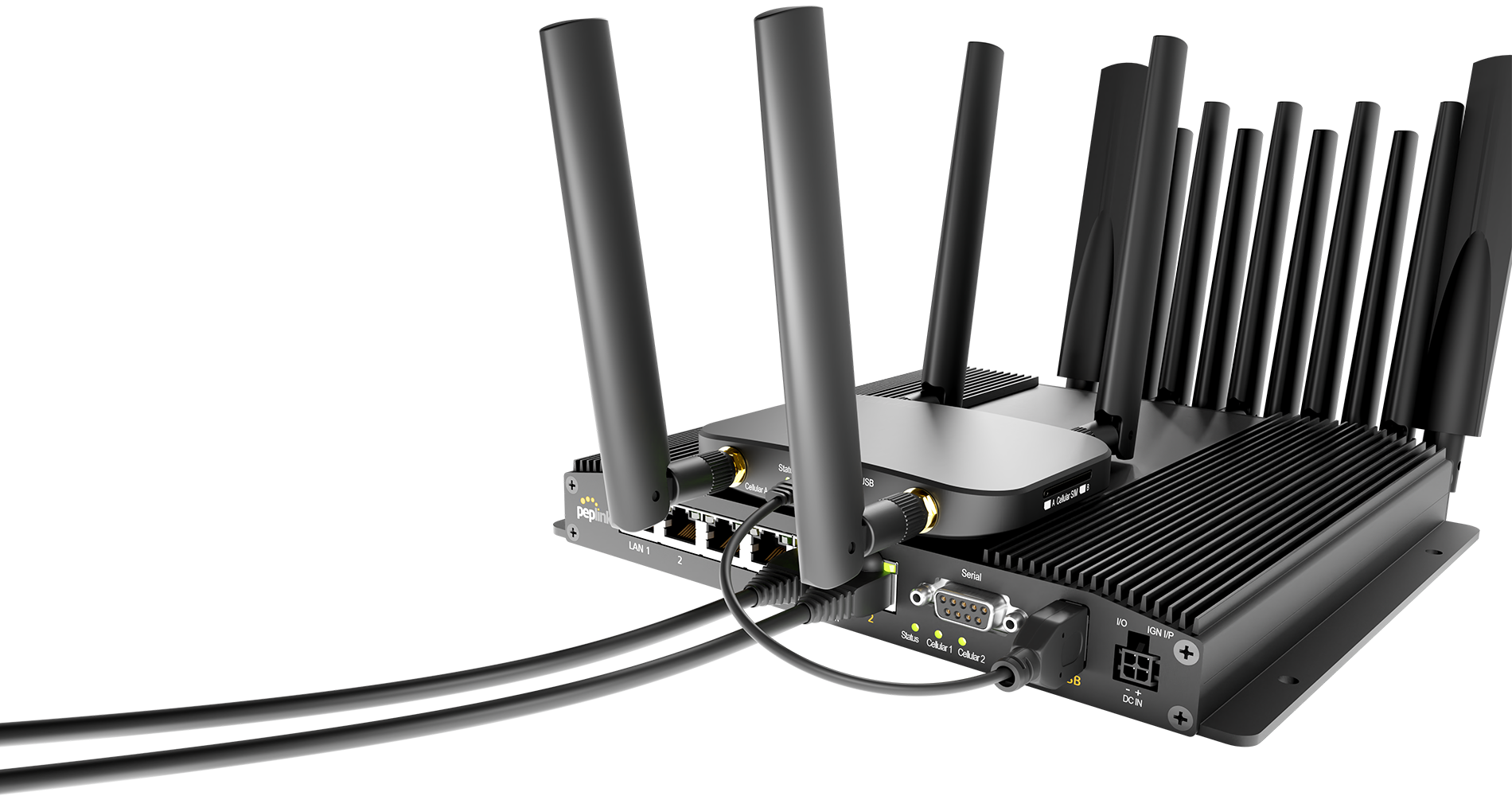

Oh, So Many WANs

Complement any SD-WAN deployment with the Dual Ethernet WANs, Dual 5G/LTE, USB WAN, and Wi-Fi WAN. Not enough WANs? Add the MAX Adapter 5G for an instant third 5G connection. Literally, all the WANs to keep you going.

br2_pro_web_05

br2_pro_web_05_microfit br2_pro_web_05_car

Made for Vehicle applications







Secure your power source in mobile environments with the Molex Micro-Fit power connector. Wide input power range along with Ignition Sensing capabilities makes this a sure fit for your vehicle installs.

br2_pro_web_05a

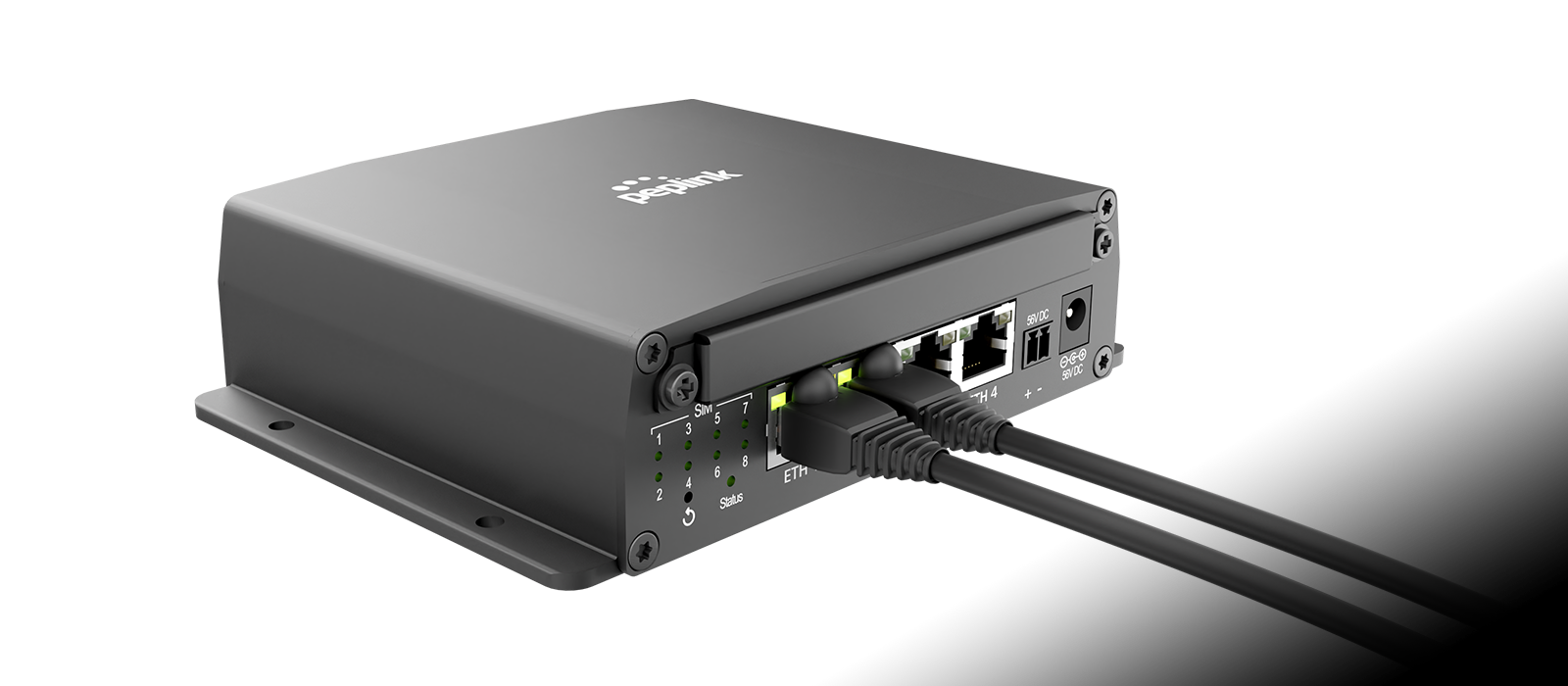

Effortless Cellular Extension







With the PoE input feature, the BR2 Pro can seamlessly extend your existing SD-WAN infrastructure to provide dual LTE/5G connectivity. One cable for both power and data, it’s that simple.

br2_pro_web_06
br2_pro_web_06aa

web_06_sim web_06_esim

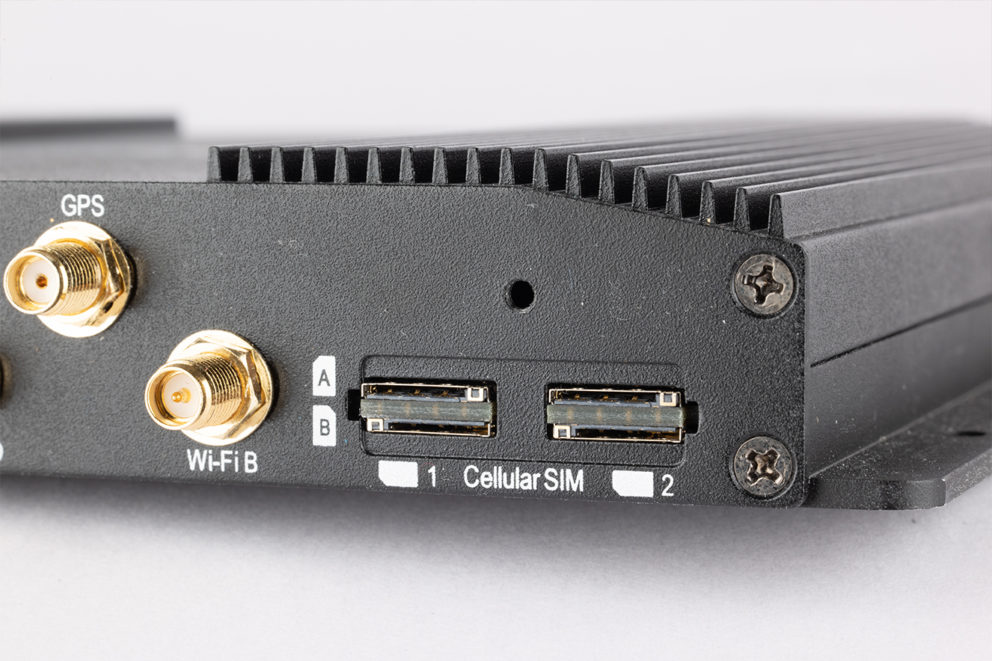

SIM-plicity as always


Built-in eSIM and SIM Injector support, the BR2 Pro maximizes your possibilities with flexible remote SIM management.

Watch the film






br2_pro_web_01

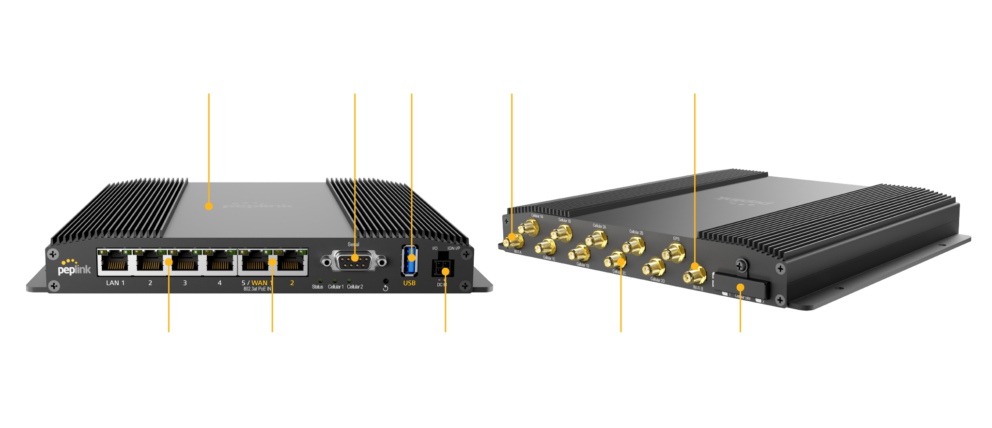

Ports and Connections






br2_pro_spec_v1a_white

  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    WAN Port Convertible into LAN Port
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionPepVPN/SpeedFusion
    -Hot Failover
    -Site-to-Site VPN
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    -Dynamic Routing
    -X.509 Certificate Support *
    IPsec VPN (Network-to-Network) ^
    -X.509 Certificate Support *
    Advanced QoS Individual Bandwidth Limit
    Application Prioritization
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    AP ControllerSupport for Pepwave AP Series
    Auto AP Discovery
    Auto AP Firmware Management
    AP Profile Configuration
    Wi-Fi Usage Statistics
    Captive Portal SupportSupport for Wired and Wireless LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
  • Product CodeEmbedded ModemsRegions5G BandsLTE Bands
    MAX-BR2-PRO-5GD-T-PRM2x 5GPrimary: APAC, EMEA
    Compatibility: Global
    5G (NSA) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79
    B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
    MAX-BR2-PRO-5GH-T-PRM2x 5GPrimary: North America*
    Compatibility: Global
    5G (NSA) Sub 6Ghz:
    n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79
    B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
  • Product Code

    Description

    PRM-MAX-BR2-PRO-1Y

    1-Year PrimeCare for BR2 Pro

    PRM-MAX-BR2-PRO-2Y

    2-Year PrimeCare for BR2 Pro

    PRM-MAX-BR2-PRO-4Y

    4-Year PrimeCare for BR2 Pro

    ACW-634

    10ft Direct Wire DC Cable

    ANT-MB-42G-S-W-6

    7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White)

    ANT-MB-42G-S-B-6

    7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (Black)

    • 1x MAX BR2 Pro
    • 1x 12V3A Power Supply (ACW-602)
    • 8x LTE/5G Antennas (ACW-234)
    • 2x Wi-Fi Dual Band Antenna (ACW-341)
    • 1x GPS Antenna (ACW-232)
