MAX BR1 Pro 5G

The Classic Goes Sonic

BUY NOW
Locate a Reseller
Available via eTailer
   
Locate a Reseller

Sonic for a Reason

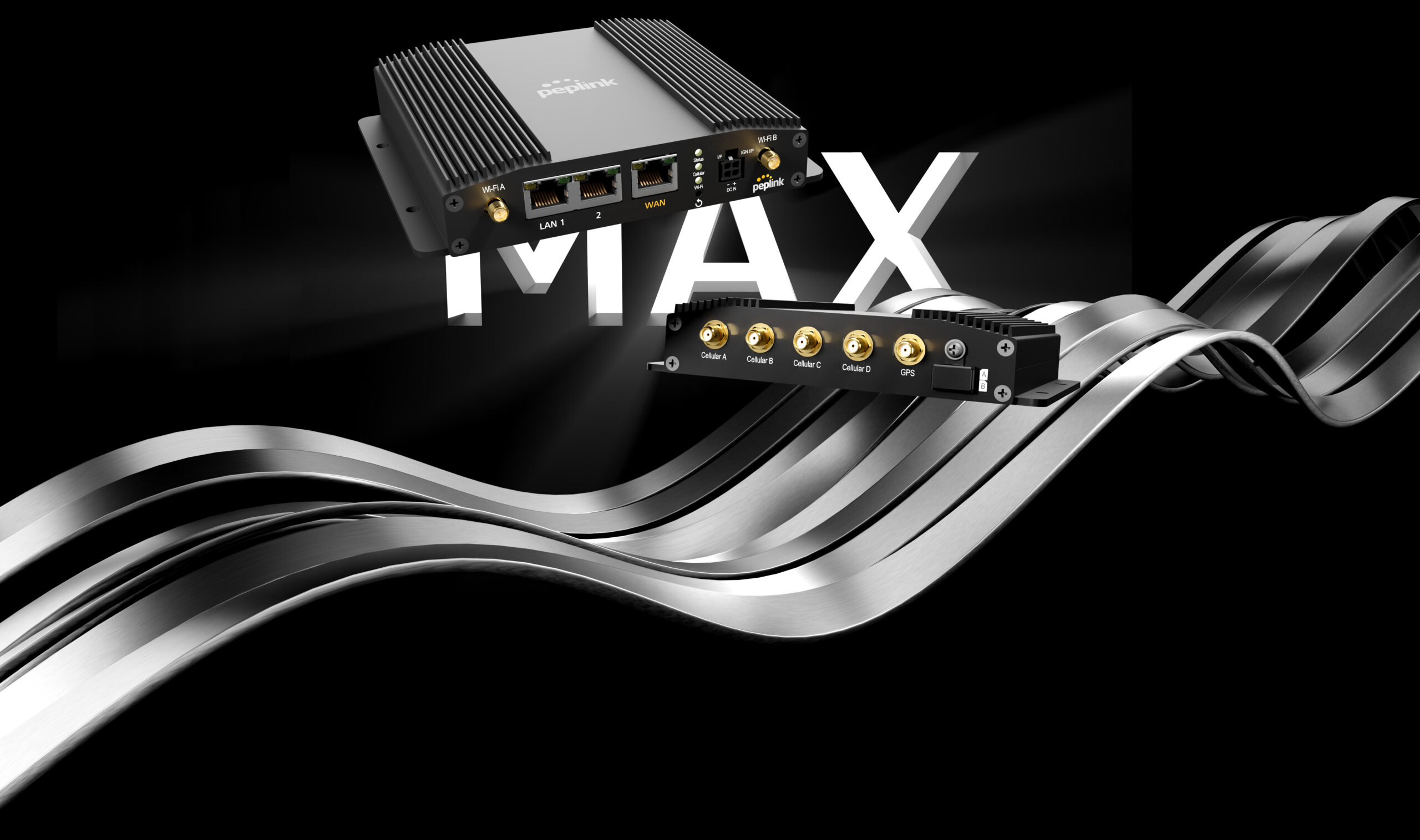

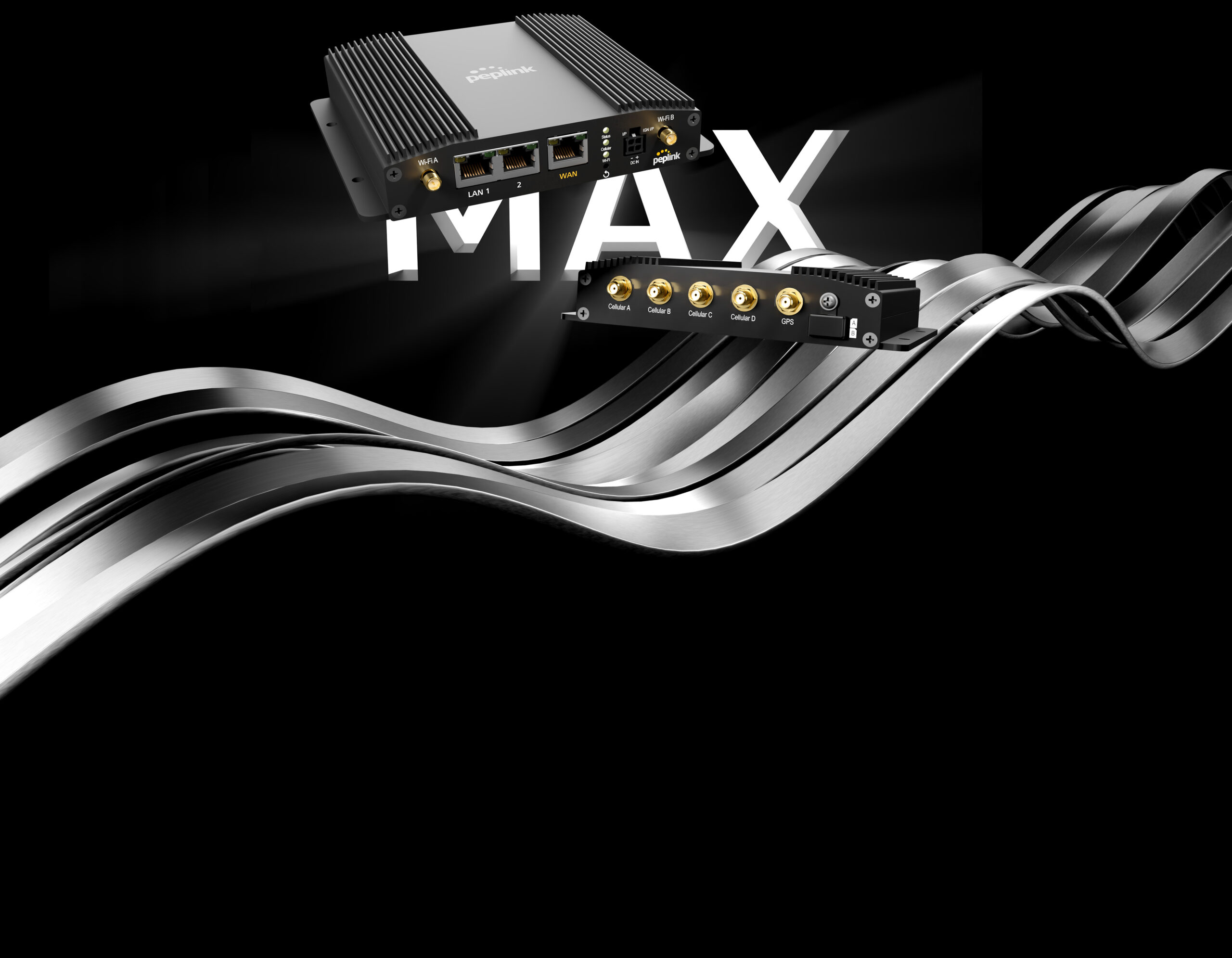

The ‘classic goes sonic’, why? The BR1 Pro 5G is integrated with the new generation multi-core CPU ensuring delivery of gigabit speeds. Achieving 8 times faster than the original BR1 classic.

BR1_Pro_5G_Hero

Why Settle For An Adapter
When You Can Get The Full Suite?

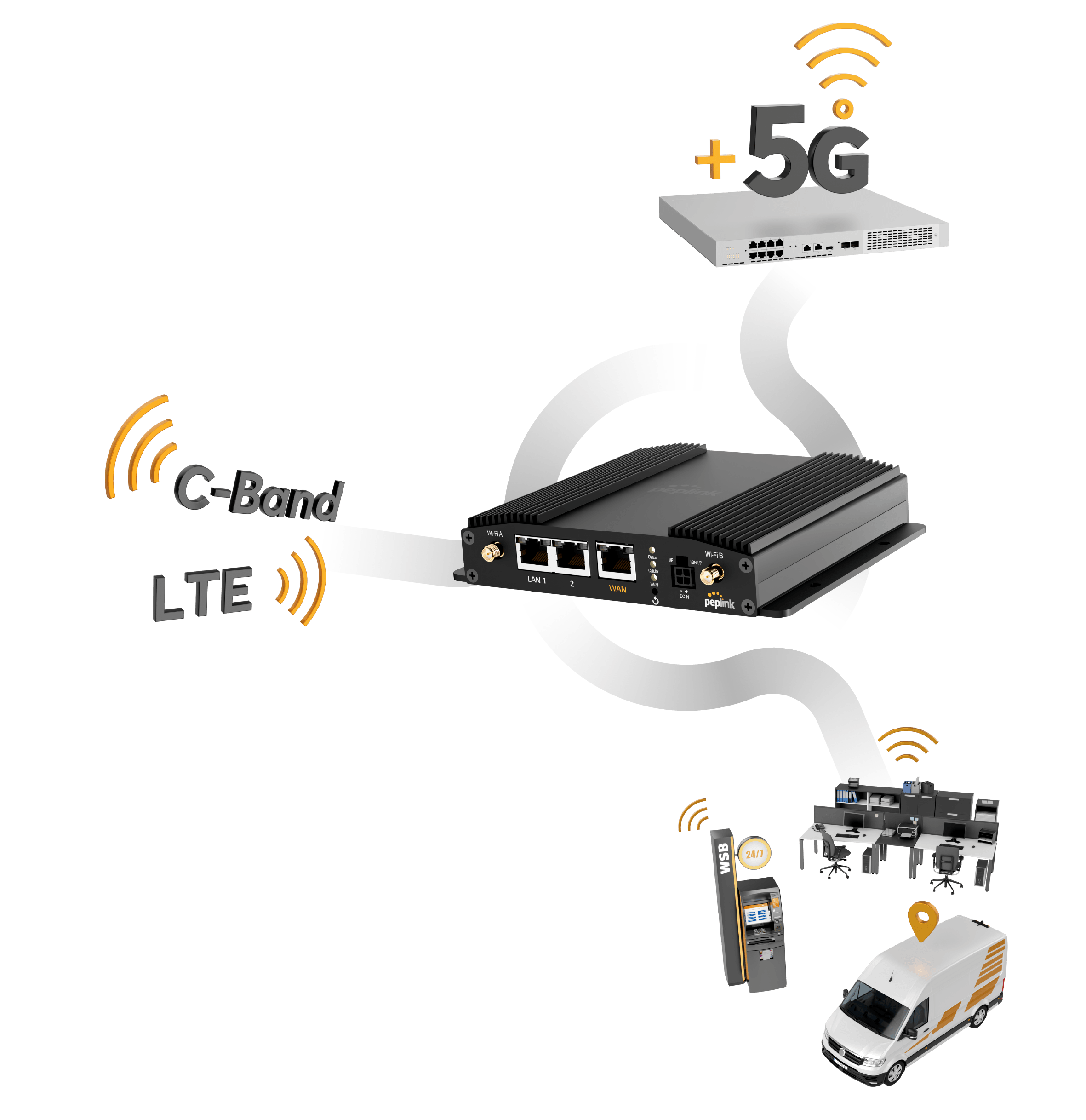

5G Adapter

Need a simple 5G adapter? Add a 5G WAN to any existing router or firewall without the need to replace any of your devices.

5G Router / Gateway

Why stop there? It can also serve as a powerful 5G router for your network. No matter if it’s C-Band or LTE, you’ll be able to add cellular connectivity easily to your network.

Fixed or Mobile

Supercharged with SpeedFusion, use the BR1 Pro 5G as the central router for your branch network. Guarantee unbreakable connections for important applications, like video calls, POS systems and more.

BR1 Pro 5G BR1 Pro 5G BR1 Pro 5G BR1 Pro 5G BR1 Pro 5G

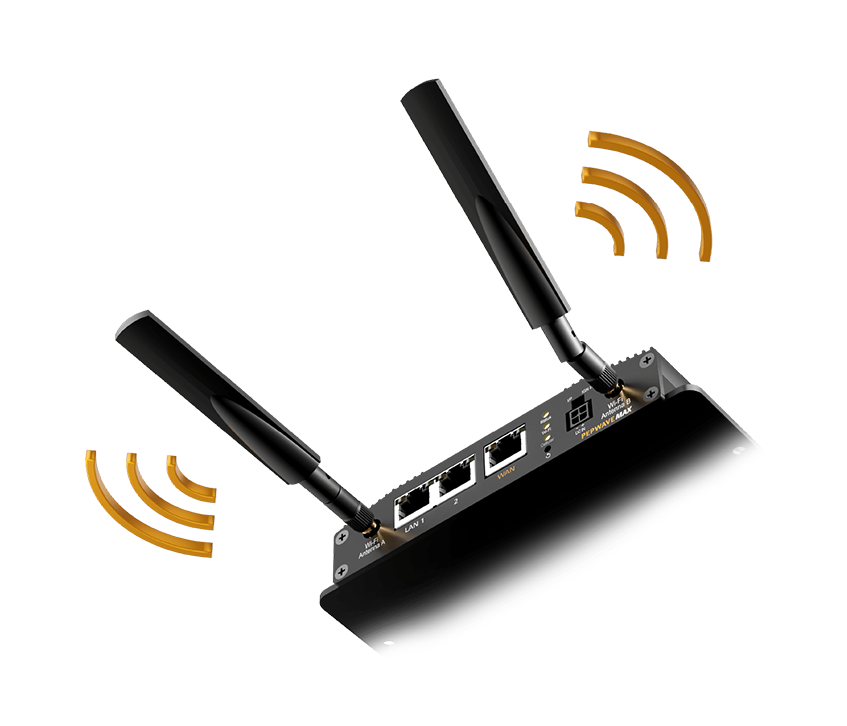

Wi-Fi 6

Experience less interference and connect to multiple devices simultaneously.

Deploy with Confidence

Just like the original BR1 Classic, the BR1 Pro 5G has also been certified to meet the standards of a wide array of deployment criterias.

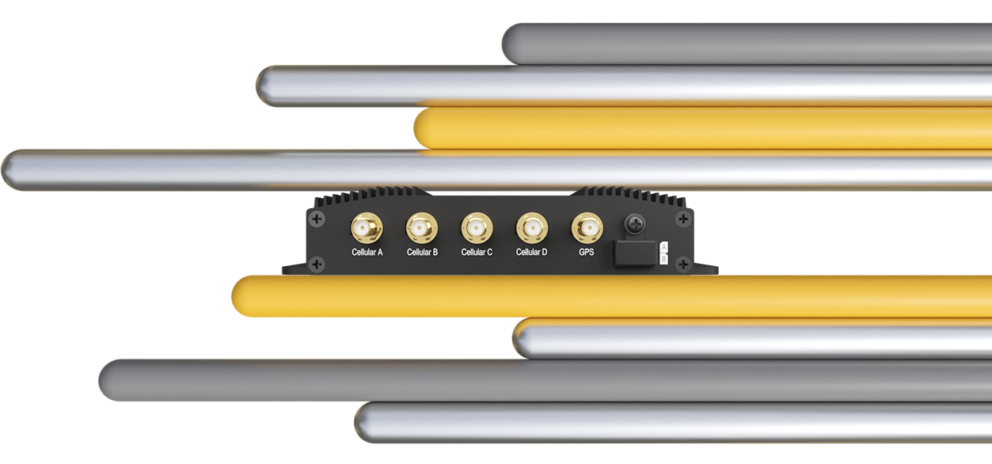

Low-Profile Form Factor

At 1.15 inches short, the BR1 Pro 5G is 25% slimmer than the BR1 Classic.

BR1 Pro 5G BR1 Pro 5G BR1 Pro 5G BR1 Pro 5G BR1 Pro 5G

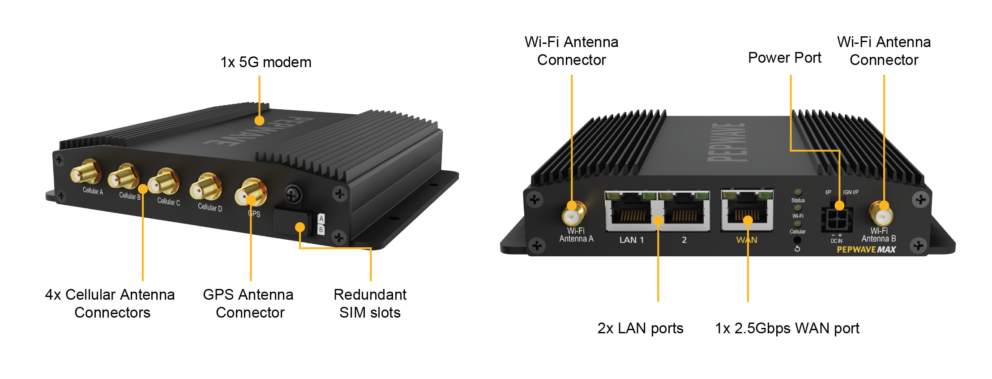

Ports and Connections

×
Product Image

Model:

Buy Online

Photos

  • Product Overview & Comparison Table

  •
    SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    WAN Port Convertible into LAN Port
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionSpeeedFusion VPN/SpeedFusion
    - Hot Failover
    - Site-to-Site VPN
    - 256-bit AES Encryption
    - Pre-shared Key Authentication
    - Dynamic Routing
    X.509 Certificate Support *
    IPsec VPN (Network-to-Network) ^
    Advanced QoS Individual Bandwidth Limit
    Application Prioritization
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    AP ControllerSupport for Pepwave AP Series
    Auto AP Discovery
    Auto AP Firmware Management
    AP Profile Configuration
    Wi-Fi Usage Statistics
    Captive Portal SupportSupport for Wired and Wireless LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3

    *   Feature is available as an upgrade (MAX-BR1-ADV).
    ^   IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

  • Product CodeEmbedded Modems Regions5G BandsLTE Bands
    MAX-BR1-PRO-5GD-T-PRM




    		1x 5GGlobal5G (NSA) Sub 6Ghz
    n1, n2, n3, n5, n7, n8, n12, n20,
    n28, n38, n41, n66, n71, n77, n78, n79    		B1, B2, B3, B4, B5, B7, B8, B12, B13,
    B14, B17, B18, B19, B20, B25, B26,
    B28, B29, B30, B32, B34, B38, B39,
    B40, B41, B42, B46, B48, B66, B71
    MAX-BR1-PRO-5GN-T-PRM1x 5GGlobal*5G (NSA & SA) Sub 6Ghz:
    n1, n2, n3, n5, n7, n8, n12, n13, n14,
    n18, n20, n25, n26, n28, n29, n30, n38,
    n40, n41, n48, n66, n70, n71, n75, n76,
    n77, n78, n79    		B1, B2, B3, B4, B5, B7, B8, B12, B13,
    B14, B17, B18, B19, B20, B25, B26,
    B28, B29, B30, B32, B34, B38, B39,
    B40, B41, B42, B43, B46, B48, B66, B71

    *US Carrier Certifications: AT&T, T-Mobile, Verizon(C-Band), FirstNet

  • “I live in the mountains and was getting 1 or 2 bars @ 300-500 Mbps on my regular mobile hotspot. I connected the exterior antenna to my Peplink MAX BR1 Pro 5G and now I’m getting 4 bars @ 1200 Mbps. Tremendous improvement in connectivity, even in the most remote locations.”

    – Amazon.com Customer

  • Product CodeDescription
    PRM-MAX-BR1-PRO-5G-1Y1-Year PrimeCare Subscription
    PRM-MAX-BR1-PRO-5G-2Y2-Year PrimeCare Subscription
    PRM-MAX-BR1-PRO-5G-4Y4-Year PrimeCare Subscription
    ACW-63410ft Direct Wire DC Cable
    ANT-MB-42G-S-W-67-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White)
    ANT-MB-42G-S-B-67-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (Black)
    PRM-C-1YPrimeCare C (1-Year)
    PRM-C-2YPrimeCare C (2-Year)
    PRM-C-4YPrimeCare C (4-Year)
    PCP-C-1YPrimeCare+ C (1-Year)
    PCP-C-2YPrimeCare+ C (2-Year)
    PCP-C-4YPrimeCare+ C (4-Year)
    LIC-VWANActivate 1x Virtual WAN
    LIC-2VWANActivate 2x Virtual WAN

    * Learn more about Virtual WAN Activation License here.

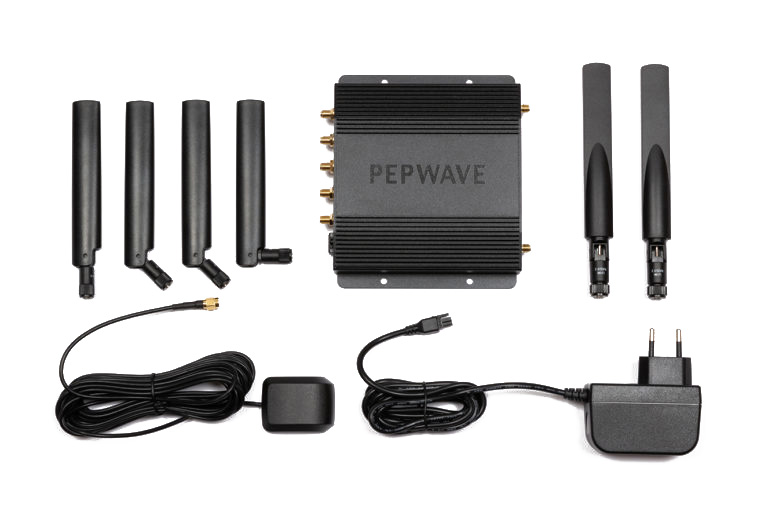

    • 1x BR1 Pro 5G
    • 1x 12V2A Power Supply (ACW-632)
    • 4x LTE/5G Antennas (ACW-235)
    • 2x Wi-Fi Dual Band Antenna (ACW-341)
    • 1x GPS Antenna (ACW-232)
