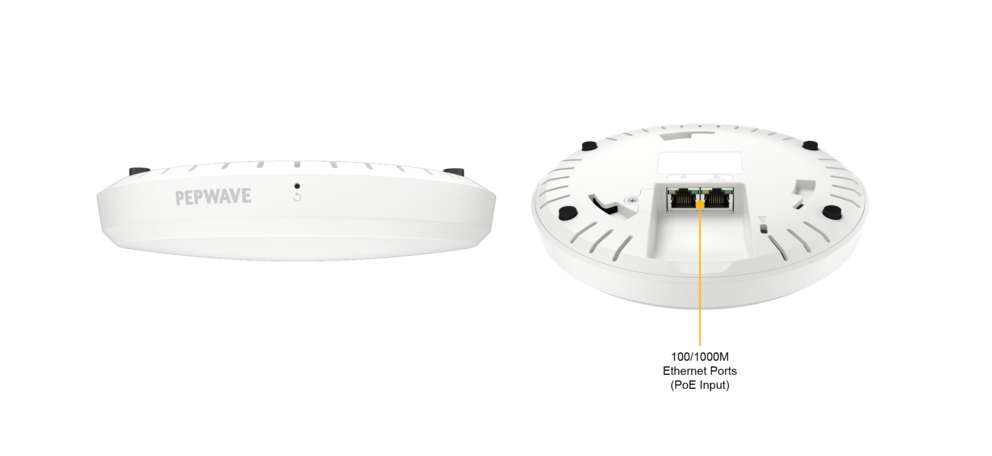

AP One Enterprise

The AP One Enterprise delivers enterprise-grade performance, the flexibility to deploy anywhere, easy setup and management. Dual radio access point is geared with two 3×3 MIMO 802.11ac radios operating in 2.4GHz and 5GHz bands simultaneously. Reaching 1.750 Gbps data rate

450 1300Mbps 11ac Dual-Band Access Point AP One Enterprise #2
450 1300Mbps 11ac Dual-Band Access Point AP One Enterprise #2
450 1300Mbps 11ac Dual-Band Access Point AP One Enterprise #3

Simultaneous Dual Band

Reduce Wi-Fi congestion and interference. Simultaneous dual-band Wi-Fi on the AP One Enterprise gives you two independent networks that work together, so all of your devices can connect without clashing.

450 1300Mbps 11ac Dual-Band Access Point AP One Enterprise #4

Ceiling Mount Enclosure

The plenum-rated, flame-resistant AP One Enterprise is designed with ceiling mount, so it fits just about anywhere in your office.

Boost your Network

Upgrade your network to 11ac Wi-Fi. Increase your wireless speeds with AP One Enterprise

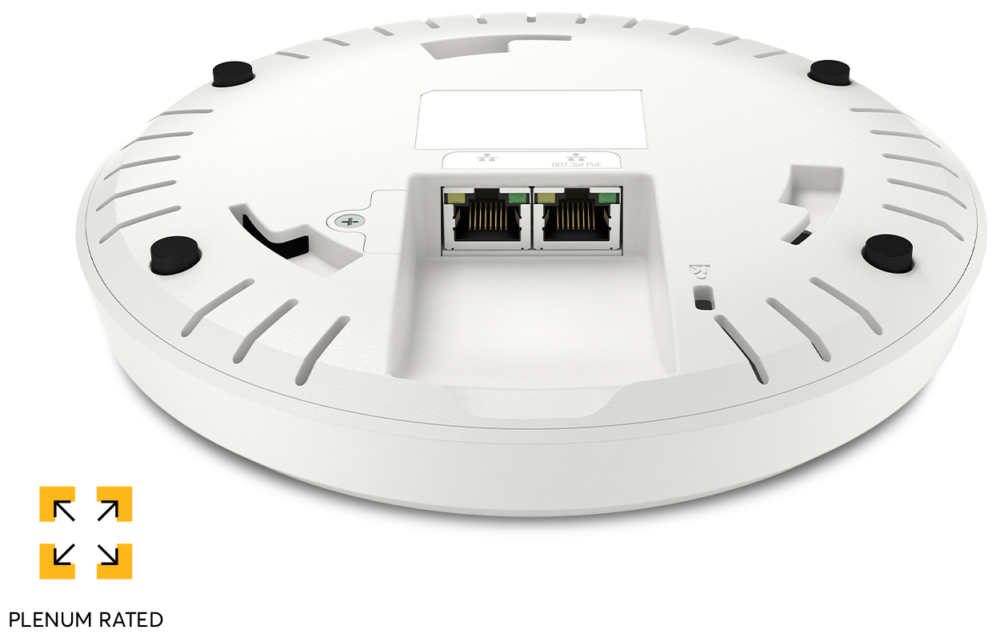

Built-in PoE

Ease your mind with 802.3af PoE input – say farewell to power cables

User Access Control

Control network access with separate logins for each user group. AP One access points support up to 16 SSIDs, each with independent bandwidth limits and web blocking.

Social Wi-Fi Hotspot

Guests can now access your Wi-Fi hotspot with their Facebook login. In exchange, you can learn more about your customer base with insightful reports.

450 1300Mbps 11ac Dual-Band Access Point AP One Enterprise #7

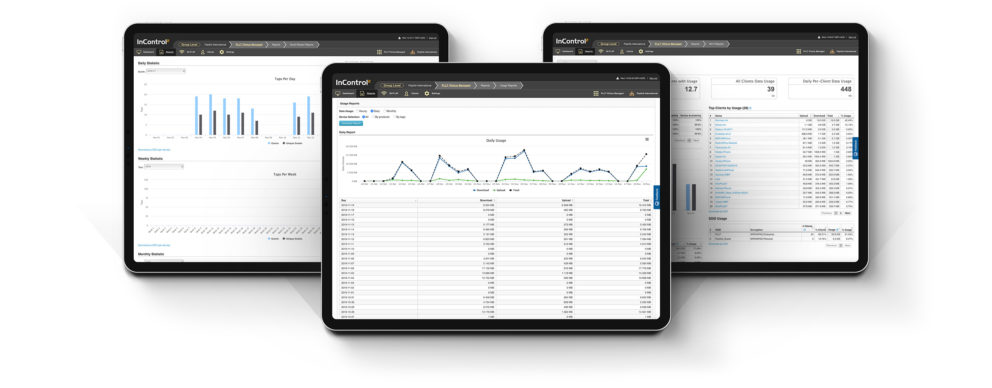

Centralized Management

Configure AP One Enterprise on site or from the cloud. Our AP Controller lets you locally manage access points from your Balance router, while InControl 2 offers a complete cloud-based solution accessible from any web-browser.^

450 1300Mbps 11ac Dual-Band Access Point AP One Enterprise #8

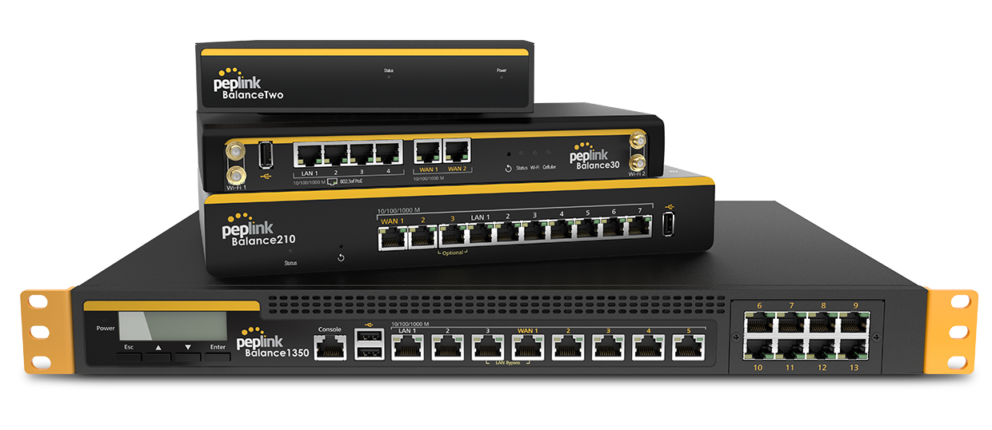

Complete Network Solution

Enjoy better network integration and performance. AP One access points are a perfect complement to Balance routers, together providing blazing speed and superior reliability across your entire network.


^ Requires Peplink Balance / Pepwave MAX Firmware 6.1.3 for AP Controller support on AP One Enterprise.

  • Ethernet Port2x GE
    Wi-Fi Standard802.11ac/a/b/g/n
    3×3 MIMO
    2.4GHz *450Mbps
    5GHz *1300Mbps
    2.4GHz and 5GHz
    Wi-Fi Transmit Power2.4GHz: 24dBm / 17dBm (CE)
    5GHz: 23dBm
    Coverage (With line of sight in open environments)400ft |
    Recommended Concurrent Users Per Radio60
    Number of SSID Per Radio16
    Antenna TypeBuilt-in Omni
    Antenna Gain2.4GHz: 3dBi |
    5GHz: 4dBi
    EnclosurePlenum-rated, Indoor Plastic
    Dimensions6.8 (diameter) x 1.5 inches
    173 x 38 mm
    Weight0.57 pounds |
    260 grams

    PoE Input802.3af
    Power Consumption13W (max.)
    Operating Temperature23° – 113°F |
    -5° – 45°C

    Humidity15% – 95% (non-condensing)
    CertificationsFCC, CE, RoHS


    * The frequency range for 2.4GHz and 5GHz are 2412−2472 MHz and 5180−5825 MHz respectively.

  • NetworkBridge Mode
    Router (NAT) Mode
    Wireless Distribution System (WDS on 2.4GHz Only)
    Support for PPPoE, Static IP, DHCP
    Management VLAN (802.1p)
    Spanning Tree Protocol (802.1d)
    RadioMultiple SSID
    Auto Channel Selection
    Transmit Power Adjustment
    Neighbour AP Detection
    AP SecurityOpen
    Device ManagementWeb Administrative Interface
    InControl Cloud Management
    Peplink AP Controller
    SNMP v1, v2c and v3
    Client Management per SSIDVLAN with QoS (802.1p/802.1q)
    Bandwidth Control
    MAC Address Filtering
    Layer 2 Client Isolation
    Limit on Max. Number of Client
    Client Management per ClientVLAN with RADIUS
    VLAN with VLAN Pool
    Bandwidth Control
    Multicast Filter
    IGMP Snooping/Multicast Enhancement
    Complete PepVPN SolutionSite-to-Site VPN
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    Captive PortalBy InControl
  • Suitable ForProduct NameProduct CodeDescription
    Ceiling-Mount Installation.AP One EnterpriseAPO-ENTSimultaneous 802.11ac/a/n 1300Mbps and 802.11b/g/n 450Mbps. Built-in omni antenna included.
    • AP One Enterprise
    • 1x Mounting Bracket
