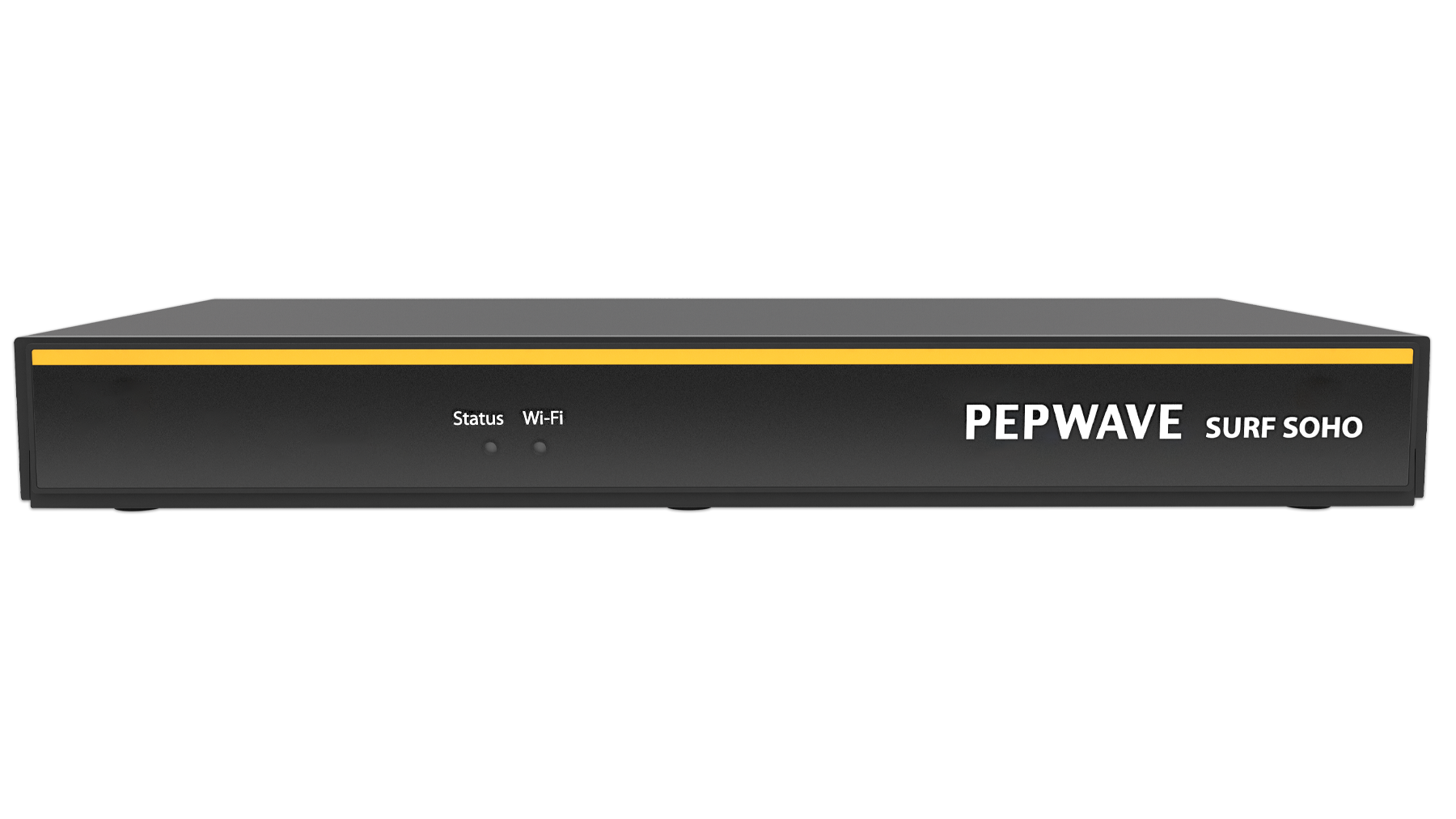

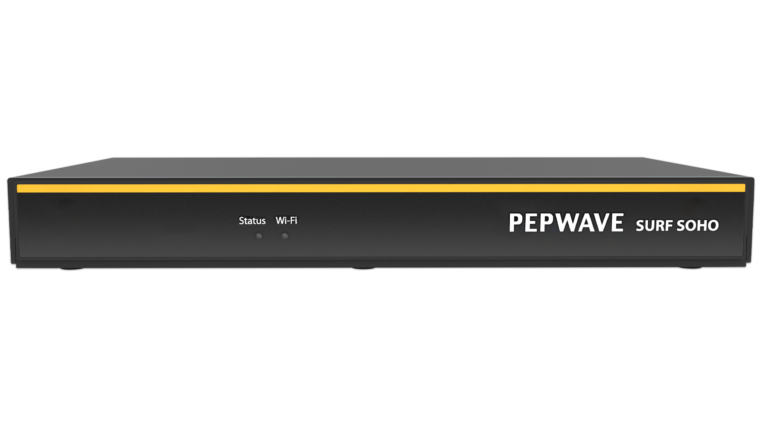

Surf SOHO

Professional Grade Router for Power Users

The Surf SOHO is a professional-grade router that is secure, reliable, and easy to use. This router will stay with you for the long run

Stay Connected

With the Surf SOHO, you can connect to the Internet using a USB cellular modem, Ethernet, or Wi-Fi. Hook the Surf SOHO up to Ethernet and Cellular connections, and it will automatically fail over from one to the other as needed. That way, you can stay connected even when a connection breaks.

Stay Safe and Secure

2.4 5GHz (3x3 MIMO) Professional-Grade Router Surf SOHO #4

The Surf SOHO is both easy to use and secure. You can assign the Ethernet ports to different VLANs to isolate devices. Wi-Fi networks too, can be walled off, creating isolated networks where guests or IoT devices can’t even see each other. Unlike most routers, you can change the admin User ID. No need to disable insecure WPS, it’s not supported. Most importantly, we build our firmware in-house and regularly update it, making it that much more reliable.

2.4 5GHz (3x3 MIMO) Professional-Grade Router Surf SOHO #5

Secure Remote User VPN

The Surf SOHO has a built-in L2TP server that allows up to three simultaneous VPN connections, including your smartphone and tablet, to keep sensitive information safe. It also supports PepVPN and other Peplink technologies so you can form fast, secure connections with other Peplink equipment. If needed, the Surf SOHO can also support PPTP.

Built to Last

The Surf SOHO never collapses or calls it a day. You can rest assured with reliable hardware, active firmware maintenance, and regular security updates. We build our own firmware in-house and update it regularly, so your Surf SOHO will keep upgrading long after you have purchased it.

Easy to Use, Easy to Manage

The Surf SOHO may be professional grade, but you don’t need an advanced degree in engineering to make it work. InControl, our cloud-based web app, enables you to manage your devices remotely. You can even copy configuration from older Peplink machines onto the Surf SOHO, making new deployments a snap. Use the Router Utility App to get push notifications on important network events.

  • WAN Interface1x 100/1000M Ethernet Port
    1x USB 2.0 Interface
    Wi-Fi as WAN
    LAN Interface4x 100/1000M Ethernet Ports
    Simultaneous Dual-Band 11ac Wi-Fi AP
    Wi-Fi AP Operating Frequency2412 − 2472MHz and 5180 − 5825MHz
    Wi-Fi Data Rates3x3 MIMO, 2.4GHz: 450Mbps or 5GHz: 1300Mbps
    Wi-Fi Antenna3x External Wi-Fi Antenna
    Recommended Users1-25
    Router Throughput120Mbps
    OpenVPN ServerYes
    Number of Simultaneous L2TP/PPTP VPN Users3
    Maximum PPTP/L2TP/OpenVPN Users3
    Number of PepVPN Peers2 (5 with upgrade license)
    PepVPN Throughput (256-bit AES) / (No Encryption)20Mbps / 40Mbps
    Power InputDC Jack: 10V − 24VDC
    AC Adapter: AC Input 100V − 240V, DC Output 12V, 3A
    Power Consumption26W (max) with USB WAN
    22W (max) without USB WAN
    Dimension9.17 x 5.6 x 1.18 inches |
    233 x 142.2 x 30 mm
    Weight0.86 pounds | 388 grams
    Humidity15% − 95% (non-condensing)
    CertificationsFCC, CE, RoHS
    Warranty1-Year Limited Warranty
  • SoftwarePepwave Surf SOHO Firmware
    USB 4G/3G Modem SupportSupported Standards:

    4G LTE/HSPA+/HSUPA/HSDPA
    UMTS/GPRS/EDGE
    CDMA EVDO Rev 0, Rev A
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Intelligent Failover
    Bandwidth Allowance Monitor
    USB 4G/3G Modem Support
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    Complete VPN SolutionPepVPN:

    Site-to-Site VPN
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing

    L2TP/PPTP VPN Server
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    Advanced QoSApplication Prioritization
    SIP, HTTPS, VPN QoS
    Custom Application QoS
    SecurityStateful Firewall
    DoS Prevention
    Device ManagementWeb Administrative Interface
    Command Line Interface
    Router Utility Mobile App
    Email Notification
    Active Client and Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
    Power RequirementsUniversal Input
    100V – 240V AC
    • Surf SOHO
    • 12V 3A Power Supply
    • 3x SMA Dual-band Antennas
  • Product Code

    Feature Pack

    Description

    PVN-LC-05

         PepVPN License Key for Surf SOHO

       Enables up to 5 PepVPN peers



  • Product Code

    Description
    SUS-SOHO-T

                Professional-grade Wi-Fi router designed for home office, small business, and power users. Supports one Ethernet, one USB 4G LTE/3G WAN, and Wi-Fi as WAN for failover. Includes three SMA dual-band antennas.
