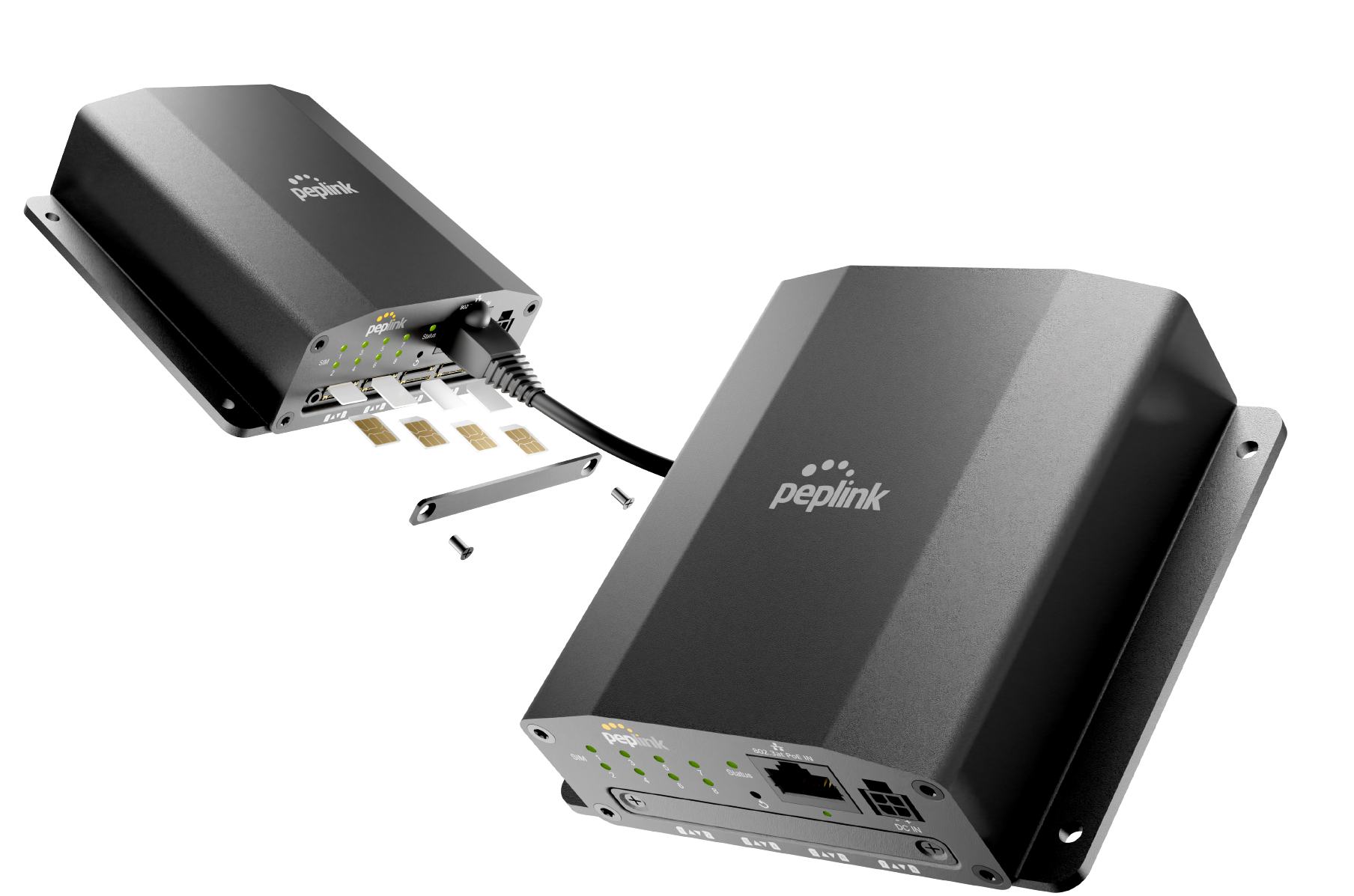

SIM Injector sim-injector-mini-title-outline.svg

SIM Injector sim-injector-mini-title-outline.svg

SIM Management from Afar.

SIM Management from Afar.

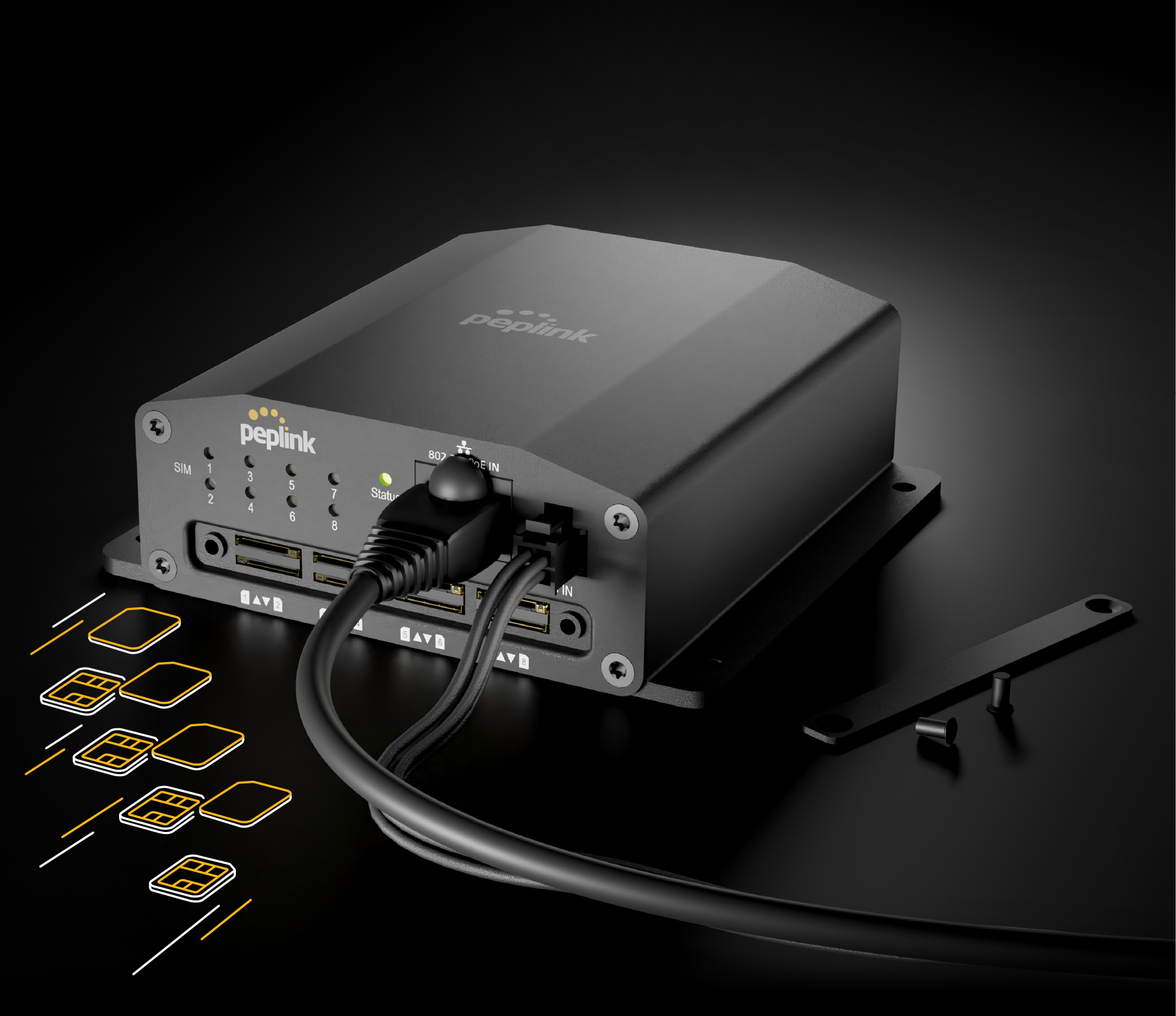

sim-injector-mini-point-01-sim-cards.svg

Remotely manage up to 8x SIMs



Integrate up to 8 additional SIMs into your network without the need for physical intervention. Perfect for hard to reach deployments.

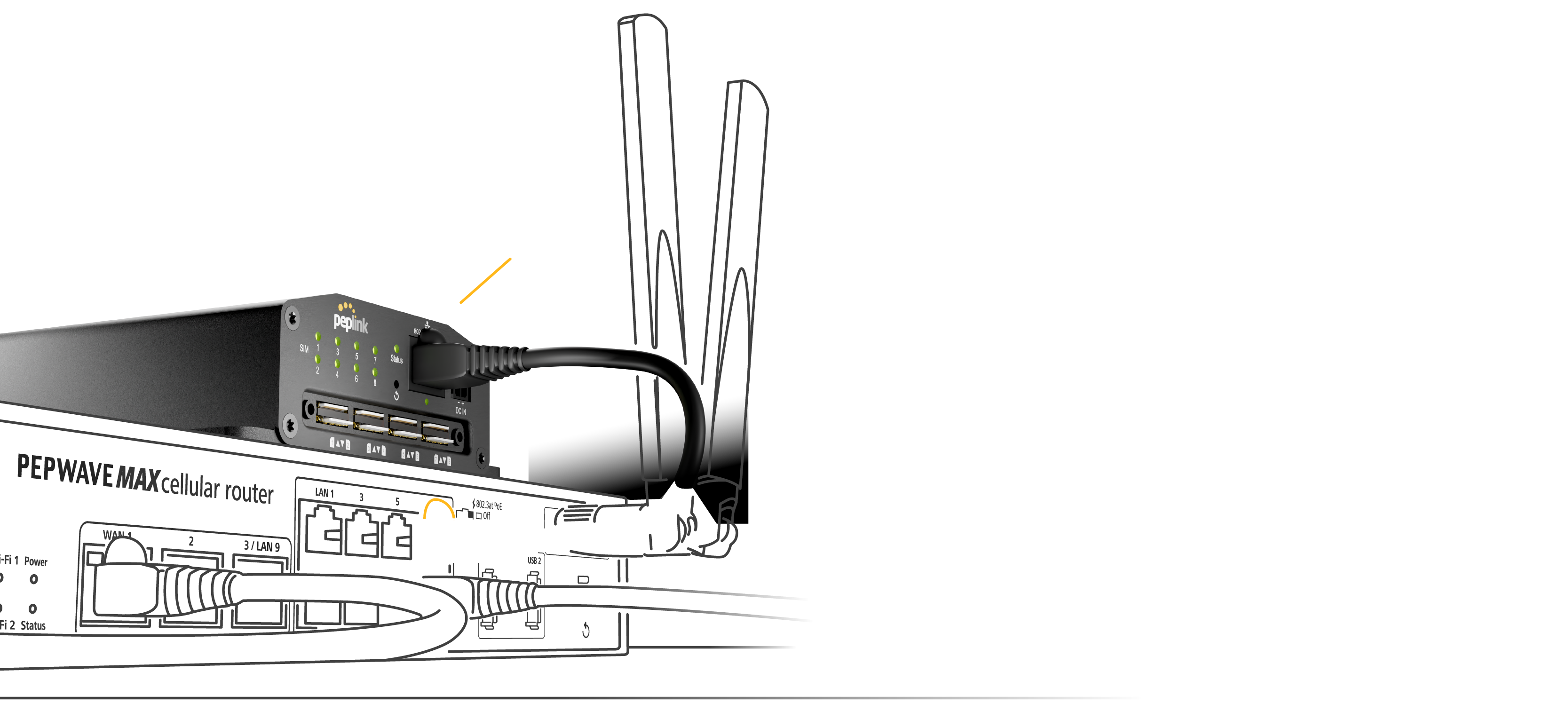

sim-injector-mini-point-02-poe.svg

One Ethernet cable is all you need



Power your device through PoE and forgo the need for a nearby power outlet. Power through Microfit Connector is also available for more flexibility.

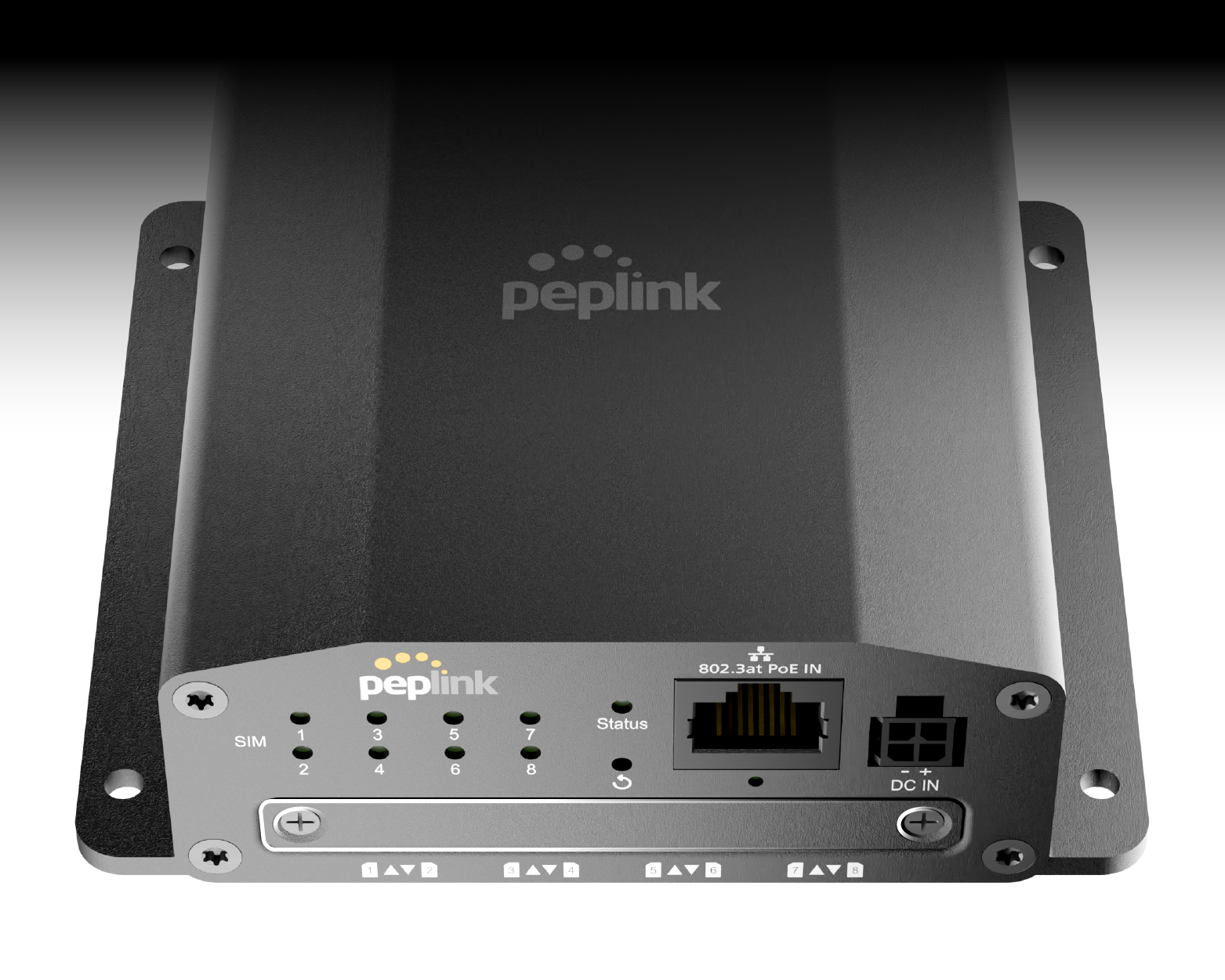

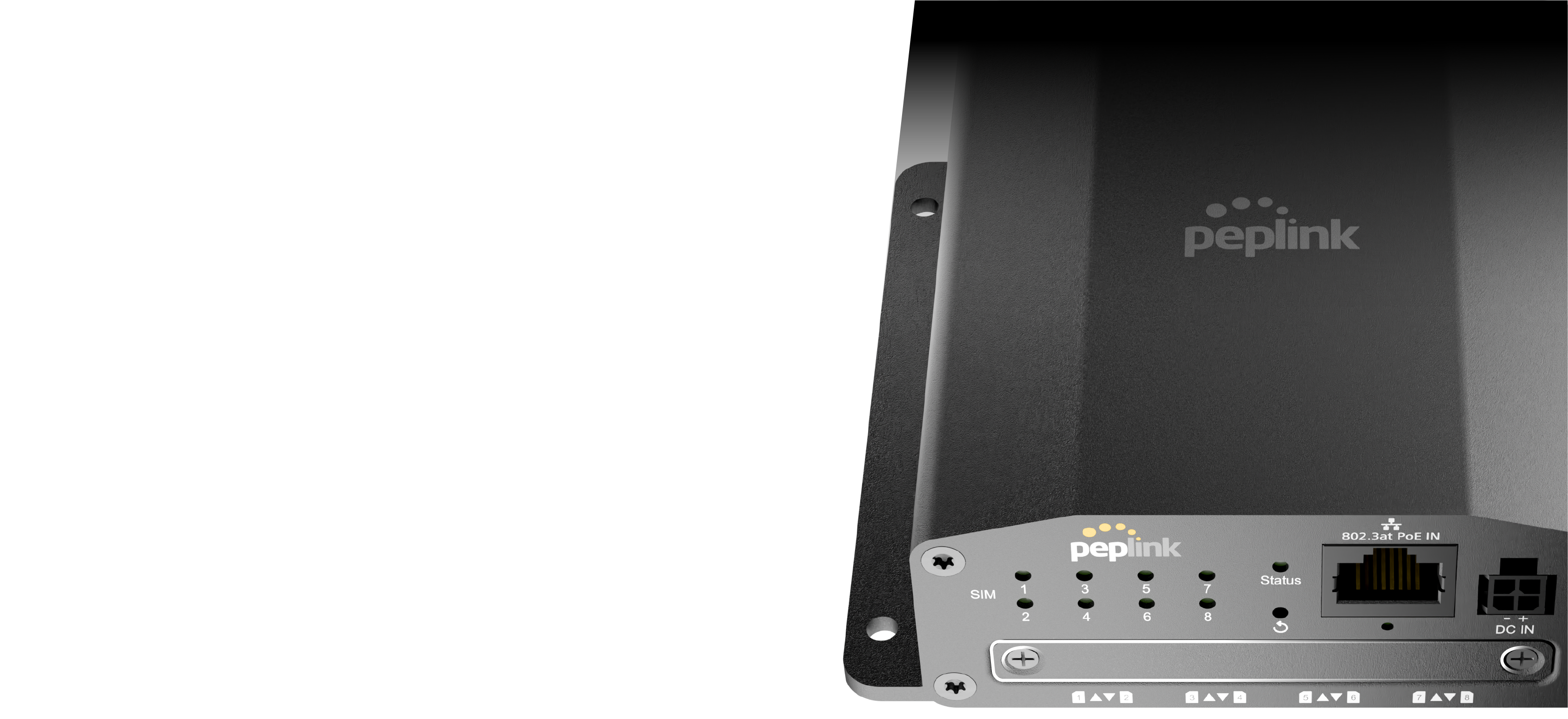

sim-injector-mini-point-03-sim-injector-mini-top.svg

The best accessory we’ve ever made at only $499*



Durable, rugged, simple to use. At the affordable price of $499*, easy SIM management won’t be gated behind a paywall.


*Pricing applies to US region only, other regions may vary

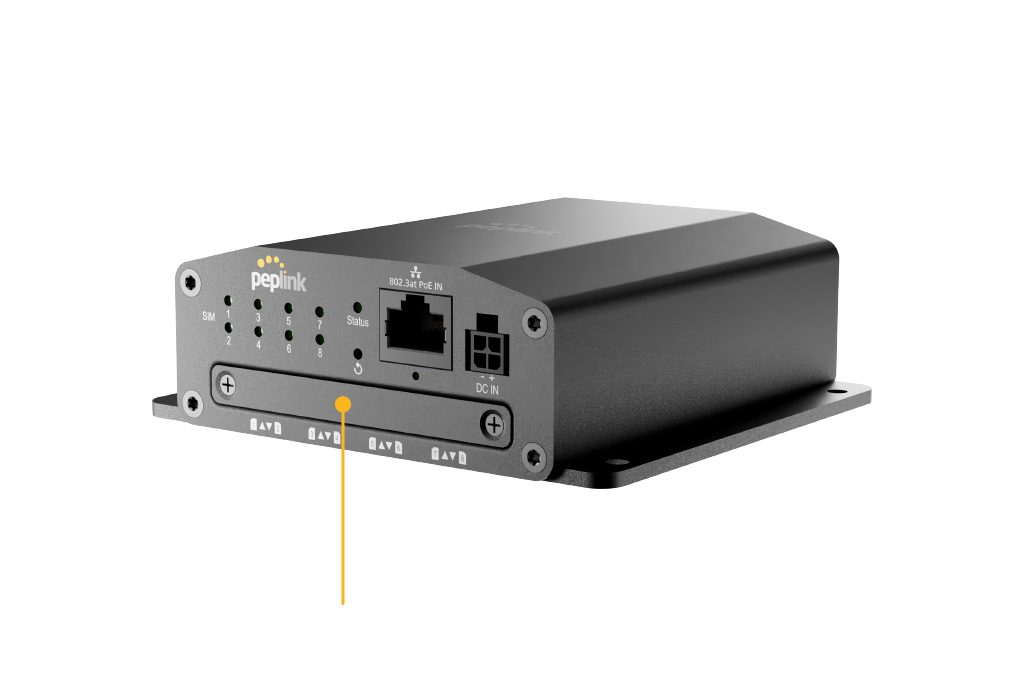

Ports and Connections








  • Product SIM InjectorSIM Injector Mini
    SKUSIM-BK8-4E-56VSIM-MINI-8-1E
    SIM Slots8x Active SIM Slots, Mini-SIM (2FF)8x Active SIM Slots, Nano-SIM (4FF)
    LAN Interface4x 10/100/1000M Ethernet, PoE 802.3at Output Support*1x 10/100 Ethernet, PoE 802.3at Input Support
    Power InputDC Jack / Terminal Block: 12-56VDC Jack: 10-30V /
    802.3at PoE
    Dimensions5 x 5.8 x 1.6 inches /
    128 x 147 x 40 mm
    3.9 x 4.2 x 1.4 inches /
    100 x 107 x 35 mm
    Weight430 grams /
    0.94 pounds
    244 grams /
    0.54 pounds
    Operating Temperature-40° – 149°F /
    -40° – 65°C
    -40° – 149°F /
    -40° – 65°C
    Humidity15% – 95% (non-condensing)15% – 95% (non-condensing)
    Remarks* 56V DC input is needed for 4x LAN ports to have 802.3at
  • Product CodeDescription
    SIM-MINI-8-1ESIM Injector Mini
  • Product CodeDescription
    SVL-SIM-MINI-1YEssectialCare (1-Year) for SIM Injector Mini
    SVL-SIM-MINI-2YEssectialCare (2-Year) for SIM Injector Mini
    • 1x SIM Injector Mini
    • 1x 12V 2A 4 Pin Power Supply (ACW-632)
    • Balance series: 20X*, 310 5G, 310 Fiber 5G, 310X, 310X 5G, 380X*, 580X*, SDX Pro^, EPX^
    • MAX series: MBX, MBX 5G, MBX Mini, PDX, BR1 Classic (HW 3), BR1 ESN, BR1 Pro (HW 5/6, CAT-4 & CAT-6), BR2 Pro, BR1 IP55 (HW 4 or above), HD2 Mini (SKU: MAX-HD2-MINI-XXXX-RM-T), HD1 Dome, HD1 Dome Pro, HD2 Dome, HD2 IP67(HW 4+), Transit Pro, Transit Pro E, Transit Core, UBR LTE, UBR Plus, SFE (HW 2 or above), SFE CAM.



    * with FlexModule Mini EXM-MINI-1LTEA-W, EXM-MINI-1LTEA-P, EXM-MINI-LTEA-US, EXM-MINI-1LTEA-R, EXM-MINI-1LTEA-K, EXM-MINI-1GLTE-G, EXM-MINI-GLTE-S or EXM-MINI-15GH

    ^ with FlexModule Plus EXM-3LTEA-W, EXM-3LTEA-P, EXM-3LTEA-R, EXM-3LTEA-K, EXN-4LTEA-R, EXM-4LTEA-K, EXM-2GLTE-G, EXM-2X5GD, EXM-2X5GH
