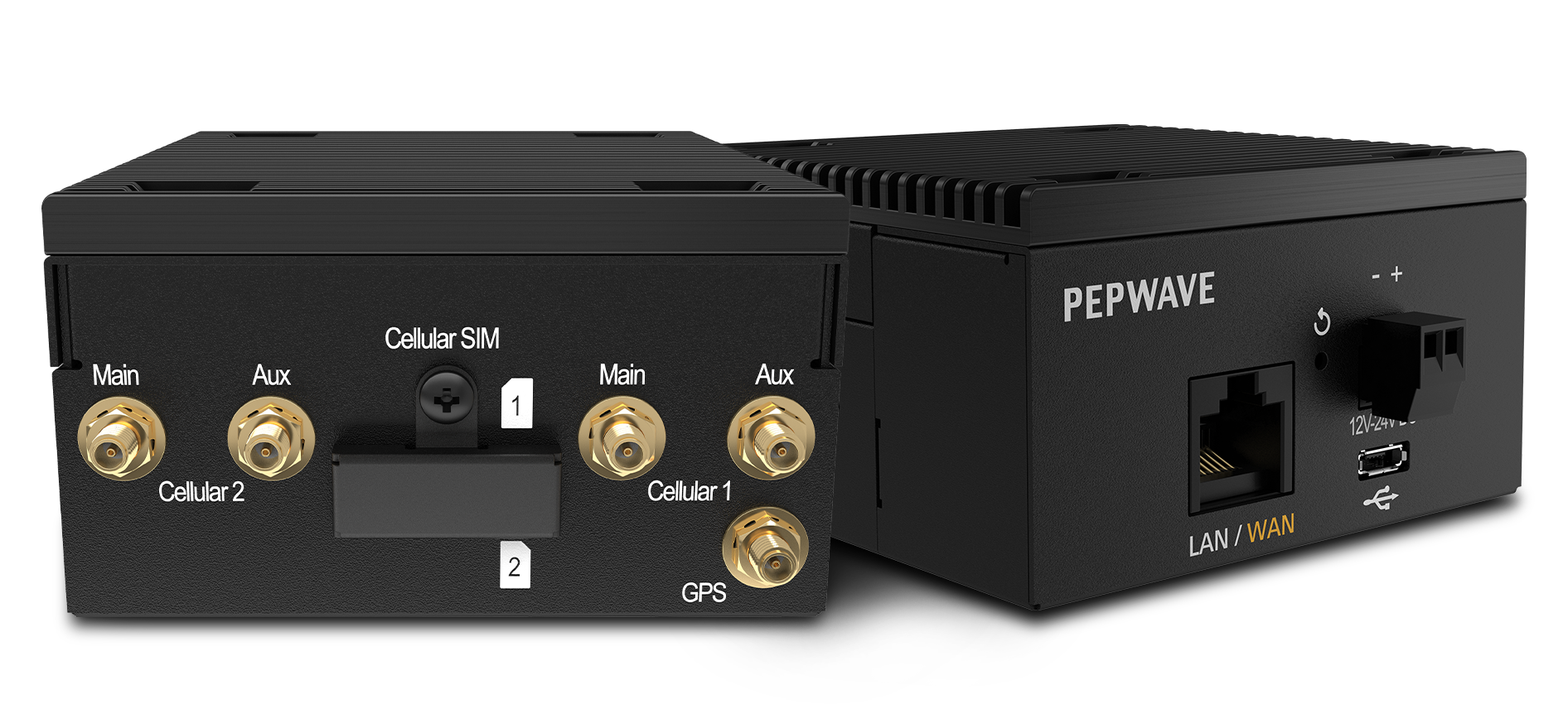

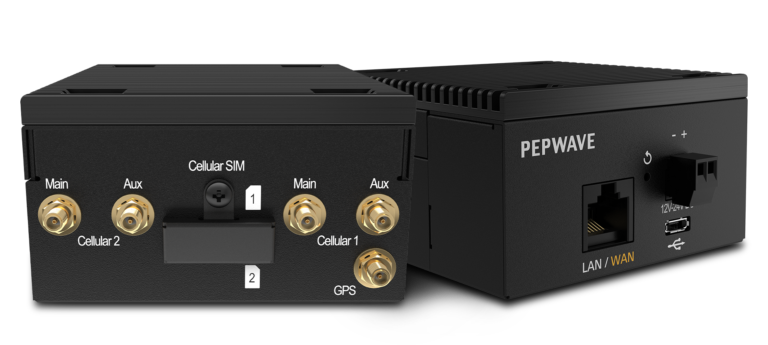

SpeedFusion Engine

Industry’s smallest SD-WAN platform

The SpeedFusion Engine can be easily integrated to your platform. The SpeedFusion Engine allows users to add bonding capabilities to a variety of network setups. Two embedded cellular modems and a wired WAN port give you up to three connections, which can be bonded with unbreakable VPN for faster data uploads and downloads.

SD-WAN integration into Products - SpeedFusion Engine #2
SD-WAN integration into Products - SpeedFusion Engine #2
Ultra-Compact SpeedFusion SD-WAN

The SpeedFusion Engine fits in the palm of your hand, making it easy to integrate into your existing products.

Combine 2 Cellular Connections

With a Peplink router at HQ, SpeedFusion SD-WAN technology combines 2 cellular connections to ensure reliable connectivity, no matter where you deploy.

Plug-n-Play Integration

With an Ethernet port, a USB port, and 10W consumption, the SpeedFusion Engine can integrate with your devices without complicated software porting.

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #6
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Compatible with all major carriers. Certified on Verizon.

See and Manage Everything on InControl2

Using Peplink’s InControl cloud-based management platform, you can view detailed connectivity, data usage, and even location information on all of your SpeedFusion Engines. In addition, InControl is also capable of emotely accessing the SpeedFusion Engine’s web admin, as well as applying batch configurations and firmware updates to groups of devices.

Group-Based Configuration
Device Location Tracking
Remote Web Admin

SD-WAN integration into Products - SpeedFusion Engine #5

Group-Based Configuration



Apply a single configuration to groups of devices at the same time, this is useful for situations where you wish to preconfigure the SpeedFusion Engine before deploying it. Firmware configurations can also be pushed onto multiple devices, saving additional time.

SD-WAN integration into Products - SpeedFusion Engine #6

Device Location Tracking



Using Incontrol, you can keep track of all the SpeedFusion Engines and other Peplink devices that you have deployed using a single map. Click any device to see where it has been at any given point of time, as well as the traffic and connectivity conditions at that time.

SD-WAN integration into Products - SpeedFusion Engine #7

Remote Web Admin



Use InControl to remotely access any connected device’s web admin. There, you can perform almost any functions that you could perform if you were onsite. This feature enables remote troubleshooting, saving significant travelling and shipping time.

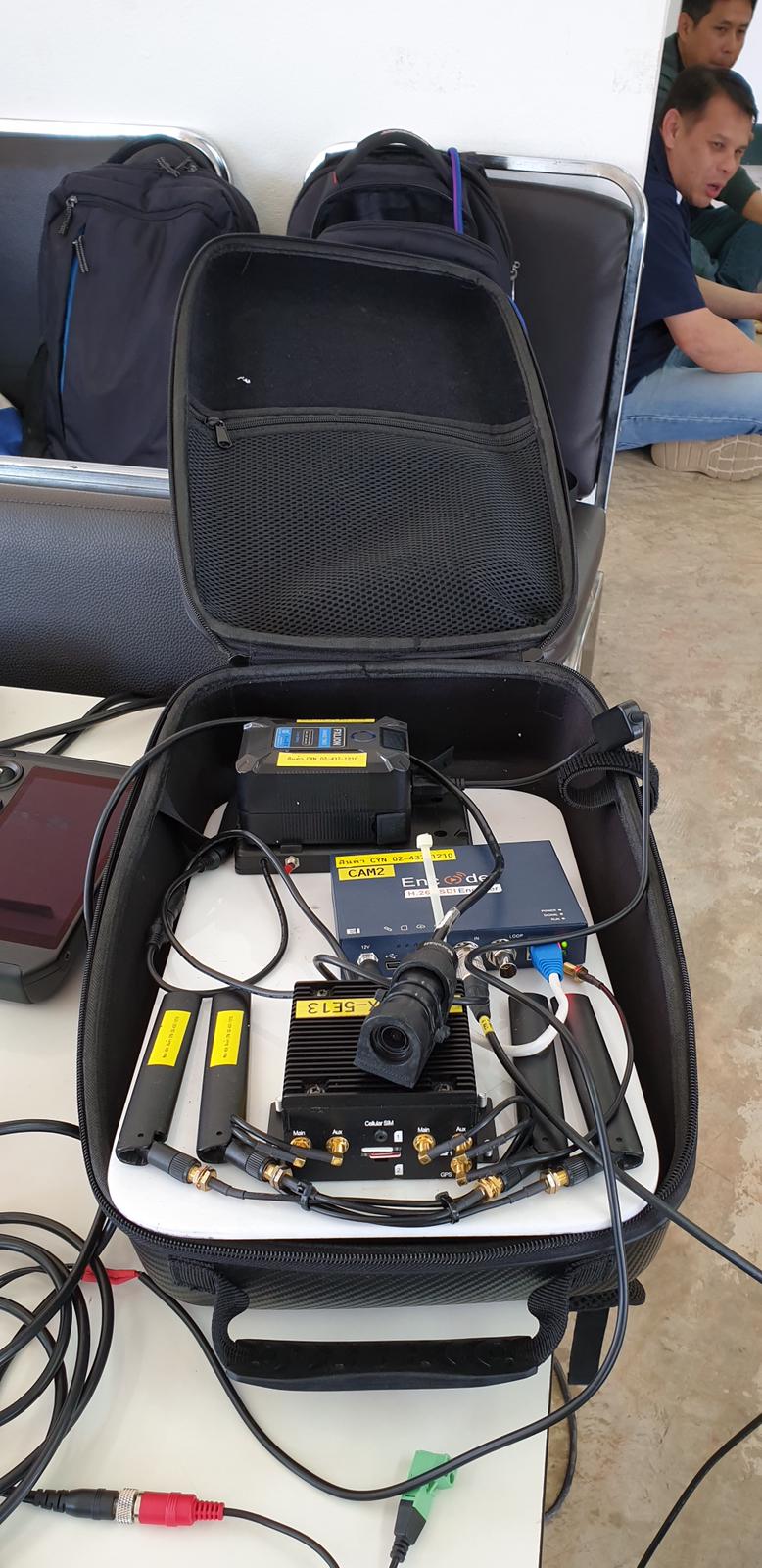

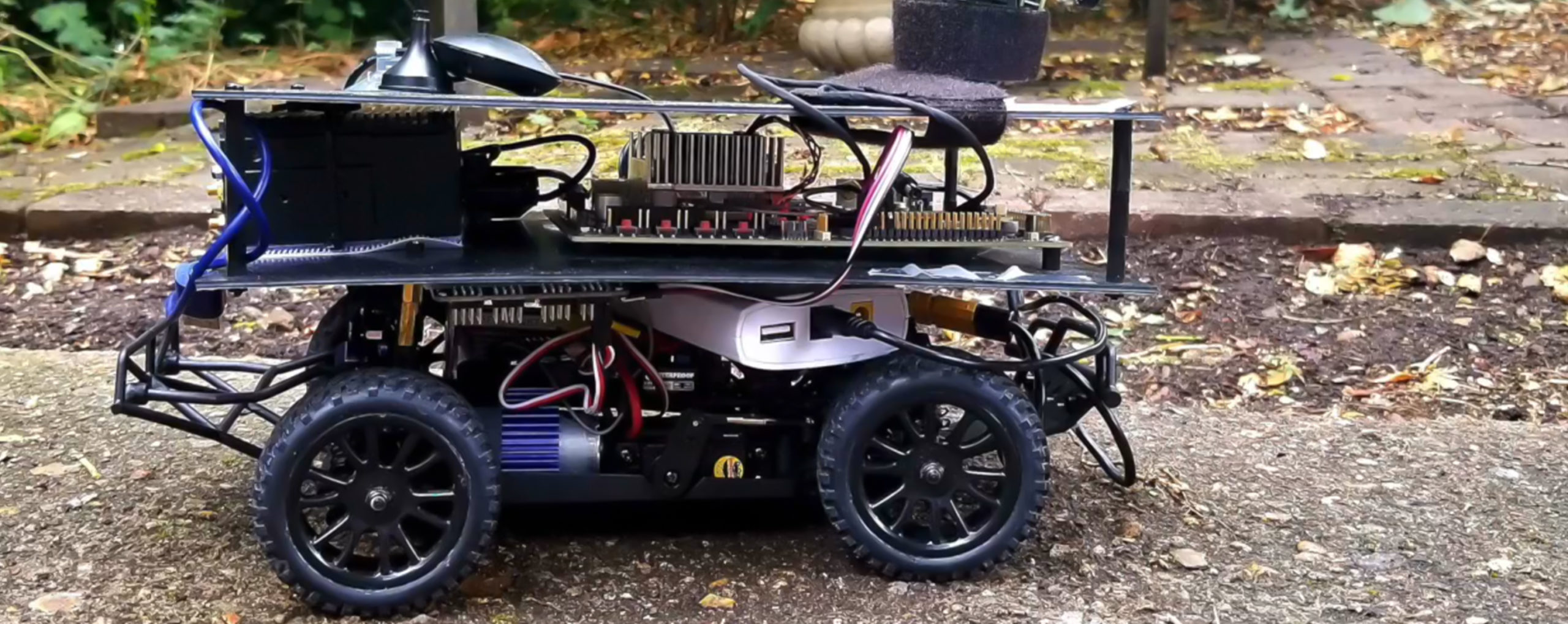

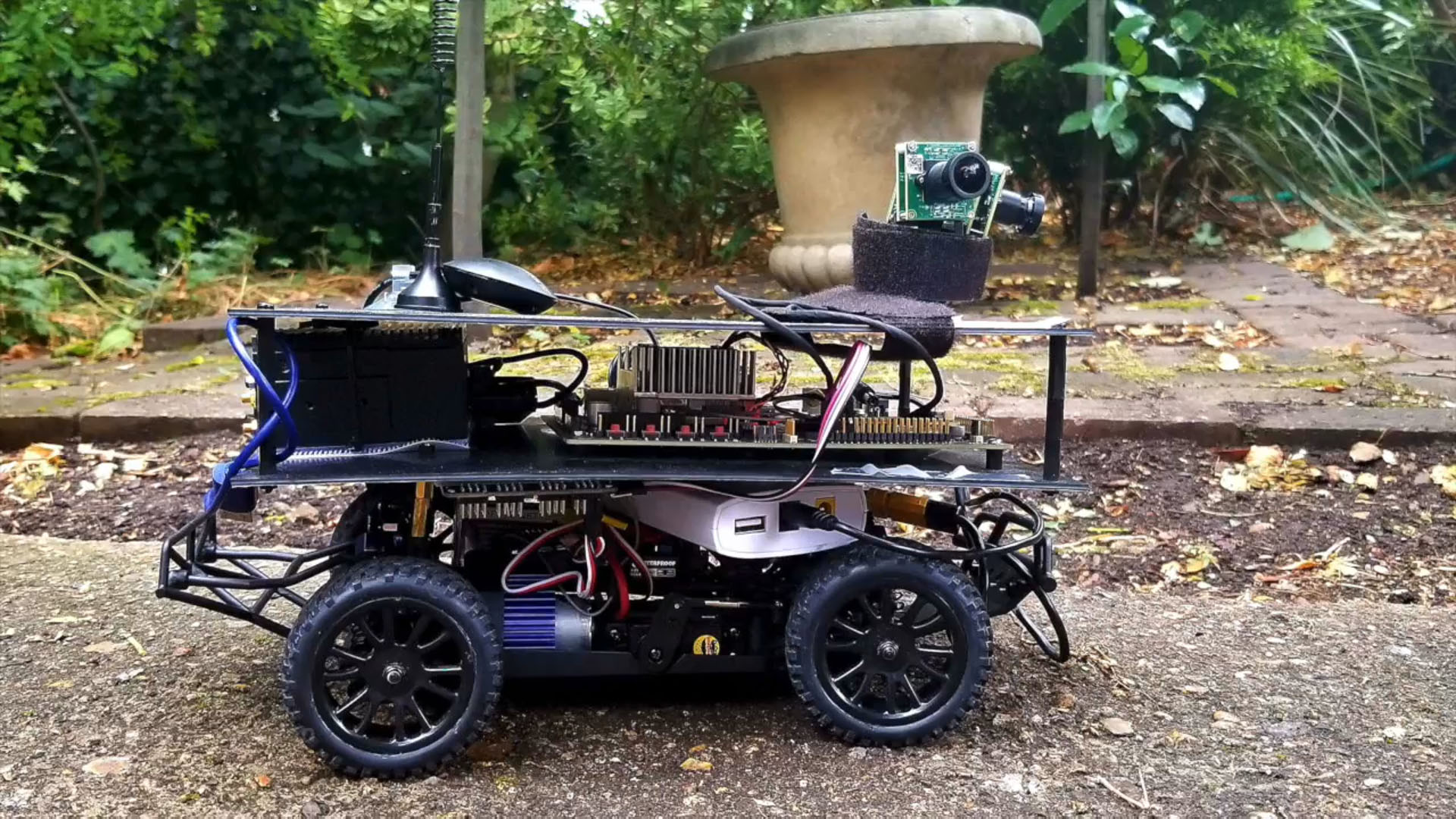

#PowerofPeplink in Action

  • Ethernet WAN Ports1 (FE, shared)*
    Ethernet LAN Ports1 (FE, shared)*
    USB LAN PortMicro-USB B
    Embedded 4G LTE / 3G2
    LTE ModemDownlink/Uplink Datarate: 100Mbps/50Mbps
    LTE-A ModemDownlink/Uplink Datarate: 300Mbps/50Mbps
    SIM Card SizeMicro-SIM (3FF)
    Recommended Users ^1-60
    Router Throughput 100Mbps
    IP PassthroughYes
    WAN as LANYes
    Web BlockingYes
    Web Filtering BlacklistLite
    Number of PepVPN SpeedFusion Peers2
    PepVPN/SpeedFusion Throughput (No Encryption) / (256-bit AES)
    40Mbps / 20Mbps
    EnclosureCompact, Indoor Metal
    Terminal Block Power Connector for
    Mobile/Vehicular Deployment
    Yes
    Dimensions
    (Width x Depth x Height)
    2.95 x 3.25 x 1.65 inches |
    75 x 83 x 42 mm
    Weight0.77 pound |
    350 grams
    Power Input | Terminal BlockTerminal Block 12V-24V DC
    Power ConsumptionMax.: 13W
    Operating Temperature-40° – 149°F |
    -40° – 65°C
    Humidity15% – 95% (non-condensing)
    Warranty1 Year Limited Warranty
    Certifications-FCC, CE, RoHS
    -EN 61373:1999 IEC 61373:1999 (Shock and Vibration Resistance)
    -EN 50155 (Railway Applications – Electronic Equipment used on Rolling Stock)



    * There is one Ethernet port, which performs as either WAN or LAN depending on how it’s defined in the firmware.

    ^ Recommendation for sizing purposes only. No software restrictions applied.

  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    -Weighted
    -Enforced
    -Persistence
    -Priority
    -Overflow
    -Least Used
    -Lowest Latency
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data
    GPS eXchange Format (GPX)
    Up to Seven Days
    Fleet Management with InControl 2
    Complete VPN SolutionPepVPN
    SpeedFusion
    Site-to-Site VPN
    SpeedFusion Hot Failover
    SpeedFusion Bandwidth Bonding
    SpeedFusion WAN Smoothing
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    X.509 Certificate Support
    PPTP VPN Server
    IPsec VPN (Network-to-Network) *
    X.509 Certificate Support
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Advanced QoSIndividual Bandwidth Limit
    Application Prioritization
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    Captive Portal SupportSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Social Wi-Fi Hotspot support
    External Captive Portal support
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client and Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3

    *IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

    • SpeedFusion Engine
    • Terminal Block
  • Product CodeCarrierEmbedded Modems4G Bands/Frequencies (MHz)3G Bands/Frequencies (MHz)
    SFE-DUO-LTE-US-ETUS/Americas*2B2/1900, B4/AWS , B5/850, B13/700,
    B17/700, B25/1900
    WCDMA/HSPA+/DC-HSPA+: B1/2100, B2/1900, B5/850, B6/800, B8/900
    SFE-DUO-LTE-E-ETEurope/International2B1/2100, B3/1800, B7/2600, B8/900, B20/800WCDMA/HSPA+/DC-HSPA+: B1/2100, B2/1900, B5/850, B6/800, B8/900
    SFE-DUO-LTEA-W-ETWorldwide2B1/2100, B2/1900, B3/1800, B4/AWS, B5/850, B7/2600, B8/900GSM , B12/700a, B13/700c, B20/800DD, B25/1900+, B26/850+, B29/700d, B30/2300WCS, B41/TD 2500WCDMA/HSPA+/DC-HSPA+: B1/2100, B2/1900, B3/1800, B4/AWS, B5/850, B8/900
    SFE-DUO-LTEA-P-ETAsia Pacific2B1/2100, B3/1800, B5/850, B7/2600, B8/900, B18/800 Lower, B19/800 Upper, B21/1500 Upper, B28/700 APT, B38/TD 2600, B39/TD 1900+, B40/TD 2300, B41/TD 2500WCDMA/HSPA+/DC-HSPA+: B1/2100, B5/850, B8/900, B9/1800, B19/800 Upper
    UMTS: B6/800
    TD-SCDMA: B39/1900



    * Pending carrier certification in the US.

  • Product CodeDescription
    SFE-DUO-ACW-KITSpeedFusion Engine Duo Demo Accessory Kit:
    – ACW-414 x 4 (3m MMCX to SMA-M Magnetic Cellular Antenna Base)
    – ACW-415 x 1 (5m MMCX Magnetic GPS Antenna)
    – ACW-813 x 4 (2dBi Indoor Cellular Antenna)
    – ACW-601 x 1 (12V 2A Power Supply)
    – ACW-641 x 1 (SpeedFusion Engine Power Converter)
    – ACW-422 x 1 (20cm USB cable)
