PDX

DC Rugged anchor DC IP55 anchor

All-In-One Connectivity

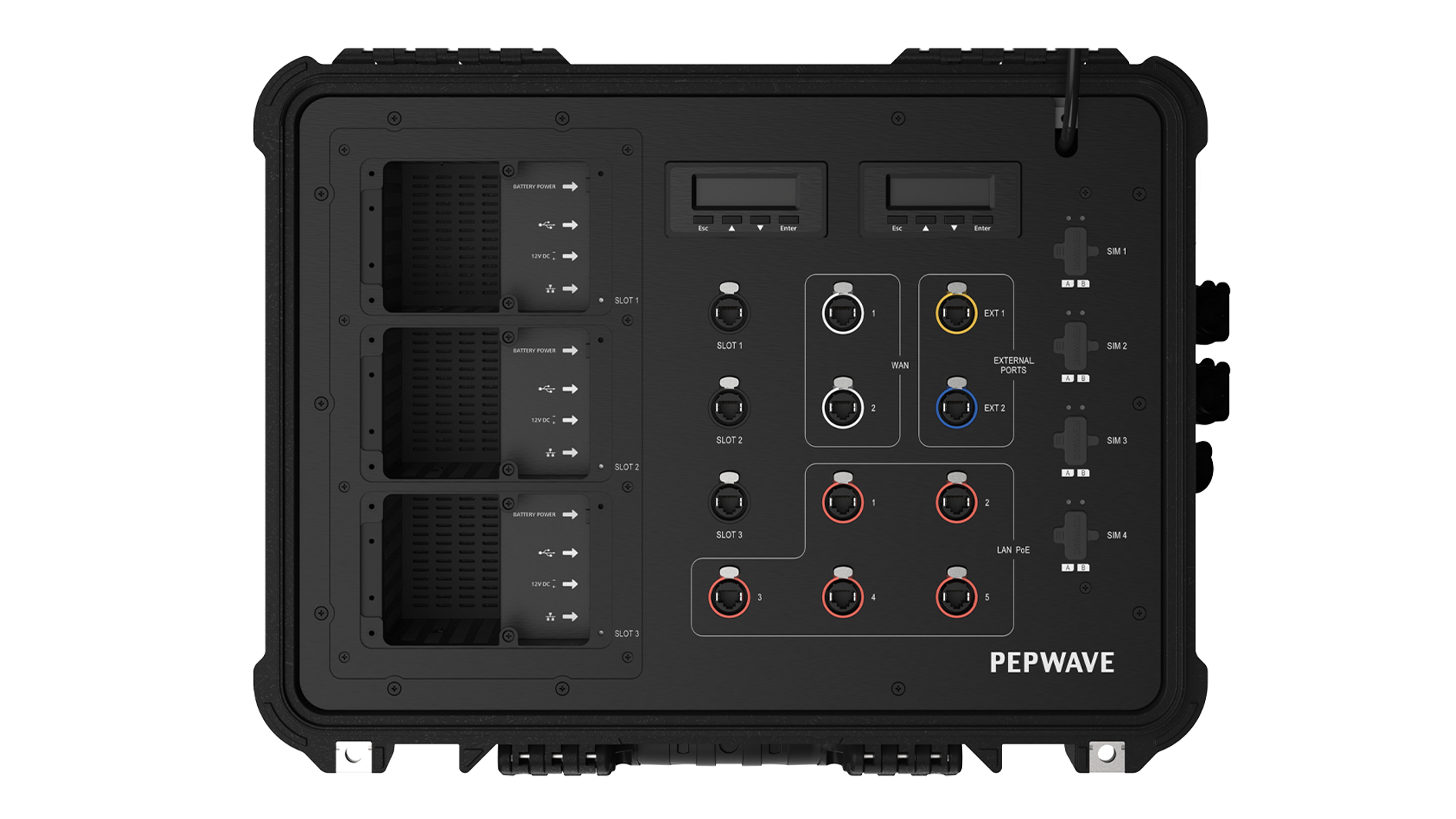

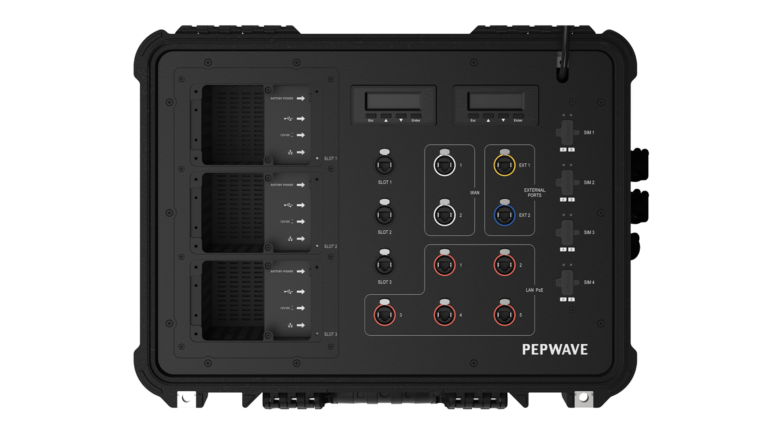

The PDX has a quad-cellular router, antennas, and batteries all seamlessly integrated into a rugged enclosure. If you want more cellular connections and frequencies, the PDX can also integrate SpeedFusion Engines.


Instantly Connect from Anywhere



Easy to Use: Configure in a matter of minutes, deploy in a matter of seconds.

Battery Powered: The PDX has internal batteries, so it can operate independently for up to 9 hours.

Built Tough: Rated at 7.7G vibration resistance by the military MIL-STD-810H standard. Wide -40° – 113°F (-40° – 45°C) Temperature range.

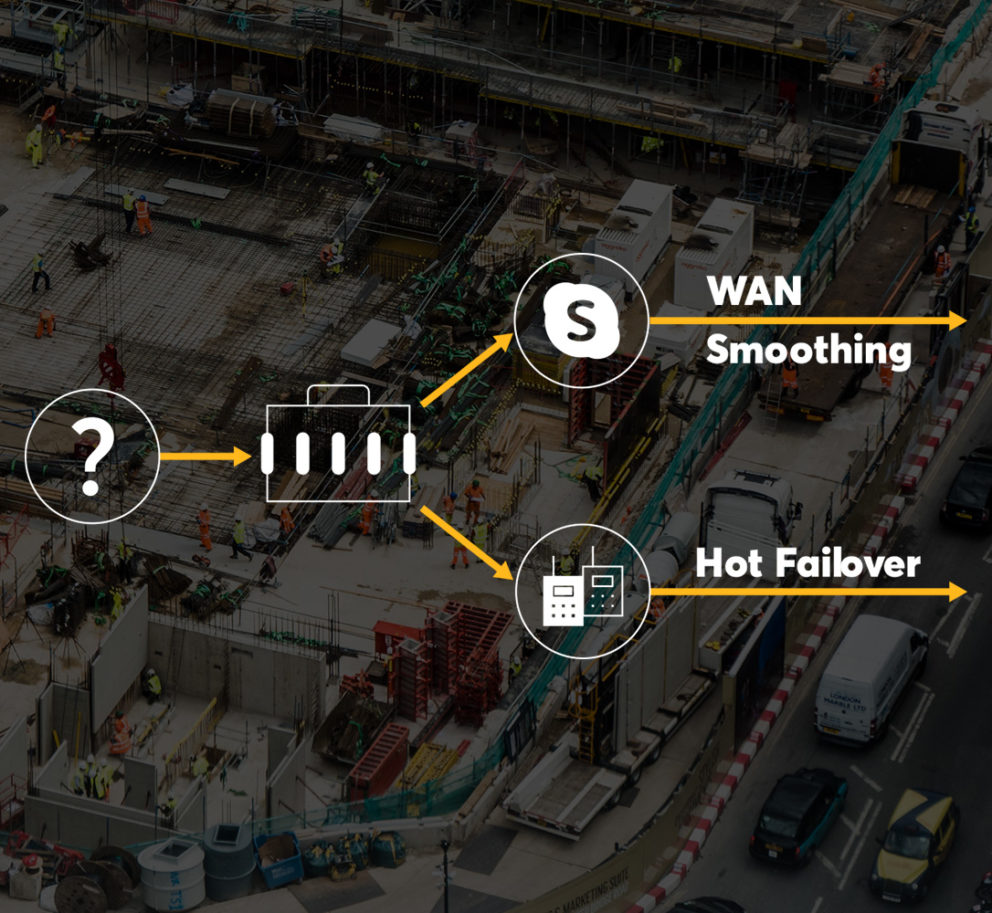

Traffic Steering



Apply different SpeedFusion VPN technologies to traffic from different applications. Apply Hot Failover to ERP traffic while applying WAN Smoothing to VoIP and Videoconferencing.





Specifications – PDX

 PDX

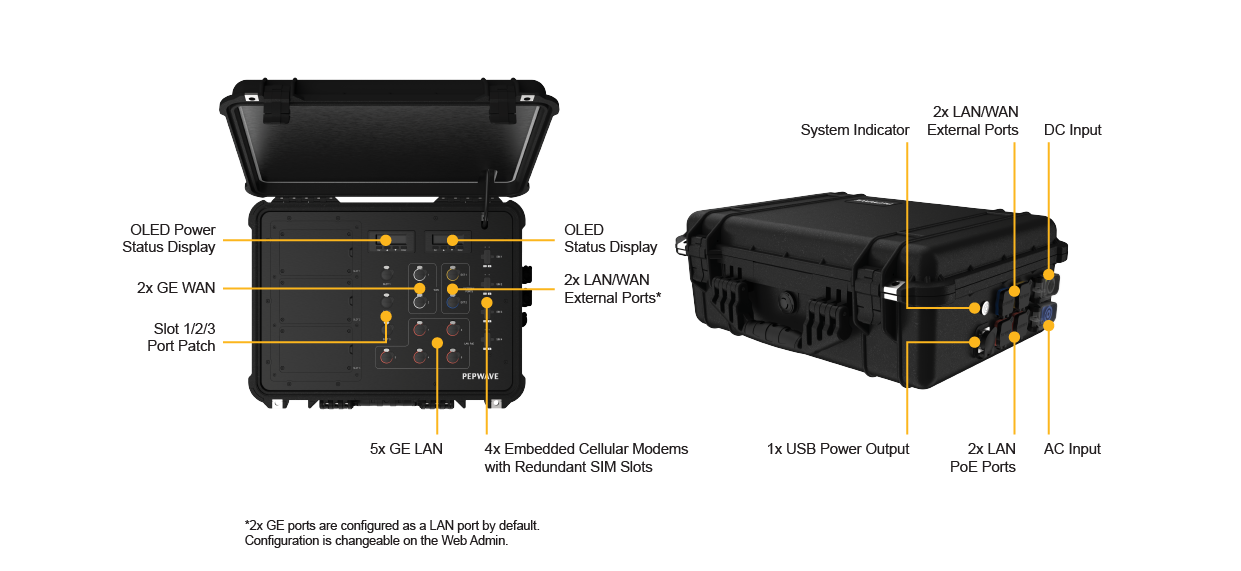

WAN Interface2x GE Ports*
4x Embedded LTE-A Modems with Redundant SIM Slots
LAN Interface7x GE Ports*
Wi-Fi Interface802.11ac/a/b/g/n,
1166 Mbps 2x2 MIMO Wi-Fi WAN and/or AP
Simultaneous Dual-Band
PDX Throughput2.5 Gbps
PepVPN Throughput
(No Encryption)
600 Mbps
PepVPN Throughput
(256-bit AES)
500 Mbps
LTE-A Pro ModemsDownlink/Uplink Per Modem:
600 Mbps/150 Mbps
Recommended Users50-500
Cellular and GPS
Antennas
8x Cellular Antennas (Embedded)
1x GPS Antenna (Embedded)
4x Wi-Fi Antennas (Embedded)
Power InputDC: 12V - 56V, AC: 100V – 240V
Power OutputUp to 7x 802.3af PoE, 1x USB Power Outputs
Power Consumption38W (max.)
Dimensions19.7 x 14.8 x 7.7 inches
500 x 375 x 195 mm
Weight28.7 pounds
Weight 13 kg
Operating Temperature-40° – 113°F
-40° – 45°C
Humidity15% – 95% (non-condensing)
CertificationsFCC, IC, CE,
7.7G Vibration resistance,
MIL-STD-810H 514.8E-1 Cat24,
IP55/65^, Verizon@, FirstNet%
Warranty1-Year Limited Warranty
Package ContentPDX
1x Special Power Cord for PDX
1x Special Card Plug for PDX
* 2x GE port is configured as a LAN port by default, configuration is changeable on the Web Admin.
^ IP55 certified. IP65 certification testing in progress.
@ Certification Pending.
% Tests completed, under FirstNet final review.




Ordering Information – PDX

Product CodeCarrier/
Region
Embedded Modem4G Bands3G Bands
PDX-LTEA-R-TAmerica /
CAT-12
4B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14 ,
B18, B19, B20, B26, B29, B30, B32, B41, B42,
B43, B46, B48, B66
B1, B2, B4, B5, B6, B8, B9, B19
PDX-LTEA-K-TGlobal /
CAT-12
4B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18,
B19, B20, B26, B28 , B29, B30, B32, B41, B42,
B43, B46, B48, B66
B1, B2, B4, B5, B6, B8, B9, B19


Feature Add-on – PDX

Product CodeDescription
PDX-BAT-KITPepwave PDX Battery Kit, 1x Metal Clamp, 1x Power Cable, 2x M3 Scr, 98Wh, 14.4V
SFE-PDX-KITSpeedFusion Engine Duo Accessory Kit for PDX
(include: 1x metal bracket, 1x Eth cable, 1x power cable w 2x terminal blocks, 4x MMCX - SMA antenna cables)




Technical Specifications

Security

  • DoS Prevention
  • Stateful Firewall
  • Web Blocking
  • Web Filtering Blacklist

Captive Portal

  • Support for Wired and Wireless LAN Clients
  • Support RADIUS Authentication
  • Time and Usage Quotas on Open Access Mode
  • Built-in Customizable Splash Page

Device Management

Power Requirements

  • DC Jack: 12V – 56V

Package Content

  • PDX
    • 1x Special Power Cord for PDX
    • 1x Special Card Plug for PDX
