MAX BR1 IP67
Ruggedized Single Cellular Outdoor Router
The BR1 IP67 outdoor router offers an embedded cellular modem in a tough IP67 enclosure, making this the most accessible of our IP67 rated cellular router family.
Use Cases
Data Overage Protection
Temporary Connectivity & Pop up Sites
Cellular Coverage Extension

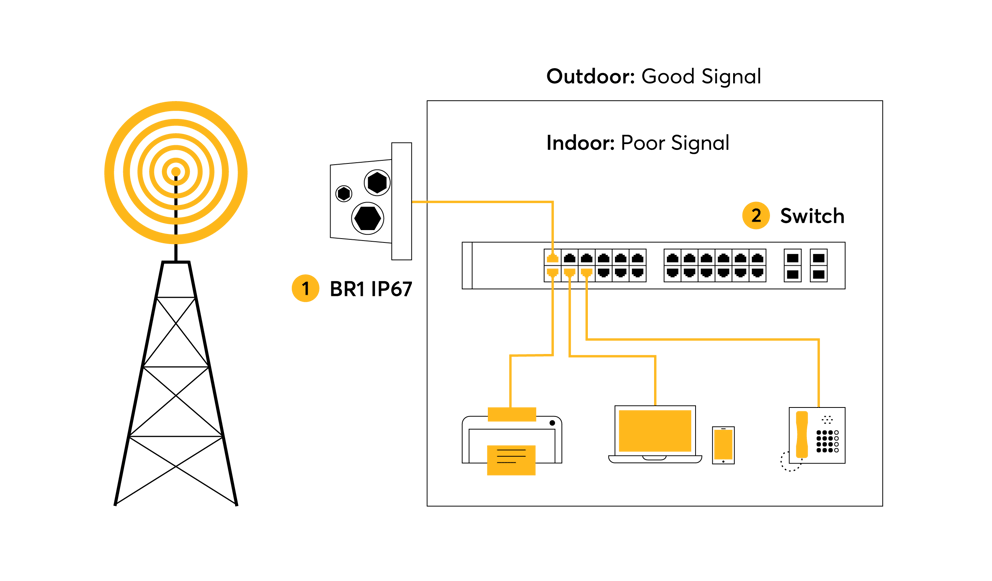

Topology
- The BR1 IP67 connects the outside cellular signal with the inside network using just a single PoE cable.
- The switch then delivers the improved connectivity to clients.

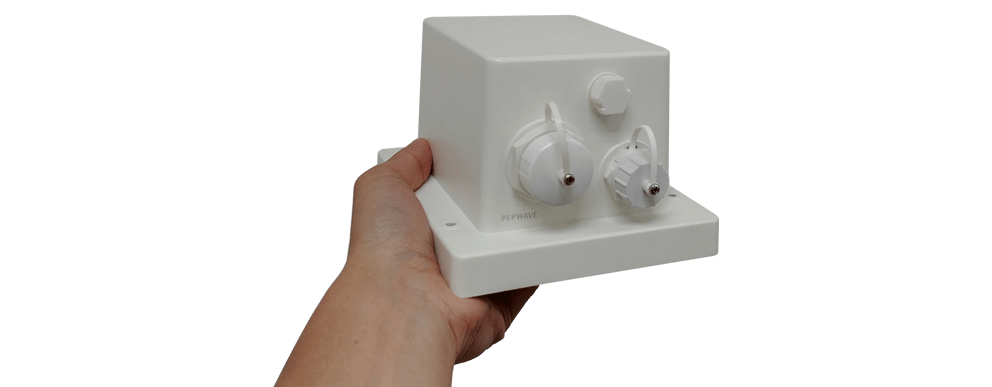

Compact Super-Duty IP67 Enclosure
The BR1 IP67 outdoor router is as small as it is tough. It has a waterproof IP67 enclosure that stands up to dust, vibration, and inclement weather.
Dust Protection
Waterproof
Lightning Immune

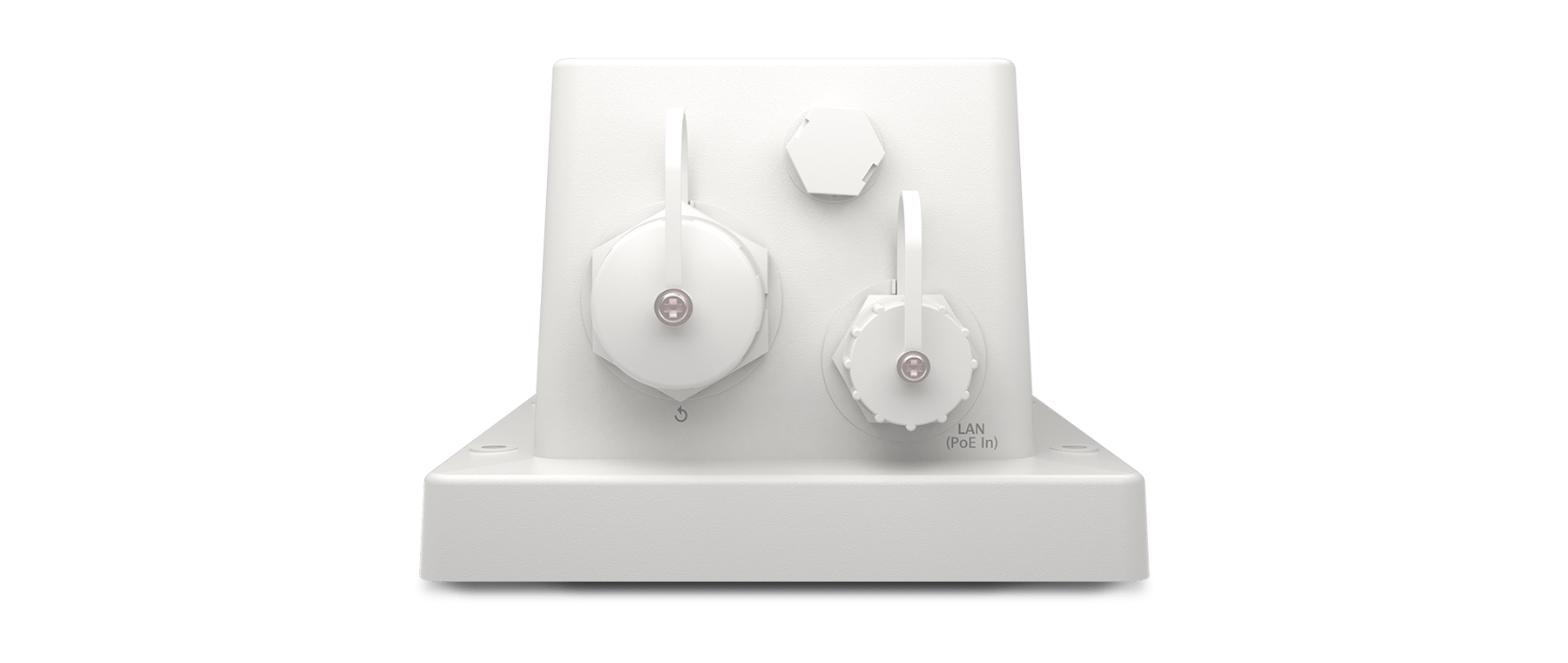

PoE Input
Cut down on cabling and simplify deployments. The BR1 IP67 supports 802.3af PoE input, so one wire is all you need for both connectivity and power. For non-PoE enabled Ethernet cables, the 802.af PoE Injector is available as a separate accessory.
SpeedFusion Hot Failover
In case of Wi-Fi or cellular WAN failure, the BR1 IP67 supports Hot Failover between the Wi-Fi and cellular WAN connections, giving you session persistence for uninterrupted productivity.

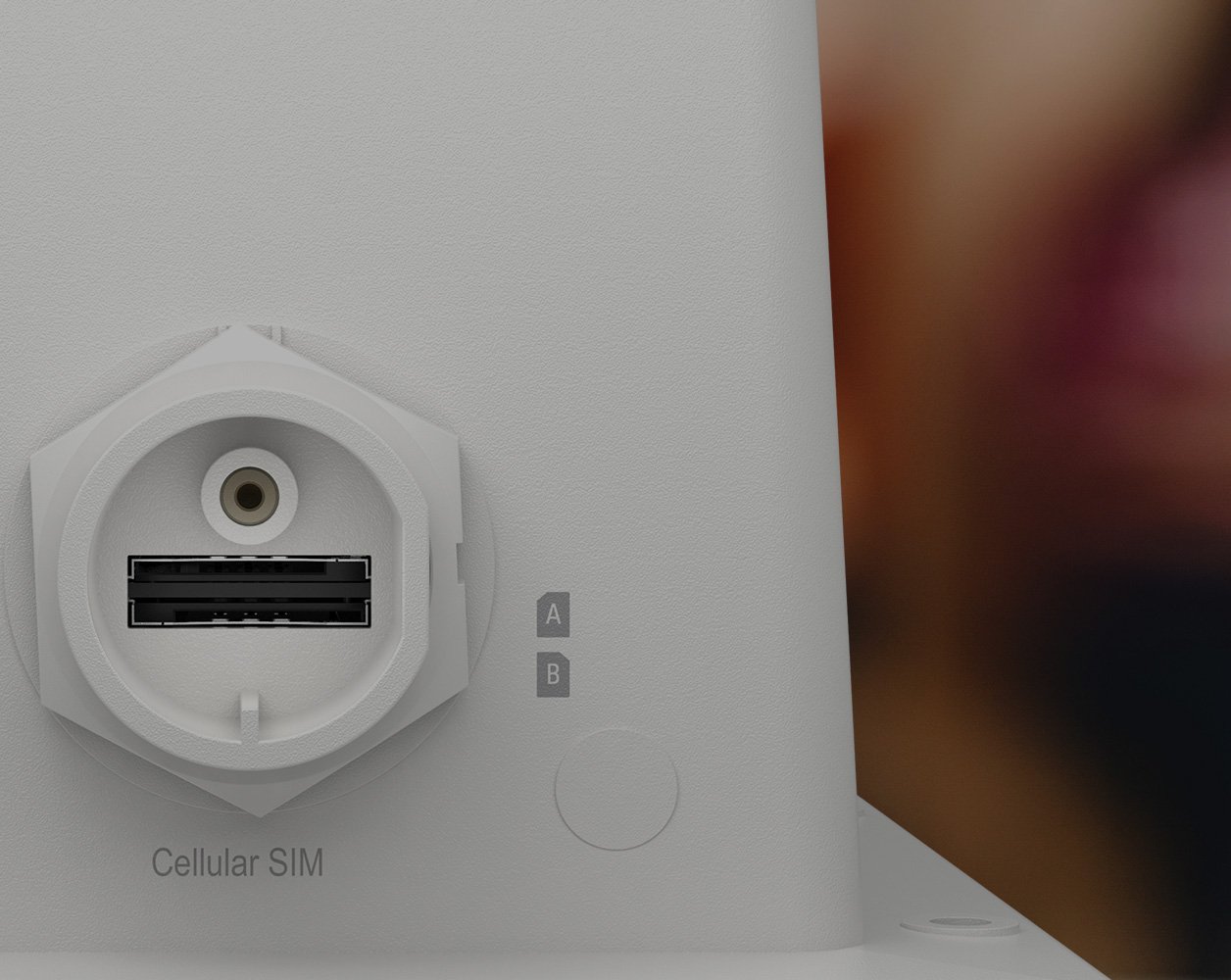

Redundant SIM Slots
Redundant SIM slots with automatic switching for reliable connectivity. You can also set the MAX BR1 IP67 to automatically switch SIM cards when you’re in danger of exceeding a data cap. It also allows you travel across borders without changing SIM cards manually.
Fleet Tracking and Management
With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.applications.
-
Software Pepwave MAX Firmware WAN Support for PPPoE, Static IP, DHCP
WAN Link Health Check
Bandwidth Allowance Monitor
Support for Dynamic DNS services
WAN Port Convertible into LAN Port
LAN DHCP Server for LAN Clients
Extended DHCP Option
DHCP Reservation
DNS Proxy for LAN Clients
VLAN on LAN Support
Security Stateful Firewall
DoS Prevention
Web Blocking
Complete VPN Solution SpeedFusion VPN/SpeedFusion Hot Failover/
-Site-to-Site VPN
-Hot Failover
-256-bit AES
Encryption
-Pre-shared Key Authentication
-Dynamic Routing
X.509 Certificate Support^
PPTP VPN Server
-RADIUS, LDAP Authentication
IPsec VPN (Network-to-Network) *
Global Positioning System Integrated GPS
Device Location Map
Location Tracking Data with InControl 2
Fleet Management with InControl 2Advanced QoS Individual Bandwidth Limit
Application Prioritization
-SIP, HTTPS, VPN QoS
-Custom Application QoS
AP Controller AP Controller Support
Wi-Fi Usage Statistics
Networking NAT and IP Forwarding
Static Routes
Port Forwarding
Many to One, One to One NAT
NAT Pool
SIP ALG, H.323 ALG
UPnP, NAT-PMP
WINS Server
VRRP HA support
Captive Portal Support for Wired and Wireless LAN clients
Support RADIUS Authentication
Time and Usage Quotas on Open Access Mode
Built-in Customizable Splash PageDevice Management Web Administrative Interface
Command Line Interface
InControl Cloud Management
Email Notification
Active Client & Session Lists
Bandwidth Usage Statistics
Syslog Service
SNMP v1, v2c and v3
^ Feature is available as an upgrade (MAX-BR1-ADV).
* IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.All specifications are subject to change without notice.
-
Product Code Description ACW-657 Ethernet Power Plug (learn more) PVN-LC-05 Enables up to 5 SpeedFusion VPN peers MAX-BR1-ADV MAX BR1 Advanced Feature Pack ECP-MAX-BR1-LTEA-1Y EssentialCare+ (1-Year) for MAX BR IP67 LTEA ECP-MAX-BR1-LTEA-2Y EssentialCare+ (2-Year) for MAX BR IP67 LTEA ECP-MAX-BR1-LTEA-4Y EssentialCare+ (4-Year) for MAX BR IP67 LTEA SVL-470 1-Year EssentialCare for MAX BR1 IP67 LTEA SVL-574 2-Year EssentialCare for MAX BR1 IP67 LTEA ICS-012 1-Year InControl Subscription ICS-024 2-Year InControl Subscription -
Product Code Region | Carrier Embedded Modem 4G Bands 3G Bands MAX-BR1-LTE-E-IP67 Europe/International
1 4G LTE:
B1, B3, B5, B7, B8, B20, B38 (TDD), B40(TDD), B41 (TDD)WCDMA/HSPA+/DC-HSPA+:
B1, B5, B8
MAX-BR1-LTEA-W-IP67 Americas/ Europe
1 4G LTE-A:
B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41WCDMA/HSPA+/DC-HSPA+:
B1, B2, B3, B4, B5, B8
MAX-BR1-LTEA-P-IP67 Asia Pacific
1 B1, B3, B5 B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
WCDMA/HSPA+/DC-HSPA+:
B1, B5, B8, B9, B19
UMTS: B6
TD-SCDMA: B39 -
- MAX BR1 IP67
- 1 x Waterproof Ethernet Connector Kit (ACW-657)
Mounting units are not provided and is used only for reference.
