MAX BR1 MINI

Unbreakable Connectivity. Unbeatable Price.

Locate a Reseller

Use Cases

Work From Home

Digital Signage

Remote Metering

Explore our Solutions

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4

Compatible with all major carriers. Certified on Verizon.

Constant Connectivity

With the BR1 Mini, there is always a way to connect.

Use a combination of cellular, Ethernet*, and Wi-Fi WAN* to provide users with constant connectivity.

*Available with add-on-license (MAX-BR1-MINI-LC-FS)

Reliable Hotspot

When working from home, reliable connectivity critical. The BR1 Mini provides this seamlessly: no matter what WAN connection the BR1 Mini uses, the user experience remains consistent.

Deploy Anywhere

The BR1 Mini Core is designed to function where other routers can’t. It is certified for vibration resistance and rolling stock (E Mark, EN 61373, EN 50155, EN 61000). It accepts multiple power inputs and a wide voltage range. Finally, it has an optional mount for Class 1 Div 2 support, and can function in extreme heat and cold.

Small but Sturdy

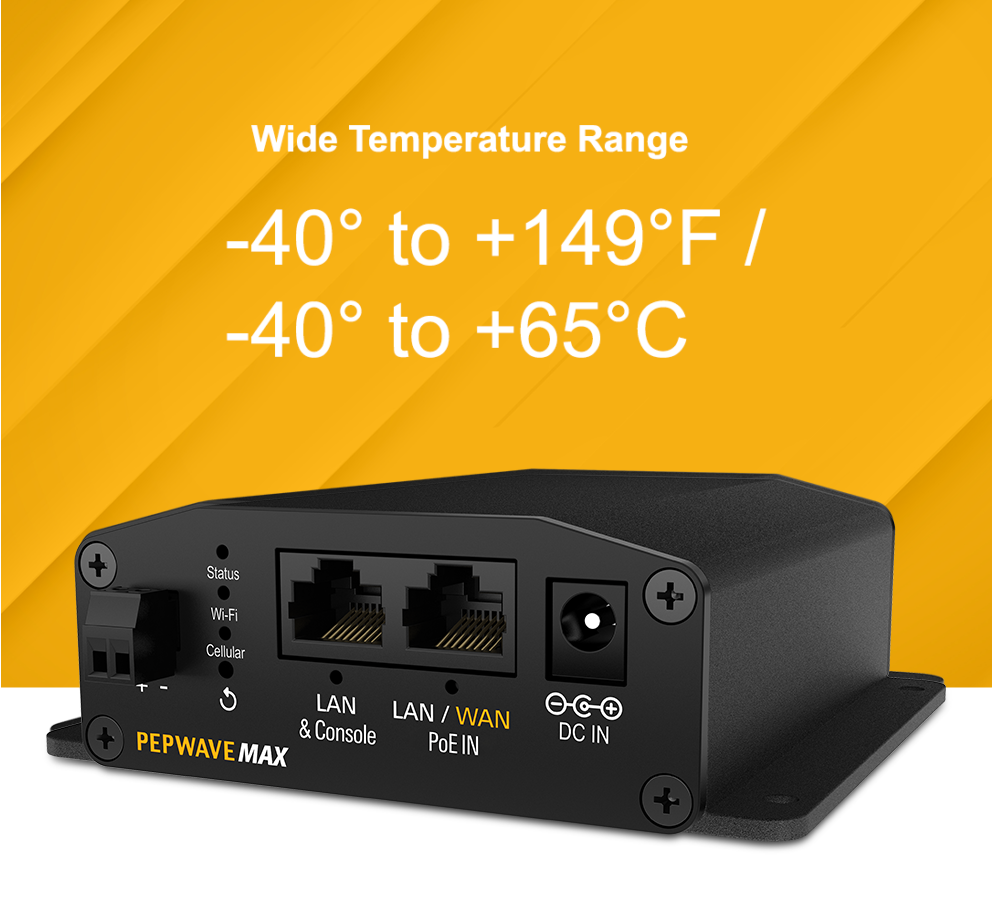

Benefit from the BR1 Mini’s smaller form factor — without sacrificing durability and reliability. The BR1 Mini has a wide temperature range (-40° to +149°F / -40° to +65°C) and can be deployed in even the harshest environments.

OOBM Support*

Create a modern out-of-band network to manage all your equipment. Give yourself console and Ethernet connectivity to all of your devices. Display your devices console interface over the cloud via InControl so you can securely manage from anywhere without the usual headaches.

*Available with optional accessory (ACW-411)

Optional Class 1 Div 2 support

Extend your connection to hazardous locations and begin enjoying increased productivity. By deploying the BR1 Mini with the optional mount* making it Class 1 Div 2 certified, no longer will you need to worry about the restrictions within these harsh conditions.

*Optional mount ACW-749

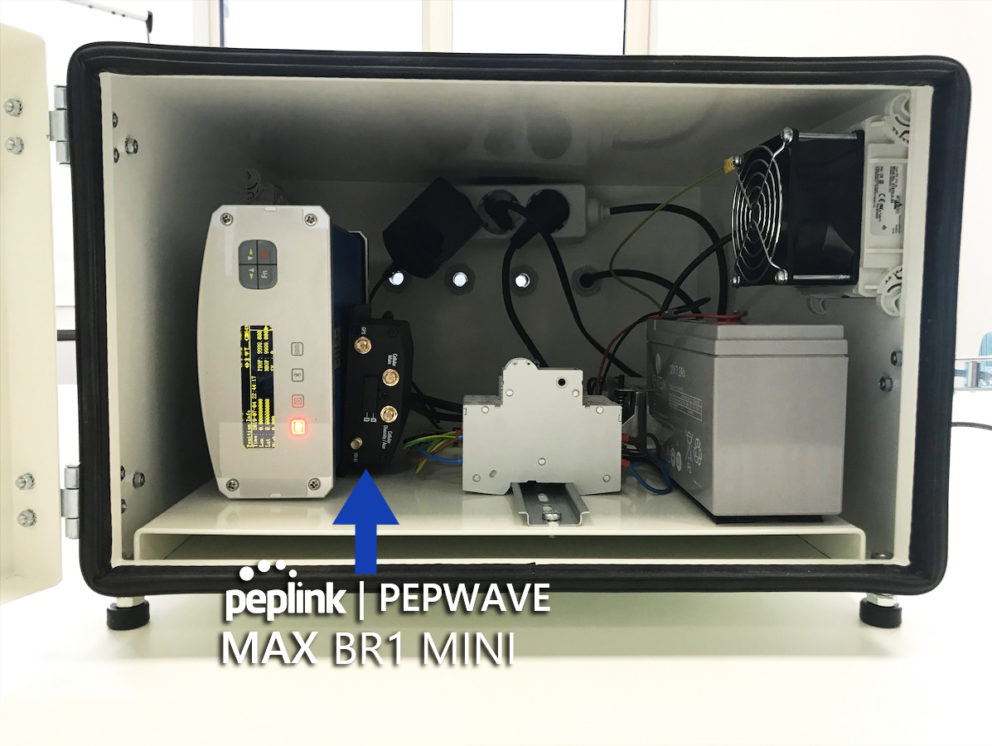

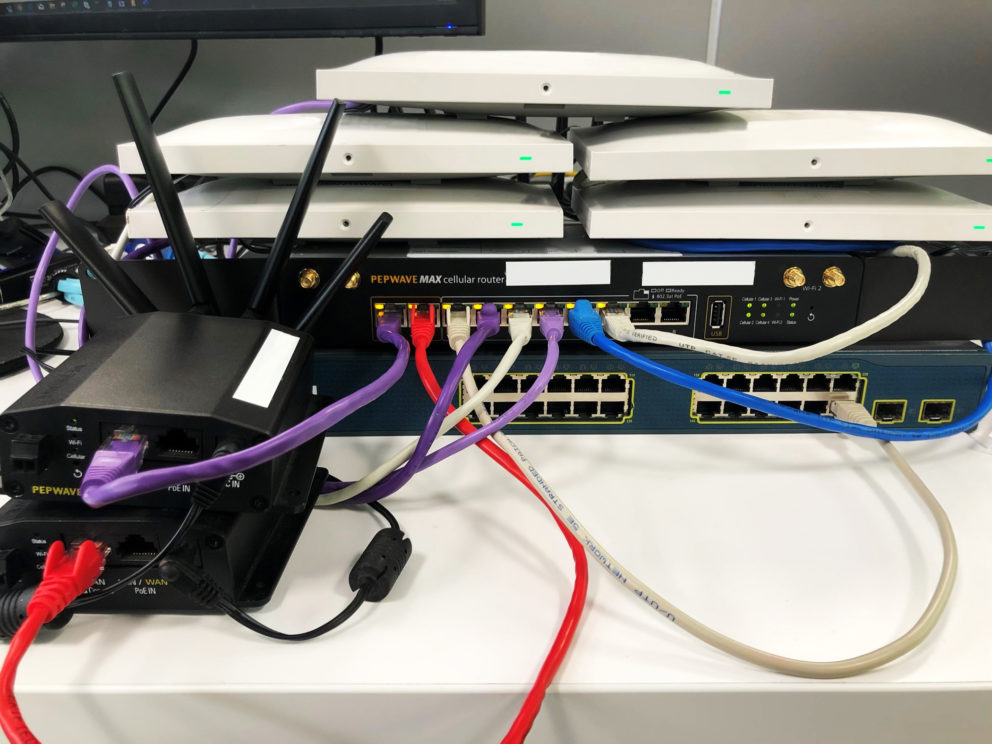

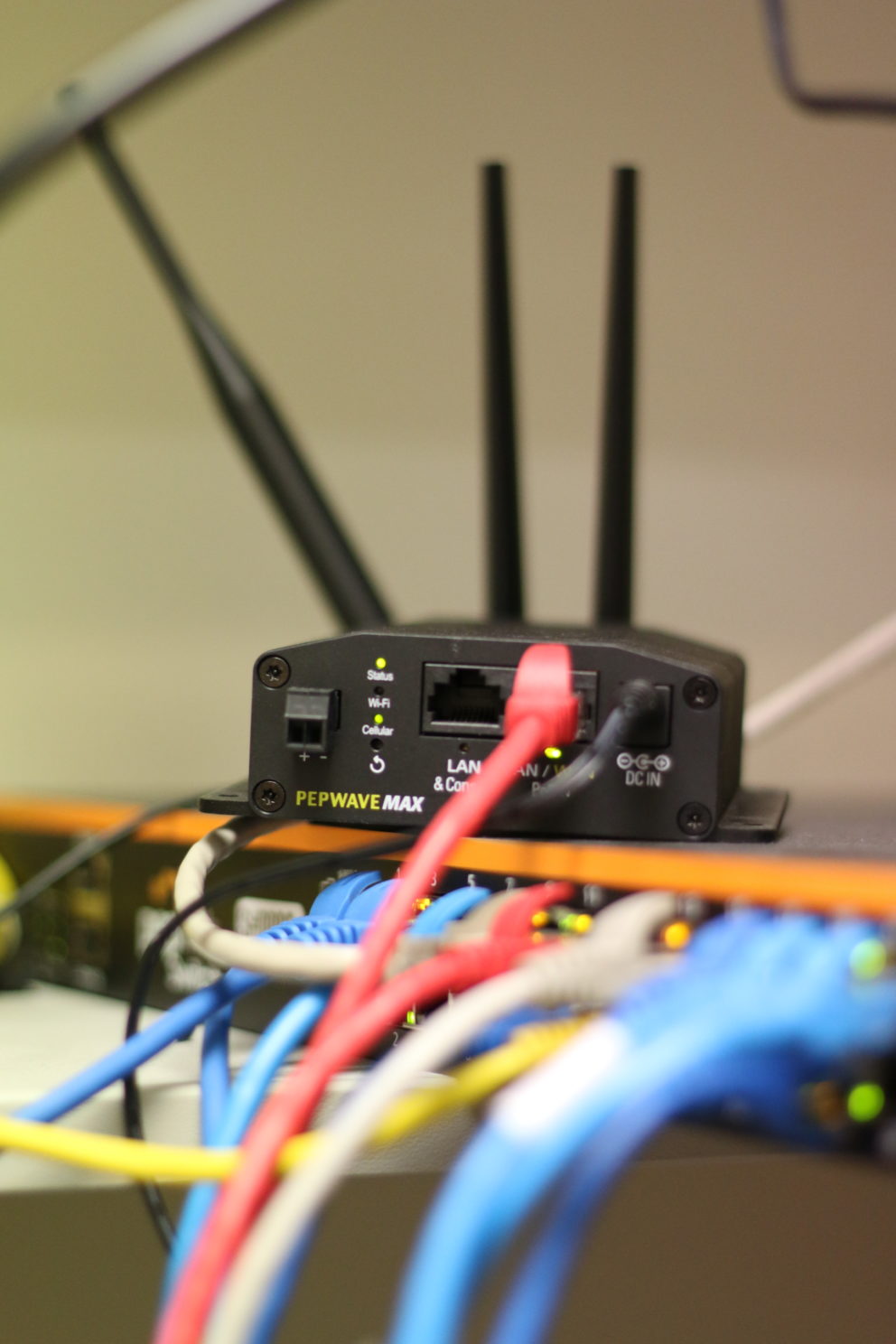

#PowerofPeplink in Action

  • Affordable, Industrial-Grade 4G LTE Mobile Router MAX BR1 Mini #9
  • Affordable, Industrial-Grade 4G LTE Mobile Router MAX BR1 Mini #10
  • Affordable, Industrial-Grade 4G LTE Mobile Router MAX BR1 Mini #11
  • Affordable, Industrial-Grade 4G LTE Mobile Router MAX BR1 Mini #12
  • Affordable, Industrial-Grade 4G LTE Mobile Router MAX BR1 Mini #13

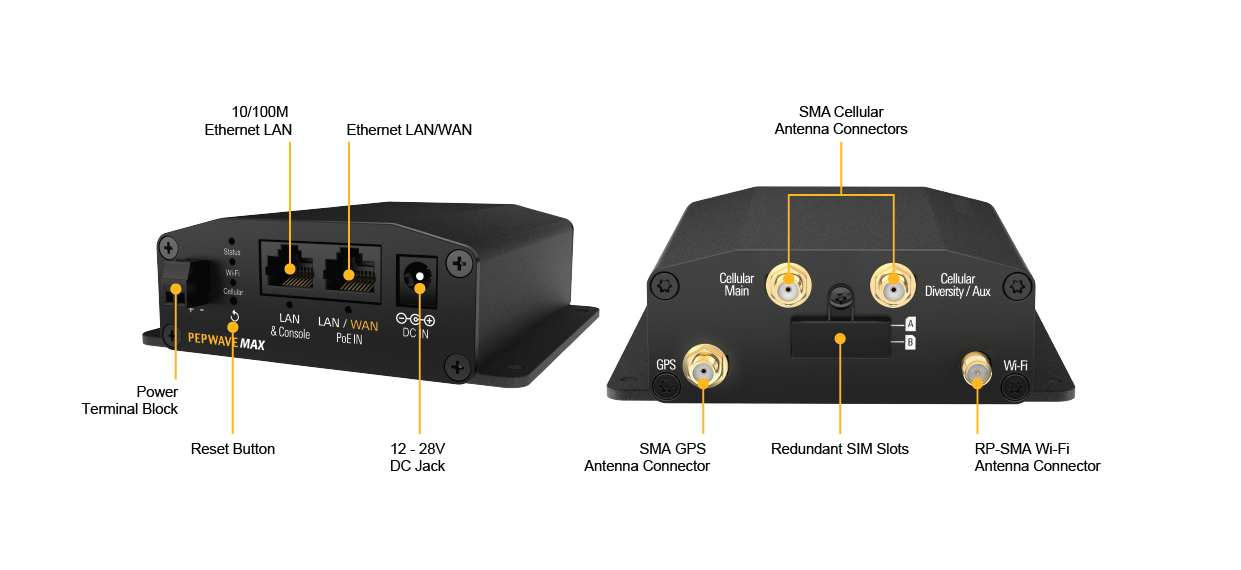

  • WAN Interface1x 10/100M Ethernet Port @
    1x Embedded LTE Modem with Redundant SIM Slot
    LAN Interface1x 10/100M Ethernet Port
    Wi-Fi Interface802.11b/g/n Wi-Fi WAN@ or AP
    PepVPNYes
    SpeedFusion Hot FailoverAvailable as additional feature
    SpeedFusion WAN SmoothingAvailable as additional feature
    Drop-in ModeYes
    Number of PepVPN SpeedFusion Peers2/5 *
    PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES)40 Mbps / 20 Mbps
    Number of IPsec Tunnels5
    Router Throughput #100 Mbps
    Recommended Users60
    LTE ModemDownlink/Uplink Datarate: 150Mbps/50Mbps
    LTE-A ModemDownlink/Uplink Datarate: 300Mbps/50Mbps
    Cellular and GPS Antenna Connector2x SMA Antenna Connectors
    1x SMA GPS Antenna Connector
    1x Wi-Fi Connector
    Power InputDC Jack/Terminal Block: 12V – 28V DC Passive PoE Input (WAN Port, 12V – 28V DC)
    Power Consumption12W (max.)
    Dimensions4.1 x 4.3 x 1.2 inches |
    105 x 110 x 30 mm
    Weight0.54 pound |
    244 grams
    Operating Temperature-40° – 149°F |
    -40° – 65°C
    Certifications -FCC, CE, IC, RoHS, E-Mark,
    -EN 61373: Shock and Vibration Resistance,
    -EN 50155: Railway Applications – Electronic Equipment used on Rolling Stock,
    -EN 61000: Electromagnetic Compatibility
    Warranty1-Year Limited Warranty



    * 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05.

    @ Available with add-on-license (MAX-BR1-MINI-LC-FS)
    # Router Throughput and PepVPN/SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision. The throughput result is tested with DHCP/Static IP WAN.

  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    WAN Port Convertible into LAN Port
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionPepVPN/SpeedFusion Hot Failover ^
    -Site-to-Site VPN
    -Hot Failover ^
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    IPsec VPN (Network-to-Network)

    ^ Feature is available as an add-on license.
    Advanced QoS Individual Bandwidth Limit
    Application Prioritization
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    Captive Portal SupportSupport for Wired and Wireless LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
    • MAX BR1 MINI
    • 12V2A Power Supply
    • 1x GPS Antenna
    • 1x WiFi Antenna
    • 2x 2dBi 4G LTE Antennas
  • Product CodeRegion | CarrierEmbedded Modem 4G Bands3G Bands
    MAX-BR1-MINI-LTE-US-TUnited States14G LTE:
    B2, B4, B5, B12, B13
    		HSPA+: B2, B5
    MAX-BR1-MINI-LTE-E-TEurope/International14G LTE:
    B1, B3, B5, B7, B8, B20, B38 (TDD), B40(TDD), B41 (TDD)
    		WCDMA/HSPA+/DC-HSPA+: B1, B5, B8
    MAX-BR1-MINI-LTE-MX-TLatin America/Australia14G LTE:
    B1, B2, B3, B4, B5, B7, B8, B28, B40    		WCDMA/HSPA+/DC-HSPA+: B1, B2, B5, B8
    MAX-BR1-MINI-LTEA-W-TAmericas/Europe14G LTE-A:
    B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41
    		WCDMA/HSPA+/DC-HSPA+:
    B1, B2, B3, B4, B5, B8
    MAX-BR1-MINI-LTEA-P-TAsia Pacific14G LTE-A:
    B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41    		WCDMA/HSPA+/DC-HSPA+:
    B1, B5, B6, B8, B9, B19
    TD-SCDMA: B39

  •

    Product Code

    Description

    PVN-LC-05

    Enables up to 5 PepVPN peers

    MAX-BR1-ADV

    Package includes a software license key for Advanced Car-Fi Roaming; and SpeedFusion and IPsec X.509 Certificate Support

    MAX-BR1-MINI-LC-FS

    Failover software license and related feature set for BR1-MINI, enables Ethernet and Wi-Fi WAN.

    ACW-411

    Port adapter for BR1 Mini, enables RS-232 console port connectivity while simultaneously providing Ethernet LAN.

    ACW-102

    PoE injector for delivering passive PoE power to the BR1 Mini.
    ACW-749

     Class 1 Division 2 Mounting Kit for BR1 Mini
    ACW-638

     10ft DC Power Cable for MAX BR1 Mini
