MAX BR1 IP 67

Ruggedized Single Cellular Outdoor Router

The BR1 IP67 outdoor router offers an embedded cellular modem in a tough IP67 enclosure, making this the most accessible of our IP67 rated cellular router family.

Industrial Grade Single Celular Outdoor LTE Router BR1 IP67 #2
Industrial Grade Single Celular Outdoor LTE Router BR1 IP67 #2

Use Cases

Data Overage Protection

Temporary Connectivity & Pop up Sites

Cellular Coverage Extension

Topology

  1. The BR1 IP67 connects the outside cellular signal with the inside network using just a single PoE cable.
  2. The switch then delivers the improved connectivity to clients.

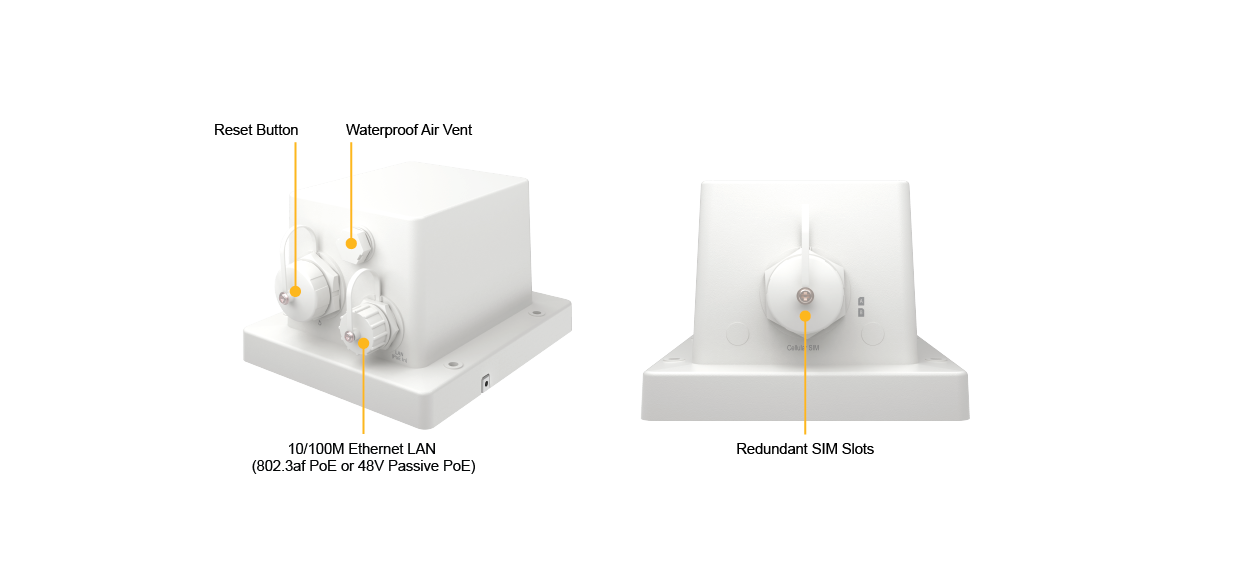

Compact Super-Duty IP67 Enclosure

The BR1 IP67 outdoor router is as small as it is tough. It has a waterproof IP67 enclosure that stands up to dust, vibration, and inclement weather.

Dust Protection

Waterproof

Lightning Immune

PoE Input

Cut down on cabling and simplify deployments. The BR1 IP67 supports 802.3af PoE input, so one wire is all you need for both connectivity and power. For non-PoE enabled Ethernet cables, the 802.af PoE Injector is available as a separate accessory.

 SpeedFusion Hot Failover

In case of Wi-Fi or cellular WAN failure, the BR1 IP67 supports Hot Failover between the Wi-Fi and cellular WAN connections, giving you session persistence for uninterrupted productivity.

Redundant SIM Slots

Redundant SIM slots with automatic switching for reliable connectivity. You can also set the MAX BR1 IP67 to automatically switch SIM cards when you’re in danger of exceeding a data cap. It also allows you travel across borders without changing SIM cards manually.

Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.applications.

  • WAN Interface1x Embedded LTE Modem with Redundant SIM Slot
    LAN Interface1x 10/100M Ethernet Port
    Wi-Fi Interface802.11b/g/n Wi-Fi WAN or AP
    GPS Antenna Integrated
    Recommended Users1-60
    Router Throughput100 Mbps
    Number of PepVPN SpeedFusion Peers2
    PepVPN/SpeedFusion Throughput (No Encryption / 256-bit AES)40 Mbps / 20 Mbps
    Power Input 802.3af PoE, 48V Passive PoE
    Power Consumption12W (max.)
    Dimensions5.55 x 6.38 x 3.98 inches |
    141 x 162 x 101 mm
    Weight680 g | 1.50 lb
    Operating Temperature-40° – 149°F | -40° – 65°C
    CertificationsFCC, CE, RoHS, IC
    EN 61000: Electromagnetic Compatibility
    Warranty1-Year Limited Warranty



  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    WAN Port Convertible into LAN Port

    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionPepVPN/SpeedFusion Hot Failover/
    -Site-to-Site VPN
    -Hot Failover
    -256-bit AES
    Encryption
    -Pre-shared Key Authentication
    -Dynamic Routing
    -X.509 Certificate Support
    PPTP VPN Server
    -RADIUS, LDAP Authentication
    IPsec VPN (Network-to-Network) *
    -X.509 Certificate Support
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    Advanced QoS Individual Bandwidth Limit
    Application Prioritization
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS

    AP ControllerAP Controller Support
    Wi-Fi Usage Statistics
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    VRRP HA support
    Captive PortalSupport for Wired and Wireless LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3



    * IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

    All specifications are subject to change without notice.

  • Product CodeRegion | CarrierEmbedded Modem 4G Bands3G Bands
    MAX-BR1-LTE-E-IP67Europe/International
    14G LTE:
    B1, B3, B5, B7, B8, B20, B38 (TDD), B40(TDD), B41 (TDD)
    WCDMA/HSPA+/DC-HSPA+:
    B1, B5, B8

    MAX-BR1-LTEA-W-IP67Americas/ Europe
    14G LTE-A:
    B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41
    WCDMA/HSPA+/DC-HSPA+:
    B1, B2, B3, B4, B5, B8
    MAX-BR1-LTEA-P-IP67Asia Pacific
    1B1, B3, B5 B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
    WCDMA/HSPA+/DC-HSPA+:
    B1, B5, B8, B9, B19
    UMTS: B6
    TD-SCDMA: B39
