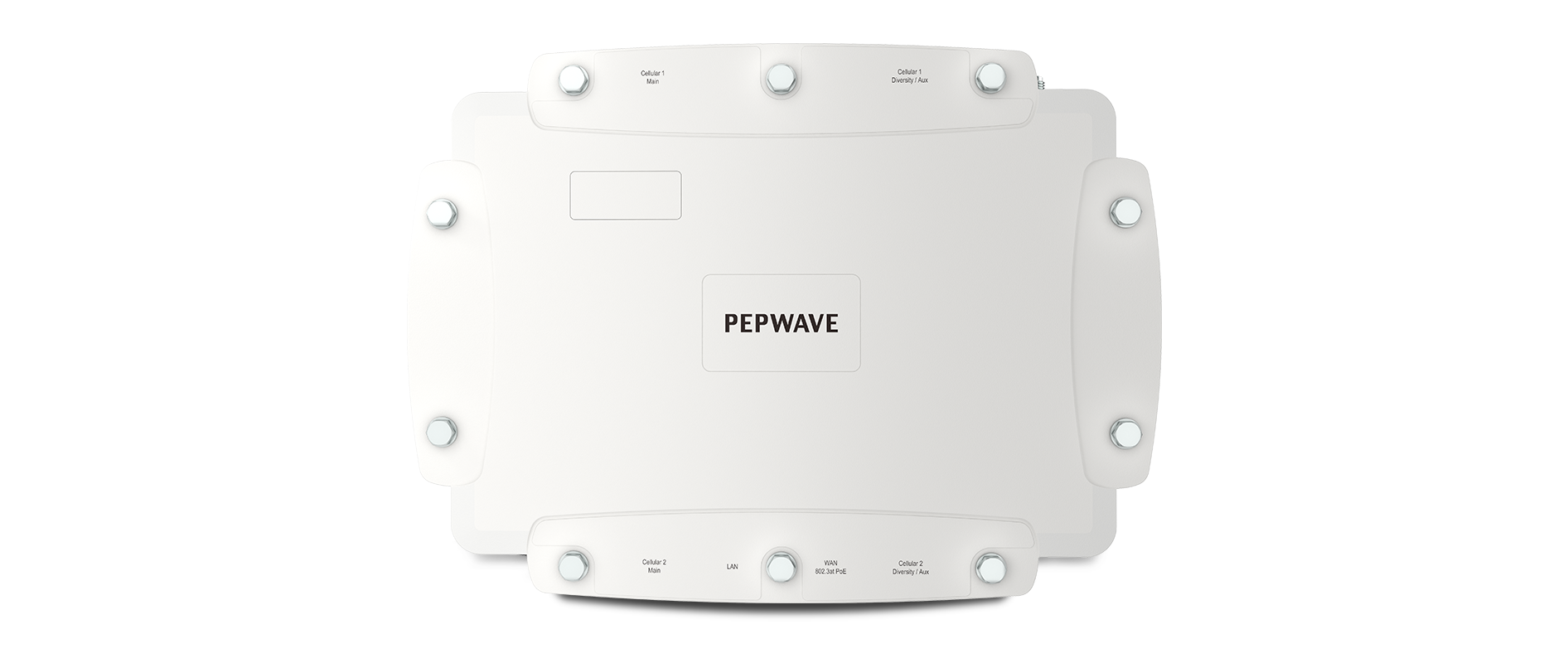

MAX HD2 IP67

Dual 4G/3G LTE Mobile Outdoor Router

The HD2 IP67 outdoor router offers dual embedded cellular modems and PoE+ support, all encased in a shock and vibration certified, waterproof enclosure that’s more than a match for almost any environment.

Dual 4G LTE_3G Outdoor Mobile Router MAX HD2 IP67 #12
Dual 4G LTE_3G Outdoor Mobile Router MAX HD2 IP67 #12

Use Cases

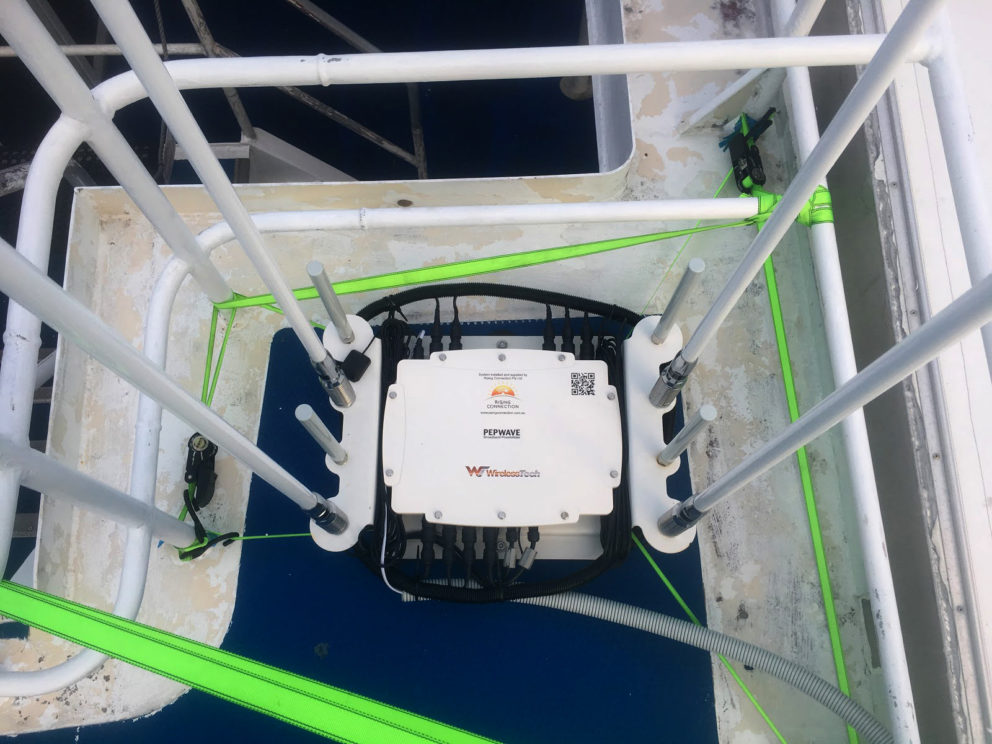

Maritime

Constructions & Utilities

Public Safety & First Responders

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #6
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Compatible with all major carriers. Certified on Verizon.

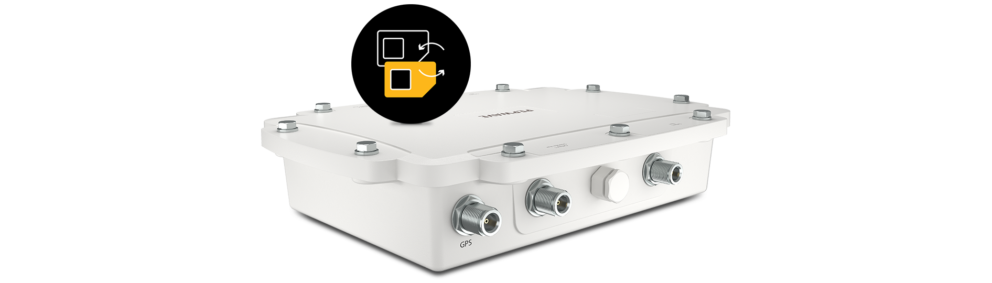

Dual Cellular for Multiple Carriers

The HD2 IP67 includes two built-in outdoor 4G LTE/3G modems. It allows you to use the same or different cellular providers for bandwidth bonding or eliminating blind spots.

Dual 4G LTE_3G Outdoor Mobile Router MAX HD2 IP67 #4

Optional PoE Input

Cut down on cabling and simplify deployments. The HD2 IP67 supports 802.3at PoE+ input, so one wire is all you need for both connectivity and power. 802at PoE+ Injector is available separately.

Dual 4G LTE_3G Outdoor Mobile Router MAX HD2 IP67 #5

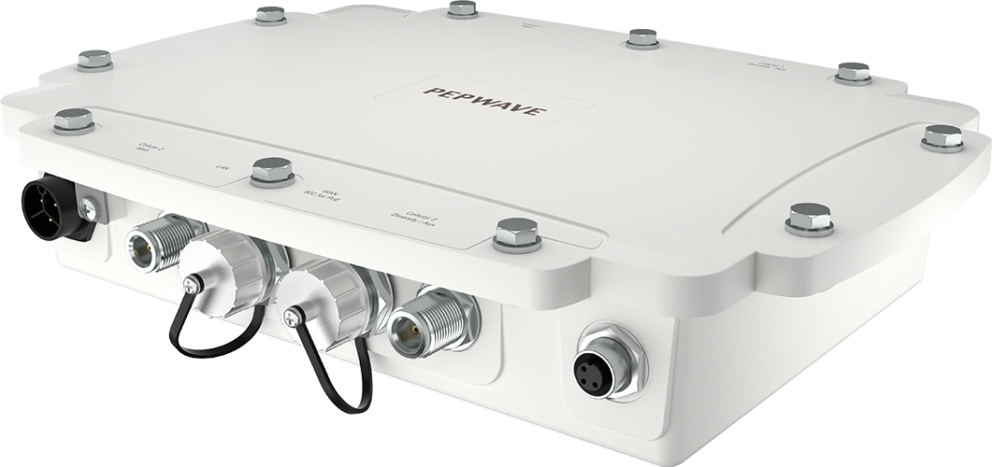

Super-Duty IP67 Enclosure

The HD2 IP67 outdoor router has a waterproof IP67 metal enclosure that stands up to dust, vibration, and inclement weather.

Certified Toughness

MAX HD2 IP67  is shock and vibration resistant, making it a great choice for construction, drilling, and other heavy-duty applications.

Shock and vibration resistance

EN 61373:2010 IEC 61373:2010

RF Port Lightning Immunity

(ITU-T K.20 (+/- 1.5 kV))

FCC, CE, RoHS, IC

FirstNet Ready

FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity. The MAX HD2 IP67 supports band 14, providing additional coverage as the situation demands.

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.

Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data stream.

Video Testimonial. T.O.M.S. International

Marcus from Rising Connection shows how SpeedFusion, Peplink’s SD-WAN Solution, was able to provide ample bandwidth with minimal packet loss to broadcast and log biometric information for T.O.M.S. International.

#PowerofPeplink

  • Product CodeHD2-IP67
    Ethernet WAN Ports1 (GE)
    Ethernet LAN Ports1 (GE)
    Embedded 4G LTE2
    SIM Card SizeMini-SIM (2FF)
    USB WAN Modem Port1
    Recommended Users *150
    Router Throughput #400Mbps
    802.1q VLANs Supported128
    Drop-in ModeYes
    High AvailabilityYes
    WAN as LANYes
    Web BlockingYes
    Web Filtering BlacklistLite
    PepVPNYes
    SpeedFusion Hot FailoverYes
    SpeedFusion WAN SmoothingYes
    SpeedFusion Bandwidth BondingYes
    Number of PepVPN SpeedFusion Peers2/20 (&)
    PepVPN/SpeedFusion Throughput (No Encryption) | (256-bit AES)100Mbps | 60Mbps
    InControl Cloud ManagementYes
    GPS Fleet ManagementYes
    Manage Pepwave AP SeriesYes
    Maximum Number of AP Support30
    Enclosure.  Ingress Protection Rating IP-67
    PoE Output1x 802.3af PoE Output Ports (Requires PoE License automatically applied after kit purchase)
    Dimensions (H x W x D)9.0 x 12.2 x 2.6 inches | 230 x 310 x 66 mm
    Weight5.84 pounds | 2.65 kg
    Power Input802.3at PoE+ @ or

    AC Input
    100V-240V ($),
    DC: 12V – 56V, 3A
    Power Consumption25W (max.)
    Operating Temperature-40° – 149°F | -40° – 65°C
    Humidity15% – 95% (non-condensing)
    CertificationsFCC, CE, RoHS
    ITU-T K.20 (+/- 1.5 kV). (RF Port Lightning Immunity)
    E-Mark
    EN 61373:2010 (Shock and Vibration Resistance)
    Package ContentMAX HD2 IP67
    Waterproof Power Connector Kit
    2x Waterproof Ethernet Connector Kit
    Mounting Kit
    Power Requirements10V – 30V DC
    Warranty1-Year Limited Warranty





    * Recommendation for sizing purposes only. No software restrictions applied.

    # Router Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.

    & The HD2 IP67 and HD4 IP67 come with 2 PepVPN/SpeedFusion peers by default. With an optional add-on, they support up to 20 peers.

    @ PoE injector and AC power adapter are available separately.

  • SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    USB 3G/4G LTE Modem Support
    IPv6 Support
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    Weighted
    Enforced
    Persistence
    Priority
    Overflow
    Least Used
    Lowest Latency
    Fastest Response Time
    Complete VPN SolutionPepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
    Site-to-Site VPN
    Bandwidth Aggregation
    Hot Failover
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    X.509 Certificate Support
    PPTP VPN Server
    RADIUS, LDAP Authentication
    IPsec VPN (Network-to-Network) *
    X.509 Certificate Support
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    VRRP HA support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Advanced QoSUser Groups
    Bandwidth Reservation
    Individual Bandwidth Limit
    Application Prioritization
    By User Groups
    SIP, HTTPS, VPN QoS
    Custom Application QoS
    AP ControllerAP Controller Support
    Wi-Fi Usage Statistics
    Captive Portal SupportSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client and Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3



    *IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.



    All specifications are subject to change without notice.

  • Product Code

    Description

    ACW-622

         Includes 1x 56V Power Supply

          Enables 802.3at/af PoE Output Ports (PoE License automatically applied after kit purchase)

    MAX-HD-020-SPF

    Activates 20 PepVPN/SpeedFusion Peers



  • Product CodeCarrierEmbedded Modem4G Bands3G Bands
    MAX-HD2-M-LTE-E-IP67Europe /
    International
    24G LTE:
    B1, B3, B5, B7, B8, B20, B38 (TDD), B40(TDD), B41 (TDD)
    WCDMA/HSPA+/DC-HSPA+: B1, B5, B8
    MAX-HD2-M-LTEA-W-IP67Americas/Europe24G LTE-A:
    B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41
    2500WCDMA/HSPA+/DC-HSPA+: B1,B2, B3, B4, B5, B8
    MAX-HD2-M-LTEA-P-IP67Asia Pacific24G LTE-A:
    B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
    WCDMA/HSPA+/DC-HSPA+: B1,B5, B8, B9, B19
    UMTS: B6
    TD-SCDMA: B39
    MAX-HD2-M-LTEA-WF-IP67America / FirstNet /
    CAT-12 / CAT-6
    2Cellular 1:
    4G LTE-A Pro: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, B48, B66

    Cellular 2:
    4G LTE-A: B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41
    Cellular 1:
    HSPA+: B1, B2, B4, B5, B6, B8, B9, B19

    Cellular 2:
    WCDMA/HSPA+/DC-HSPA+: B1, B2, B3, B4, B5, B8
    MAX-HD2-M-LTEA-WK-IP67Global*/
    CAT-12 / CAT-6
    2Cellular 1:
    4G LTE-A Pro: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66

    Cellular 2:
    4G LTE-A: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41
    Cellular 1:
    HSPA+: B1, B2, B4, B5, B6, B8, B9, B19

    Cellular 2:
    WCDMA/HSPA+/DC-HSPA+: B1, B2, B3,
    B4, B5, B8



    * China & HK TD LTE are excluded.
