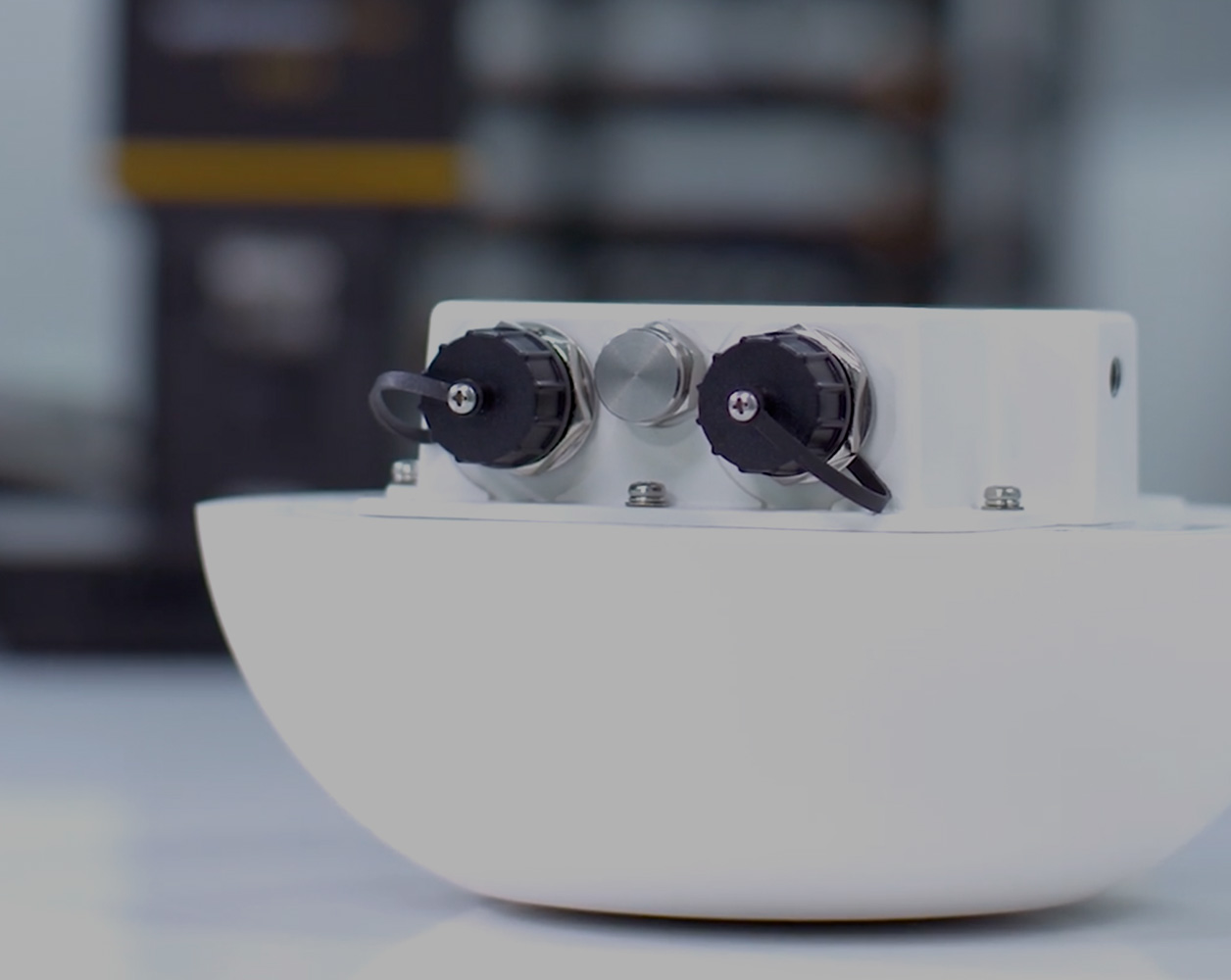

MAX HD2 Dome
Dual Cellular Router for Mobile Outdoor Deployments
The HD2 Dome provides dual-cellular Bandwidth Bonding in an IP67 enclosure that has a minimal profile on the rooftop while providing maximum signal. With redundant SIM, the HD2 Dome supports two cellular radios and four SIM cards. Combine the HD2 Dome with the SIM Injector, and the number of cards increases to twelve.
Compatible With:
Compatible with all major carriers. Certified on Verizon.
Topologies

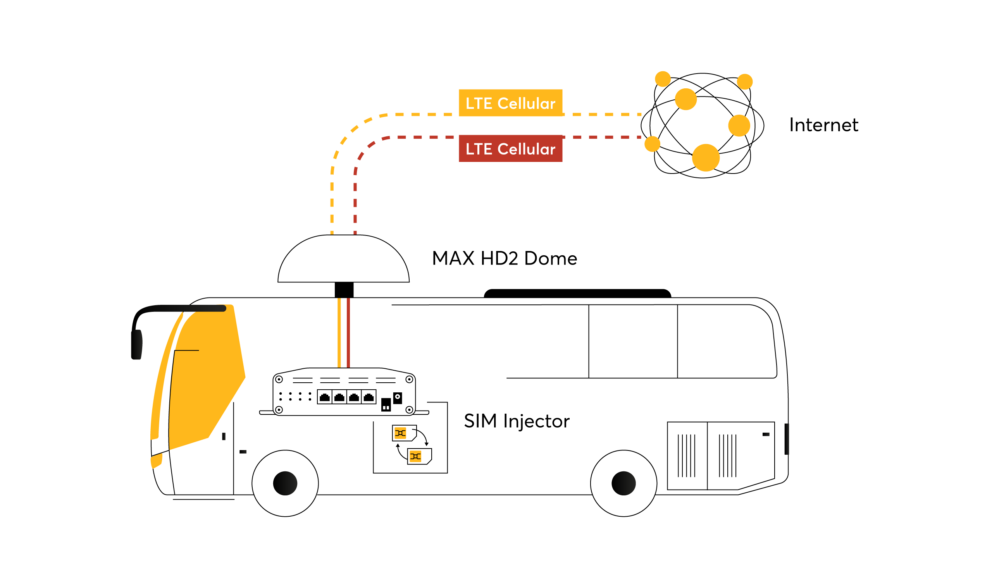

Minimum Cable Loss, Best Cellular Signal Quality
Most outdoor deployments require a centrally placed router attached to strategically placed antennas. With the HD2 Dome, the antennas are placed in the same integrated enclosure as the cellular radios. This arrangement minimizes cable loss, giving you the best signal possible.

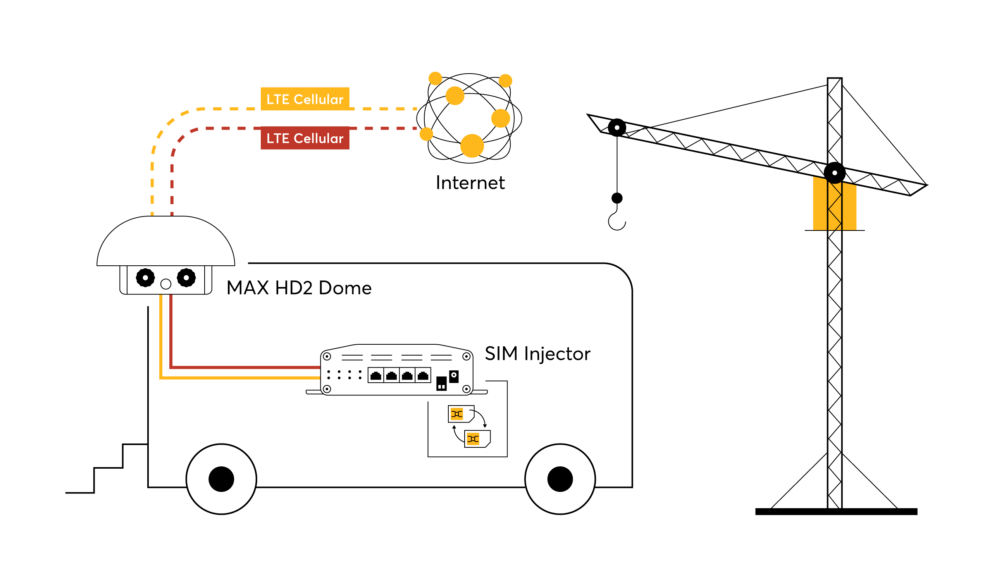

Simple Installation Running a Single Ethernet Cable
The HD2 Dome has a M35 screw mount, and only requires a single Ethernet cable to install. For wall or pole mounted deployments, the HD2 Dome comes with an Ethernet splitter and a mounting rack that provides a multitude of installation options.

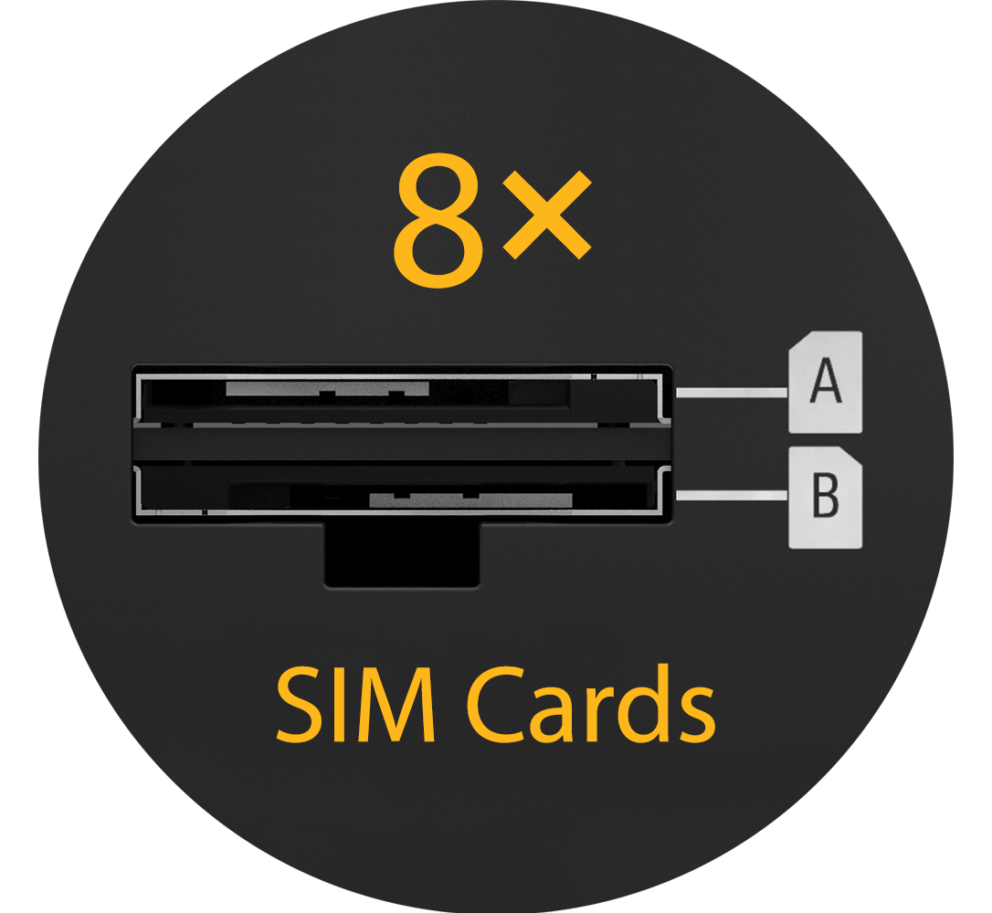

8 Additional SIM With the SIM Injector
With the addition of the SIM Injector, the HD2 Dome can support up to 12 SIM at your fingertips. Simply connect an Ethernet cable between the SIM Injector and the HD2 Dome. The SIM Injector is capable of PoE output, so you don’t need to add another PoE switch to your deployment.
FirstNet Ready
FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity. The HD2 Dome supports band 14, providing additional coverage as the situation demands.
Certified Toughness
In addition to rugged metal enclosure, the MAX HD2 is certified on:
Shock and vibration resistance
(EN 61373:1999 IEC 61373:1999)
RF Port Lightning Immunity
(ITU-T K.20 (+/- 1.5 kV))
Railway Applications
(EN 50155)
Electromagnetic Compatibility
(EN 61000)
Speed & Reliability. Brought by SpeedFusion™
SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:
Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.
Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.
SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.
With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data stream.
Fleet Tracking and Management
With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device. InControl 2 is our cloud based device management, monitoring, and reporting tool designed specifically for Peplink and Pepwave devices.
Multiple Mounting Options

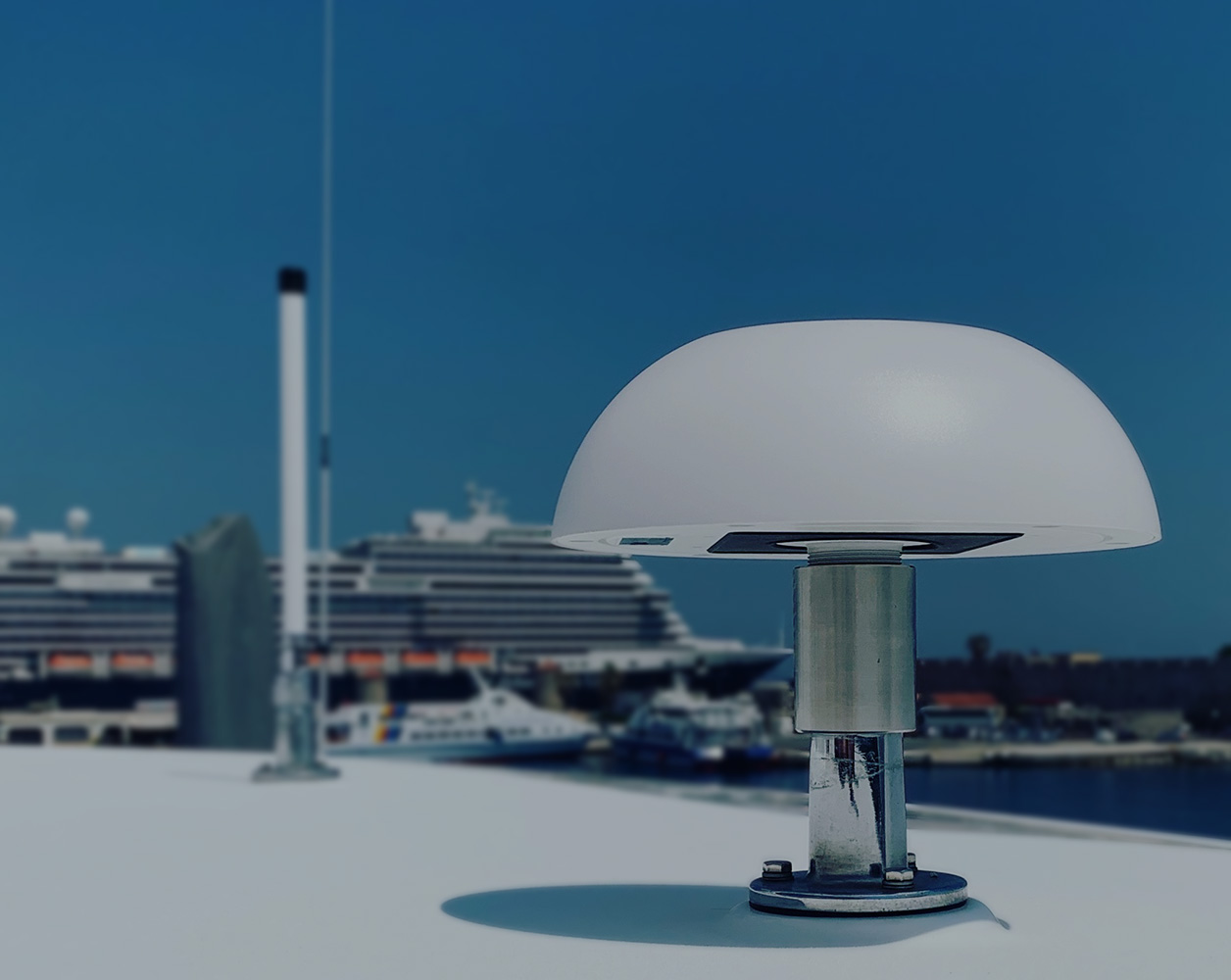

The HD2 Dome offers significant deployment flexibility due to its modular construction. By itself, it has an M35 thread, making it easy to mount on top of any pole or on the rooftop of any vehicle.

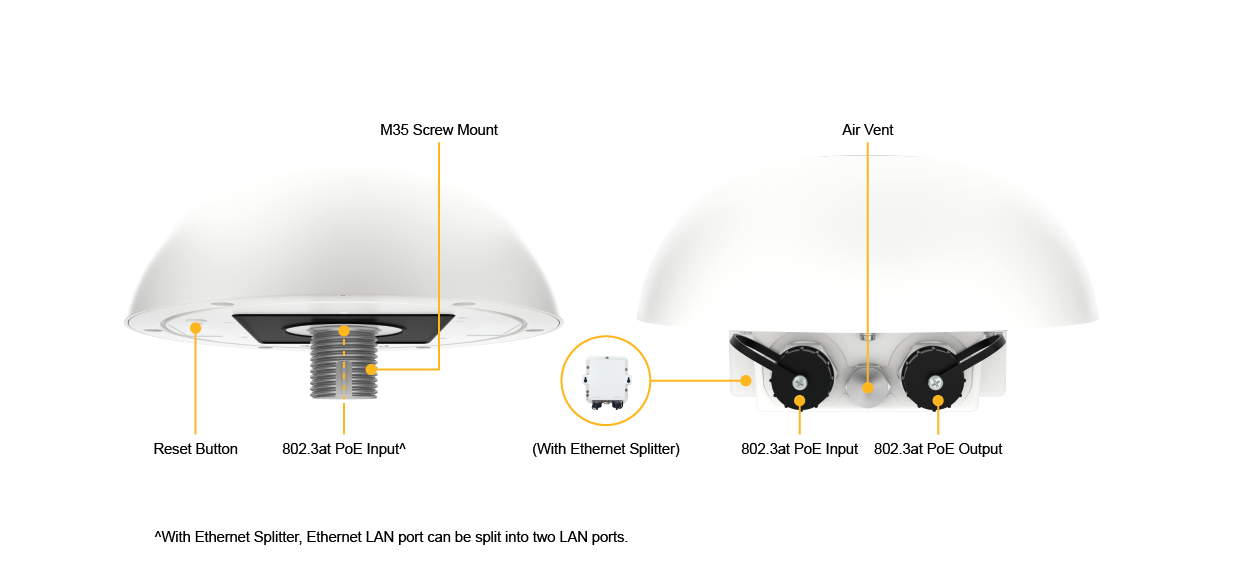

The HD2 Dome comes with an Ethernet splitter that enables an additional GE LAN output. With the splitter installed, the HD2 Dome can then be used with the included mounting bracket to fix onto any wall, or to securely tie onto any pole.
The HD2 Dome, Ethernet splitter, and the mounting bracket are all included, so you can deploy this device just about anywhere.
SIM Injector – More SIM, More Range
Together, the HD2 Dome and SIM Injector can make deployments significantly easier to set up and manage.
-
MAX HD2 DOME (LTE, LTE-A) Product Code MAX-HD2-DOM-M WAN Interface 2x Embedded LTE Modems with Redundant SIM Slots# LAN Interface 1x 10/100/1000M Ethernet Port* Downlink/Uplink Datarate 100/50Mbps (LTE)
300/50Mbps (LTE-A)
600/150Mbps (LTE-A Pro)
Enclosure Rugged outdoor IP67 Recommended Users 150 Cellular Antenna 2×2 Internal MIMO Antennas
1x Internal GPS Antenna
Included Antenna Built-In Omni Antenna
Antenna gain: 5dBiPower Input 1x Power over Ethernet 802.3at Power Consumption 20W (max.) Dimensions 4.33in. (radius) x 4.49in. (height) | 110mm (radius) x 114mm (height) Weight With Ethernet Splitter (1700 grams, 3.75 pounds)) | Without Ethernet Splitter (1200 grams, 2.65 pounds) Operating Temperature -40° – 149°F | -40° – 65°C Humidity 15% – 95% (non-condensing) Certifications FCC, CE, RoHS
Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999
RF Port Lighting Immunity – ITU-T K.20 (+/- 1.5 kV)
Package Content MAX HD2 Dome
Ethernet Splitter
Mounting Kit
SIM Injector (Optional)
SIM Injector
C14 power cord
56V PSU
Power Requirement 802.3at Warranty 1-Year Limited Warranty #SIM Injector is available separately.
*Ethernet LAN port can be split into two LAN ports using the included splitter (1x LAN 802.3af PoE out, 1x LAN 802.at PoE in).
SIM Injector. Overview
Specification Description SIM Slots 8x Active SIM Slots, Standard Size LAN Interface 4x GE, PoE 802.3at Support Power Input DC Jack/Terminal Block: 12-56V Dimensions 1.6 x 5.8 x 5 inches | 40 x 147 x 128 mm Weight 430 grams | 0.94 pounds Operating Temperature -40° – 149°F | -40° – 65°C Humidity 15% – 95% (non-condensing) -
Software Pepwave MAX Firmware WAN Support for PPPoE, Static IP, DHCP
WAN Link Health Check
Bandwidth Allowance Monitor
USB 3G/4G LTE Modem Support
IPv6 Support
Support for Dynamic DNS services
LAN DHCP Server for LAN Clients
Extended DHCP Option
DHCP Reservation
DNS Proxy for LAN Clients
VLAN on LAN Support
Load Balancing Intelligent Failover
Session Persistence
Per-Service Load Distribution
Multiple Algorithms
Weighted
Enforced
Persistence
Priority
Overflow
Least Used
Lowest Latency
Fastest Response Time
Complete VPN Solution PepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
Site-to-Site VPN
Bandwidth Aggregation
Hot Failover
256-bit AES Encryption
Pre-shared Key Authentication
Dynamic Routing
X.509 Certificate Support
PPTP VPN Server
RADIUS, LDAP Authentication
IPsec VPN (Network-to-Network) *
X.509 Certificate Support
Networking NAT and IP Forwarding
Static Routes
Port Forwarding
Many to One, One to One NAT
NAT Pool
SIP ALG, H.323 ALG
UPnP, NAT-PMP
WINS Server
VRRP HA support
Security Stateful Firewall
DoS Prevention
Web Blocking
Advanced QoS User Groups
Bandwidth Reservation
Individual Bandwidth Limit
Application Prioritization
By User Groups
SIP, HTTPS, VPN QoS
Custom Application QoS
AP Controller AP Controller Support
Wi-Fi Usage Statistics
Captive Portal Support Support for Wired and Wireless LAN Clients
Support RADIUS Authentication
Time and Usage Quotas on Open Access Mode
Built-in Customizable Splash Page
Device Management Web Administrative Interface
Command Line Interface
InControl Cloud Management
Email Notification
Active Client and Session Lists
Bandwidth Usage Statistics
Syslog Service
SNMP v1, v2c and v3
*IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.
All specifications are subject to change without notice.
-
Product Code Description ACW-112 Waterproof Ethernet Adaptor (learn more) -
Product Code Carrier Embedded Modem 4G Bands 3G Bands MAX-HD2-DOM-M-LTE-E Europe /
International /
CAT-4
2 B1, B3, B7, B8, B20 WCDMA/HSPA+/DC-HSPA+:
B1, B2, B5, B6, B8
MAX-HD2-DOM-M-LTEA-W Worldwide /
CAT-6
2 B1, B2, B3, B4, B5, B7, B8 , B12, B13,
B20, B25, B26, B29, B30, B41
WCDMA/HSPA+/DC-HSPA+:
B1, B2, B3, B4, B5, B8
MAX-HD2-DOM-M-LTEA-P Asia Pacific /
CAT-6
2 B1, B3, B5, B7, B8, B18, B19, B21,
B28, B38, B39, B40, B41
WCDMA/HSPA+/DC-HSPA+:
B1, B5, B8, B9, B19
UMTS: B6
TD-SCDMA: B39
MAX-HD2-DOM-M-LTEA-WF America / FirstNet /
CAT-12 / CAT-6
2 Cellular 1:
4G LTE-A Pro:
B1, B2, B3, B4, B5, B7, B8, B9,
B12, B13, B14, B18, B19,
B20, B26, B29, B30, B32, B41,
B42, B43, B46, B48, B66
Cellular 2:
4G LTE-A:
B1, B2, B3, B4, B5, B7, B8,
B12, B13, B20, B25, B26,
B29, B30, B41
Cellular 1:
HSPA+: B1, B2, B4, B5, B6, B8, B9, B19
Cellular 2:
WCDMA/HSPA+/DC-HSPA+:
B1, B2, B3, B4, B5, B8
MAX-HD2-DOM-M-LTEA-WK Global* /
CAT-12 / CAT-6
2 Cellular 1:
4G LTE-A Pro:
B1, B2, B3, B4, B5, B7, B8, B9,
B12, B13, B18, B19, B20, B26,
B28, B29, B30, B32, B41, B42,
B43, B46, B48, B66
Cellular 2:
4G LTE-A:
B1, B2, B3, B4, B5, B7, B8,
B12, B13, B20, B25, B26, B29,
B30, B41
Cellular 1:
HSPA+: B1, B2, B4, B5, B6, B8, B9, B19
Cellular 2:
WCDMA/HSPA+/DC-HSPA+: B1, B2, B3, B4, B5, B8
* China & HK TD LTE are excluded.
Product Code Description SIM-BK8-4E-56V SIM Injector, 8x SIM cards capacity, 4x 10/100/1000 LAN ports, 56V DC
