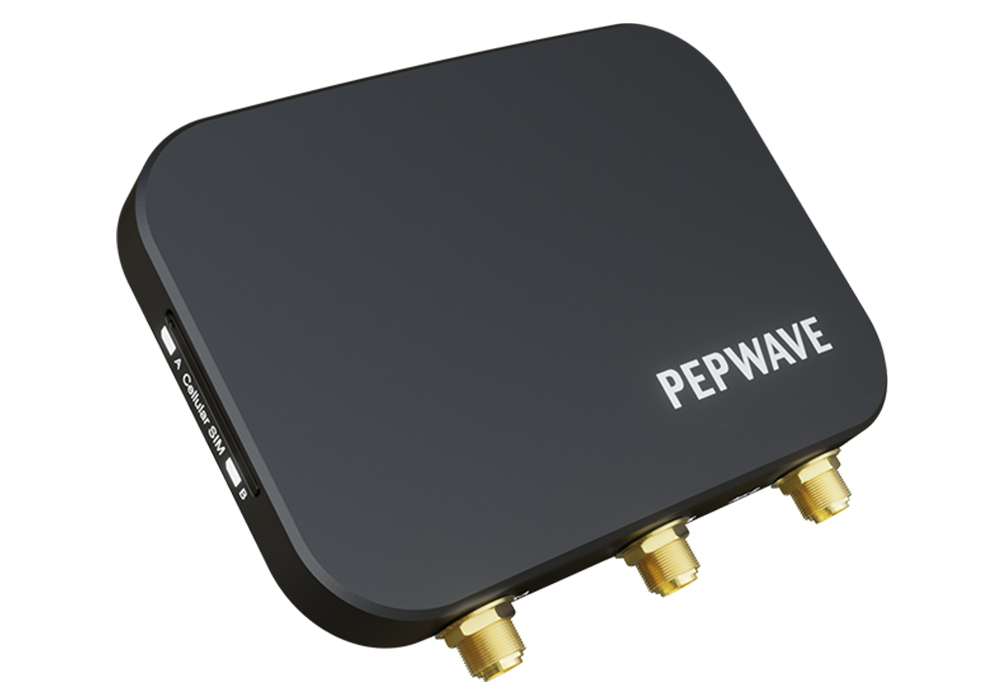

Cellular WAN Interfaces	Single LTE Modem

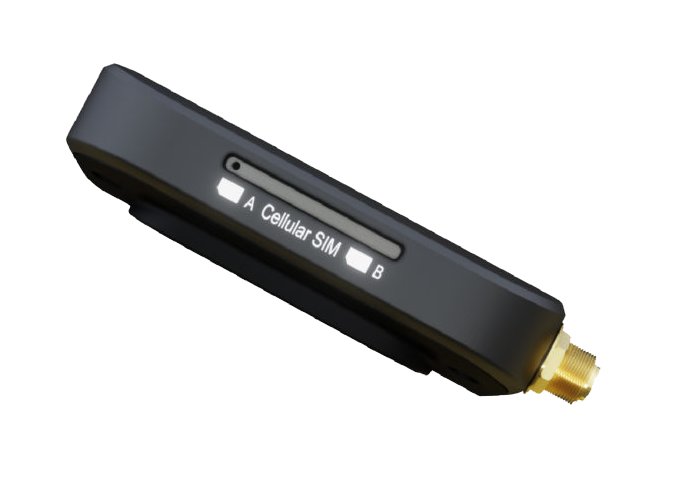

Redundant SIM Slot	Yes
Downlink/Uplink Datarate	CAT-12: 600 Mbps/150 Mbps CAT-6: 300Mbps/50Mbps

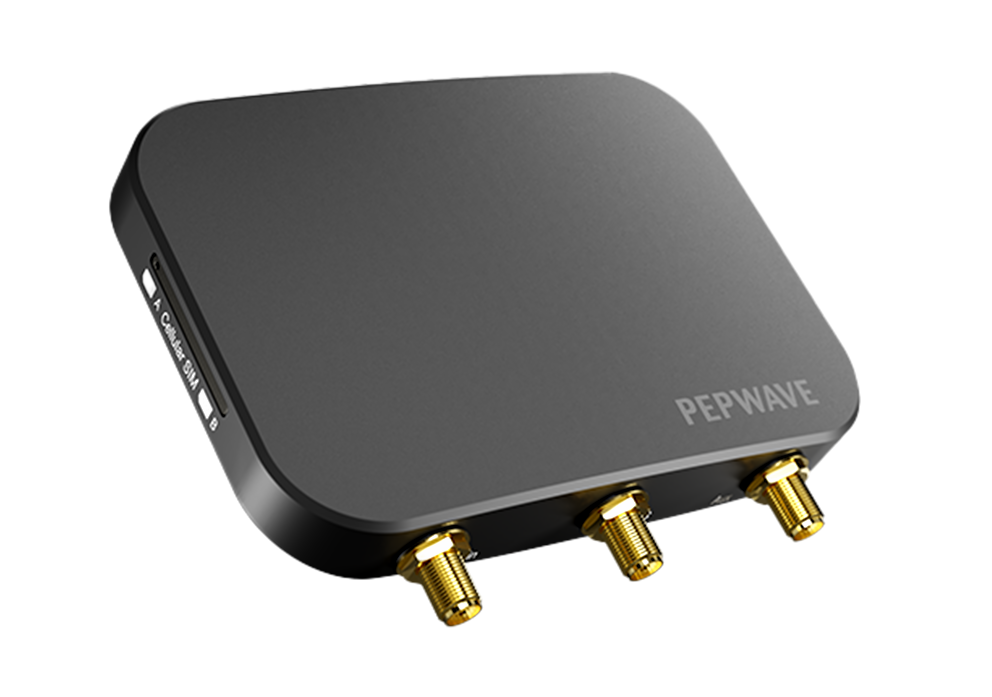

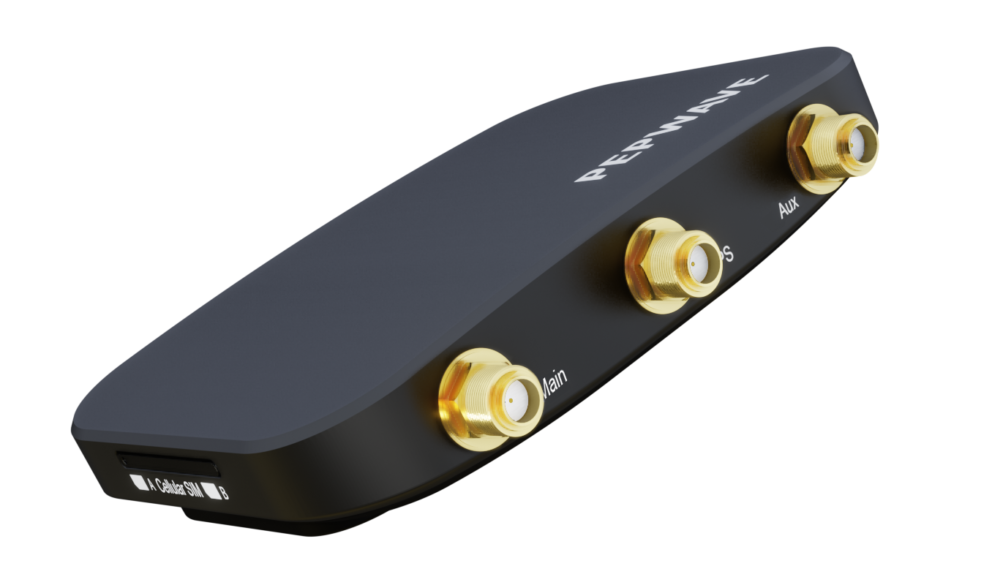

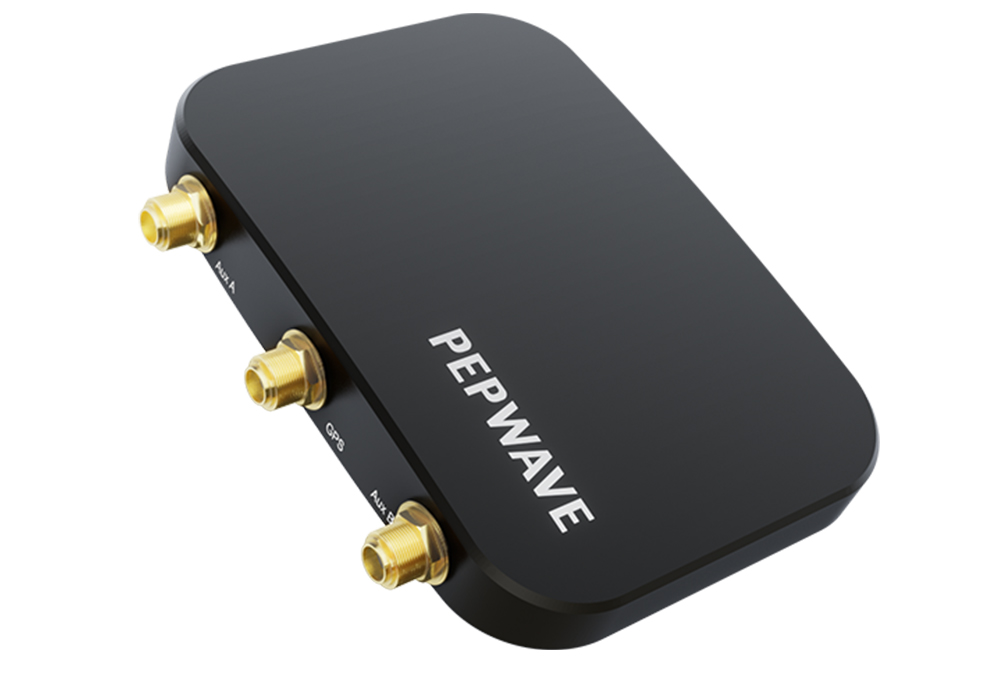

Antenna Connectors	2x SMA Cellular, 1x SMA GPS
Power Input	5V USB-C
Power Consumption	5W (nominal), 8W (max.)
SIM Slots	2
SIM Card Size	Nano-SIM (4FF)
Dimensions	3.9 x 2.8 x 0.6 inches / 100 x 71 x 15 mm
Weight	120g
Operating Temperature	32° – 104°F / 0° – 40°C
Humidity	15% – 95% (non-condensing)
Warranty	1-Year Limited Warranty
Certifications	FCC, IC
Package Content	MAX Adapter, 2x 2dBi 4G LTE Antennas, USB-C Female to USB-A Male Adapter, USB-C power cable

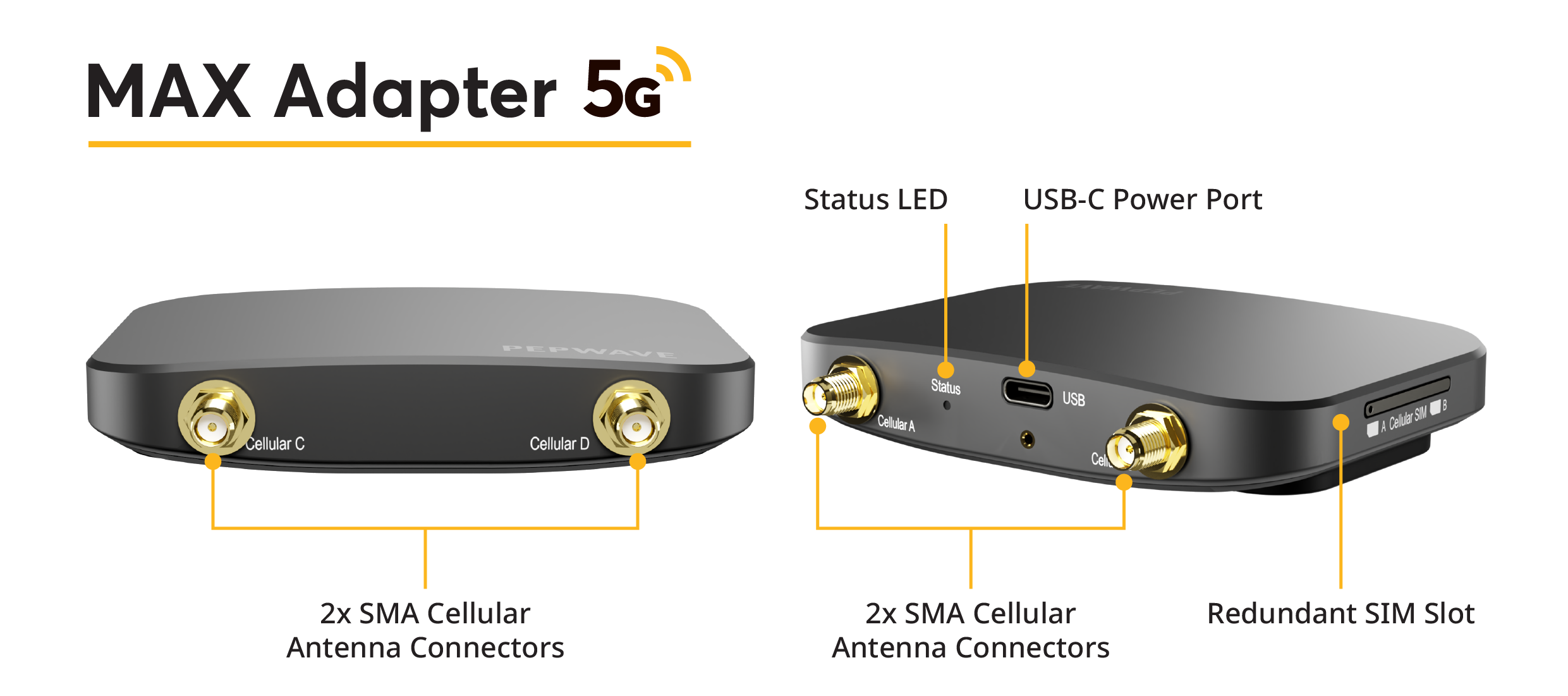

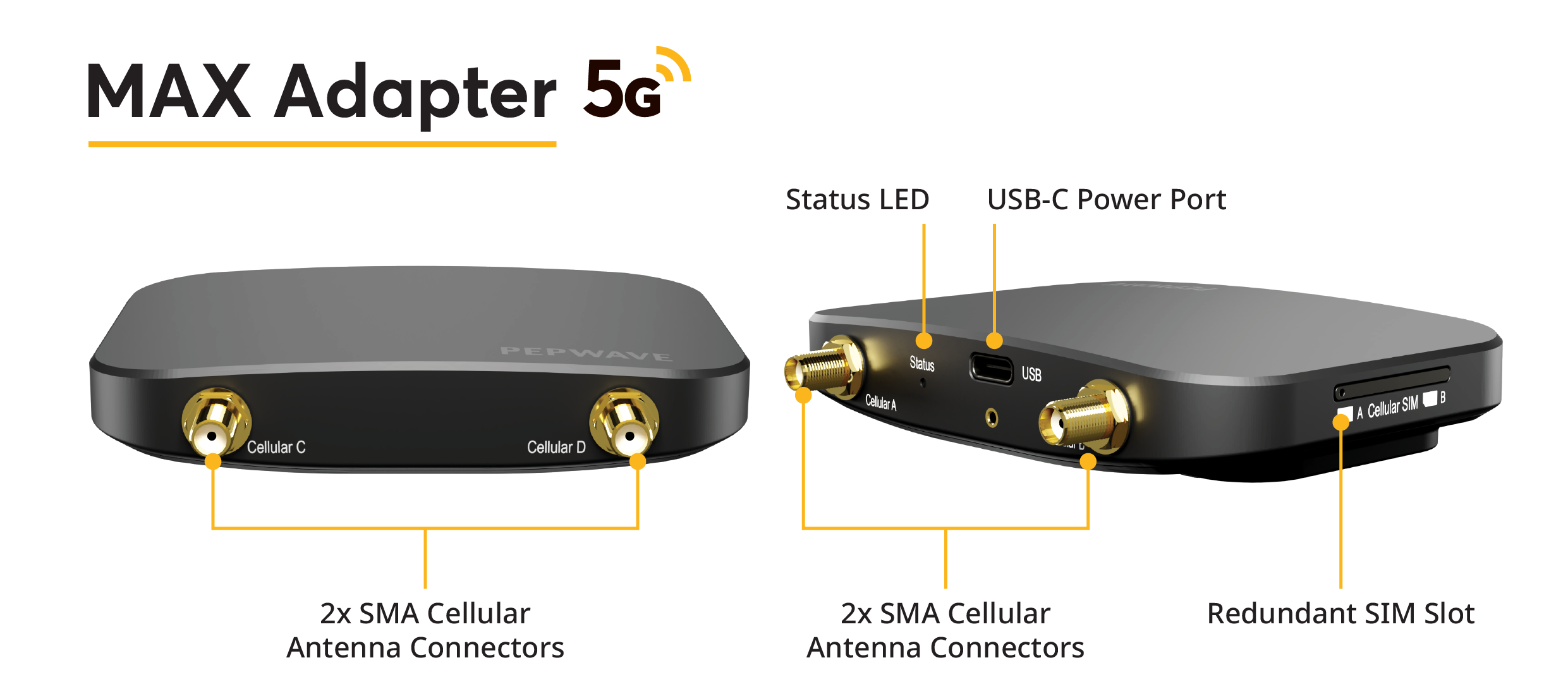

Cellular WAN Interfaces	Single 5G Modem
Redundant SIM Slot	Yes
Downlink/Uplink Datarate	5G: 4 Gbps / 700 Mbps LTE CAT-20: 2 Gbps / 150 Mbps
Antenna Connectors	4x SMA Cellular

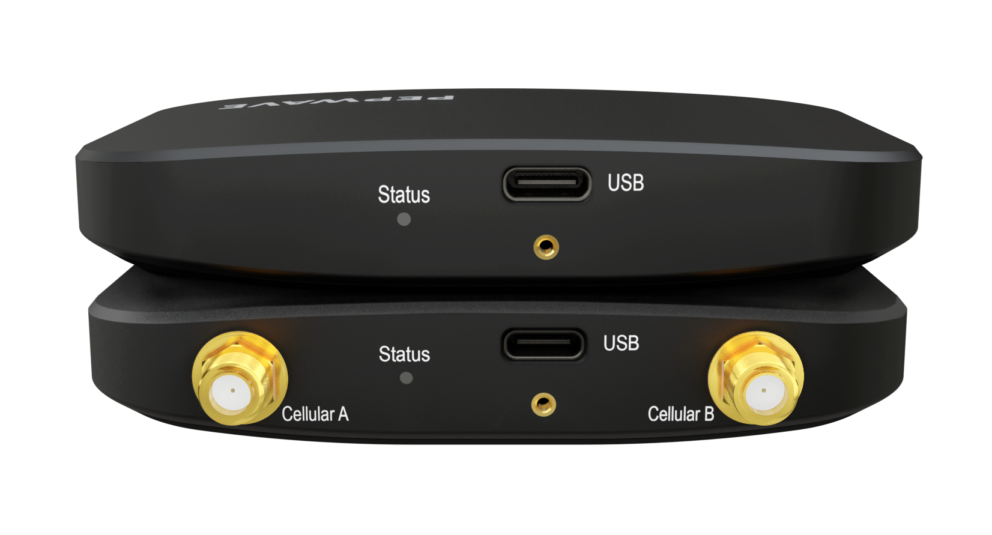

Power Input	5V USB-C
Power Consumption	5W (nominal), 8W (max.)
SIM Slots	2
SIM Card Size	Nano-SIM (4FF)
Dimensions	3.9 x 2.8 x 0.6 inches / 100 x 71 x 15 mm
Weight	120g
Operating Temperature	32° – 104°F / 0° – 40°C
Humidity	15% – 95% (non-condensing)
Warranty	1-Year Limited Warranty
Certifications	FCC, CE, IC
Package Content	MAX Adapter 5G, 4x 2dBi 4G LTE Antennas, USB-C Female to USB-A Male Adapter, USB-C power cable

The MAX Adapter is compatible with models which have a USB WAN port. To set up and use your MAX Adapter with a compatible device, you must install operating Firmware 8.1.1 or higher.

Full list of devices compatible with the MAX Adapter (LTE):

• Balance series: 20, 20X, 30 LTE, 30 Pro, One, 210, 310 5G (HW2), 310 Fiber 5G (HW2), 310X, 305, 380, 380X (HW2), 580, 580X (HW2), 710, 1350, 2500, 2500 EC, MFA500, SDX, SDX Pro (HW2)
• Surf SOHO series: Surf SOHO MK3
• B One series: B One, B One 5G
• MAX series: BR2 Pro, BR1 ENT, HD2, HD2 Mini, HD4, MBX, MBX Mini
• MFA series: HD2/HD4 with Media, MFA 200, MFA500, MFA 750



Full list of devices compatible with the MAX Adapter (5G):

• Balance series: 20X, 30 LTE (HW3), 30 Pro, One, 210 (HW4-5), 310 5G (HW2), 310 Fiber 5G (HW2), 310X, 305 (HW2), 380 (HW6), 380X, 580, 580X, 710 (HW3), 1350 (HW2), 2500, 2500 EC, MFA500, SDX, SDX Pro (HW2)
• MAX series: BR2 Pro, BR1 ENT, HD2 (HW5-6), HD2 Mini, HD4, MBX, MBX Mini
• MFA series: HD2/HD4 with Media, MFA 200, MFA500, MFA 750

Q. What is the MAX Adapter and how do I use it?



The MAX Adapter is a state-of-the-art cellular modem by Peplink, it is not a standalone router. It can be used in two ways to:

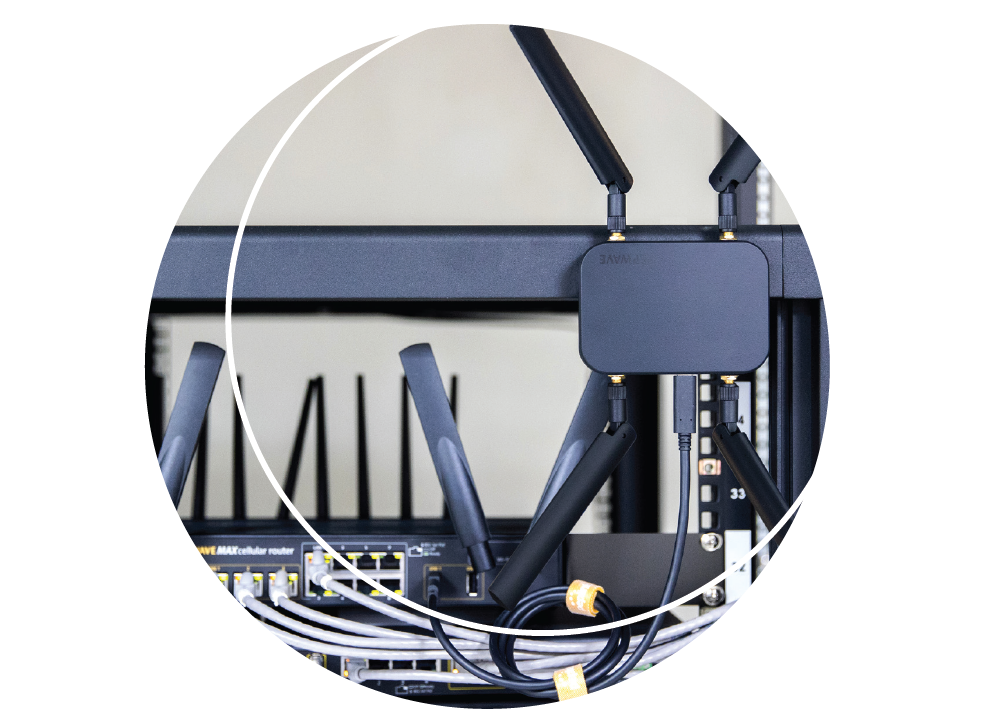

• Add an additional cellular WAN to your existing Peplink device which has a USB WAN port. Check here to see how it works.

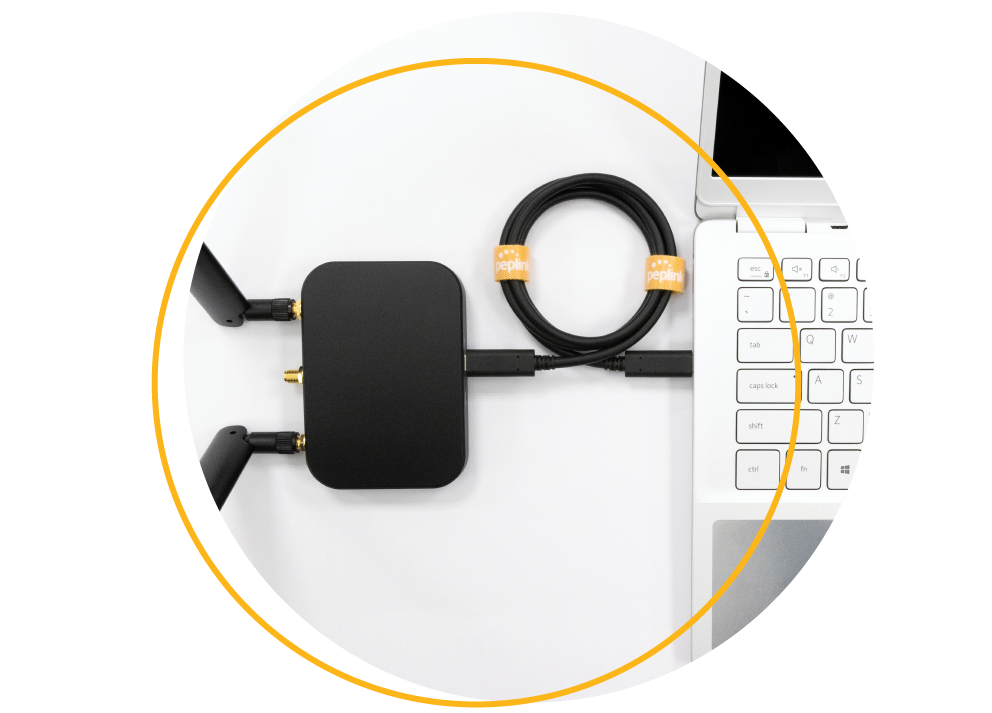

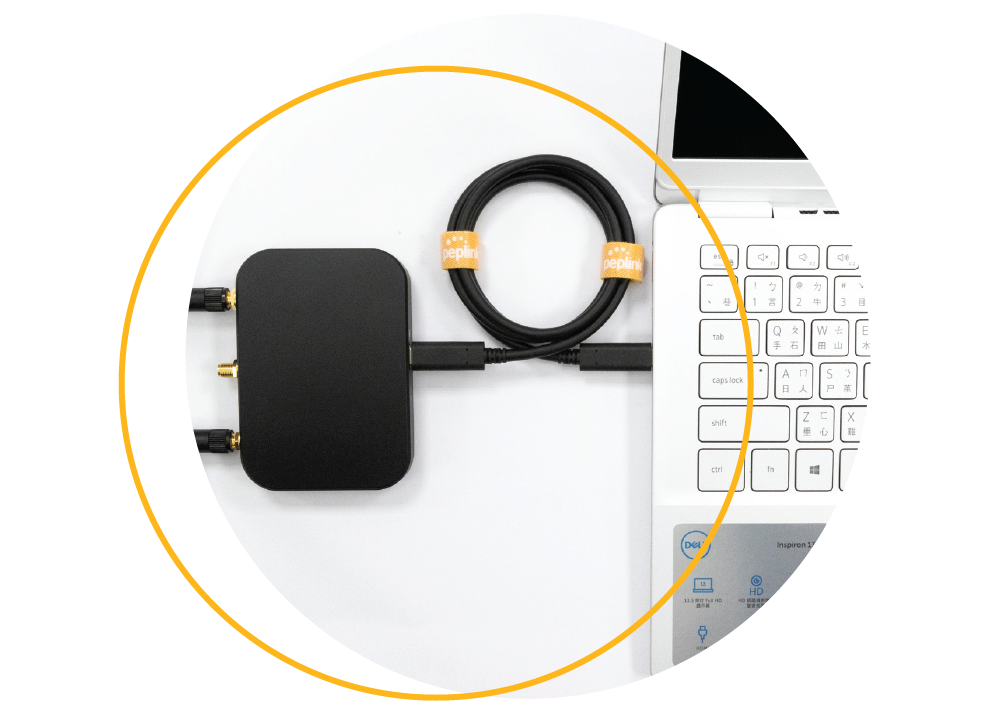

• Provide 5G or LTE connectivity to your Windows or Linux devices on-the-go, acting as a cellular modem.



Q. Is the MAX Adapter right for me?



Are you in need of a solution that can add an additional 5G/LTE WAN to existing Peplink products via a USB WAN port, supports SpeedFusion VPN, offers external antenna support, has dual SIM slots, and is something small but not a full router? Then the MAX Adapter is for you!



Q. Do antennas come included?



Four LTE antennas are included but the GPS antenna must be purchased separately.



Q. Can I pair my MAX Adapter with my Mac?



Currently, our MAX Adapter is only compatible with Windows & Linux devices.



Q. Does the MAX Adapter have a built-in battery?



No, the MAX Adapter is powered via USB-C.



Q. My MAX Transit has a USB port but it’s not compatible with the MAX Adapter. Why?



The MAX Transit’s USB port only provides power input, not data. For compatibility, the device must contain a USB WAN port.



MAX Adapter (LTE)



Product Code	Carrier/Category	4G Bands	3G Bands
MAX-ADP-LTEA-K-T	Global CAT-12	B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66	HSPA+: B1, B2, B4, B5, B6, B8, B9, B19
MAX-ADP-LTEA-R-T	America^ CAT-12	B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, B48, B66	HSPA+: B1, B2, B4, B5, B6, B8, B9, B19
MAX-ADP-LTEA-W-T	Global CAT-6	B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20, B25, B26, B29, B30, B41	WCDMA/HSPA+/DC-HSPA+: B1, B2, B3, B4, B5, B8

^ US Carrier Certifications: AT&T, Verizon, FirstNet

MAX Adapter (5G)



Product Code	Carrier/Category	5G Bands	LTE Bands
MAX-ADP-5GH-T	Global / 5G*	5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32,B34, B38, B39, B40, B41, B42, B46, B48, B66, B71

* US Carrier Certifications: AT&T, T-Mobile, US Cellular, Verizon (C-Band), FirstNet

Product Code	Description
ACW-232	GPS Antenna *Not applied to MAX Adapter 5G
SVL-MAX-ADP-LTEA-RK-1Y	1-Year EssentialCare for MAX Adapter LTEA
SVL-MAX-ADP-LTEA-RK-2Y	2-Year EssentialCare for MAX Adapter LTEA
SVL-MAX-ADP-5G-1Y	1-Year EssentialCare for MAX Adapter 5G
SVL-MAX-ADP-5G-2Y	2-Year EssentialCare for MAX Adapter 5G
ICS-012	1-Year InControl 2 Subscription
ICS-024	2-Year InControl 2 Subscription
ECP-A-1Y	EssentialCare+ A (1-Year), for LTEA (CAT-6)
ECP-A-2Y	EssentialCare+ A (2-Year), for LTEA (CAT-6)
ECP-A-4Y	EssentialCare+ A (4-Year), for LTEA (CAT-6)
ECP-B-1Y	EssentialCare+ B (1-Year), for LTEA (CAT-12)
ECP-B-2Y	EssentialCare+ B (2-Year), for LTEA (CAT-12)
ECP-B-4Y	EssentialCare+ B (4-Year), for LTEA (CAT-12)
ECP-D-1Y	EssentialCare+ D (1-Year), for 5G
ECP-D-2Y	EssentialCare+ D (2-Year), for 5G
ECP-D-4Y	EssentialCare+ D (4-Year), for 5G

MAX Adapter (LTE)

• MAX Adapter
• 2x LTE Antennas (ACW-813)
• USB-C Female to USB-A Male Adapter
• USB-C Power Cable



MAX Adapter (5G)

• MAX Adapter 5G
• 4x LTE/5G LTE Antennas (ACW-235)
• USB-C Female to USB-A Male Adapter
• USB-C Power Cable
