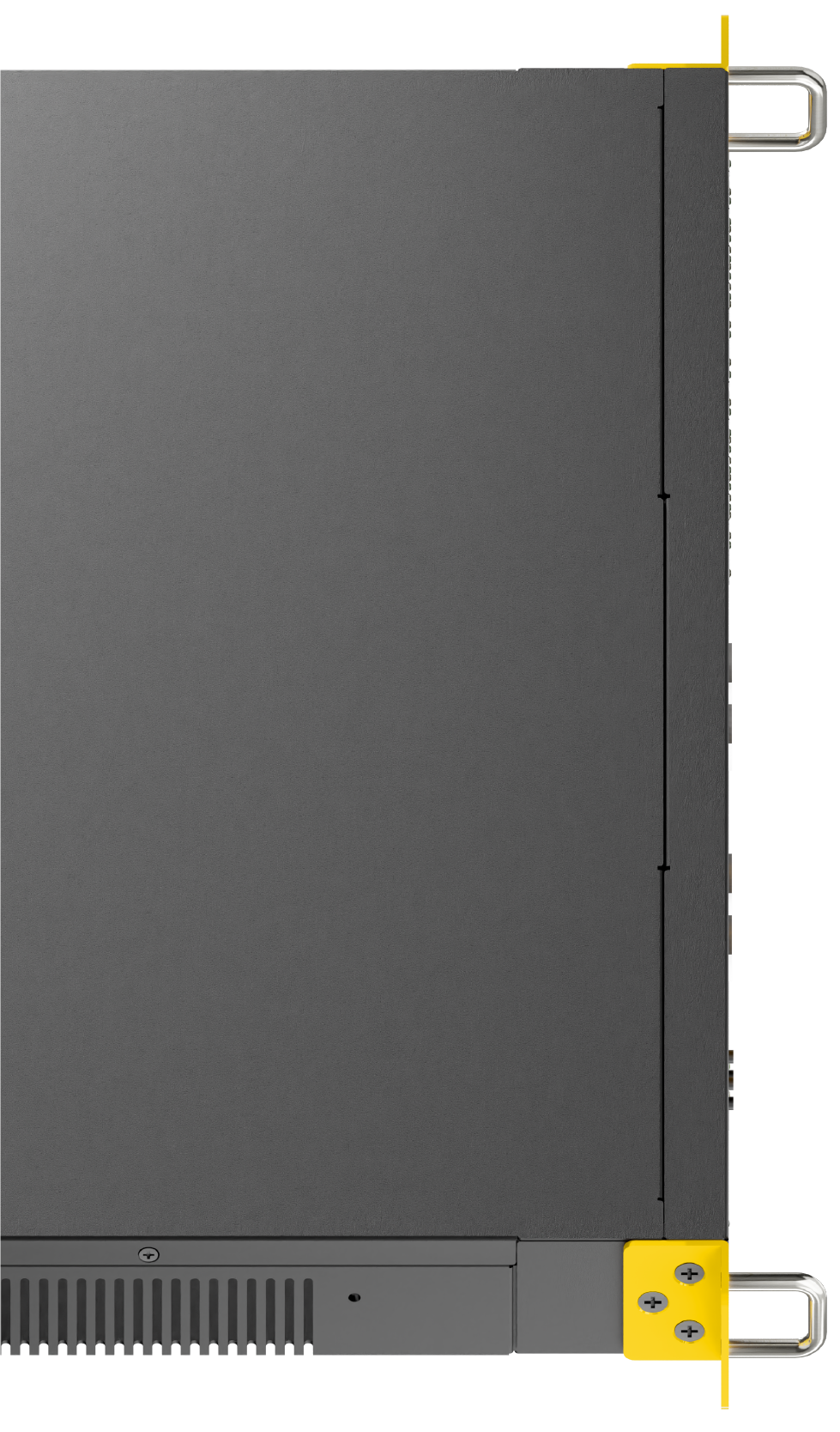

Balance 2500 EC

Edge Computing at Its Peak.

b2500ec-back-outline
b2500ec-back-outline-mobile
b2500ec-ortho-02
b2500ec-ortho-02-mobile
more-than-triple-speed
more-than-triple-speed-mobile
high-performing-powerhouse
high-performing-powerhouse-mobile
dual-power-supplies
dual-power-supplies-mobile
dual-power-supplies-text
dual-power-supplies-text-mobile

The Premier choice for Edge Computing

The Premier choice for Edge Computing

Edge computing improves speeds by processing data locally before sending it back to your headquarters. And with 1 TB of built-in storage, this allows the Balance 2500 EC to handle whatever you throw at it.

wan-ports-for-all-your-needs
wan-ports-for-all-your-needs-mobile
wan-ports-for-all-your-needs-pic
wan-ports-for-all-your-needs-pic-mobile

Ports and Connections

Gallery

  • Product Overview & Comparison Table

  •
    SoftwarePeplink Balance Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    PING
    DNS Lookup
    HTTP
    Bandwidth Allowance Monitor
    IPv6 Support
    USB 4G/3G Modem Support
    Support for Dynamic DNS services
    changeip.com
    dyndns.org
    no-ip.org
    tzo.com
    DNS-O-Matic
    WAN Port Convertible into LAN Port
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    -Weighted
    -Enforced
    -Persistence
    -Priority
    -Overflow
    -Least Used
    -Lowest Latency
    SecurityDoS Prevention
    Stateful Firewall
    Web Blocking
    Complete VPN SolutionSpeedFusion VPN/SpeedFusion Bandwidth Bonding
    -Site-to-Site VPN
    -Bandwidth Aggregation
    -Hot Failover
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    -Dynamic Routing
    -X.509 Certificate Support
    PPTP/L2TP/OpenVPN Server
    -Local User, LDAP, RADIUS, Active Directory Authentication
    IPsec VPN (Network-to-Network)
    -X.509 Certificate Support
    GRE Tunnel (Network-to-Network)
    Advanced QoS User Groups
    -Bandwidth Reservation
    -Individual Bandwidth Limit
    Application Prioritization
    -By User Groups
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    BGP, OSPFv2 and RIPv2 Support
    Bonjour Forwarding
    AP Controller Support for Pepwave AP Series
    Auto AP Discovery
    Auto AP Firmware Management
    AP Profile Configuration
    Wi-Fi Usage Statistics
    Captive PortalSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Support LDAP Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    DNSBuilt-in Authoritative DNS
    -Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT Records
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
    Power RequirementsUniversal Input 100V – 240V AC
  • Product CodeProduct NameDescription
    BPL-2500-ECBalance 2500 ECEquipped with 4x 10G SFP+ ports, 16x (GE) Ethernet ports and 1TB SSD. SFP and Ethernet ports can be configured as WAN/LAN.
    Supports Edge Computing. Capable of running Native App (Python), containers (Docker), and hypervisors (KVM).

  • Product Code

    Description

    SVL-730

    EssentialCare (1-Year) for Balance 2500 EC

    SVL-612

    EssentialCare (2-Year) for Balance 2500 EC

    ECP-BPL-2500-1Y

    		 EssentialCare+ (1-Year) for Balance 2500

    ECP-BPL-2500-2Y

    		 EssentialCare+ (2-Year) for Balance 2500

    ECP-BPL-2500-3Y

    		 EssentialCare+ (3-Year) for Balance 2500
    LIC-VWAN Activate 1x Virtual WAN
    LIC-2VWAN Activate 2x Virtual WAN
    LIC-3VWAN Activate 3x Virtual WAN
    • 1x Balance 2500 EC
    • 2x Power Cords
    • 2x Rack Unit Rails
    • 1 Pair of Mounting Brackets
