MAX HD2

Dual 4G LTE Mobile Router

The MAX HD2 gives you blazing fast connectivity on the road with dual embedded cellular modems and SpeedFusion, plus a built-in 4-port GE switch to reduce clutter in your mobile deployments.

Dual 4G LTE Mobile Router MAX HD2 #12
Dual 4G LTE Mobile Router MAX HD2 #12

Use Cases

Public Safety & First Responders

Passenger Wi-Fi

Telemedicine

EXPLORE OUR SOLUTIONS

Compatible With:

  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #10
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #3
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #5
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #8
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #4
  • 2.5Gbps Quad Cellular Gigabit LTE Mobile PowerhouseMAX HD4 MBX #9

Compatible with all major carriers. Certified on Verizon.

Simplify your Deployments

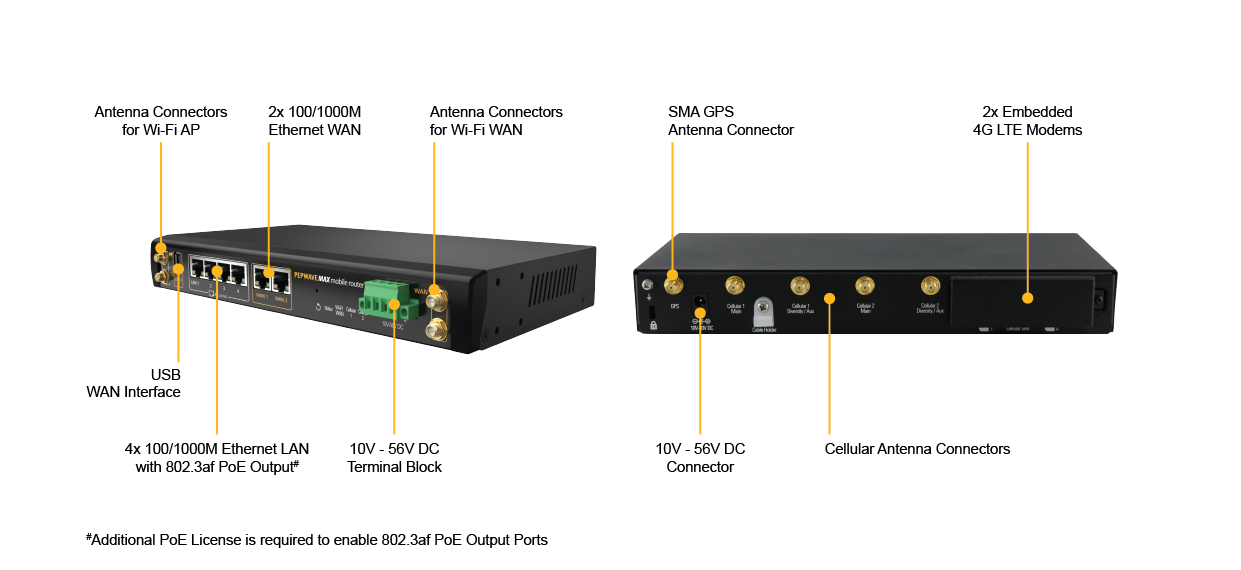

Cut down on cabling and simplify your deployments with MAX HD2. The HD2 includes a built-in 4-port GE LAN switch, reducing clutter and the need for extra equipment. As well as a terminal block for secure power installation in vehicles and other locations.

Dual 4G LTE Mobile Router MAX HD2 #3

802.11ac Wi-Fi AP

Terminal Block for Secure Power Supply

Built-in 4-Port GE Switch

Dual Cellular for Multiple Carriers

MAX HD2 has two embedded cellular modems and dual SIM slots that allows you to use the same or different cellular providers for bandwidth bonding or for eliminating blind spots.

Certified Toughness

In addition to rugged metal enclosure, the MAX HD2 is certified on:

Shock and vibration resistance

(EN 61373:1999 IEC 61373:1999)

RF Port Lightning Immunity

(ITU-T K.20 (+/- 1.5 kV))

Railway Applications

(EN 50155)

Electromagnetic Compatibility

(EN 61000)

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.

Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data stream.

LEARN MORE

FirstNet Ready

FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity. The HD2 supports band 14, providing additional coverage as the situation demands.

Cloud Based SD-WAN Network Management Solution InControl 2

Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device. InControl 2 is our cloud based device management, monitoring, and reporting tool designed specifically for Peplink and Pepwave devices.

Visit InControl 2 Page

Customizable Captive Portal

Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS server.

With Social Wi-Fi Hotspot support, you can also receive valuable demographic data from your users.

Dual 4G LTE Mobile Router MAX HD2 #6

#PowerofPeplink

Dual 4G LTE Mobile Router MAX HD2 #7
Dual 4G LTE Mobile Router MAX HD2 #8
Dual 4G LTE Mobile Router MAX HD2 #9
Dual 4G LTE Mobile Router MAX HD2 #10
Dual 4G LTE Mobile Router MAX HD2 #11

  • Product Overview & Comparison Table

  •
    SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    USB 3G/4G LTE Modem Support
    IPv6 Support
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    Weighted
    Enforced
    Persistence
    Priority
    Overflow
    Least Used
    Lowest Latency
    Fastest Response Time
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data
    GPS eXchange Format (GPX)
    Up to Seven Days
    Fleet Management with InControl 2
    Complete VPN SolutionSpeedFusion VPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
    Site-to-Site VPN
    Bandwidth Aggregation
    Hot Failover
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    X.509 Certificate Support
    PPTP/L2TP/OpenVPN Server
    Local User, LDAP, RADIUS, Active Directory Authentication
    IPsec VPN (Network-to-Network)
    X.509 Certificate Support
    GRE Tunnel (Network-to-Network)
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    VRRP HA support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Advanced QoSUser Groups
    Bandwidth Reservation
    Individual Bandwidth Limit
    Application Prioritization
    By User Groups
    SIP, HTTPS, VPN QoS
    Custom Application QoS
    AP ControllerAP Controller Support
    Wi-Fi Usage Statistics
    Captive Portal SupportSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client and Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
    Package ContentMAX HD2
    12V3A Power Supply (ACW-602)
    4x 5dBi Wi-Fi Antennas (ACW-341)
    1x GPS Active Antenna (ACW-232)
    4x 2dBi 4G LTE Antennas (4G LTE)
    (ACW-813)
    4x Magnetic RP-SMA Adaptor (ACW-800)
    1 Pair of Mounting Brackets (ACW-721)

  • Product CodeDescription
    ACW-622Includes 1x 56V Power Supply
    Enables 802.3at/af PoE Output Ports (PoE License automatically applied after kit purchase)
    MAX-HD-020-SPFActivates 20 SpeedFusion VPN/SpeedFusion Peers
    FIPS-LC-HD2FIPS License for HD2
    ECP-MAX-HD2-LTEA-1YEssentialCare+ (1-Year) for MAX HD2 LTEA
    ECP-MAX-HD2-LTEA-2YEssentialCare+ (2-Year) for MAX HD2 LTEA
    ECP-MAX-HD2-LTEA-4YEssentialCare+ (4-Year) for MAX HD2 LTEA
    SVL-4361-Year EssentialCare for MAX HD2 LTEA
    SVL-5282-Year EssentialCare for MAX HD2 LTEA

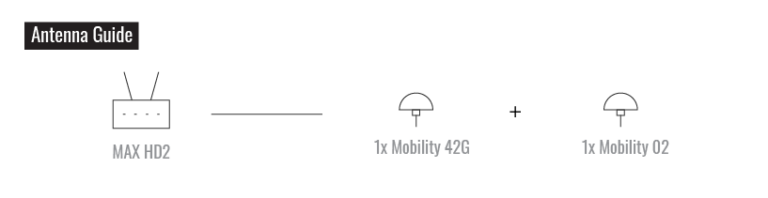

    ANT-MB-42G-S-W-67-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White)
    ANT-MB-42G-S-B-67-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (Black)
    ANT-MB-02-R-W-62×2 MIMO Wi-Fi Dual Band Antenna (White)
    ANT-MB-02-R-B-62×2 MIMO Wi-Fi Dual Band Antenna (Black)
    LIC-VWANActivate 1x Virtual WAN
    LIC-2VWANActivate 2x Virtual WAN
    LIC-3VWANActivate 3x Virtual WAN

  • Product CodeCarrierEmbedded Modem4G Bands3G Bands
    MAX-HD2-LTE-E-TEurope /
    International /
    CAT-4
    		24G LTE:
    B1, B3, B5, B7, B8, B20, B38 (TDD), B40(TDD),
    B41 (TDD)
    		WCDMA/HSPA+/DC-HSPA+:
    B1, B5, B8
    MAX-HD2-LTEA-W-TWorldwide /
    CAT-6
    		24G LTE-A:
    B1, B2, B3, B4, B5, B7, B8, B12, B13,B20, B25,
    B26, B29, B30, B41
    		WCDMA/HSPA+/DC-HSPA+:
    B1, B2, B3, B4, B5, B8
    MAX-HD2-LTEA-P-TAsia Pacific /
    CAT-6
    		24G LTE-A:
    B1, B3, B5, B7, B8, B18, B19, B21, B28, B38,
    B39, B40, B41
    		WCDMA/HSPA+/DC-HSPA+:
    B1, B5, B8, B9, B19
    UMTS: B6
    TD-SCDMA: B39
    MAX-HD2-LTEA-WF-TAmerica / FirstNet /
    CAT-12 / CAT-6
    		2Cellular 1:
    4G LTE-A Pro:
    B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14,
    B18, B19, B20, B26, B29, B30, B32, B41, B42,
    B43, B46,B48, B66

    Cellular 2:
    4G LTE-A:
    B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20,
    B25, B26, B29, B30, B41
    		Cellular 1:
    HSPA+: B1, B2, B4, B5, B6, B8, B9, B19

    Cellular 2:
    WCDMA/HSPA+/DC-HSPA+: B1, B2, B3, B4, B5, B8
    MAX-HD2-LTEA-WK-TGlobal* /
    CAT-12 / CAT-6
    		2Cellular 1:
    4G LTE-A Pro:
    B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18,
    B19, B20, B26, B28, B29, B30, B32, B41, B42,
    B43, B46, B48, B66

    Cellular 2:
    4G LTE-A:
    B1, B2, B3, B4, B5, B7, B8 , B12, B13, B20,
    B25, B26, B29, B30, B41
    		Cellular 1:
    HSPA+: B1, B2, B4, B5, B6, B8, B9, B19

    Cellular 2:
    WCDMA/HSPA+/DC-HSPA+: B1, B2, B3, B4, B5, B8
    • MAX HD2
    • 12V3A Power Supply (ACW-602)
    • 4x 2LTE Antennas (ACW-813)
    • 4x Wi-Fi Dual Band Antennas (ACW-341)
    • 4x Wi-Fi Antenna Extender with Magnetic Base (ACW-800)
    • 1 Pair of Mounting Brackets kit (ACW-721)
    • 1x GPS Antenna (ACW-232)
