Dome Pro LR

Supercharge Your Maritime Connectivity

Sail Away but
Stay Close and Connected

With the Dome Pro LR, maritime connectivity reaches new heights and extends over greater distances. Housing dual 5G modems and high-gain antennas to support virtually any band around the world, the Dome Pro LR achieves reliable long range outdoor connectivity with reported ranges of over 25 miles / 40 kilometers* from the coastline.

*Range may vary depending on the deployment environment



Fit Anywhere, Bond Any WAN

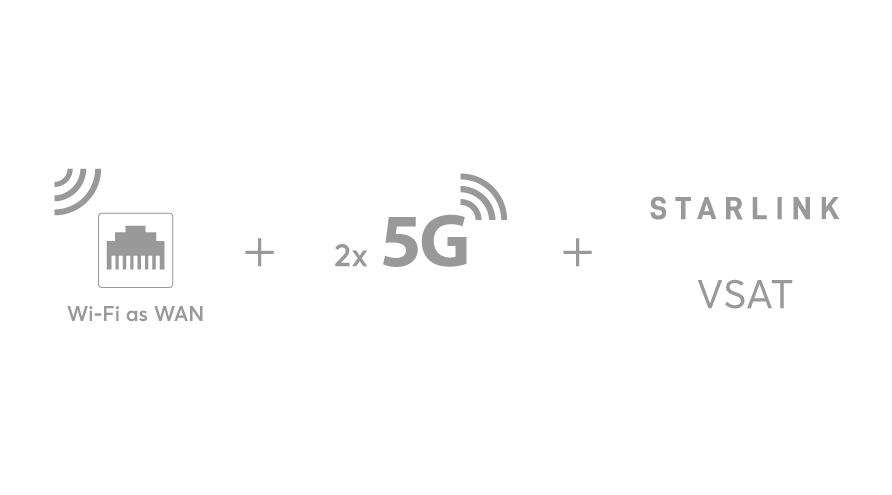

Use the Dome Pro LR’s Wi-Fi as WAN support to leverage existingWi-Fi networks for another source of connectivity.

Pair the Wi-Fi and dual 5G connections with an added Starlink or VSAT link using SpeedFusion’s Bandwidth Bonding for higher reliability, or experience no more interruptions with Hot Failover.


SIM-pler Management

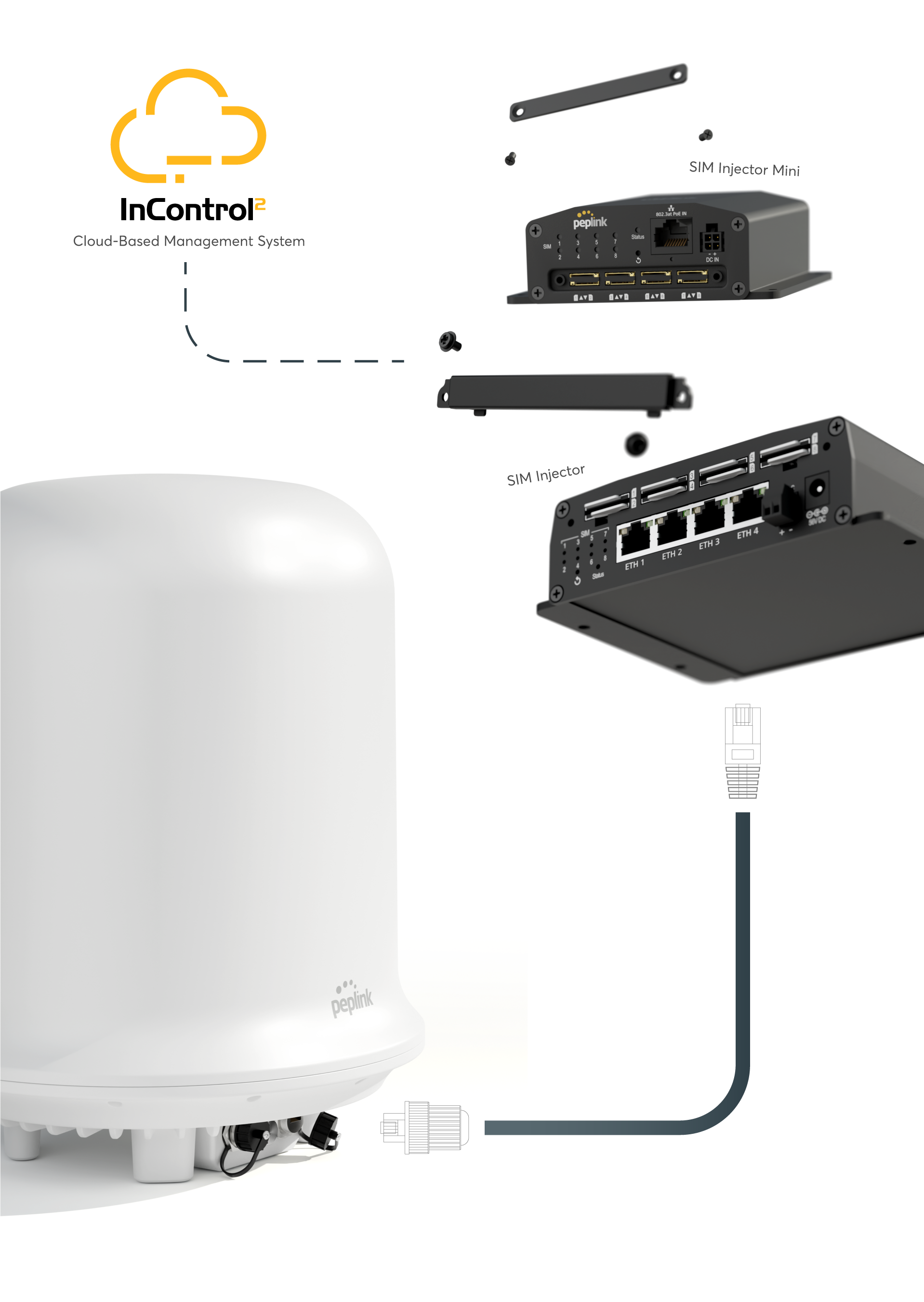

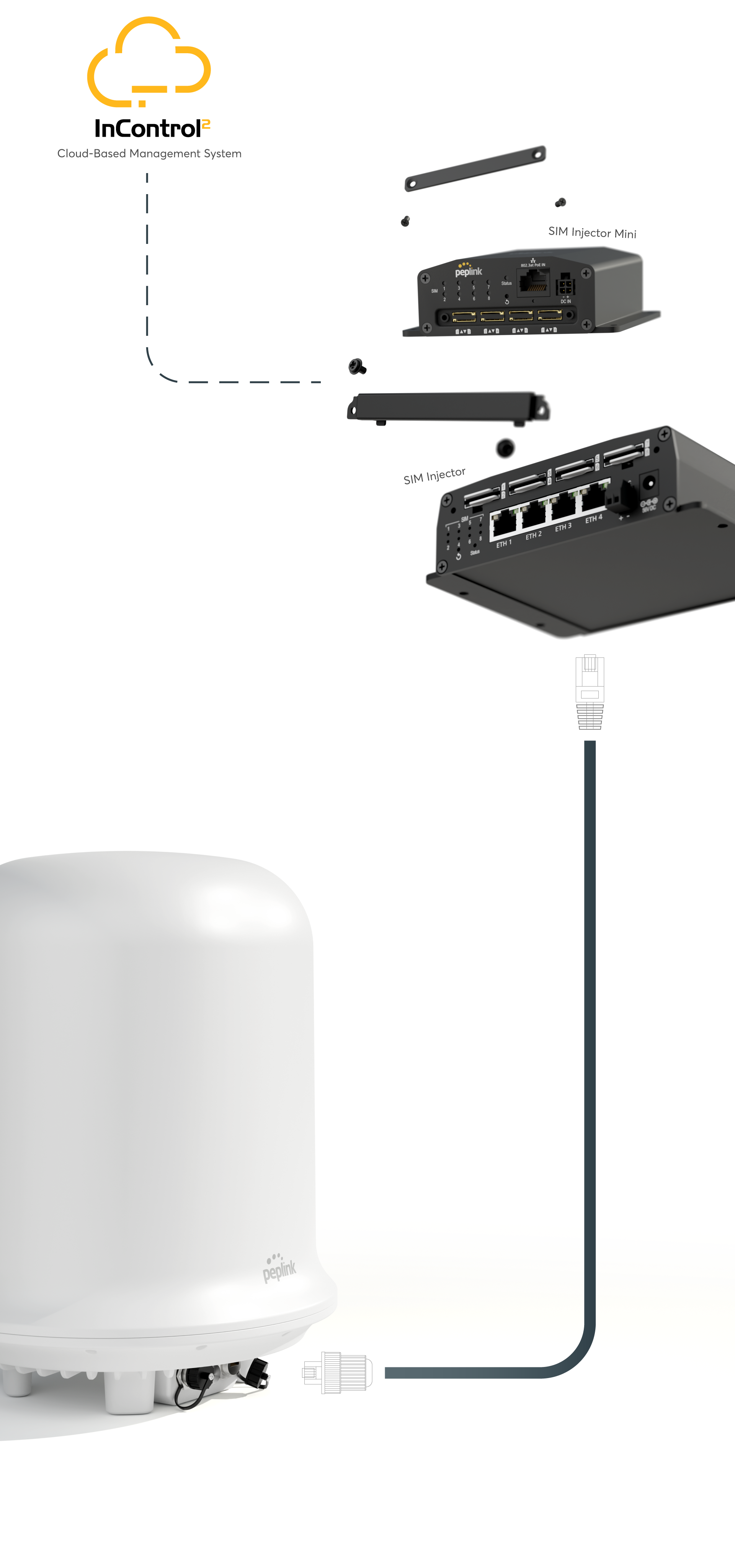

Gain flexibility while managing your network with ease. Connect an Ethernet cable between the Dome Pro LR and the SIM Injector or SIM Injector Mini for up to an additional 8 physical SIMs.

For complete accessibility and centralized remote network management, monitor your network with Peplink’s cloud-based management system, InControl 2.

SIM-pler Management SIM-pler Management SIM-pler Management

Seamless Deployment

The Dome Pro LR combines a router and integrated antennas within a single enclosure, ensuring minimal cable loss and delivering optimal performance. Additionally, powering it up is made convenient with just a single cable.

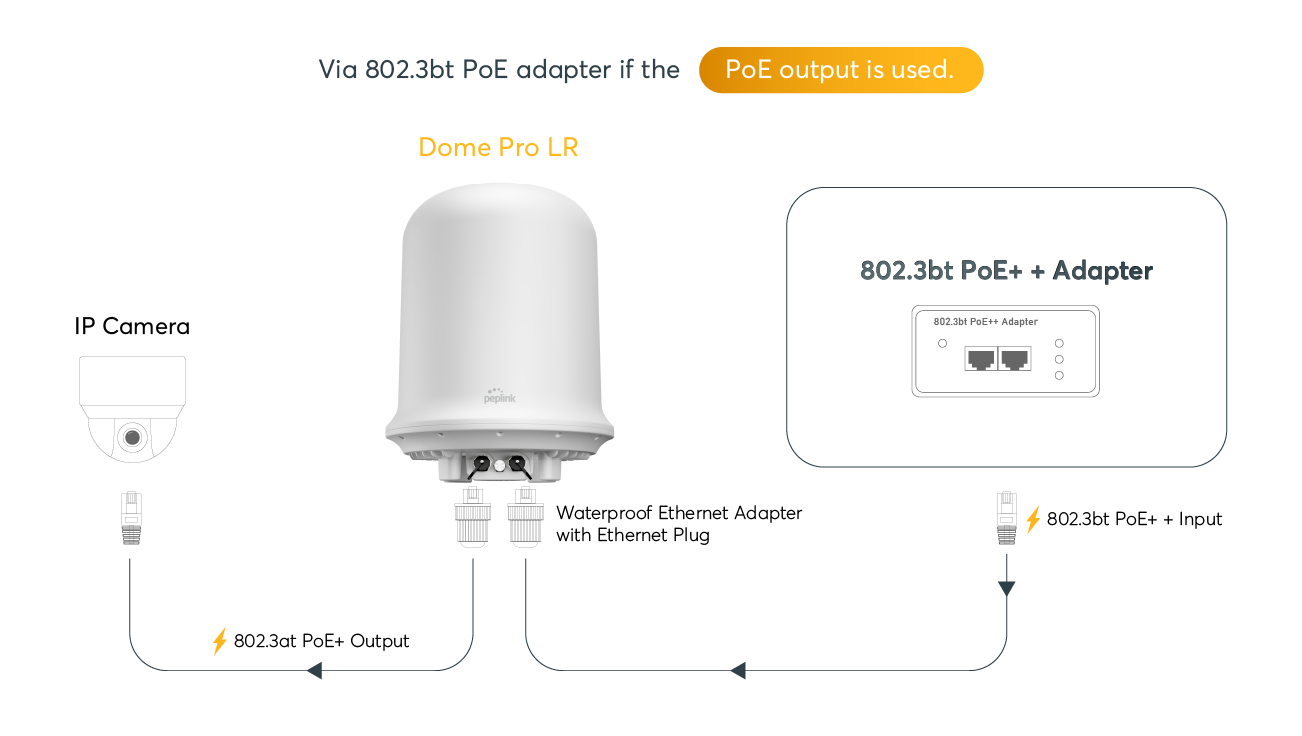

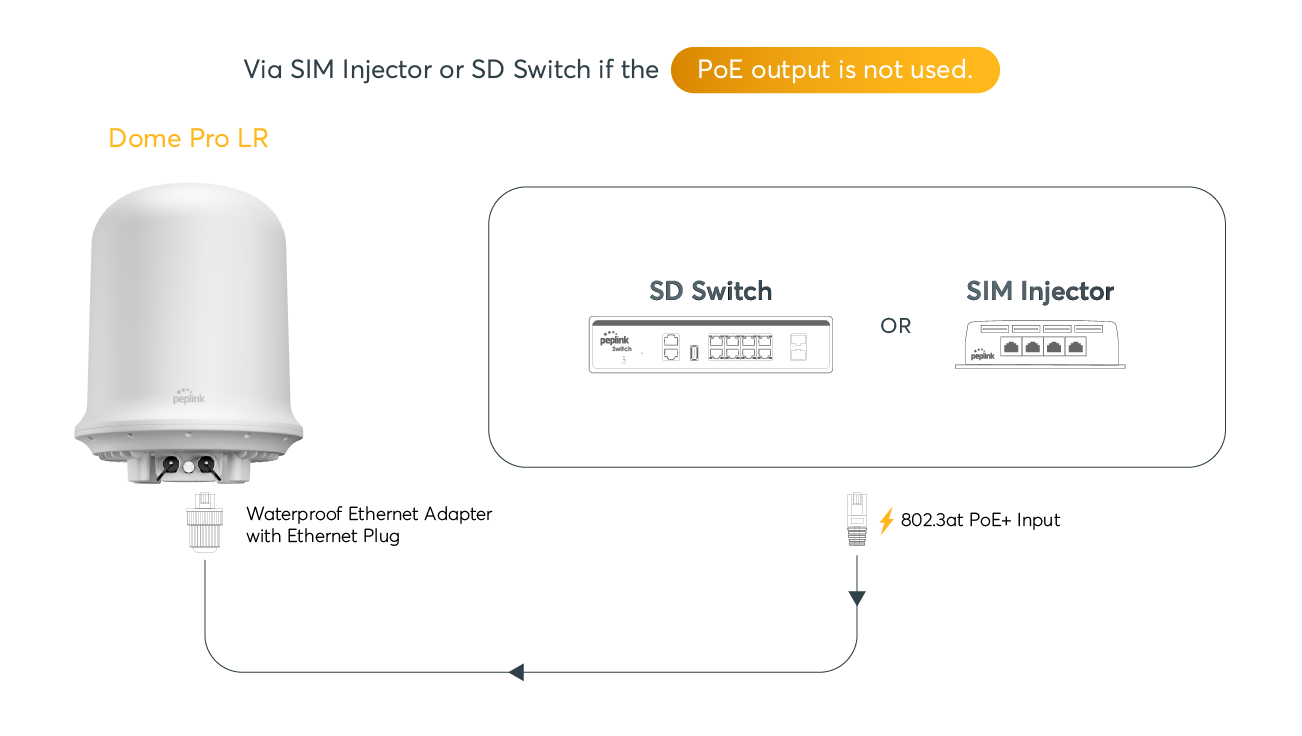

Use its PoE functionality to conveniently add Peplink PoE routers or add access points for wider Wi-Fi coverage. Alternatively, eliminate the need for additional hardware and use the Dome Pro LR’s PoE output on 802.3at powered devices such as IP cameras.

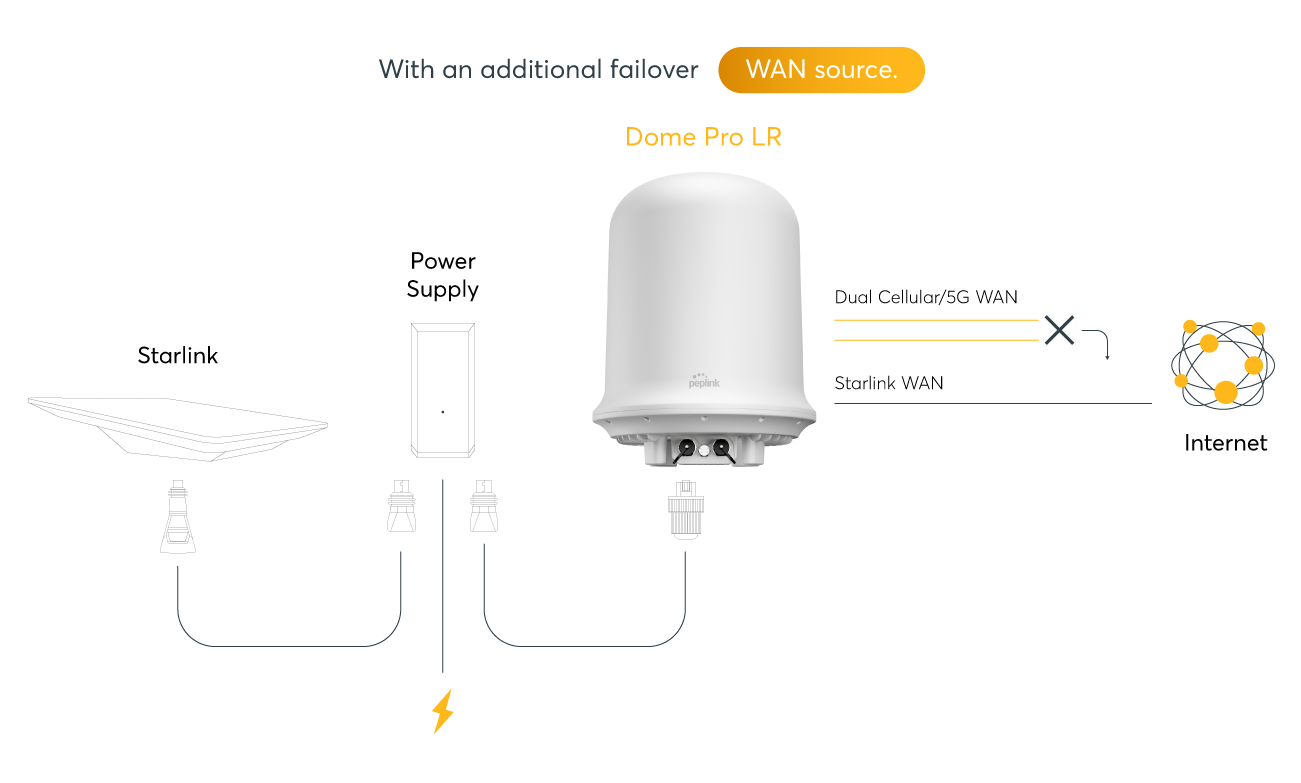

Look no further than Peplink to complete your solution. The Dome Pro LR’s dual Ethernet ports enable you to scale up your deployment with an additional WAN source, such as Starlink or VSAT.


Benefits

Cost-efficient installations and improved uptime for a safer voyage

Seamless connectivity to stay in touch with family and friends

24/7 internet access for uninterrupted viewing of your favorite shows

Access to functional connectivity even in the most remote rural areas

  • Product Overview & Comparison Table

  •
    SoftwarePeplink MAX Firmware
    WAN CellularSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    WAN Port Convertible into LAN Port
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    – Weighted
    – Enforced
    – Persistence
    – Priority
    – Overflow
    – Least Used
    – Lowest Latency
    – Fastest Response Time
    Complete VPN SolutionSpeedFusion VPN
    SpeedFusion
    – Site-to-Site VPN
    – SpeedFusion Hot Failover
    – SpeedFusion WAN Smoothing
    – SpeedFusion Bandwidth Bonding
    – 256-bit AES Encryption
    – Pre-shared Key Authentication
    – Dynamic Routing
    – X.509 Certificate Support
    – PPTP VPN Server
    – RADIUS, LDAP Authentication
    IPsec VPN (Network-to-Network) *
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    VRRP HA support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Advanced QoSUser Groups
    Bandwidth Reservation
    Individual Bandwidth Limit
    Application Prioritization
    By User Groups
    SIP, HTTPS, VPN QoS
    Custom Application QoS
    AP ControllerAP Controller Standard type
    Support for Pepwave AP Series
    Auto AP Discovery
    Auto AP Firmware Management
    AP Profile Configuration
    Wi-Fi Usage Statistics
    Global Positioning SystemIntegrated GPS
    Device Location Map
    Location Tracking Data with InControl 2
    Fleet Management with InControl 2
    Captive Portal SupportSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Social Wi-Fi Hotspot support
    External Captive Portal support
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client and Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3

    *   IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

  • PRODUCT CODEEMBEDDED MODEMSREGIONS5G BANDSLTE BANDS
    DOM-PRO-LR-5GN-PRM
    		2x 5GGlobal5G (SA & NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71

    *US Carrier Certifications: AT&T, T-Mobile, Verizon (C-Band), FirstNet
    Firmware update pending for Americas

  • Product CodeDescription
    PRM-P-1Y / PCP-P-1YPrimeCare P / PrimeCare+ P (1-Year)
    PRM-P-2Y / PCP-P-2YPrimeCare P / PrimeCare+ P (2-Year)
    PRM-P-4Y / PCP-P-4YPrimeCare P / PrimeCare+ P (4-Year)
    • 1x Dome Pro LR
    • 4x M8 bolts
    • 2x Waterproof Ethernet Adapters (ACW-112)

  • Peplink Dome Pro LR
    User Manual (Coming soon)
    FAQ (Coming soon)
