BR1 Mini (HW3)

BR1 Mini

Durable. Unbeatable Price Performance.

* Receive a complimentary feature pack by adding a PrimeCare plan (available in 2 or 4 year options) upon device purchase. Contact your reseller for more information.

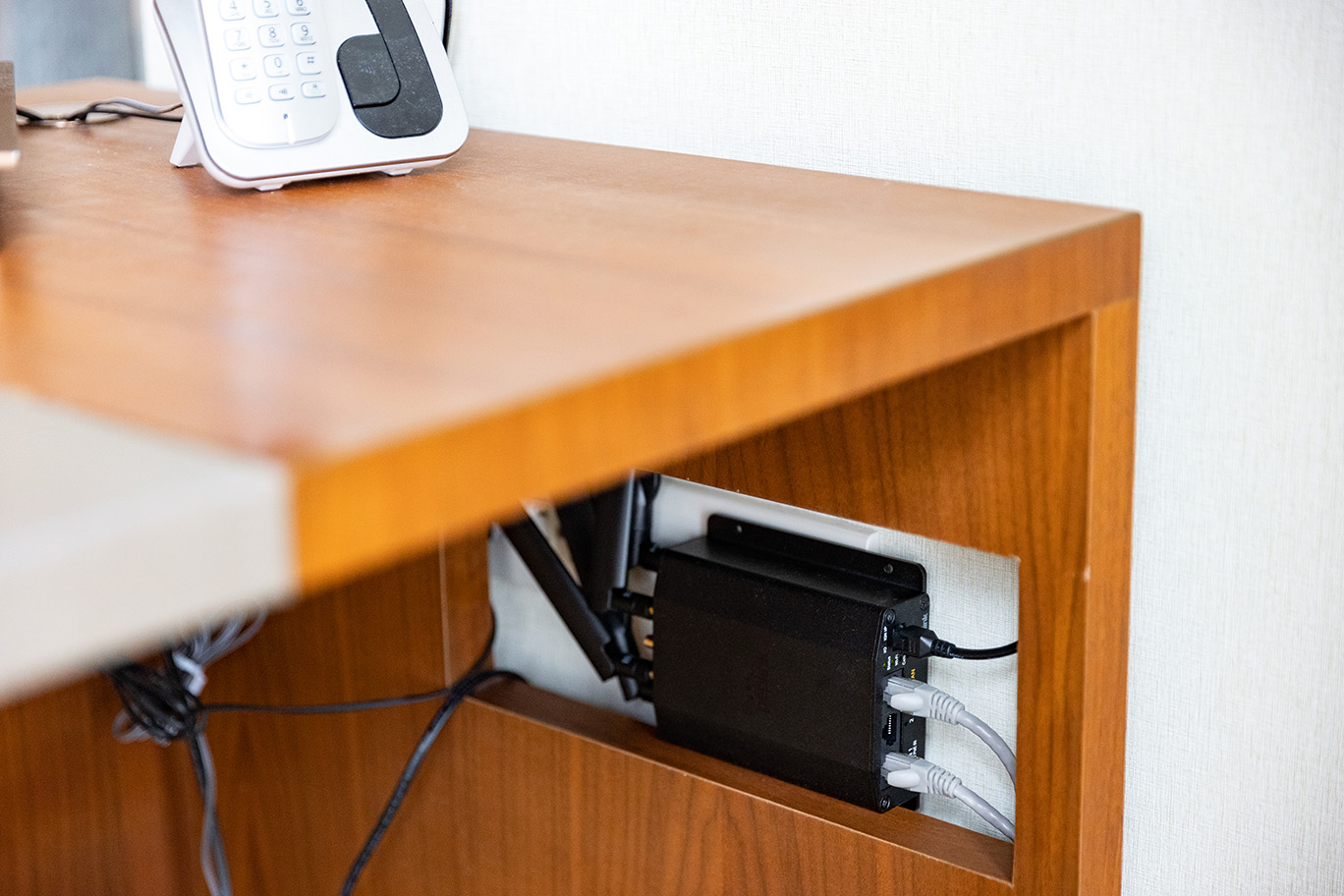

Just one remarkable device

Engineered with the highest quality build in mind. Sleek outside, yet ruggedized inside, this device has been built to withstand whatever deployment scenario thrown at it.

Stay in touch with InTouch

InTouch extends your reach to third party devices connected to the BR1 Mini. Remotely view, configure or troubleshoot third party devices, all within the InControl2 environment, eliminating the need for a separate and costly OOBM infrastructure.

Manage with confidence

Control the BR1 Mini using InControl2 cloud-based endpoint management system. Generate useful reports and push configurations, as you remotely access any Peplink device with ease.

Now Available on PrimeCare

Launching the new BR1 Mini on PrimeCare, giving the device prime access to InControl2, eSIM compatibilities, increased VPN throughput, more PepVPN peers, standard warranty & support and more!

* Feature will be available soon.

It just keeps getting better

Make sure you don’t miss out on the Feature Pack, which includes WAN Activation, Wi-Fi WAN, Hot Failover, WAN Smoothing, GPIO, Ignition Sensing, and more!

Bundle Offer

Receive a complimentary feature pack by adding a PrimeCare plan (available in 2 or 4 year options) upon device purchase.^

^ Contact your reseller for more information.

Plug and play, anyone?

SpeedFusion Connect* services makes the BR1 Mini the ultimate plug-and-play device. Power up, switch on, and get connected. SpeedFusion Connect also works with Peplink technologies such as Hot Failover^, ensuring reliable connectivity is accessible at all times.

Subscribe to SpeedFusion Connect Services

* SpeedFusion Connect is available in select countries and regions. Learn more.

^ Feature Pack is required to utilise the benefits of Peplink technology and services.

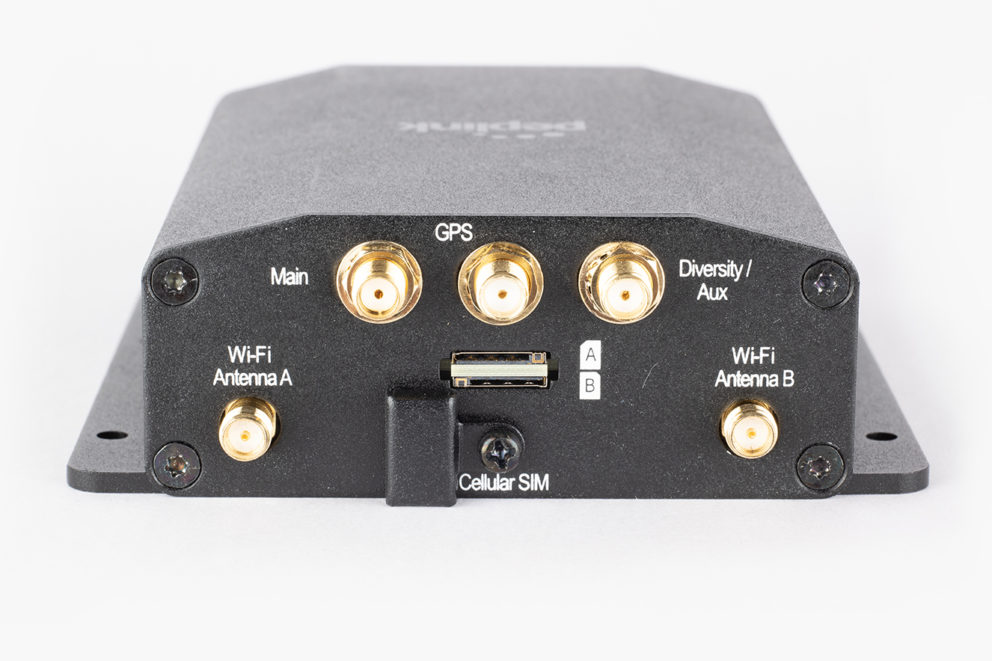

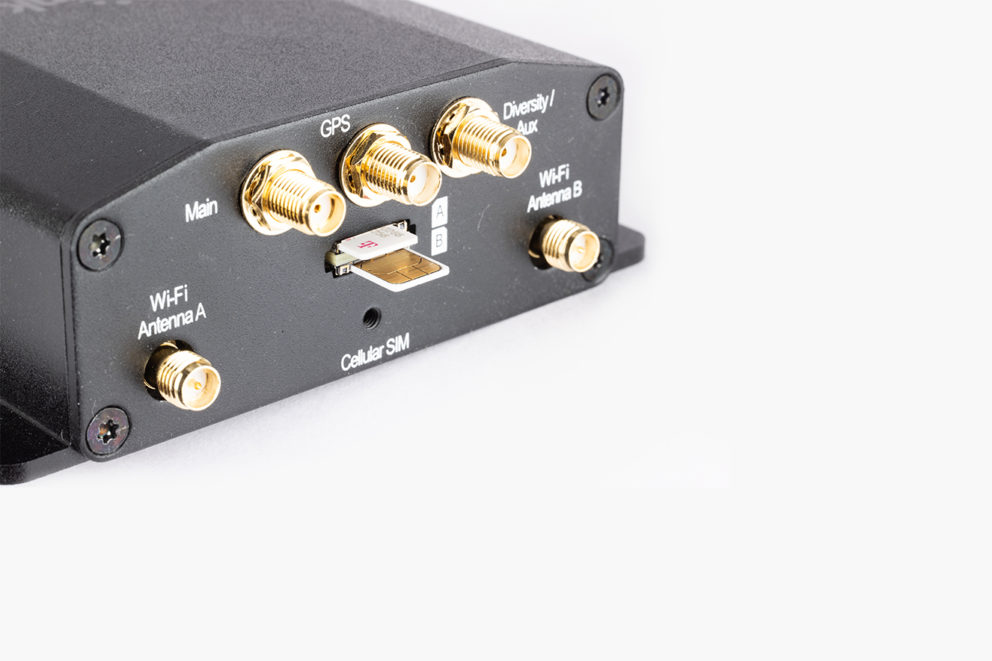

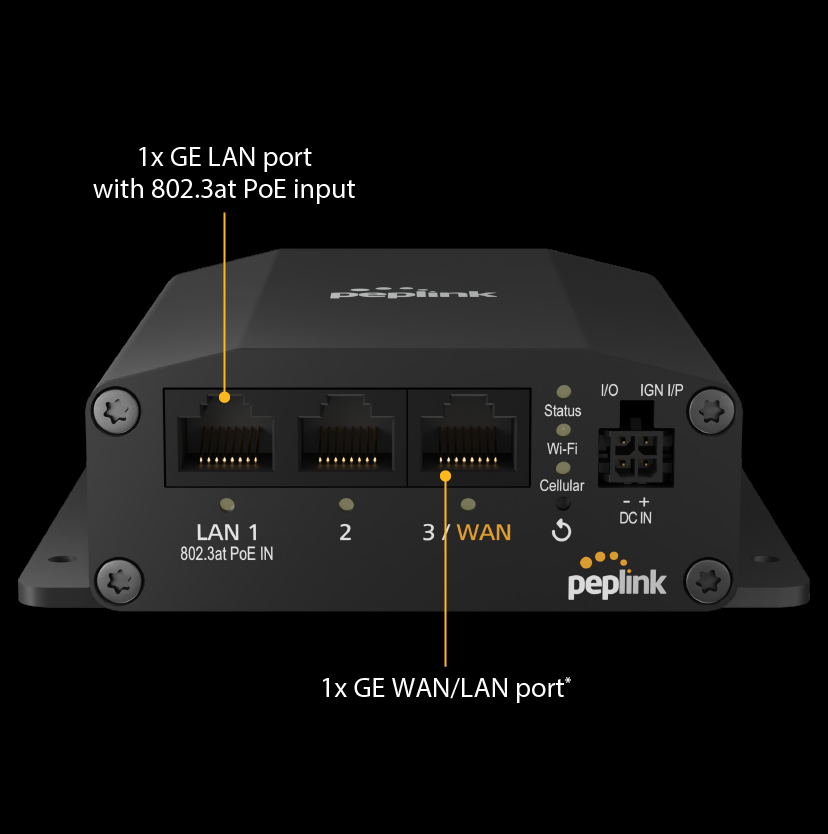

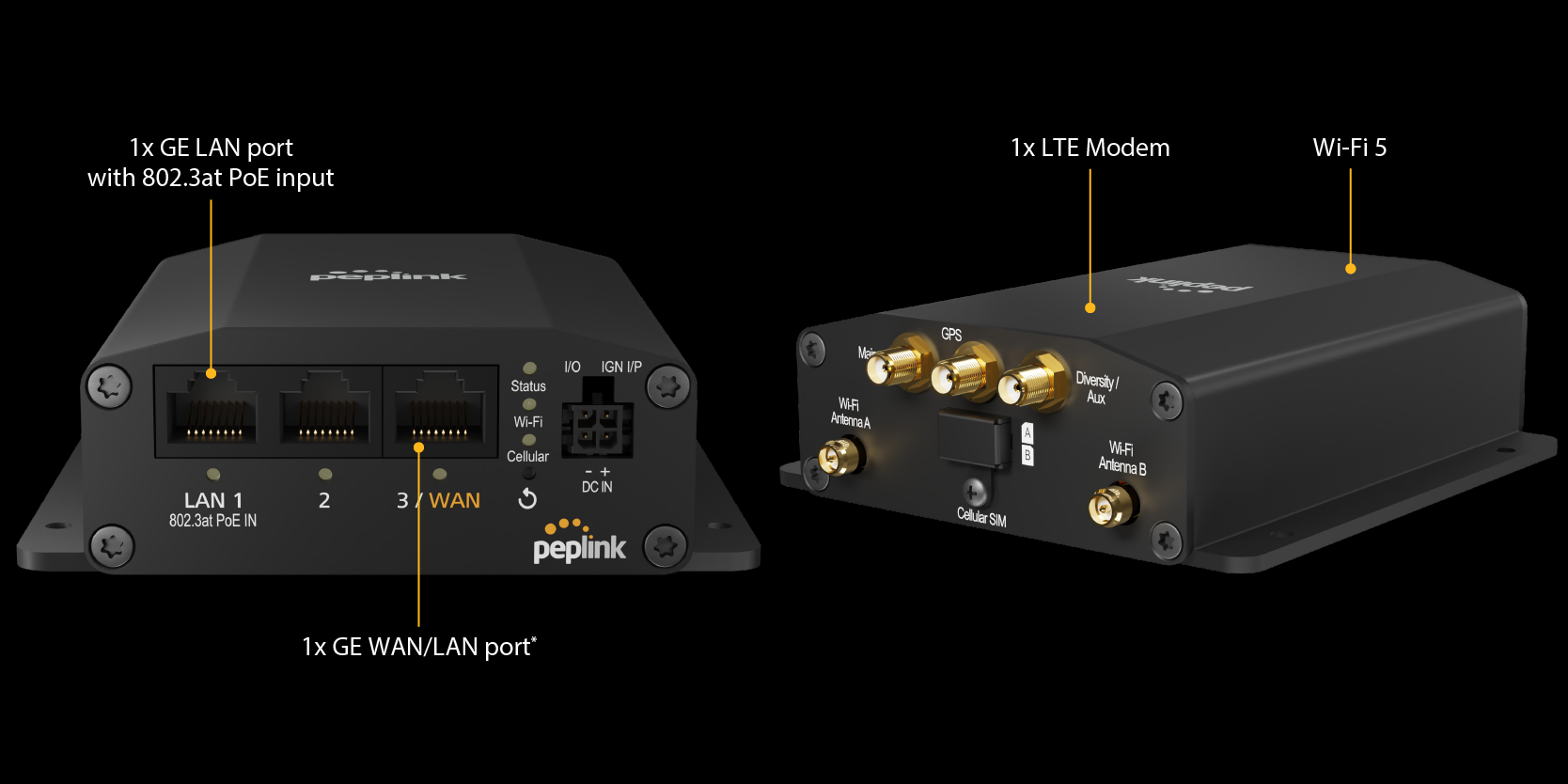

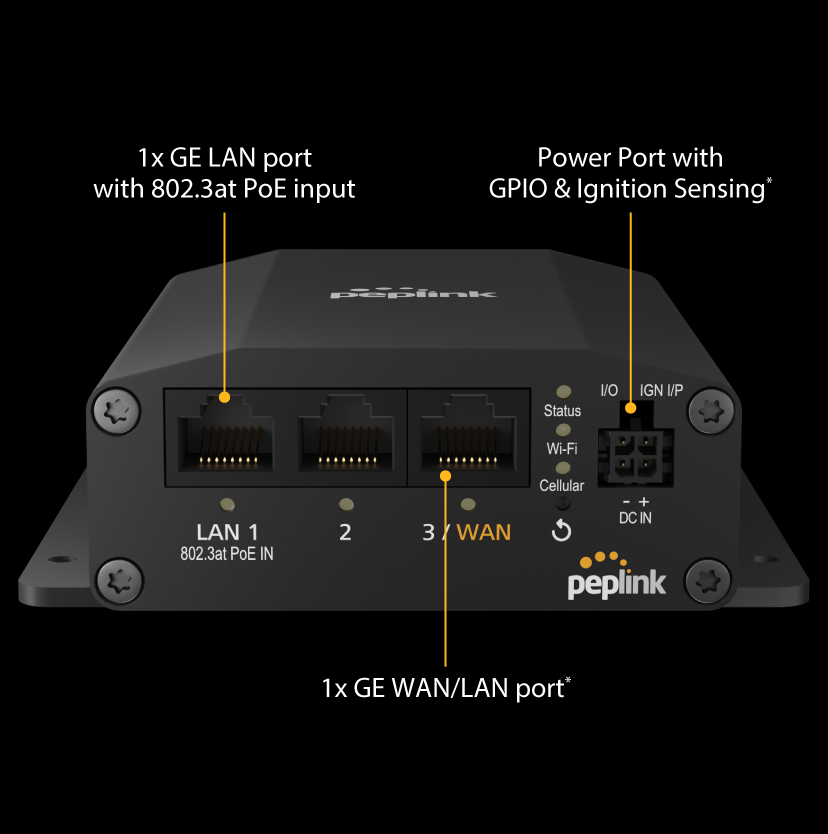

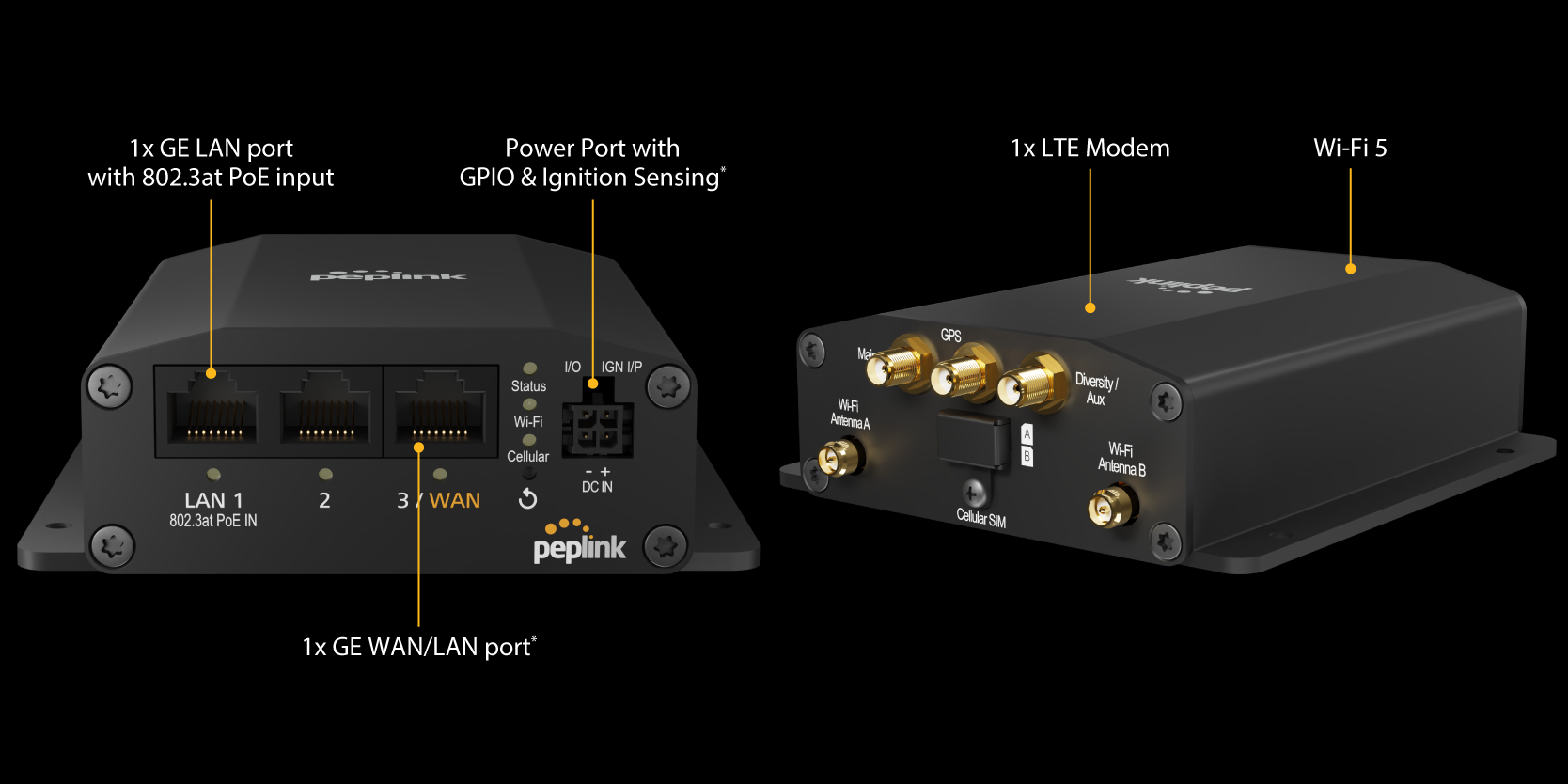

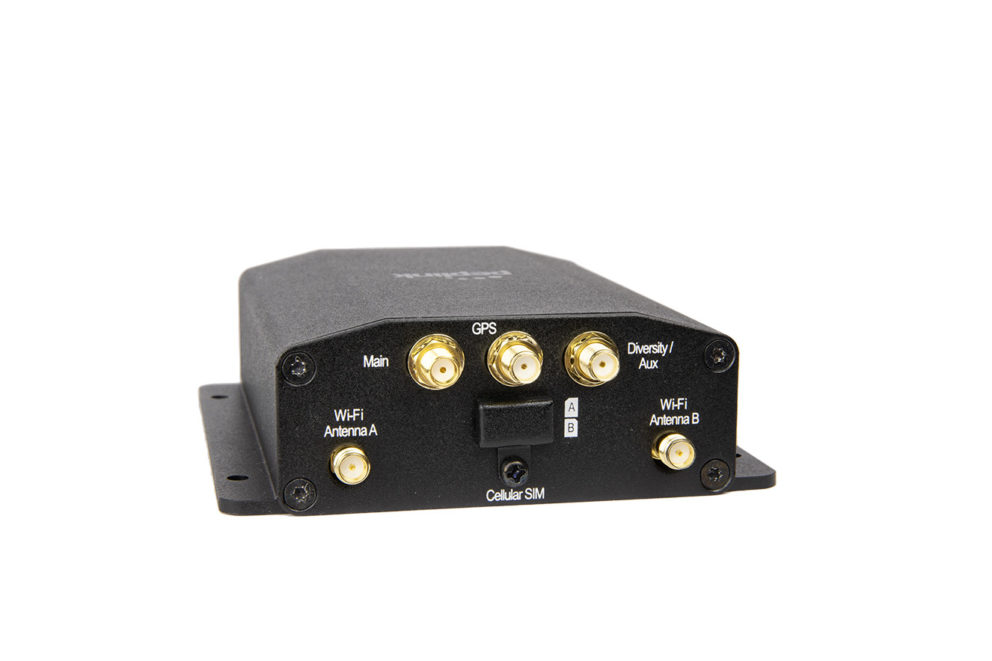

Ports and Connections

* Available with a feature pack add-on license.

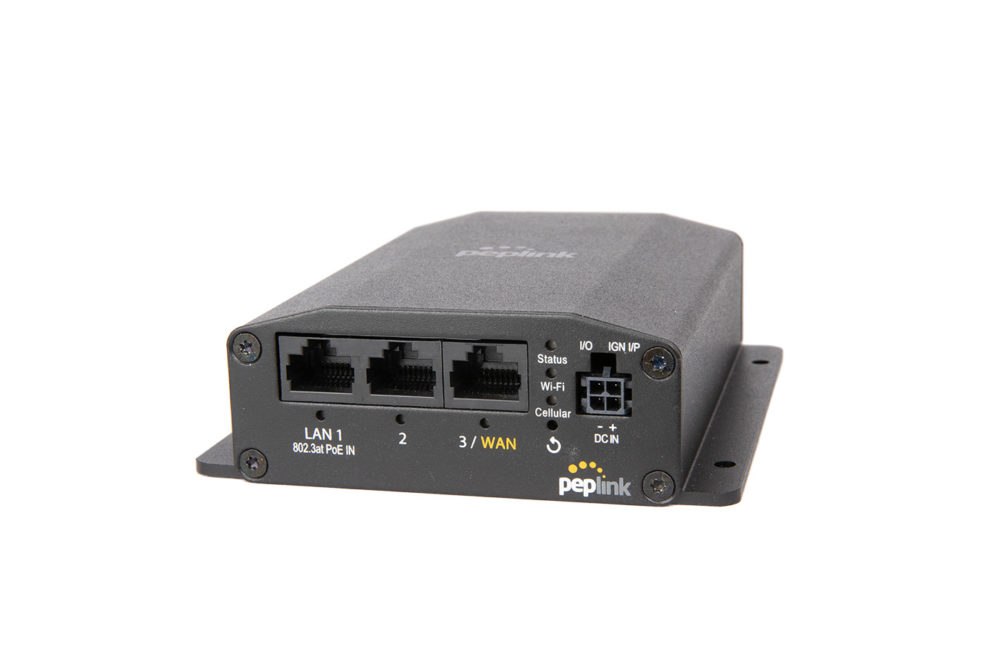

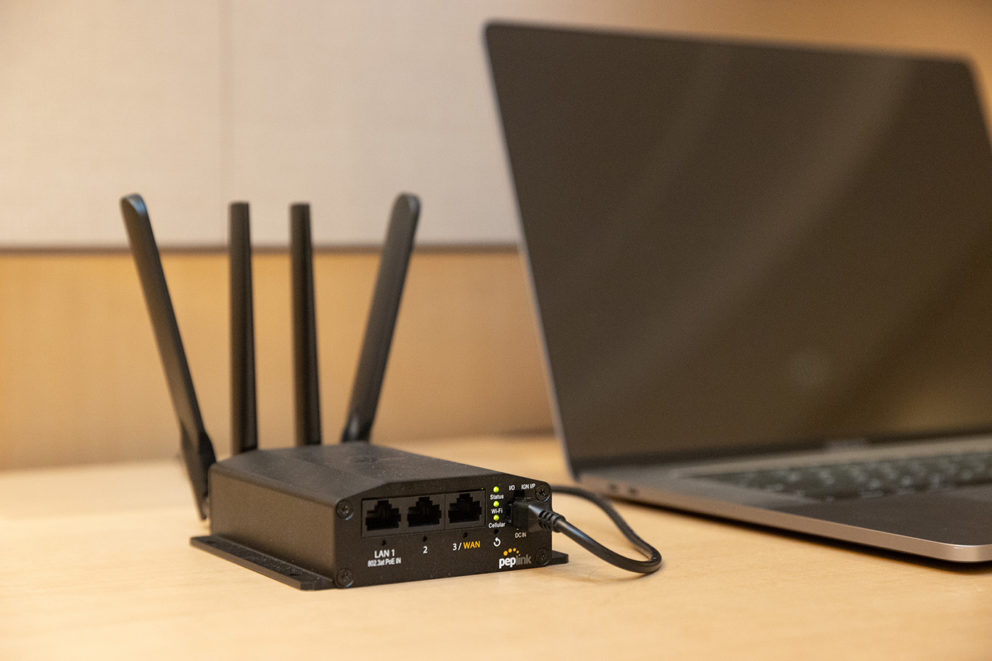

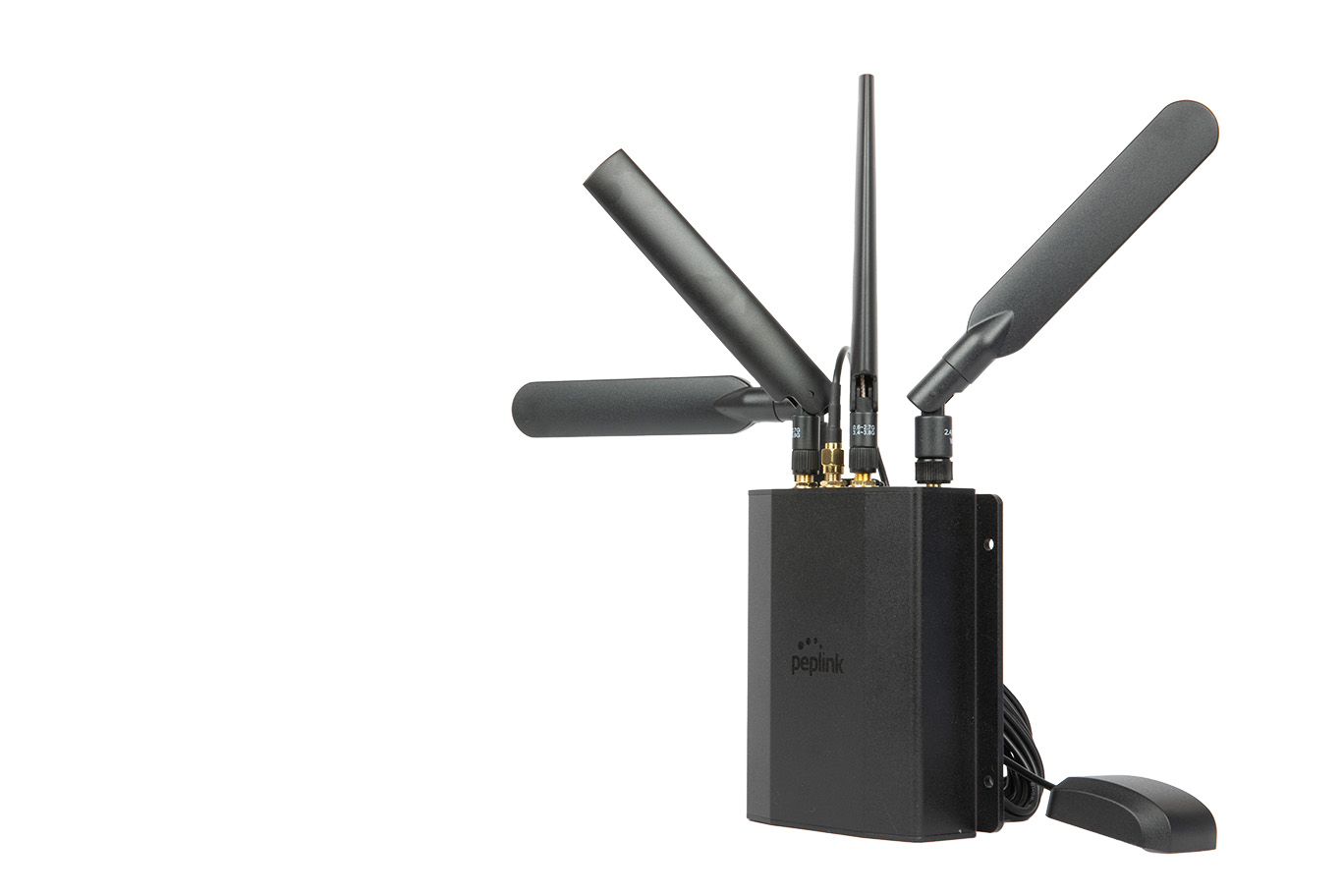

Photos

Product Overview

Product Overview

Deep Dive

Software	Pepwave MAX Firmware
WAN	Support for PPPoE, Static IP, DHCP WAN Link Health Check Bandwidth Allowance Monitor Support for Dynamic DNS services IPv6 Support
LAN	DHCP Server for LAN Clients Extended DHCP Option DHCP Reservation DNS Proxy for LAN Clients VLAN on LAN Support
Load Balancing	Intelligent Failover Session Persistence Per-Service Load Distribution Multiple Algorithms -Weighted Balance -Priority -Overflow -Persistence -Least Used -Lowest Latency -Enforced -Fastest Response Time
Complete VPN Solution	PepVPN SpeedFusion - Site-to-Site VPN - SpeedFusion Hot Failover^ - SpeedFusion WAN Smoothing^ - 256-bit AES Encryption - Pre-shared Key Authentication - Dynamic Routing - PPTP VPN Server - RADIUS, LDAP Authentication IPsec VPN (Network-to-Network)^@
Networking	NAT and IP Forwarding Static Routes Port Forwarding Many to One, One to One NAT NAT Pool SIP ALG, H.323 ALG UPnP, NAT-PMP WINS Server
Security	128-bit WEP WPA & WPA 2 Stateful Firewall DoS Prevention Web Blocking
Advanced QoS	Individual Bandwidth Limit Application Prioritization -SIP, HTTPS, VPN QoS -Custom Application QoS
Global Positioning System	Integrated GPS Device Location Map Location Tracking Data with InControl 2 Fleet Management with InControl 2
Captive Portal Support	Support for Wired and Wireless LAN Clients Support RADIUS Authentication Time and Usage Quotas on Open Access Mode Built-in Customizable Splash Page Social Wi-Fi Hotspot support External Captive Portal support
Certifications	FCC, CE, RoHS
Device Management	Web Administrative Interface Command Line Interface InControl Cloud Management Email Notification Active Client and Session Lists Bandwidth Usage Statistics Syslog Service SNMP v1, v2c and v3

^ Requires a PrimeCare subscription, complimentary for the first year.
^@ IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

Ordering Information

Product Code	Embedded Modem(s)	Regions	LTE Bands	3G Bands
MAX-BR1-MINI-LTEA-US-T-PRM	1x CAT-7	Primary: North America^# ,	B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71	HSPA+: B2, B4, B5
MAX-BR1-MINI-LTEA-W-T-PRM	1x CAT-6	Primary: North America*, EMEA	B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41	WCDMA/HSPA+/DC-HSPA+: B1, B2, B3, B4, B5, B8
MAX-BR1-MINI-LTE-US-T-PRM	1x CAT-4	Primary: North America^	B2, B4, B5, B12, B13, B14, B66, B71	WCDMA/HSPA+/DC-HSPA+: B2, B5
MAX-BR1-MINI-LTE-E-T-PRM	1x CAT-4	Primary: APAC, EMEA	B1, B3, B5, B7, B8, B20, B38, B40, B41	WCDMA/HSPA+/DC-HSPA+: B1, B5, B8
MAX-BR1-MINI-LTE-MX-T-PRM	1x CAT-4	Primary: Latin America, Australia	B1, B2, B3, B4, B5, B7, B8, B28, B40	WCDMA/HSPA+/DC-HSPA+: B1, B2, B5, B8

^# US Carrier Certifications: AT&T, FirstNet, T-Mobile, US Cellular, Verizon
* US Carrier Certifications: AT&T, T-Mobile (Pending), Verizon.
^ US Carrier Certifications: AT&T, T-Mobile, Verizon.

Regions are for reference only. For specific location compatibility, please refer to the bands.

Featured Add-Ons

Product Code	Description
PRM-MAX-BR1-MINI-1Y	1-Year PrimeCare for BR1 Mini
PRM-MAX-BR1-MINI-2Y	2-Year PrimeCare for BR1 Mini
PRM-MAX-BR1-MINI-4Y	4-Year PrimeCare for BR1 Mini
MAX-BR1-MINI-LC-FP	Feature pack for BR1 Mini enables Ethernet WAN, Wi-Fi WAN, Hot Failover, WAN Smoothing, GPIO and Ignition Sensing
ANT-MB-22G-S-B-6	5-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (Black)
ANT-MB-22G-S-W-6	5-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White)
ACW-634	10ft DC Power Cable
ACW-DIN-BR1-MINI	DIN Rail Mount

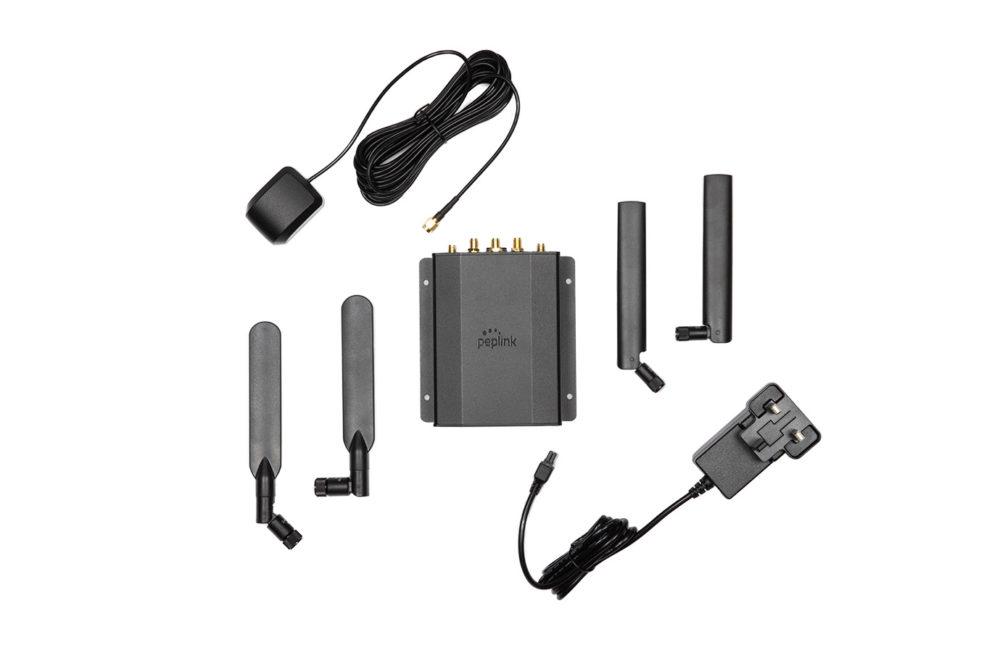

Package Content
MAX BR1 Mini
- MAX BR1 Mini (HW3)
- 2x LTE Antennas (ACW-235)
- 2x Wi-Fi Dual Band Antennas (ACW-342)
- 1x GPS Active Antenna (ACW-232)
- 1x 12V 2A 4 Pin Power Supply (ACW-632)
