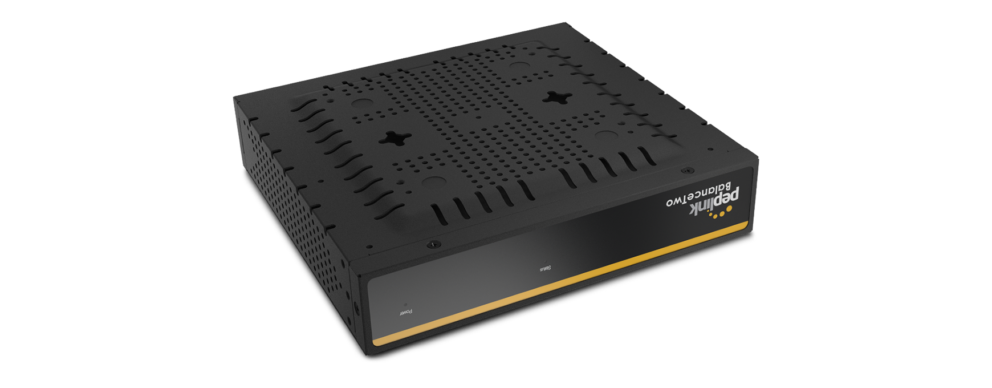

Balance Two

Gigabit Class Branch Router for Demanding Enterprise workloads

With its small form factor and fanless design, the Balance Two delivers true full Gigabit routing performance. Supporting 150 Mbps PepVPN throughput, the Balance Two is the ideal router for small businesses.

1Gbps Dual-WAN Router Balance Two #20
1Gbps Dual-WAN Router Balance Two #20

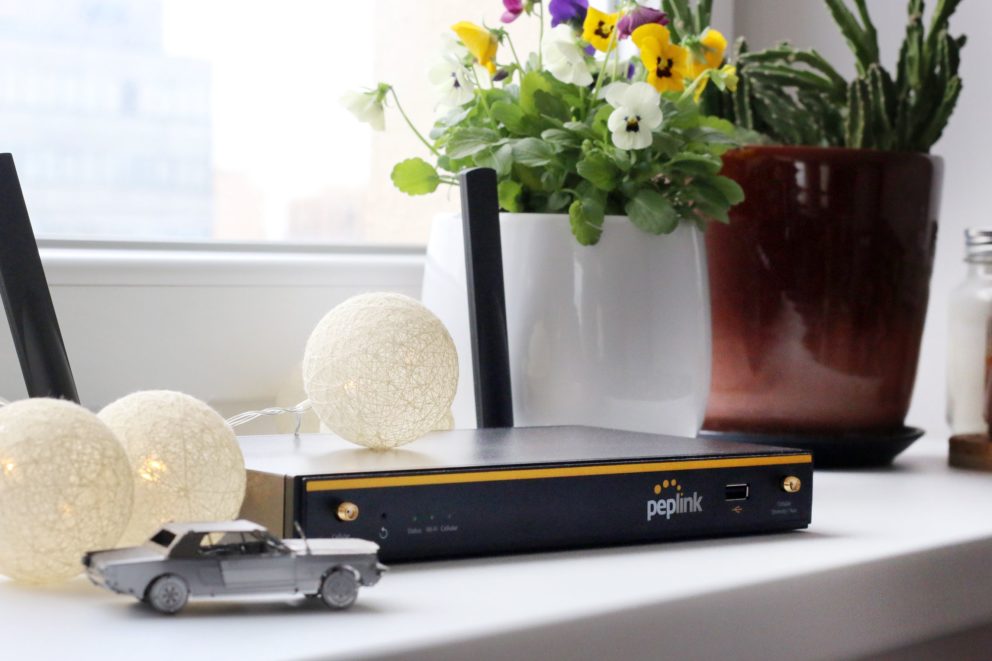

Fits Seamlessly in Any Office

The fanless design keeps the Balance Two whisper-quiet. Rear facing ports give the device a clean look, fitting any office environment.

  • 150 Users
  • 20 VPN Peers
  • Fanless Design
  • 1Gbps Throughput
1Gbps Dual-WAN Router Balance Two #9

Intelligent Traffic Steering

Traffic Steering automatically identifies packets by their application (e.g. Skype, PoS, ERP). Apply different SpeedFusion technologies to different kinds of traffic.

Small Branch Offices
Retail Connectivity

The Balance Two provides everything needed to ensure uninterrupted access to critical business applications hosted in the headquarters and on the cloud. It supports 1Gbps of throughput, enabling you to handle a gigabit connection. It has two GE WAN ports, providing backup and increasing your network’s available bandwidth. Within a PepVPN tunnel, use traffic steering to get the most out of your WANs: assign session-sensitive traffic such as VoIP to your most reliable WAN, while assigning higher-volume traffic to your most affordable WAN.

Many customers pay with credit cards or digital wallets such as Google Pay or Apple Wallet. Without Internet connectivity, these payment methods and cloud applica-tions all no longer function. To ensure your store stays connected, the Balance Two supports two Ethernet WAN: If one link loses connectivity, the second link can take over. Use Traffic Steering to ensure that your POS traffic gets the best connectivity. Assign POS traffic to the most reliable and responsive WAN, leaving less urgent web traffic to the more affordable WAN link.

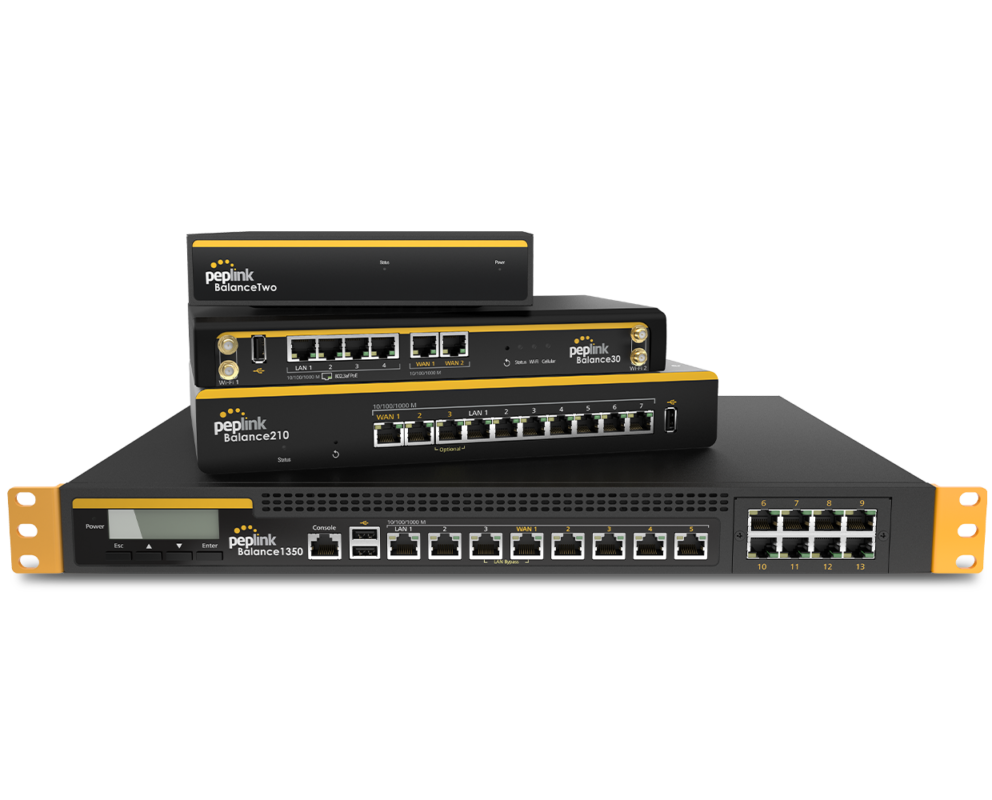

There’s a Perfect Balance for Every Situation

Peplink ‘s line of products includes features that make your enterprise deployment easier and increase your network reliability and security in several ways. Boost network data rates, reliability, and flexibility while slashing connectivity costs with Peplink SD-WAN technology designed for multi-WAN link load balancing. Use Load Balancing and SpeedFusion bandwidth bonding to deliver superfast VoIP, video streaming, and data using an SD-WAN enabled network.

  • Branch/Small Office
  • Small Business
  • Mid-Size Business
  • Large Enterprise/Campus
  • Cloud/VM

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.

Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data streem.

1Gbps Dual-WAN Router Balance Two #6

Built to Last

Capable of years of uptime, the Balance  series easily handles monthly bandwidth that would crush lesser equipment. Every Peplink design is rigorously tested to exceed your expectations for speed, reliability, durability, and ease-of-use. We invest heavily in quality assurance and user experience testing to give you affordable, enterprise-class gear that just works, from the moment you take it out of the box.

InControl 2. Powerful Cloud Management Platform

Balance Two is supported by InControl, Peplinks Cloud-Based SD-WAN Network Management Platform, which lets you provision, monitor, and manage your routers. All from a single screen.

Use InControl to make your deployment scalable. Centralize VLAN, outbound policy, firewall rules, configuration profiles and more in minutes.

1Gbps Dual-WAN Router Balance Two #8

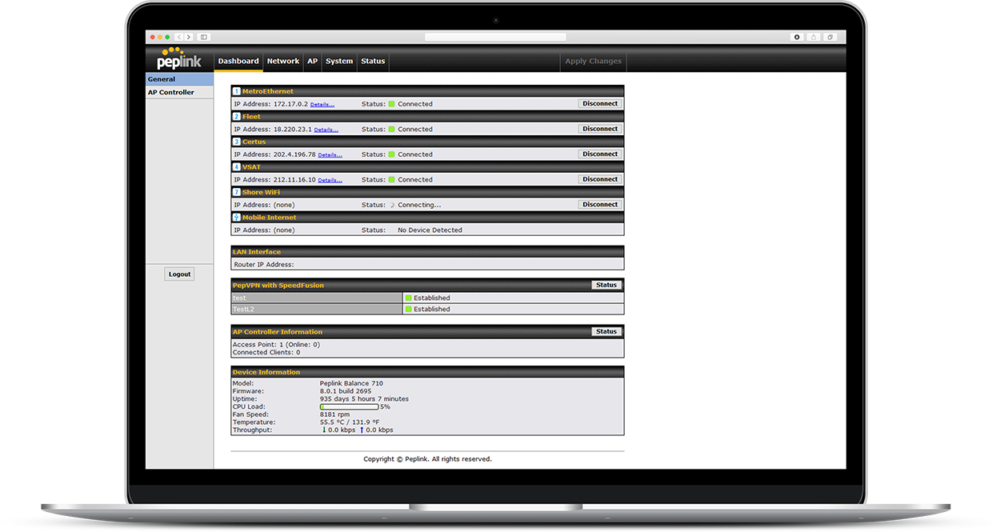

Web Admin Demo

Experience powerful features of Balance Series web admin online demo.

Note: This is for demonstration purposes only and may differ from our latest UI. Functionality also varies amongst models.

Administrator Username and Password: admin / admin
Read-only Username and Password: user / user

#PowerofPeplink

  • WAN Interface2x 10/100/1000M Ethernet Ports
    1x USB Interface
    LAN Interface4x 10/100/1000M Ethernet Ports
    Router Throughput1Gbps
    Recommended Users25-150
    Number of VPN/SpeedFusion Peers2/5/10/20 *
    PepVPN/SpeedFusion Throughput150Mbps
    Power InputDevice: 12V DC
    Power Consumption40W (max.)
    Dimension (W x D x H)7.4 x 6.9 x 1.7 inches | 188 x 175 x 42 mm
    Weight2.2 pounds | 1.2 kg
    Operating Temperature32° – 104°F | 0° – 40°C
    Humidity20% – 90% (non-condensing)
    CertificationsCE, FCC, RoHS
    Warranty1-Year Limited Warranty



    * SpeedFusion is available as an optional add-on. | 2 PepVPN Peers are enabled by default. Can be increased to 5, 10 or 20 Peers by using a Feature add-on.

  • SoftwarePeplink Balance Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    USB 4G/3G Modem Support
    Intelligent Failover
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    Complete VPN SolutionPepVPN/SpeedFusion Hot Failover
    SpeedFusion Bandwidth Bonding *
    Site-to-Site VPN
    Bandwidth Aggregation
    Hot Failover
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    L2TP with IPsec VPN Server
    PPTP VPN Server
    RADIUS, LDAP Authentication
    IPsec VPN (Network-to-Network)^
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Advanced QoSUser Groups
    Bandwidth Reservation
    Individual Bandwidth Limit
    Application Prioritization
    By User Groups
    SIP, HTTPS, VPN QoS
    Custom Application QoS
    AP ControllerAP Controller Support
    Wi-Fi Usage Statistics
    Captive Portal SupportSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client and Session List
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
    Package ContentBalance Two
    12V Power Supply



    *SpeedFusion is available as an optional add-on.

    ^IPsec VPN supports connection with Cisco, Juniper, Pepwave, or Peplink devices.

  • Product CodeDescription
    BPL-TWO-LC-SFSpeedFusion bandwidth bonding license
    PVN-LC-05Enables up to 5 PepVPN connections
    PVN-LC-10Enables up to 10 PepVPN connections
    PVN-LC-20Enables up to 20 PepVPN connections
  • Product CodeDescription
    BPL-TWOBalance Two, Advanced Dual-WAN Router for Branch Networking
