Features

Experience Hot Failover with LTE or 5G

If your network fails, the device will automatically switch over to the cellular connection using LTE or 5G to resume connectivity.

Out-of-Band Management

Remotely manage and troubleshoot your devices all through the convenience of a FlexModule Mini.

Bandwidth-on-Demand with LTE or 5G

Network can be changed from LTE to 5G simply by changing the FlexModule Mini.

SpeedFusion Cloud
meeting your deployment needs

Through just a click of button, your device will activate
SpeedFusion Cloud allowing you to achieve unbreakable connectivity and removing the need for a second endpoint.

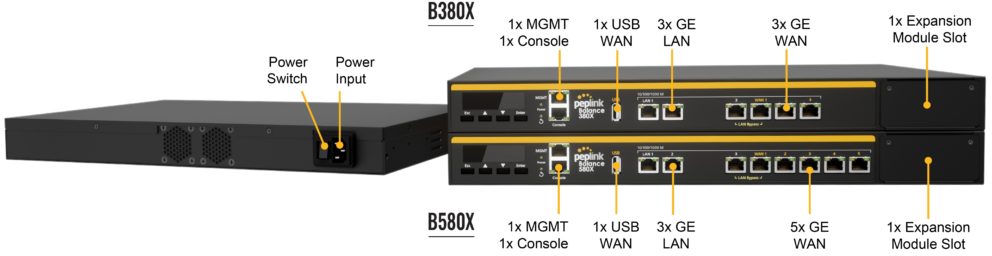

  • Product Overview. Main Chassis

  • LTE-A Module (EXM-MINI-1LTEA)

    Interface1x Embedded LTE-A Cellular Modems
    with Redundant SIM Slots
    Antenna Connectors2x SMA Cellular Antenna Connectors
    Downlink/Uplink Datarate300Mbps/50Mbps (CAT-6)
    600Mbps/150Mbps (CAT-12)
    Power Consumption10W
    Weight0.83 pounds | 375 grams



    LTE-A Module (EXM-MINI-1GLTE-G)

    Interface1x Embedded LTE-A Cellular Modems
    with Redundant SIM Slots
    Antenna Connectors4x SMA Cellular Antenna Connectors
    Downlink/Uplink Datarate1.2 Gbps/150 Mbps (CAT-18)
    Power Consumption10W
    Weight0.83 pounds | 375 grams



    5G Module (EXM-MINI-15GH)

    Interface1x Embedded 5G Cellular Modems with
    Redundant SIM Slots
    Antenna Connectors4x SMA Cellular Antenna Connectors
    Downlink/Uplink Datarate ^5G: 4 Gbps / 700 Mbps
    LTE CAT-20: 2 Gbps / 150 Mbps
    Power Consumption10W
    Weight0.83 pounds | 375 grams

  • Product CodeCarrier/
    Categories
    		Embedded Modem5G Bands4G Bands
    EXM-MINI-15GHGlobal/5G15G (NSA) Sub 6Ghz:
    n1, n2, n3, n5, n28, n41,
    n66, n71, n77, n78, n79
    5G (SA) Sub 6Ghz:
    n77, n78, n79    		B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17,
    B18, B19, B20, B25, B26, B28, B29, B30, B32, B34,
    B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
  • SoftwarePeplink Balance Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    PING
    DNS Lookup
    HTTP
    Bandwidth Allowance Monitor
    IPv6 Support
    USB 4G/3G Modem Support
    Support for Dynamic DNS services
    changeip.com
    dyndns.org
    no-ip.org
    tzo.com
    DNS-O-Matic
    WAN Port Convertible into LAN Port
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    -Weighted
    -Enforced
    -Persistence
    -Priority
    -Overflow
    -Least Used
    -Lowest Latency
    SecurityDoS Prevention
    Stateful Firewall
    Web Blocking
    Complete VPN SolutionSpeedFusion VPN/SpeedFusion Bandwidth Bonding
    -Site-to-Site VPN
    -Bandwidth Aggregation
    -Hot Failover
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    -Dynamic Routing
    -X.509 Certificate Support
    PPTP/L2TP/OpenVPN Server
    -Local User, LDAP, RADIUS, Active Directory Authentication
    IPsec VPN (Network-to-Network)
    -X.509 Certificate Support
    GRE Tunnel (Network-to-Network)
    Advanced QoS User Groups
    -Bandwidth Reservation
    -Individual Bandwidth Limit
    Application Prioritization
    -By User Groups
    -SIP, HTTPS, VPN QoS
    -Custom Application QoS
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    UPnP, NAT-PMP
    WINS Server
    BGP, OSPFv2 and RIPv2 Support
    Bonjour Forwarding
    AP Controller Support for Pepwave AP Series
    Auto AP Discovery
    Auto AP Firmware Management
    AP Profile Configuration
    Wi-Fi Usage Statistics
    Captive PortalSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Support LDAP Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    DNSBuilt-in Authoritative DNS

    -Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT Records
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
    Power RequirementsUniversal Input 100V – 240V AC
  • Product CodeDescription
    SFN-LC-100Up to 100 SpeedFusion Bonding License Key
    FIPS-LC-B580FIPS License for Balance 580
    ECP-BPL-380X-1YEssentialCare+ (1-Year) for Balance 380X
    ECP-BPL-380X-2YEssentialCare+ (2-Year) for Balance 380X
    ECP-BPL-380X-4YEssentialCare+ (4-Year) for Balance 380X
    SVL-BPL-380X-1Y1-Year EssentialCare for Balance 380X
    SVL-BPL-380X-2Y2-Year EssentialCare for Balance 380X
    ECP-BPL-580X-1YEssentialCare+ (1-Year) for Balance 580X
    ECP-BPL-580X-2YEssentialCare+ (2-Year) for Balance 580X
    ECP-BPL-580X-4YEssentialCare+ (4-Year) for Balance 580X
    SVL-BPL-580X-1Y1-Year EssentialCare for Balance 580X
    SVL-BPL-580X-2Y2-Year EssentialCare for Balance 580X
  • Product CodeProduct NameProduct Description
    BPL-380XBalance 380XBalance 380X, 3x GE WAN ports and 3x GE LAN ports.
    SpeedFusion capable
    BPL-580XBalance 580XBalance 580X, 5x GE WAN ports and 3x GE LAN ports.
    SpeedFusion capable
    EXM-MINI-1LTEAFlexModule Mini LTEA (CAT-6 / CAT-12) Expansion Module with 1x LTE-A (CAT-6 / CAT-12) modem
    EXM-MINI-1GLTE-GFlexModule Mini LTEA (CAT-18)Expansion Module with 1x LTE-A Pro (CAT-18) modem
    EXM-MINI-15GHFlexModule Mini 5GExpansion Module with 1x 5G modem
    • Balance 380X / Balance 580X
    • Power Cord (ACW-614)
    • 1 Pair of Mounting Brackets
    • Rubber Foot Pad set

  • LTE-A Module (EXM-MINI-1LTEA)

    • LTE-A Module (EXM-MINI-1LTEA)
    • 2x LTE/5G Antennas (ACW-234)



    LTE-A Module (EXM-MINI-1GLTE-G)

    • LTE-A Module (EXM-MINI-1GLTE-G)
    • 4x LTE/5G Antennas (ACW-234)

    5G Module (EXM-MINI-15GH)

    • 5G Module (EXM-MINI-15GH)
    • 4x LTE/5G Antennas (ACW-235)

  • Balance 380X & Balance 580X Datasheet

    FlexModule Mini Datasheet

    Balance 380X & Balance 580X FlexModule Mini User Guide
