AP One Rugged

The AP One Rugged delivers industrial-grade performance, the flexibility to deploy anywhere, easy setup and management. Dual radio access point is geared with two 3×3 MIMO 802.11ac radios operating in 2.4GHz and 5GHz bands simultaneously. Reaching 1.750 Gbps Data Rate

450 1300Mbps 11ac Industrial-Grade Access Point AP One Rugged #2
450 1300Mbps 11ac Industrial-Grade Access Point AP One Rugged #2
450 1300Mbps 11ac Industrial-Grade Access Point AP One Rugged #3

Simultaneous Dual Band

Reduce Wi-Fi congestion and interference. Simultaneous dual-band Wi-Fi on the AP One Rugged gives you two independent networks that work together, so all of your devices can connect without clashing.

450 1300Mbps 11ac Industrial-Grade Access Point AP One Rugged #4

Robust Metal Enclosure

Deploy your access point almost anywhere. The AP One Rugged is built with industrial-grade components that stand up to harsh environments and extreme temperatures.

Boost your Network

Increase your wireless speeds with AP One Rugged. Connect your devices with 11ac while enjoying industrial-grade reliability

Ease of Deployment

The 2-port switch allows the AP One Rugged to be dropped into any network transparently, without need for extra cabling.

User Access Control

Control network access with separate logins for Control network access with separate logins for each user group. AP One access points support up to 16 SSIDs, each with independent bandwidth limits and web blocking.

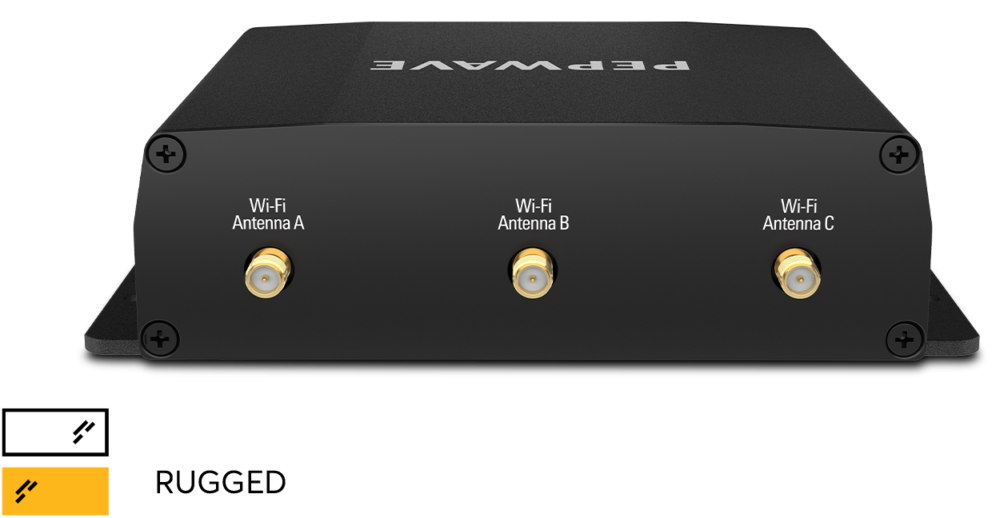

Wide Coverage

Get a strong signal and great coverage wherever you work. The AP One Rugged supports 2.4 GHz high-power Wi-Fi for wider range and better performance than ever.

450 1300Mbps 11ac Industrial-Grade Access Point AP One Rugged #6

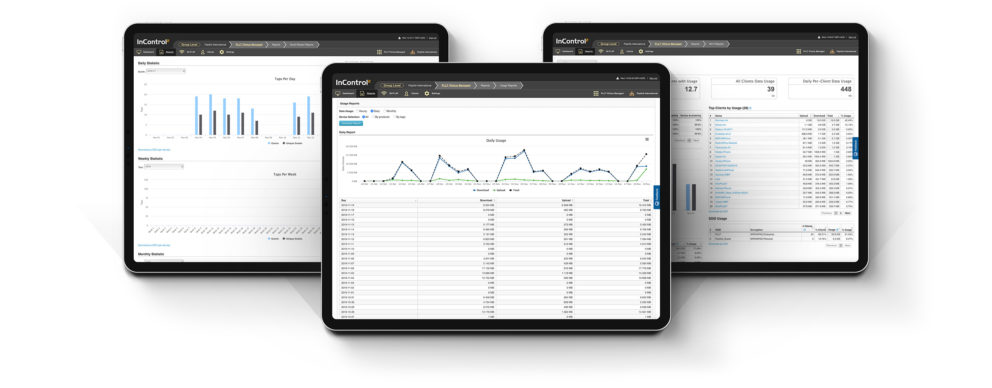

Centralized Management

Configure AP One Rugged onsite or from the cloud. Our AP Controller lets you locally manage access points from your Balance router, while InControl 2 offers a complete cloud-based solution accessible from any web-browser.^

Social Wi-Fi Hotspot

Guests can now access your Wi-Fi hotspot with their Facebook login. In exchange, you can learn more about your customer base with insightful reports

300 866Mbps 11ac Wave2 Dual Band Access Point AP One AC Mini #7

Complete Network Solutions

Enjoy better network integration and performance. AP One access points are a perfect complement to Balance routers, together providing blazing speed and superior reliability across your entire network.

#PowerofPeplink

^ Requires Peplink Balance / Pepwave MAX Firmware 6.1.3 for AP Controller support on AP One Enterprise.

  • Ethernet Port2x GE
    Wi-Fi Standard802.11ac/a/b/g/n
    3×3 MIMO
    2.4GHz *450Mbps
    5GHz *1300Mbps
    Simultaneous
    2.4GHz and 5GHz
    Yes
    Wi-Fi Transmit Power2.4GHz: 24dBm / 17dBm (CE)
    5GHz: 22dBm / 17dBm (CE)

    Coverage (With line of sight in open environments)680ft |
    207m

    Recommended Concurrent Users Per Radio60
    Number of SSID Per Radio16
    Antenna TypeExternal Omni
    Antenna Gain2.4GHz: 3dBi |
    5GHz: 5dBi
    EnclosureRuggedized Metal
    Dimensions5.8 x 4.6 x 1.6 inches |
    147 x 115 x 40 mm
    Weight0.93 pounds |
    420 grams

    AC Adapter
    AC Input 100V-240V
    DC Output 12V, 2A
    PoE Input802.3af
    Power Consumption13W (max.)
    Operating Temperature-40° – 149°F |
    -40° – 65°C
    Humidity15% – 95% (non-condensing)
    CertificationsFCC, CE, RoHS



    * The frequency range for 2.4GHz and 5GHz are 2412−2472 MHz and 5180−5825 MHz respectively.

  • NetworkBridge Mode
    Router (NAT) Mode
    Wireless Distribution System (WDS on 2.4GHz Only)
    Support for PPPoE, Static IP, DHCP
    Management VLAN (802.1p)
    Spanning Tree Protocol (802.1d)
    RadioMultiple SSID
    Auto Channel Selection
    Transmit Power Adjustment
    Neighbour AP Detection
    AP SecurityOpen
    WPA-PSK/RADIUS
    WPA2-PSK/RADIUS
    Device ManagementWeb Administrative Interface
    InControl Cloud Management
    Peplink AP Controller
    SNMP v1, v2c and v3
    Client Management per SSIDVLAN with QoS (802.1p/802.1q)
    Bandwidth Control
    MAC Address Filtering
    Layer 2 Client Isolation
    Limit on Max. Number of Client
    Client Management per ClientVLAN with RADIUS
    VLAN with VLAN Pool
    Bandwidth Control
    Multicast Filter
    IGMP Snooping/Multicast Enhancement
    Complete PepVPN SolutionSite-to-Site VPN
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    Captive PortalBy InControl
  • Product CodeDescription
    ACW-622Includes 1x 56V Power Supply
    Enables 802.3at/af PoE Output Ports (PoE License automatically applied after kit purchase)
    • 1 x AP One Rugged
    • 1 x 12V2A Power supply
    • 3 x 5dBi Omni Antenna
  • Suitable ForProduct NameProduct CodeDescription
    Indoor Desktop or Wall-Mount Installation.AP One RuggedAPO-RUGSimultaneous 802.11ac/a/n 1300Mbps and 802.11b/g/n 450Mbps. External omni antennas included.
