MAX on the GO

Quad USB 4G LTE/3G Router

The MAX on the GO supports quad USB modems and SpeedFusion for fast, reliable connectivity anywhere, plus it includes a built-in 4-port GE switch to reduce clutter in your mobile deployments.

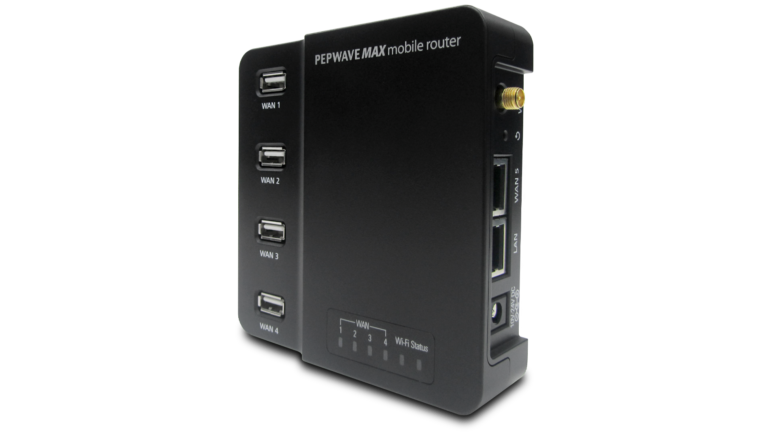

Quad USB Rugged Mobile Router MAX 700 #6
Quad USB Rugged Mobile Router MAX 700 #6

Certified Toughness

In addition to rugged metal enclosure, the MAX on the GO is certified on:

Shock and vibration resistance

(EN 61373:1999 IEC 61373:1999)

RF Port Lightning Immunity

(ITU-T K.20 (+/- 1.5 kV))

Electromagnetic Compatibility

(EN 61000)

Unparalleled Modem Compatibility

Supports 250+ USB cellular modems from more than 100 carriers. Odds are, you can plug in and start surfing instantly. But if not, just connect your modem and turn on Remote Assistance – our engineers will get right to work on adding support for your modem.

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:

Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.

Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.

SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.

With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data stream.

Terminal Block for Secure Power Supply

MAX on the GO with MediaFast is equipped with a terminal block for secure installation in vehicles and other locations.

Built-in 4-Port GE Switch

The MAX on the GO includes a built-in 4-port GE LAN switch, reducing clutter and the need for extra equipment.

Quad USB Rugged Mobile Router MAX 700 #5

Customizable Captive Portal

Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS server.

With Social Wi-Fi Hotspot support, you can also receive valuable demographic data from your users.

  • MAX on the GO

    MAX 700

    General Overview

    Product Code

    OTG-U4 GN2-R

    Ethernet WAN Ports

    1 (FE) 2 (GE)
    Ethernet LAN Ports 1 (FE)

    4 (GE)

    USB WAN Modem Port 4


    Wi-Fi WAN 1

    Yes* Yes
    Wi-Fi AP 1 Yes


    Wi-Fi Standard

    802.11a/n or /b/g/n 150Mbps 802.11ac/a/b/g/n 866Mbps

    802.11a/b/g/n 300Mbps

    Transmit Power (2.4GHz)



    Transmit Power (5GHz) 20dBm


    Simultaneous Dual-Band


    Recommended Users 2



    Router Throughput 3 100Mbps


    Core Functionality

    Drop-in Mode

    High Availability


    WAN as LAN


    Web Blocking



    Web Filtering Blacklists Lite


    VPN Functionality

    PepVPN/SpeedFusion Hot Failover



    SpeedFusion WAN Smoothing

    Yes # Yes
    SpeedFusion Bandwidth Bonding


    Number of PepVPN SpeedFusion Peers

    2 2/20 +
    PepVPN/SpeedFusion Throughput (No Encryption) 40Mbps


    PepVPN/SpeedFusion Throughput (256-bit AES)



    Central Management

    InControl Cloud Management

    Yes Yes
    GPS Fleet Management

    AP Controller Functionality

    Manage Pepwave AP Series

    Maximum Number of AP Supported


    Hardware Overview


    Low-Profile, All-Purpose

    Indoor Metal

    PoE Output

    Up to four 802.3af PoE Outputs^

    Terminal Block Power Connector for

    Mobile/Vehicular Deployment



    (Height x Width x Depth)

    1.2 x 4.3 x 4.3 inches

    30 x 110 x 110 mm

    1.6 x 10.2 x 5.7 inches

    39.5 x 260 x 143 mm

    Weight 0.43 pounds

    195 grams

    2.65 pounds

    1.2 kg


    AC Adapter

    AC Input 100V-240V

    DC Output 12V, 2A

    AC Input 100V – 240V

    DC Output 12V, 3A

    Power Input

    DC 12V – 48V 2A

    DC 12V – 48V DC, 3A

    Terminal Block

    DC 12V – 48V DC, 3A

    Power Consumption

    9W (without modems)

    20W (max.)

    28W (max.)

    Operating Temperature

    -14° – 149°F

    -10° – 65°C

    -40° – 149°F

    -40° – 65°C


    15% – 95% (non-condensing)


    FCC, CE, RoHS

    Yes Yes

    EN 61373:1999 IEC 61373:1999

    Shock and Vibration Resistance



    1-Year Limited Warranty


    1The frequency range for 802.11b/g/n Wi-Fi and 802.11ac/a/n Wi-Fi are 2412−2472 MHz and 5180−5825 MHz respectively.

    2 Recommendation for sizing purposes only. No software restrictions applied.

    3 Router Throughput is valid only for currently shipping devices running Firmware 7.0.1 or later. Router Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.

    * The MAX On-The-Go supports only one of 802.11b/g/n and 802.11a/n Wi-Fi at a time.

    # Feature is available only on MAX-OTG-U4-SF.

    + The MAX 700 comes with 2 PepVPN/SpeedFusion peers by default. With an optional add-on, it supports up to 20 peers.

    ^ Optional PoE Activation Kit is required to activate PoE Output.

    SoftwarePepwave MAX Firmware
    WAN CellularSupport for DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    Load BalancingIntelligent Failover
    Session Persistence
    Per-Service Load Distribution
    Multiple Algorithms
    Least Used
    Lowest Latency
    Fastest Response Time
    Complete VPN SolutionSpeedFusion VPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
    Site-to-Site VPN
    Bandwidth Aggregation
    Hot Failover
    256-bit AES Encryption
    Pre-shared Key Authentication
    Dynamic Routing
    X.509 Certificate Support
    PPTP VPN Server
    RADIUS, LDAP Authentication
    IPsec VPN (Network-to-Network) *
    X.509 Certificate Support

    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    WINS Server
    VRRP HA support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Advanced QoSUser Groups
    Bandwidth Reservation
    Individual Bandwidth Limit
    Application Prioritization
    By User Groups
    Custom Application QoS
    AP ControllerAP Controller Support
    Wi-Fi Usage Statistics
    Captive Portal SupportSupport for Wired and Wireless LAN Clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client and Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3
  • Product CodeDescription
    MAX-OTG-U4MAX-OTG-U4 Quad-USB 4G LTE/3G router. Supports PepVPN and quad-WAN load balancing & failover. Upgradable to MAX-OTG-SF with license key.
    MAX-OTG-U4-SFMAX-OTG-U4 Quad-USB 4G LTE/3G router. Supports PepVPN and quad-WAN load balancing & failover. Upgradable to MAX-OTG-SF with license key.
    • MAX On-The-Go
    • 12V2A Power Supply (ACW-601)
