SpeedFusion Relay
Features Specifications

Supercharge your home router
into an extra endpoint for your
SpeedFusion Network

Supercharge your home router into an extra endpoint for your SpeedFusion Network

Internet access
like you never left

The SF Relay allows you to access the Internet through your router even if you’re physically away from it.

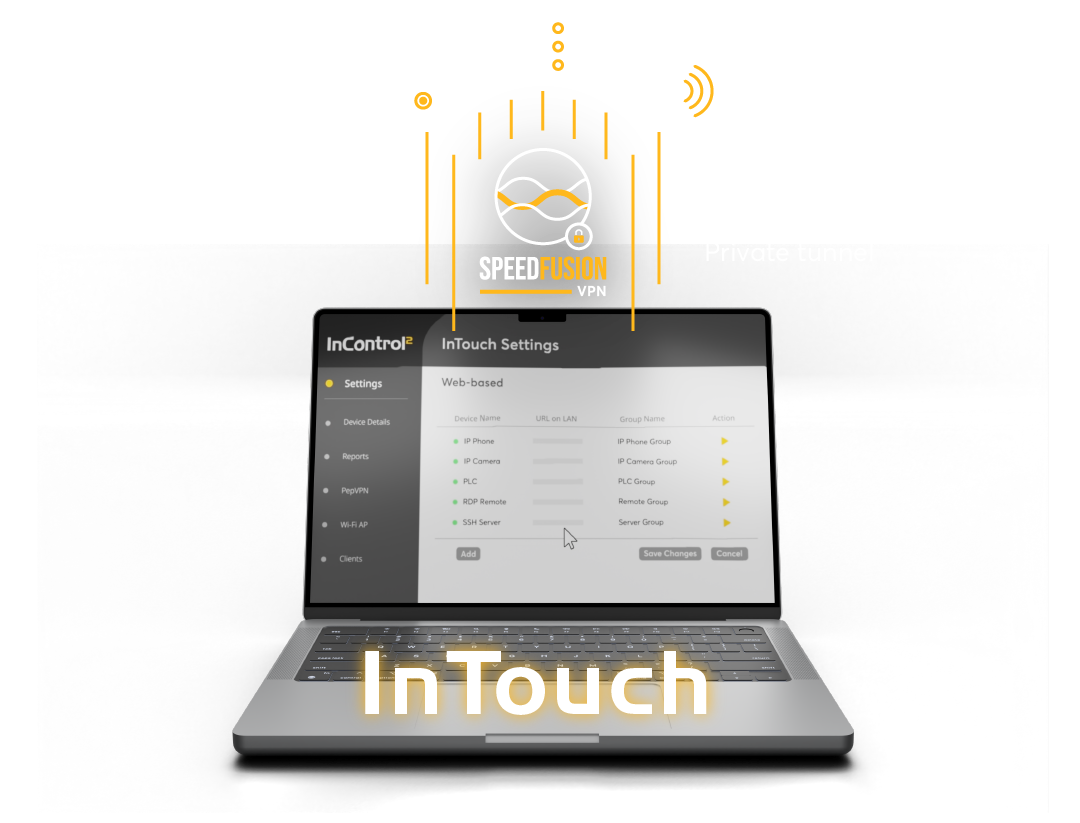

Access devices in your network through a private tunnel

With InTouch, users can access all services and applications hosted on devices within a network from outside the network.

Flexible remote support

For service providers, plug in the SF Relay to your customers’ device and have tech support access their router without leaving the office.

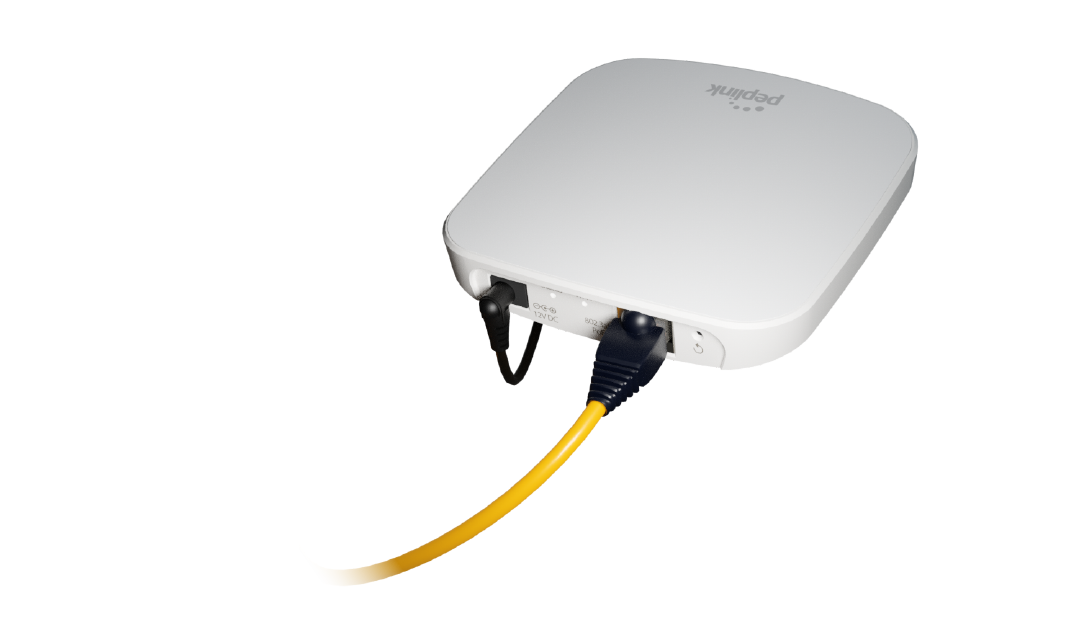

Plug and Play

Installation is straightforward and simple. Plug in the SF Relay to your router and voilà, a new addition to your SpeedFusion network.

Ports and Connections

  •
    Product CodeSFC-RLY
    Speedfusion VPN
    throughput (No Encryption)    		100 Mbps
    Speedfusion VPN
    throughput (256-bit AES)    		60 Mbps
    EnclosurePlenum-rated, Indoor Plastic
    Power Input12V DC Connector
    802.3af PoE
    Power Consumption12 W (max)
    Dimension3.9 x 3.9 x 0.8 inches
    98 x 98 x 19.7 mm
    Weight0.33 pounds / 150 grams
    Operating Temperature23°– 113°F / -5°– 45°C
    Humidity15% – 95% (non-condensing)
    Warranty1 Year Limited Warranty



  • Product CodeDescription
    SFC-RLYSpeedFusion Relay

  •

    Product Code

    Description

    ACW-107

    802.3af/at PoE Injector

  • SpeedFusion Relay

    • SpeedFusion Relay
    • 1x 12V2A Power Supply (ACW-601)
    • 1x Mounting Bracket

  • SF Relay Datasheet
    User Manual
