Balance Your Fixed Network with 5G Wireless WAN
With SpeedFusion Cloud you can utilize traffic steering. A technology whereby connections are controlled based on the application, limiting data wastage and traffic.
Enjoy Speed and Reliability without Having to Compromise

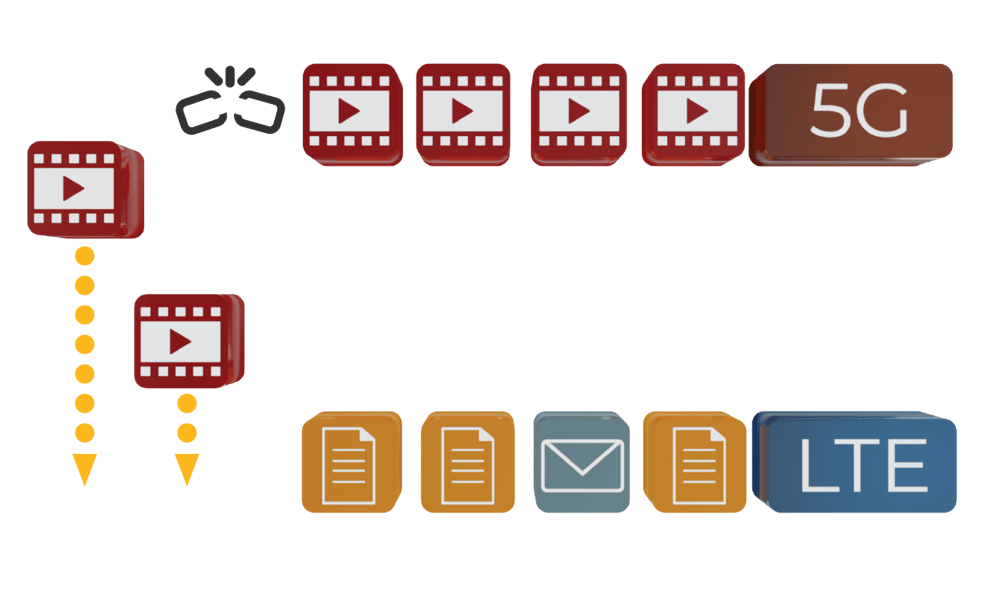

Multi-radio combined with our SpeedFusion Hot Failover technology allows connections of 5G and LTE networks to work simultaneously.
Control Anytime Anywhere
Remote Central Management with private controller or cloud management.
-
WAN Support for PPPoE, Static IP, DHCP
WAN Link Health Check
-PING
-IPv6 Support
-DNS Lookup
-HTTP
Bandwidth Allowance Monitor
USB 4G/3G Modem Support
Intelligent Failover
Support for Dynamic DNS services
-changeip.com
-dyndns.org
-no-ip.org
-tzo.com
-DNS-O-MaticLAN DHCP Server for LAN Clients
Extended DHCP Option
DHCP Reservation
DNS Proxy for LAN Clients
VLAN on LAN Support
Load Balancing Intelligent Failover
Session Persistence
Per-Service Load Distribution
Multiple Algorithms
-Weighted
-Enforced
-Persistence
-Priority
-Overflow
-Least Used
-Lowest Latency
-Fastest Response Time
Security DoS Prevention
Stateful Firewall
Web Blocking
Web Filtering Blacklist
Complete VPN Solution SpeedFusion VPN
Site-to-Site VPN
-Bandwidth Bonding
-Hot Failover
-256-bit AES Encryption
-Pre-shared Key Authentication
-Dynamic Routing
PPTP/L2TP/OpenVPN Server
-Local User Active Directory Authentication
IPsec VPN (Network-to-Network)
-X.509 Certificate Support
GRE Tunnel (Network-to-Network)Advanced QoS User Groups
-Bandwidth Reservation
-Individual Bandwidth Limit
Application Prioritization
-By User Groups
-SIP, HTTPS, VPN QoS
-Custom Application QoS
Networking NAT and IP Forwarding
Static Routes
Port Forwarding
Many to One, One to One NAT
NAT Pool
SIP ALG, H.323 ALG
UPnP, NAT-PMP
WINS Server
VRRP HA Support
BGP, OSPFv2 and RIPv2 SupportAP Controller Support for Pepwave AP Series
Auto AP Discovery
Auto AP Firmware Management
AP Profile Configuration
Wi-Fi Usage Statistics
Captive Portal Support for Wired and Wireless LAN Clients
Support RADIUS Authentication
Support LDAP Authentication
Time and Usage Quotas on Open Access Mode
Built-in Customizable Splash Page
DNS Built-in Authoritative DNS
Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT records
Device Management Web Administrative Interface
Command Line Interface
InControl Cloud Management
Email Notification
Active Client & Session Lists
Bandwidth Usage Statistics
Syslog Service
SNMP v1, v2c and v3
-
Product Code Embedded Modems Region 5G Bands LTE Bands BPL-310-5GD-D-T-PRM 1x 5G
1x LTE CAT-12Global Cellular 1:
5G (NSA) Sub 6Ghz:
n1, n2, n3, n5, n7, n8, n12, n20, n28,
n38, n41, n66, n71, n77, n78, n79Cellular 1:
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17,
B18, B19, B20, B25, B26, B28, B29, B30, B32,
B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
Cellular 2:
B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B17,
B18, B19, B20, B21, B25, B26, B28, B29, B30, B32,
B38, B39, B40, B41, B66BPL-310-5GD-K-T-PRM 1x 5G
1x LTE CAT-12Global Cellular 1:
5G (NSA) Sub 6Ghz:
n1, n2, n3, n5, n7, n8, n12, n20, n28,
n38, n41, n66, n71, n77, n78, n79Cellular 1:
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17,
B18, B19, B20, B25, B26, B28, B29, B30, B32,
B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
Cellular 2:
B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18,
B19, B20, B26, B28, B29, B30, B32, B41, B42,
B43, B46, B48, B66BPL-310-5GD-R-T-PRM 1x 5G
1x LTE CAT-12Global
(North America^)Cellular 1:
5G (NSA) Sub 6Ghz:
n1, n2, n3, n5, n7, n8, n12, n20, n28,
n38, n41, n66, n71, n77, n78, n79Cellular 1:
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17,
B18, B19, B20, B25, B26, B28, B29, B30, B32,
B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
Cellular 2:
B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14,
B18, B19, B20, B26, B29, B30, B32, B41, B42,
B43, B46, B48, B66BPL-310-5GH-K-T-PRM 1x 5G
1x LTE CAT-12Global
(Australia)Cellular 1:
5G (NSA) Sub 6Ghz:
n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79Cellular 1:
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17,
B18, B19, B20, B25, B26, B28, B29, B30, B32,
B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
Cellular 2:
B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18,
B19, B20, B26, B28, B29, B30, B32, B41, B42,
B43, B46, B48, B66BPL-310-5GH-R-T-PRM 1x 5G
1x LTE CAT-12
Global
(North America*)Cellular 1:
5G (NSA) Sub 6Ghz:
n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79Cellular 1:
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17,
B18, B19, B20, B25, B26, B28, B29, B30, B32,
B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
Cellular 2:
B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14,
B18, B19, B20, B26, B29, B30, B32, B41, B42,
B43, B46, B48, B66
^ US Carrier Certification: AT&T, T-Mobile
* US Carrier Certification: AT&T, T-Mobile, Verizon. -
Product Code Product Name Description LIC-VWAN Virtual WAN Activation License Activate 1x Virtual WAN on Balance 310 5G* LIC-2VWAN Virtual WAN Activation License Activate 2x Virtual WAN on Balance 310 5G* LIC-3VWAN Virtual WAN Activation License Activate 3x Virtual WAN on Balance 310 5G* PRM-E-1Y PrimeCare E (1-Year) 1-Year PrimeCare PRM-E-2Y PrimeCare E (2-Year) 2-Year PrimeCare PRM-E-4Y PrimeCare E (4-Year) 4-Year PrimeCare PCP-E-1Y PrimeCare+ E (1-Year) 1-Year PrimeCare PCP-E-2Y PrimeCare+ E (2-Year) 2-Year PrimeCare PCP-E-4Y PrimeCare+ E (4-Year) 4-Year PrimeCare ACW-782 Rack Mount for Balance 310 5G / Balance 310 Fiber 5G Rack Mount for Balance 310 5G & Balance 310 Fiber 5G with screws * Learn more about Virtual WAN Activation License here.
-
- Balance 310 5G
- 1x of 12V5A PSU (ACW-655)
- 1x Power Cord (ACW-614)
- 6x LTE/5G Antennas (ACW-235)
- Rubber Foot Pad Set
-
- Do you have any suggestions for a 10G SFP transceiver?
Learn more about the recommended SFP transceiver at this post
- Do you have any suggestions for a 10G SFP transceiver?
