BR1 Mini M2M

Reliability in a small package

Engineered toward Industrial Devices

Featuring an RS-232/RS-485 serial port, the BR1 Mini M2M is your best solution to bring connectivity to versatile industrial equipment and IoT device.

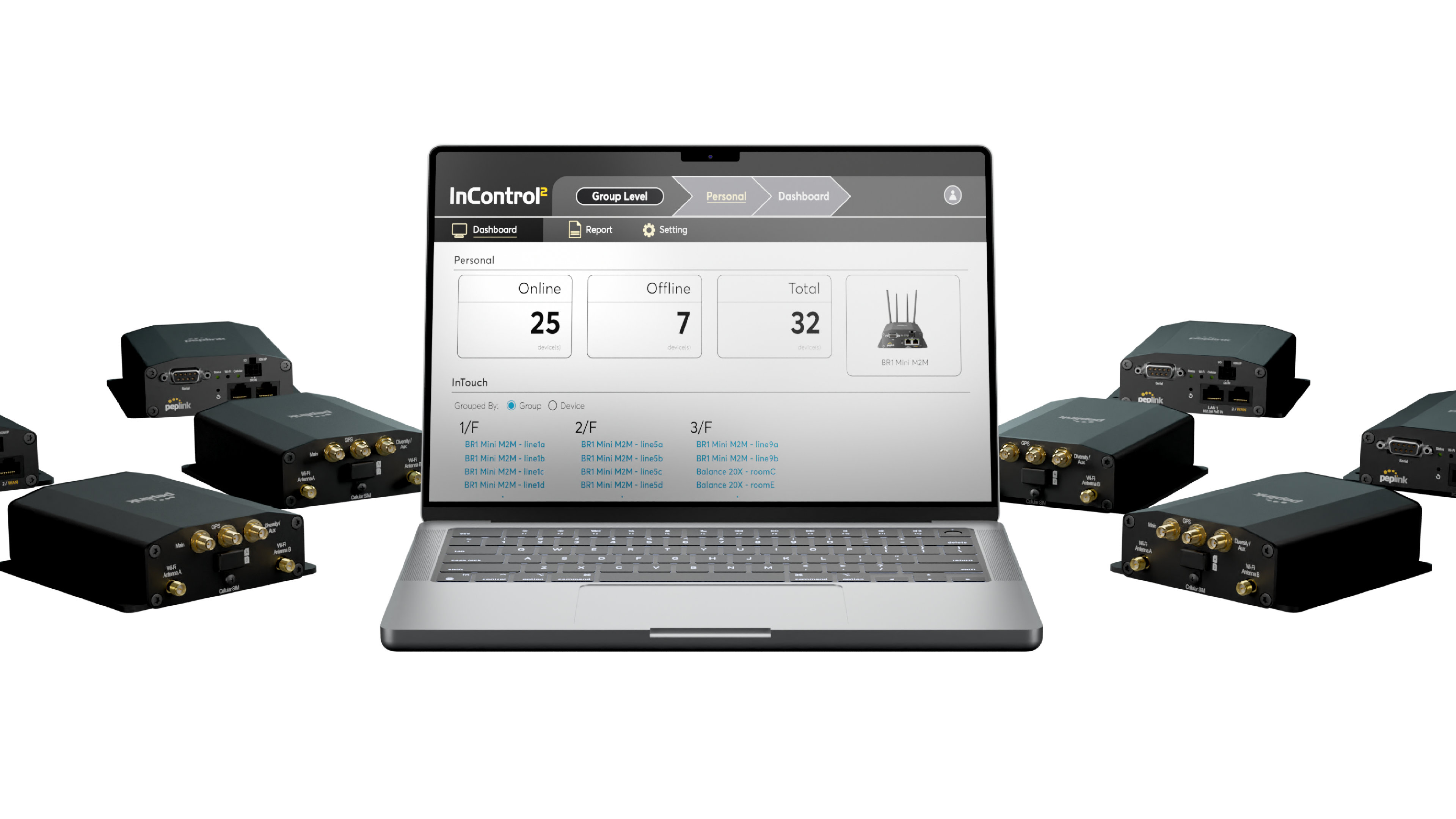

Our advanced InTouch technology allows for secure remote monitoring and management of your linked industrial device through a single cloud platform.

Flexibility in Power and Ports

Power the device with PoE, Micro-Fit or our 4-pin to USB-C power cable allowing for flexible installations and portable deployments.

Don’t limit yourself to a single device. The BR1 Mini M2M supports dual serial port Y-cables for even more efficiency.


Instant Connectivity

Gone are the days of agonizing over which cellular service to choose or needing to manage physical SIM cards. Experience instant cellular connectivity with a subscription to our eSIM-based SFC 5G/LTE data plans. Leave the troubles to us while you concentrate on what truly matters.


Improved Dual-band Wi-Fi

Deploy more devices in the same location with no worry of network congestion. Have the option to collect data from your IoT machines from afar, helping admins save time and stay safe.

br1_mini_m2m_ruggedized_main br1_mini_m2m_ruggedized_main

Ruggedized and Reliable

The BR1 Mini M2M is built for maintaining a stable connection while withstanding tough environments, such as factories, power plants and outdoor deployments.

*Certification pending.

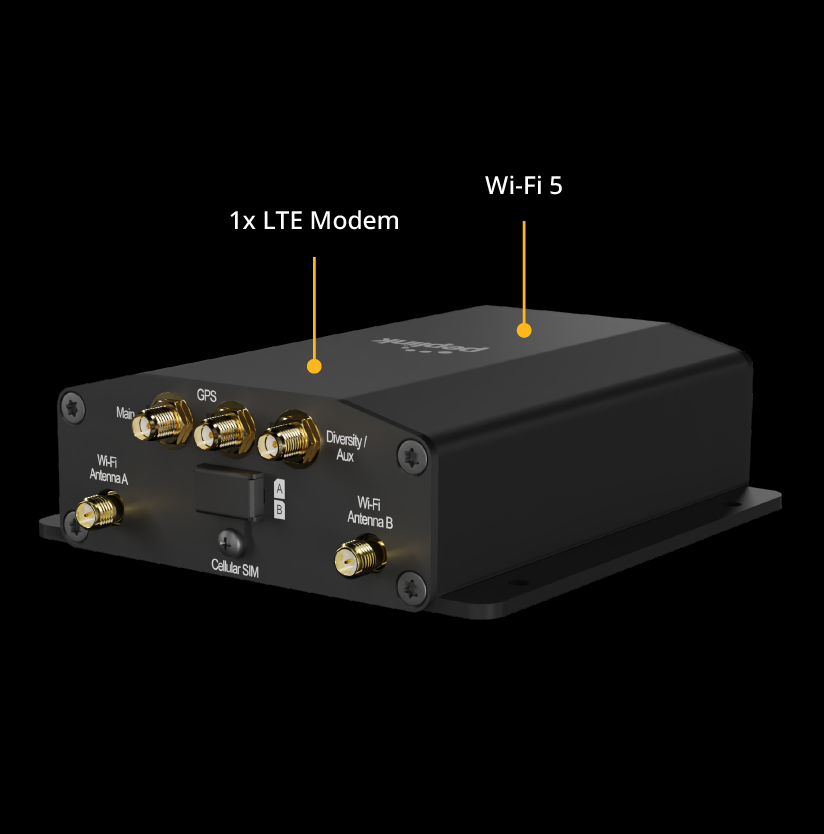

Ports and Connections

br1_mini_m2m_ports_and_connections_front br1_mini_m2m_ports_and_connections_back


br1_mini_m2m_photos_01 br1_mini_m2m_photos_02 br1_mini_m2m_photos_03 br1_mini_m2m_photos_04 br1_mini_m2m_photos_05 br1_mini_m2m_photos_06
    SoftwarePepwave MAX Firmware
    WANSupport for PPPoE, Static IP, DHCP
    WAN Link Health Check
    Bandwidth Allowance Monitor
    Support for Dynamic DNS services
    WAN Port Convertible into LAN Port

    LANDHCP Server for LAN Clients
    Extended DHCP Option
    DHCP Reservation
    DNS Proxy for LAN Clients
    VLAN on LAN Support
    SecurityStateful Firewall
    DoS Prevention
    Web Blocking
    Complete VPN SolutionSpeedFusion VPN/SpeedFusion
    -Hot Failover
    -Site-to-Site VPN
    -Hot Failover
    -256-bit AES Encryption
    -Pre-shared Key Authentication
    IPsec VPN (Network-to-Network)^
    Advanced QoS Individual Bandwidth Limit
    Application Prioritization
    -Custom Application QoS
    NetworkingNAT and IP Forwarding
    Static Routes
    Port Forwarding
    Many to One, One to One NAT
    NAT Pool
    SIP ALG, H.323 ALG
    Captive PortalSupport for Wired and Wireless LAN clients
    Support RADIUS Authentication
    Time and Usage Quotas on Open Access Mode
    Built-in Customizable Splash Page
    Device ManagementWeb Administrative Interface
    Command Line Interface
    InControl Cloud Management
    Email Notification
    Active Client & Session Lists
    Bandwidth Usage Statistics
    Syslog Service
    SNMP v1, v2c and v3

    ^   IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

  • Product CodeRegion | CarrierEmbedded Modem 4G Bands3G Bands
    North America*
    1 x CAT 4B2, B4, B5, B12, B13, B14, B66, B71WCDMA/HSPA+/DC-HSPA+:
    B2, B5
    APAC, EMEA1 x CAT 4B1, B3, B5, B7, B8, B20, B38, B40, B41WCDMA/HSPA+/DC-HSPA+:
    B1, B5, B8
    MAX-BR1-MINI-M2M-LTE-MX-T-PRMAPAC, Latin America,
    Malaysia, Indonesia
    1 x CAT 4B1, B2, B3, B4, B5, B7, B8, B28, B40WCDMA/HSPA+/DC-HSPA+:
    B1, B2, B5, B8

    *US Carrier Certifications: AT&T, T-Mobile, Verizon, FirstNet


    Product Code Product Name
    PRM-A-1Y / PCP-A-1Y PrimeCare A / PrimeCare+ A (1-Year)
    PRM-A-2Y / PCP-A-2Y PrimeCare A / PrimeCare+ A (2-Year)
    PRM-A-4Y / PCP-A-4Y PrimeCare A / PrimeCare+ A (4-Year)
    MAX-BR1-MINI-LC-FP Feature pack for BR1 Mini M2M enables Ethernet WAN, Wi-Fi WAN, Hot Failover, Smoothing and
    Bandwidth Bonding
    ANT-MB-22G-S-B-6 5-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (Black)
    ANT-MB-22G-S-W-6 5-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White)
    ACW-634 10ft DC Power Cable
    ACW-790 Dual Serial Y-Cable
    ACW-791 4-Pin Micro-fit Connector to USB-C Power Cable
    ACW-DIN-BR1-MINI DIN Rail mount kit


    • 1x BR1 Mini M2M
    • 2x LTE Antennas (ACW-235)
    • 2x Dual Band Wi-Fi Antennas (ACW-342)
    • 1x GPS Active Antenna (ACW-232)
    • 1x 12V 2A 4pin Power Supply (ACW-632)
